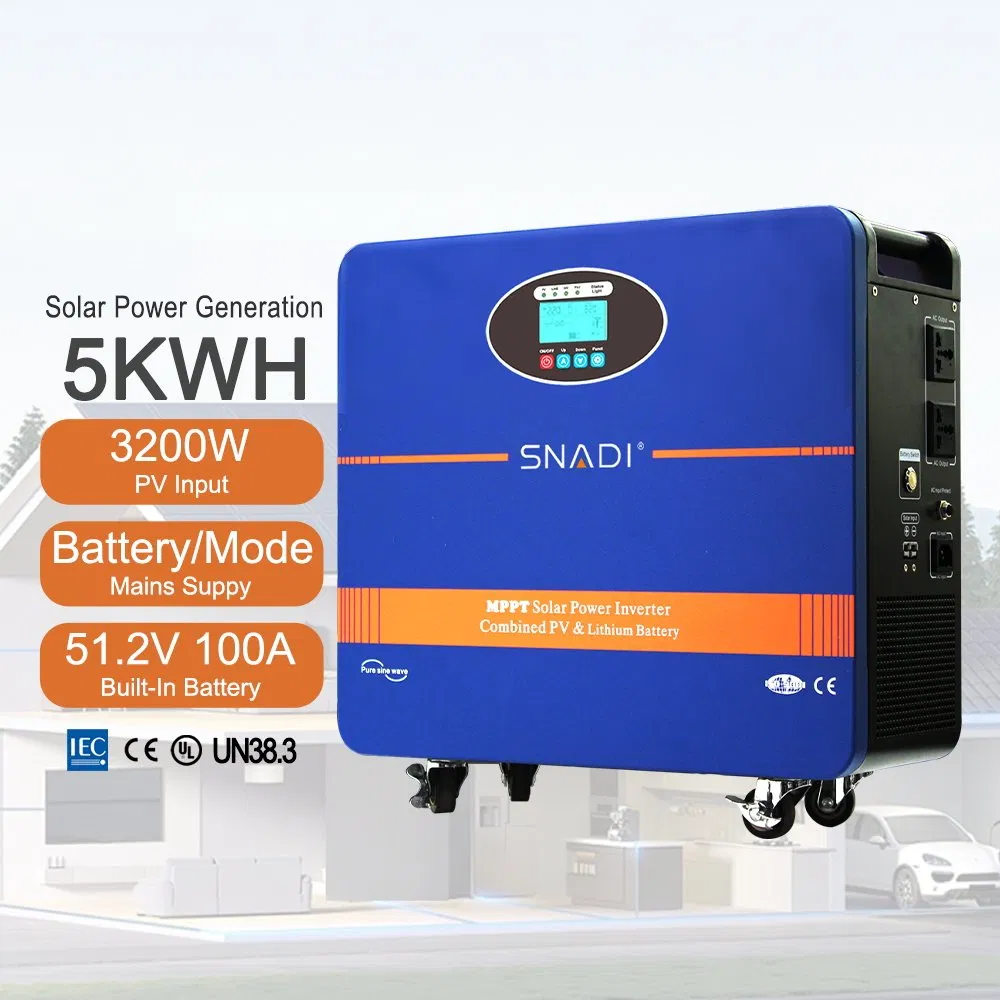

Power station 1KW 3KW 5KW solar portable generator panels energy system lithium battery bank

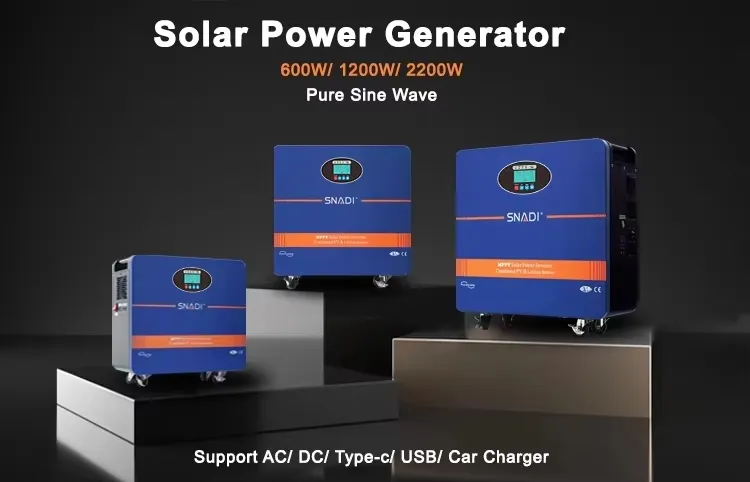

ALS Solar AC DC Power System (600W / 1200W / 2200W)

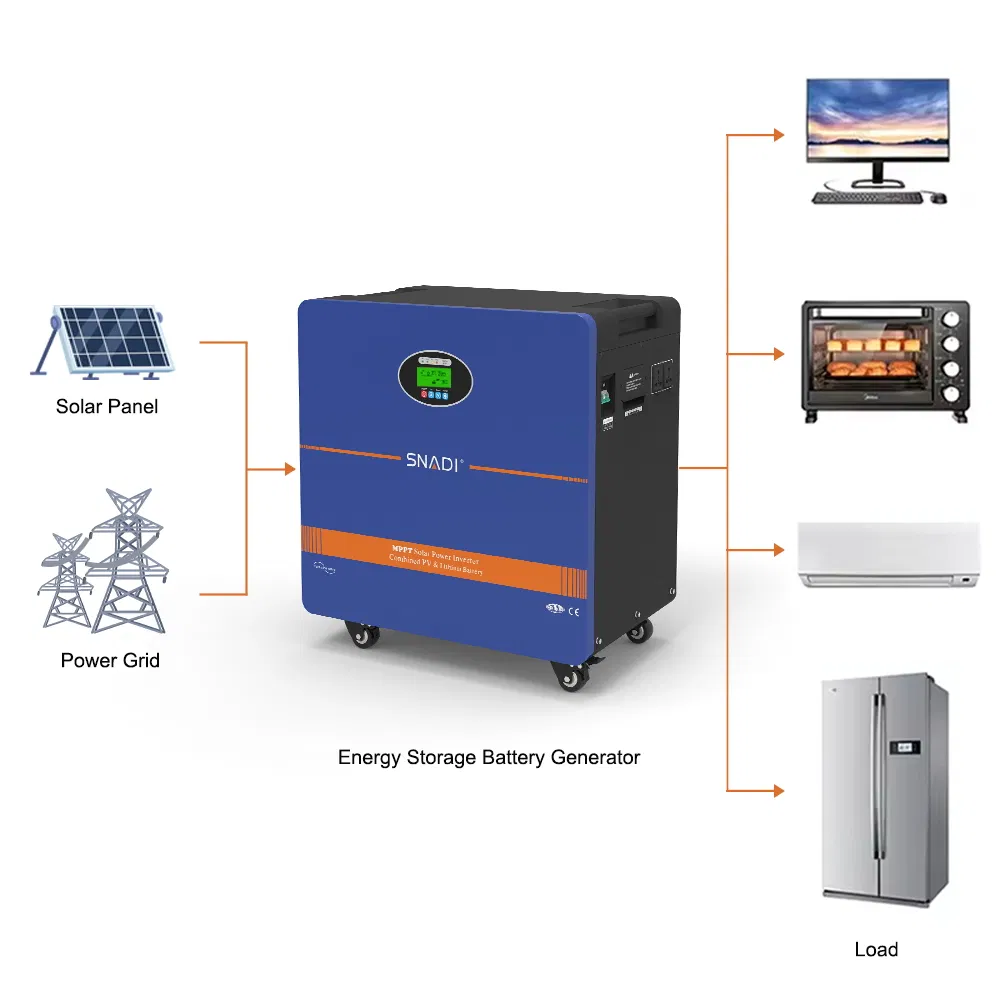

The ALS Solar AC DC Power System is an all-in-one solution composed of an inverter, solar charge controller, and built-in battery. Designed for portability and space-saving, it supports both DC and AC power outputs.
📍 Three Working Modes: Mains preferred mode, Energy-saving mode, and Battery preferred mode.
📍 AVR Function: Keeps output voltage stable even when input voltage fluctuates.
📍 Smart Charging: PWM charge mode with three-stage management to extend battery life.
📍 Safety: Built-in overload and short circuit protection with intelligent exhaust fan control.

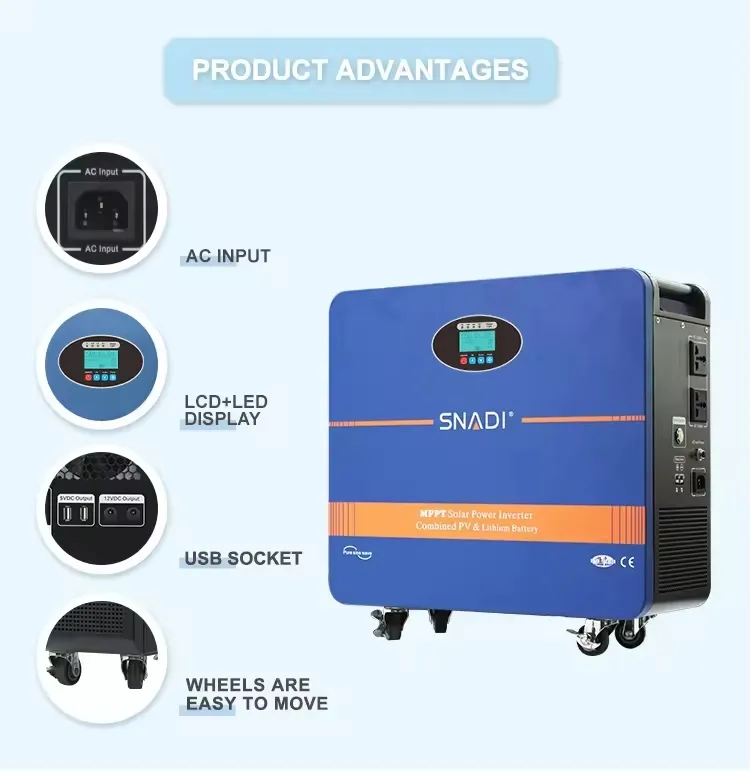

Equipment View & Interface
| 1. Inverter LCD display / operation interface |
8. Fan |
| 2. Solar input state indicator |
9. AC Output (Max. 10A) |
| 3. Battery mode indicator |
10. AC Charging Switch |
| 4. 5VDC-USB, 12VDC output indicator |
11. AC Input |
| 5. 5VDC-USB, 12VDC output ON/OFF switch |
12. Battery Switch |
| 6. 12VDC Output terminal |
13. Battery Extension |
| 7. 5VDC Output: 5VDC-USB terminal |
14. Solar module input terminals |
|
15. Heat dissipation window |
Utilizing MPPT/PWM charging efficiency to ensure the battery works in the best state and greatly extends service life.
Quick Operation Guide
Step 1: Connect the solar panel to the interface correctly. Connect external battery (optional) and AC Input.
Step 2: Connect your loads (lights/appliances) into the output ports correctly.
Step 3: Turn on the "Battery Switch", "AC Charging Switch", and "DC Output Switch".
💡 Tip: If not used for a long time without solar panels, please turn off the Battery switch.
Frequently Asked Questions
What are the available power capacities for the ALS series?
The system is available in 600W, 1200W, and 2200W versions to meet different power needs.
Does this system support both AC and DC output?
Yes, it is designed to output both DC power (via USB and 12V terminals) and AC power for standard appliances.
What is the advantage of the built-in AVR function?
The Automatic Voltage Regulator (AVR) ensures that the output voltage remains stable even if the input voltage from the grid or panels fluctuates.
Can I extend the battery capacity of the unit?
Yes, the unit features a "Battery Extension" terminal allowing you to connect external batteries for longer backup time.
What protection features are included?
The system includes automatic protection for AC output overload, short circuits, and intelligent temperature control via an exhaust fan.
How do I monitor the system status?
The unit is equipped with a digital LCD and LED indicators that provide real-time visualization of the equipment's operation status.
