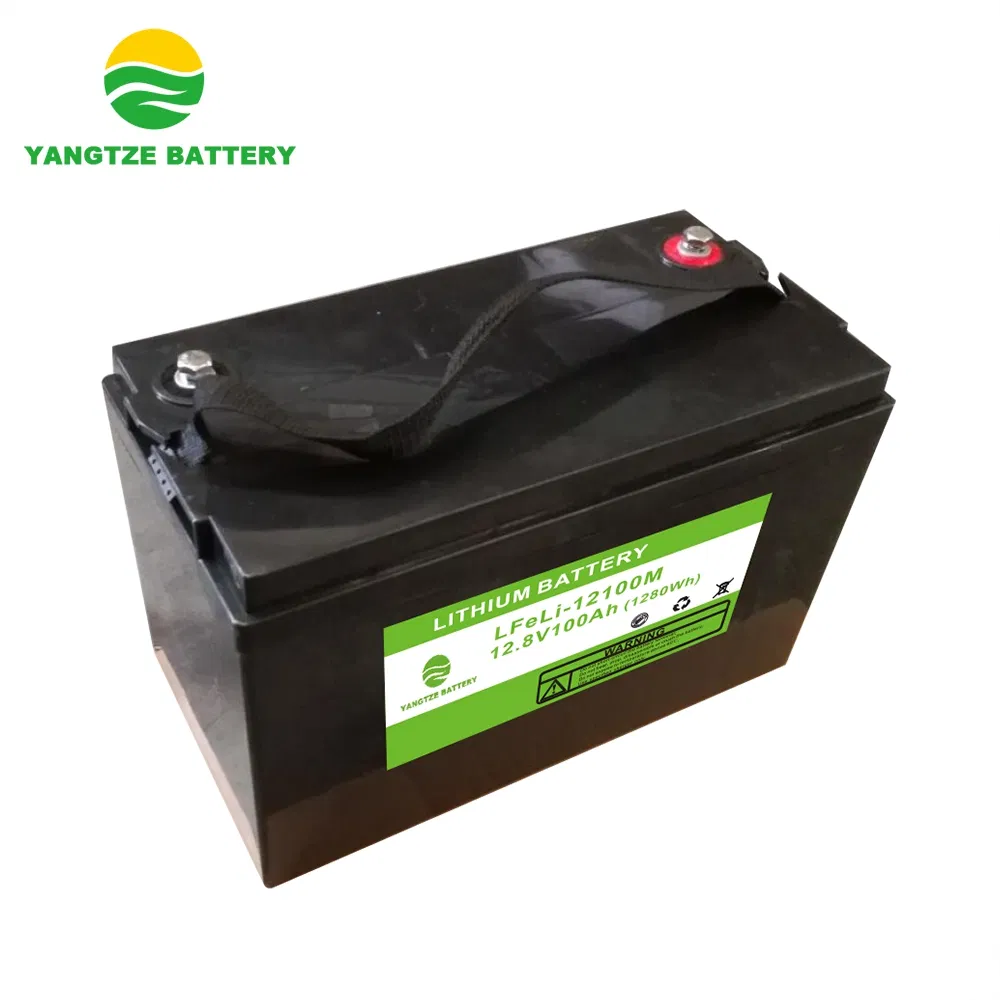

Top Sale Lithium Ion Car Battery Cell 12V 100ah

1 / 5

Top Sale Lithium Ion Car Battery Cell 12V 100ah

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

Lfeli-12100M

Nominal Voltage

12V

Discharge Rate

High Discharge Rate

Electrolyte

Li-ion

Nominal Capacity

100ah

Cycle Life

8000 Times

Warranty

5 Years

Weight

13.60kg (29.98lbs)

Certificate

CE/RoHS/UL/MSDS/UN38.3

Dimensions

342mm*173mm*220mm

Case Material

ABS / IP65

Origin

China

Key Features

✔

Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.

✔

Lighter Weight: About 40% of the weight of a comparable lead acid battery. A "drop in" replacement for lead acid batteries.

✔

Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintaining high energy capacity.

✔

Wider Temperature Range: -20ºC ~ 60ºC.

✔

Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation.

Main Applications

◈ Wheelchairs and scooters

◈ Solar/wind energy storage

◈ Back-up power for small UPS

◈ Golf trolleys & buggies

◈ Electric bikes

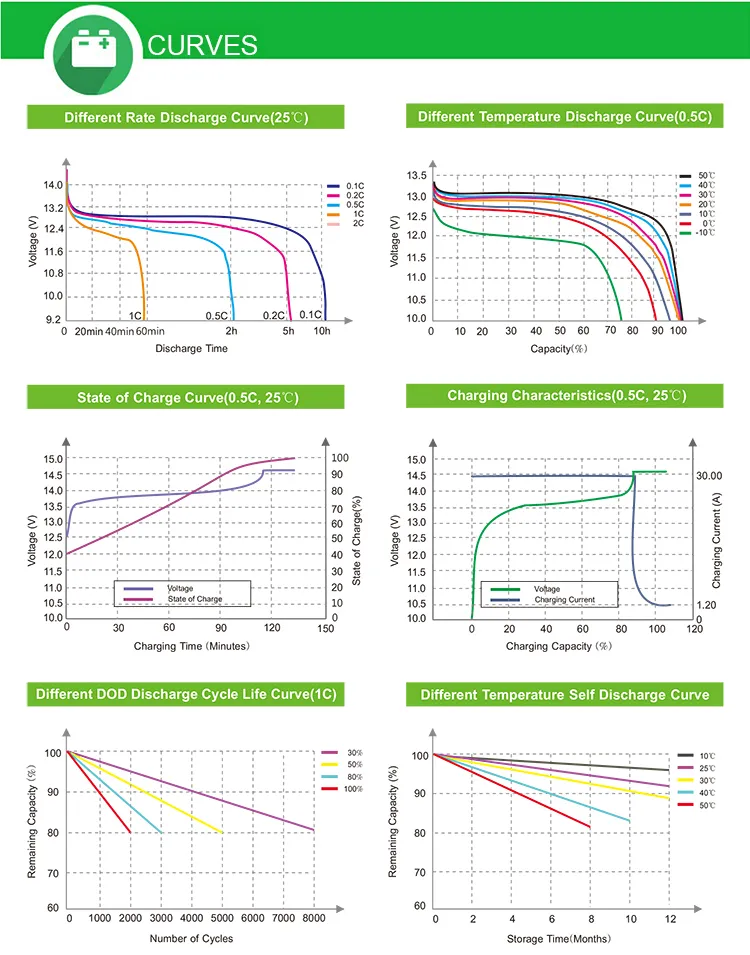

Technical Parameters

Electrical Characteristics	Nominal Voltage	12.8V
	Nominal Capacity	100Ah
	Energy	1280Wh
	Internal Resistance(AC)	≤20mΩ
	Cycle Life	>2000 cycles @ 1C 100% DOD
	Self Discharge	<3% per month
	Efficiency of Charge	100% @0.5C
	Efficiency of Discharge	96~99% @1C
Standard Charge	Charge Voltage	14.6±0.2V
	Charge Mode	0.2C to 14.6V, then 14.6V (CC/CV)
	Charge Current	50A
	Max. Charge Current	100A
	Charge Cut-off Voltage	15.6±0.2V
Standard Discharge	Continuous Current	100A
	Max.Pulse Current	120A (<3s)
	Discharge Cut-off Voltage	8V
Environmental	Charge Temp	0ºC to 55ºC
	Discharge Temp	-20ºC to 60ºC
	Storage Temp	-20ºC to 45ºC
	IP Class	IP65

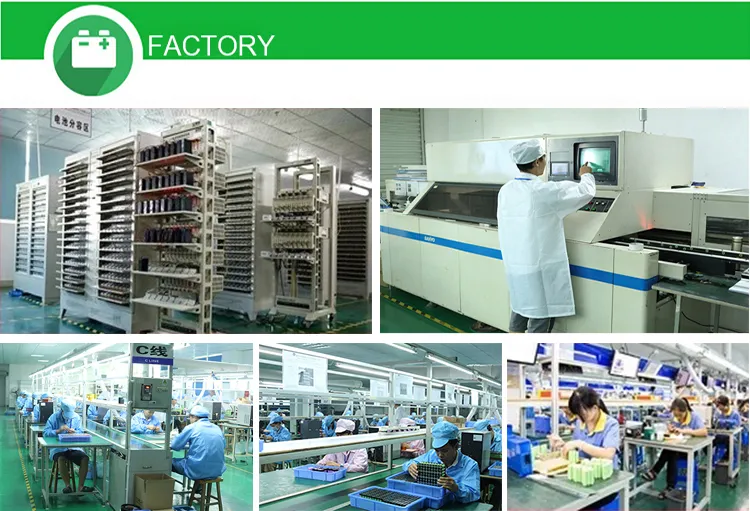

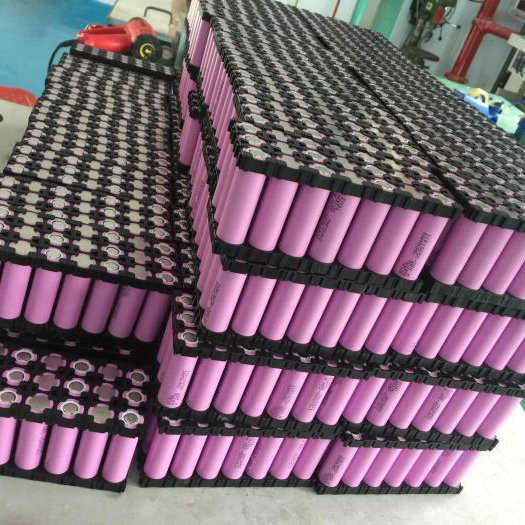

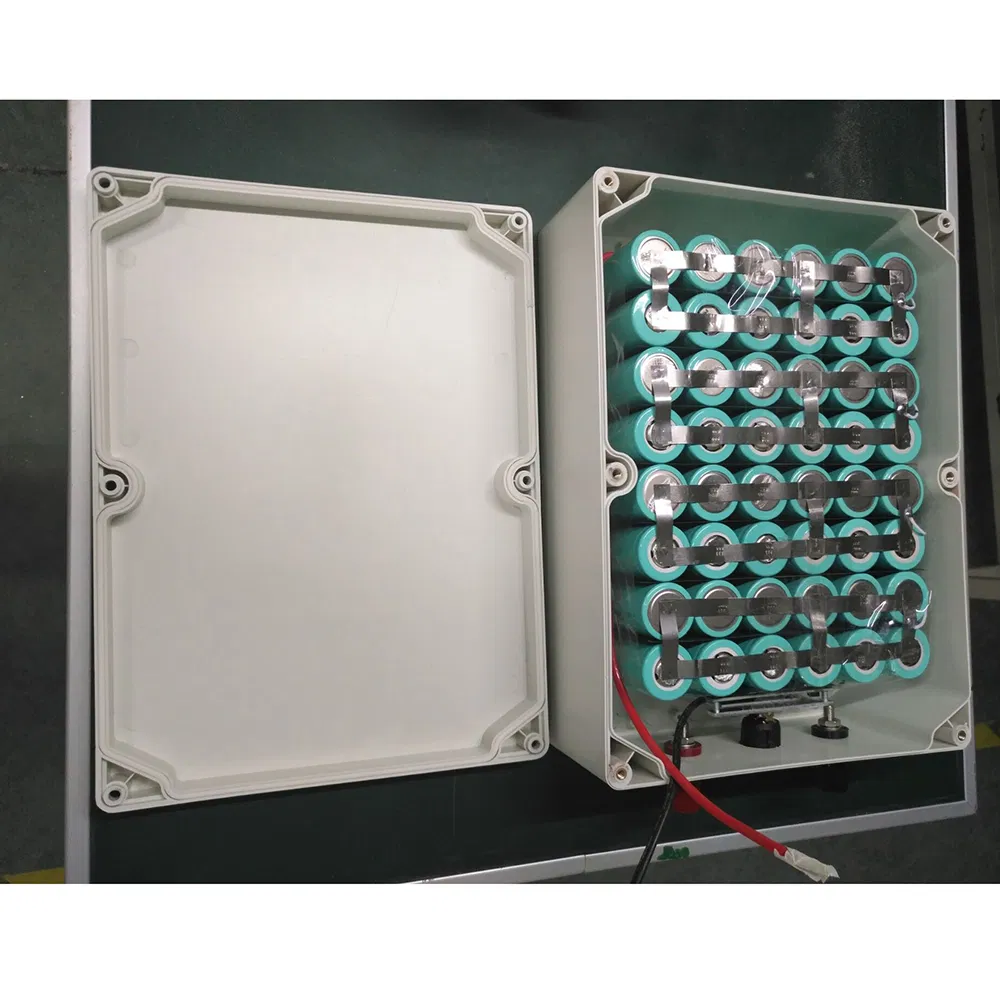

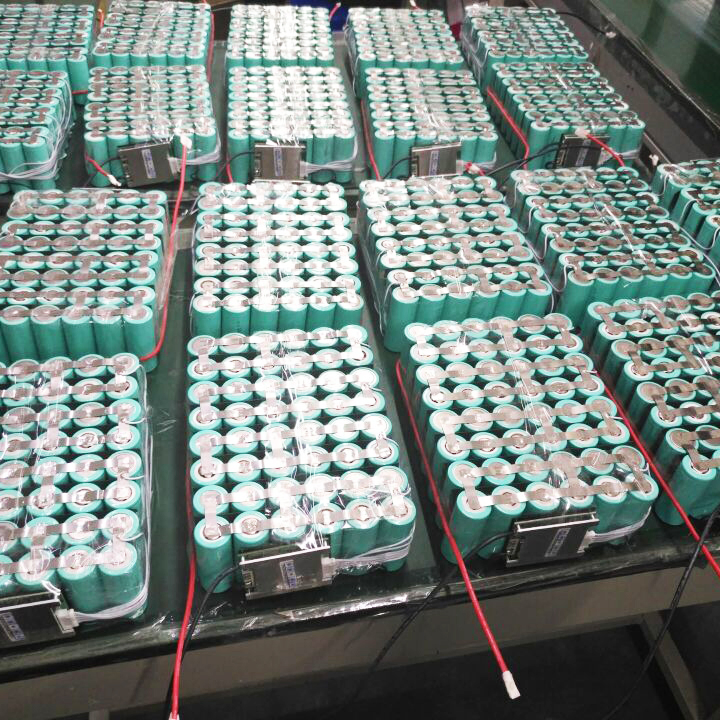

Product Display & Manufacturing

Frequently Asked Questions

1. What is the expected cycle life of this 12V 100Ah Lithium battery? This battery offers an exceptional cycle life of up to 8000 times under standard conditions, significantly outperforming traditional lead-acid alternatives.

2. Can I use this battery to replace my existing lead-acid battery directly? Yes, it is designed as a "drop-in" replacement. It is approximately 40% of the weight of a comparable lead-acid battery, making installation much easier.

3. What safety protections does the battery include? The battery uses Lithium Iron Phosphate chemistry and is equipped with a PCM/PCB (Battery Protection Circuit) to prevent overcharging, short circuits, and high-impact risks.

4. What is the operating temperature range for this battery? The battery supports a wide discharge temperature range from -20ºC to 60ºC, making it suitable for various environmental conditions.

5. Is the battery case waterproof? The battery features an ABS plastic case with an IP65 rating, providing excellent protection against dust and low-pressure water jets.

6. What is the warranty period for this product? This lithium battery comes with a 5-year warranty, ensuring long-term reliability and peace of mind for your investment.
