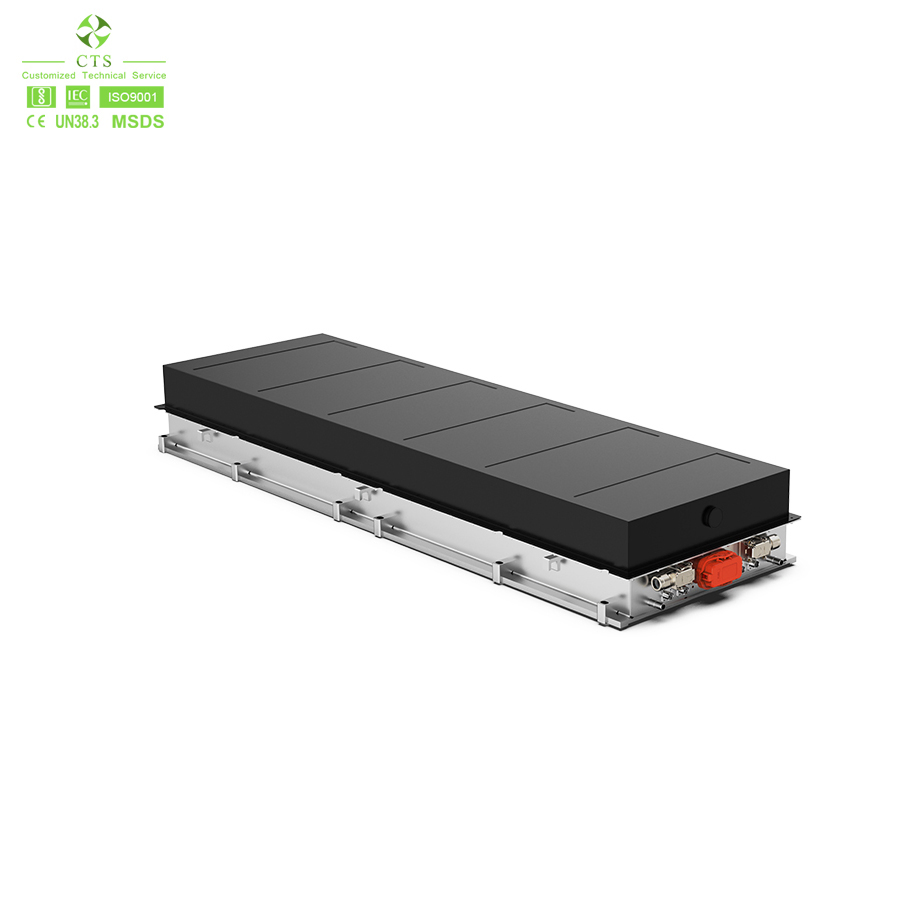

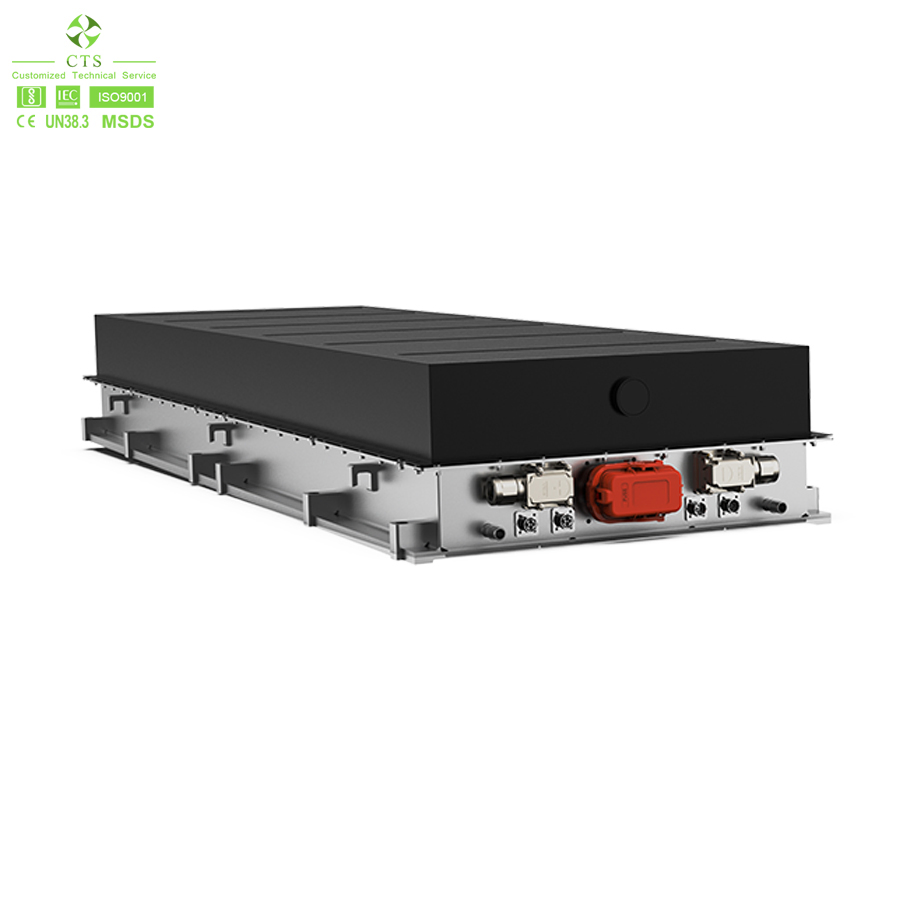

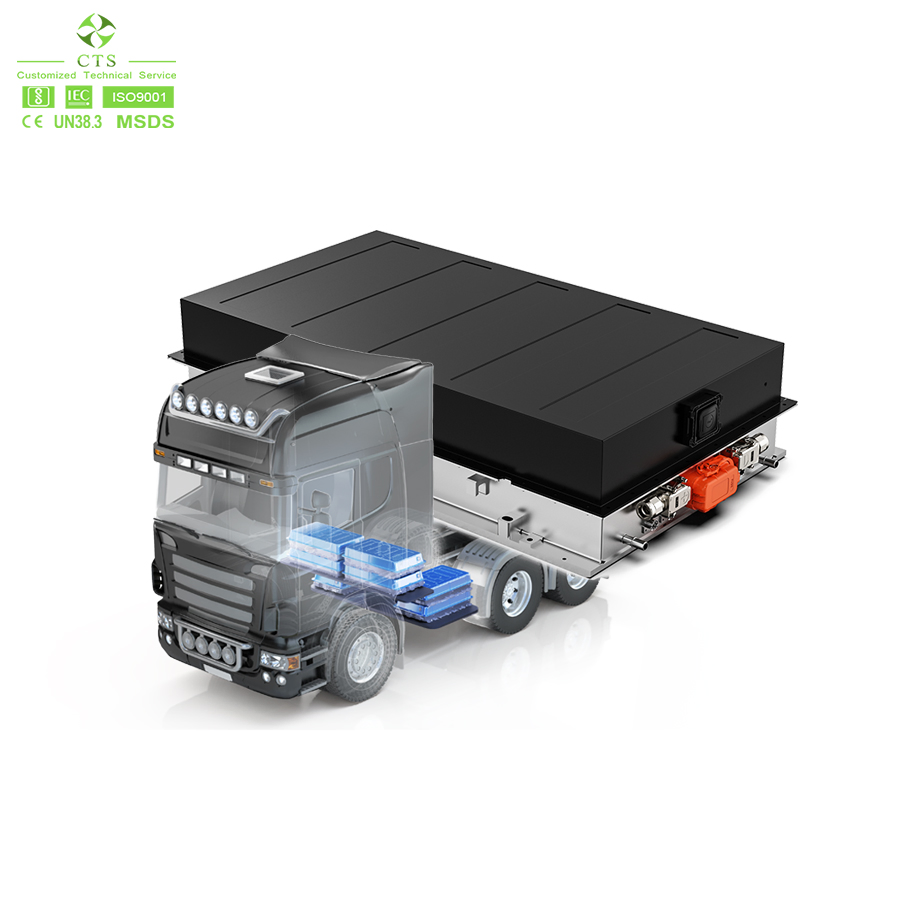

High-performance modular lithium battery solutions ranging from 105Ah to 912Ah, specifically designed for Electric Buses, Heavy Trucks, and Marine applications. Supporting systems up to 600kWh.
| Specification | C1 | C2 | C3 | C4 |
|---|---|---|---|---|
| Battery Cell | 3.2V 206Ah | 3.2V 230Ah | 3.2V 280Ah | 3.2V 304Ah |
| Array | 1P48S | 1P48S | 1P36S | 1P36S |
| Energy | 31.64kWh | 35.32kWh | 32.25kWh | 35.02kWh |
| Max Configuration | 3P5S | 3P5S | 3P8S | 3P8S |
| Working Temp | -35 ºC - 65 ºC | |||
| Specification | H1 | H2 | H3 | H4 |
|---|---|---|---|---|
| Battery Cell | 3.2V 230Ah | 3.2V 304Ah | 3.2V 230Ah | 3.2V 304Ah |
| Battery Module | 307.2V 230Ah | 230.4V 304Ah | 268.8V 230Ah | 201.6V 304Ah |
| Energy | 70.65kWh | 70.04kWh | 61.82kWh | 81.28kWh |
| Dimensions | 2050*630*240mm | 1850*630*240mm | ||

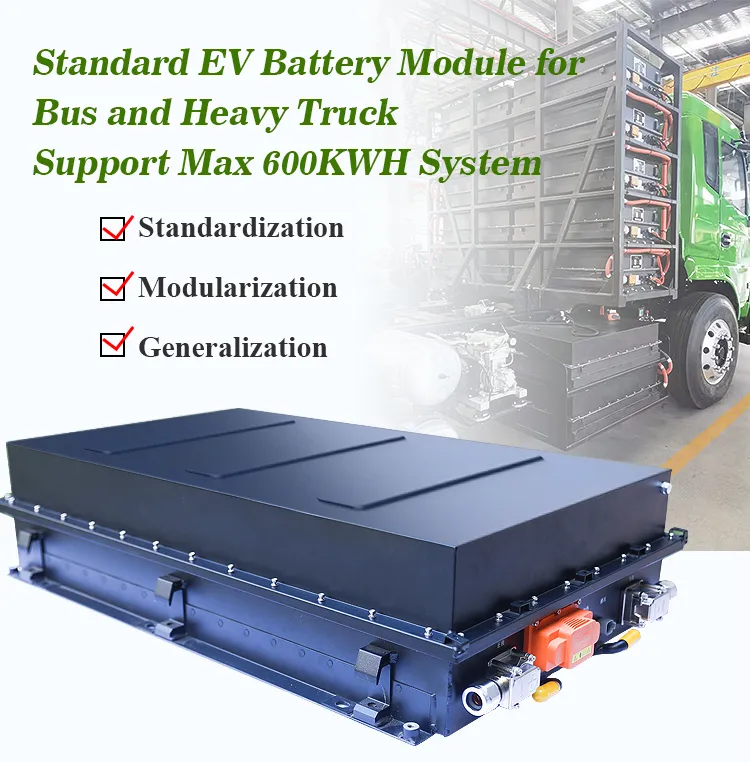

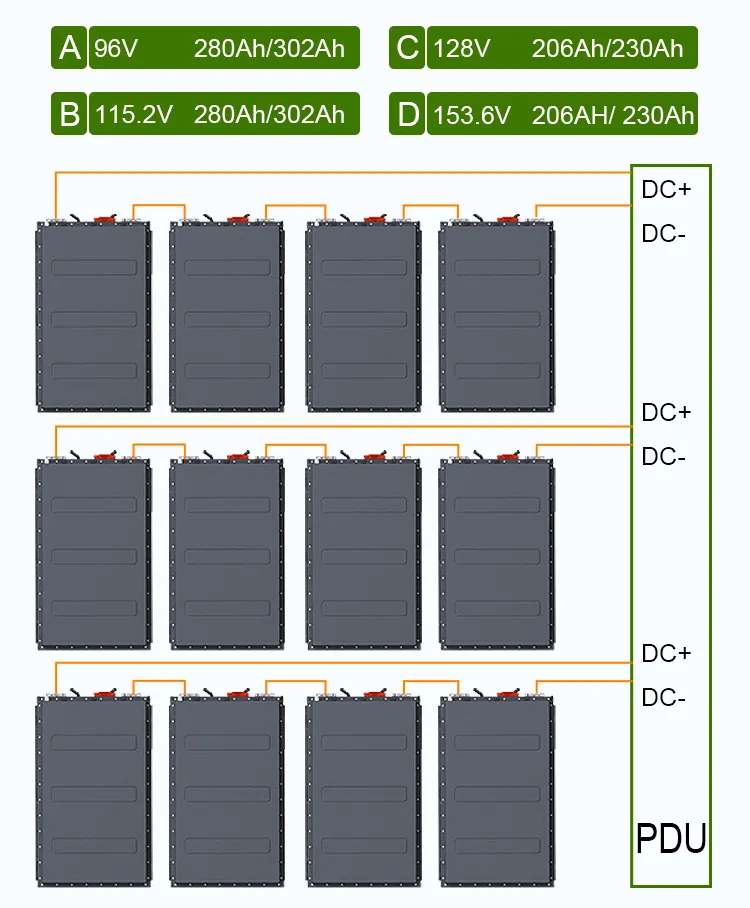

Supports a maximum connection of 12 modules (4S3P) in one system. Modules can be connected freely to reach up to 656V and 600kWh capacity.

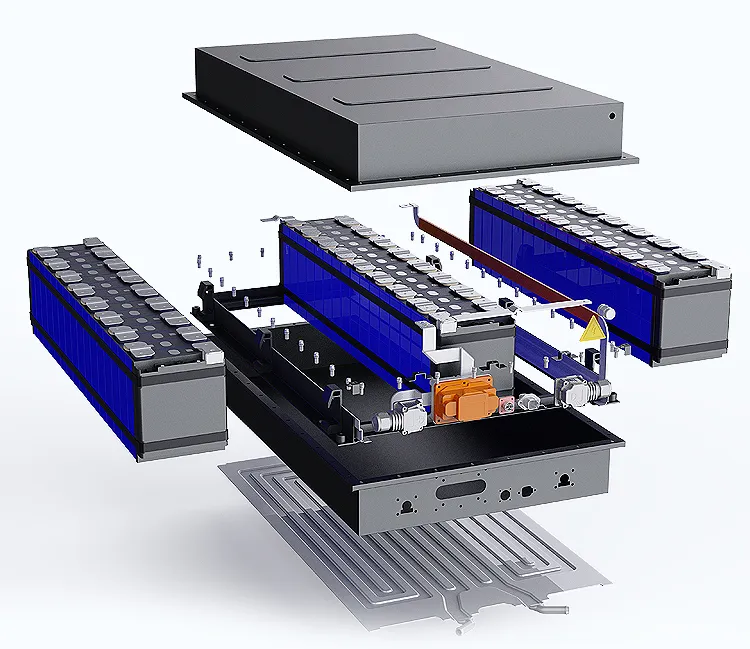

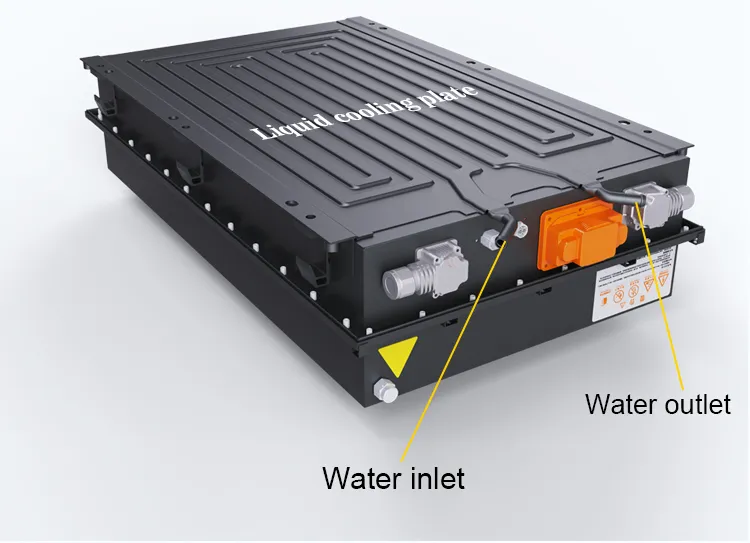

Redesigned liquid cooling system for improved thermal consistency and significantly longer battery life. Utilizing reliable LiFePO4 cells with a multi-tiered safety system.

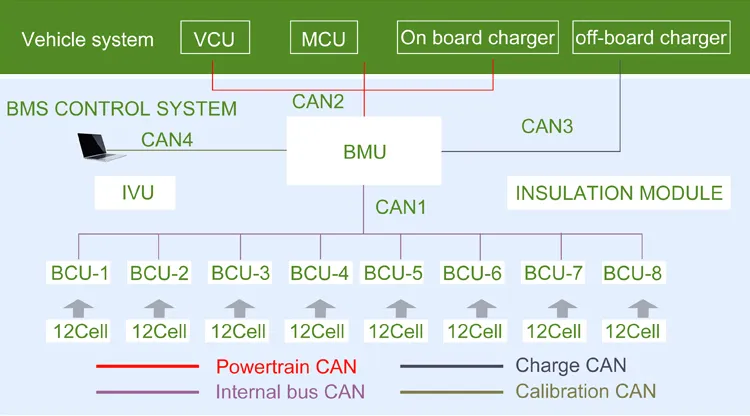

Real-time dynamic calibration considering vehicle operation conditions. High accuracy measurement of cell voltage, temperature, and pack current based on experimental data.

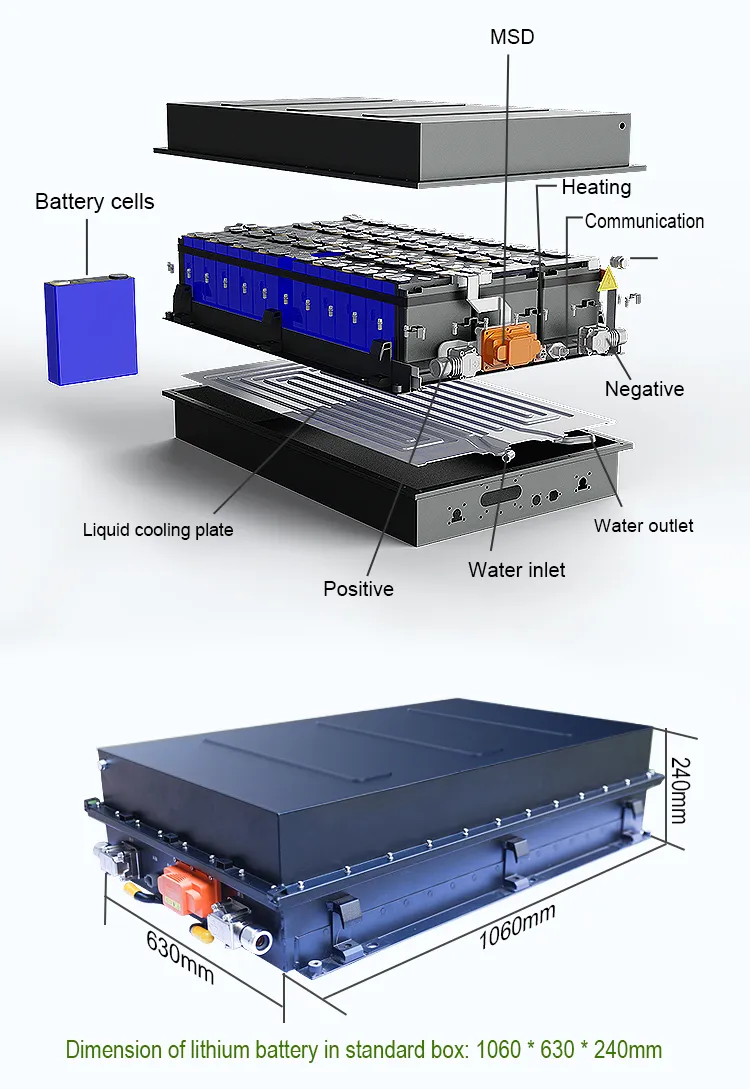

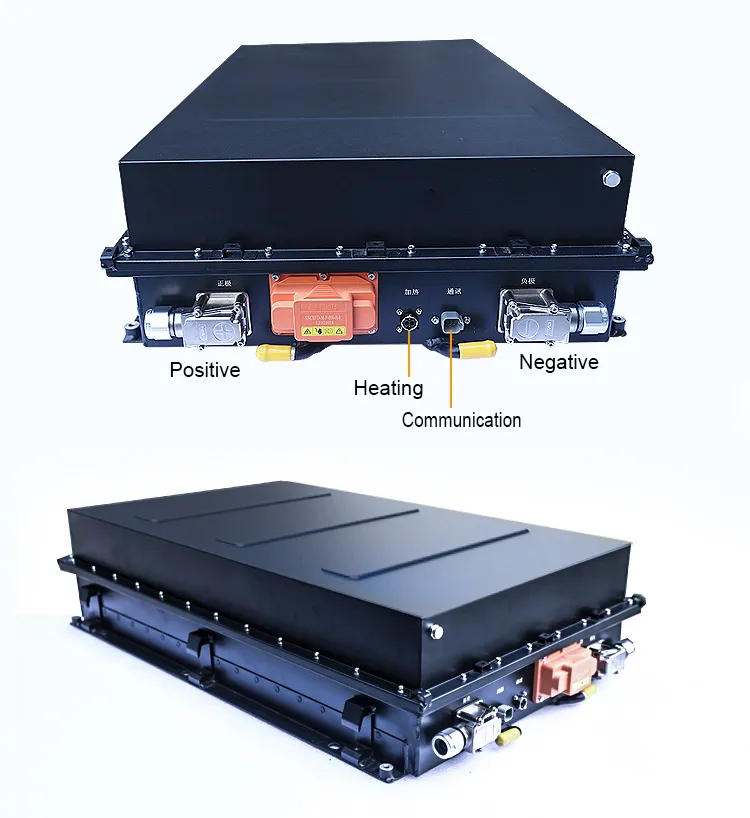

The standard box features a two-way high voltage input for double-gun charging and two-way high voltage output for water cooling compressors and motor driving. Low voltage communication is fully integrated with the vehicle system.

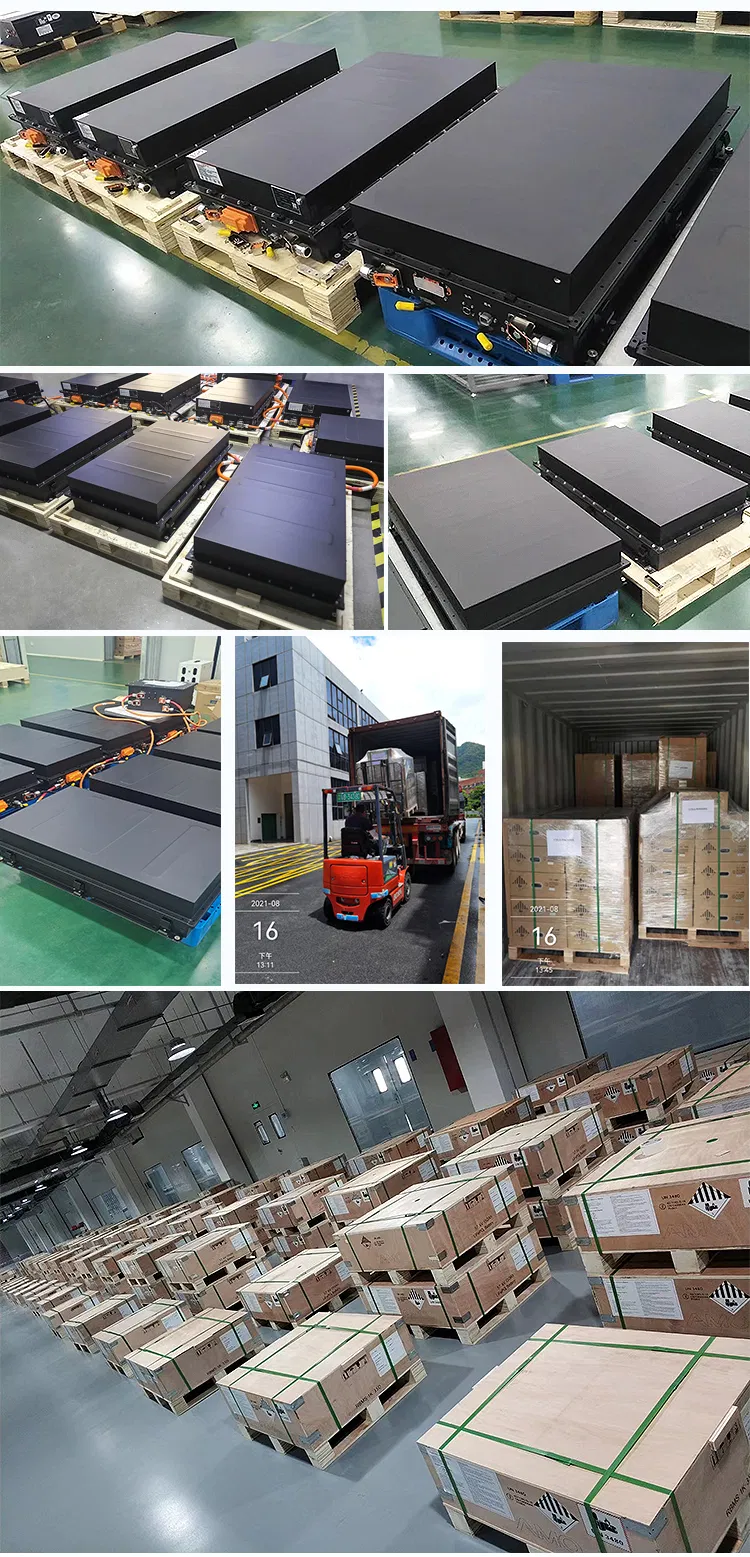

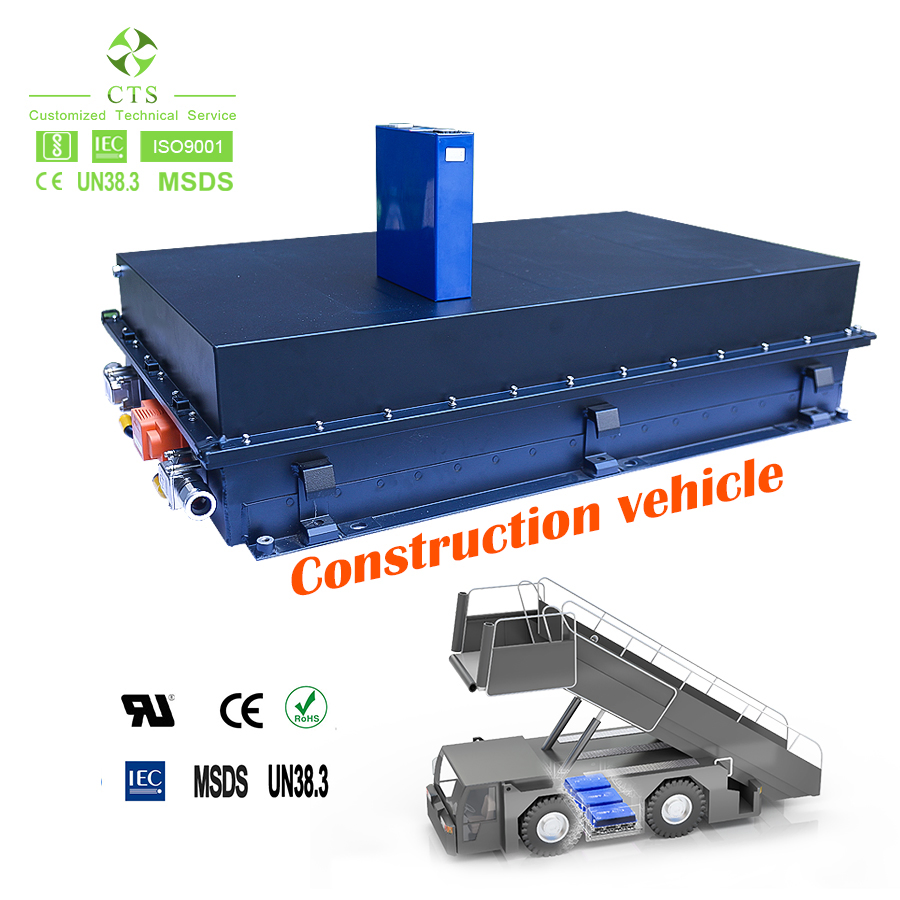

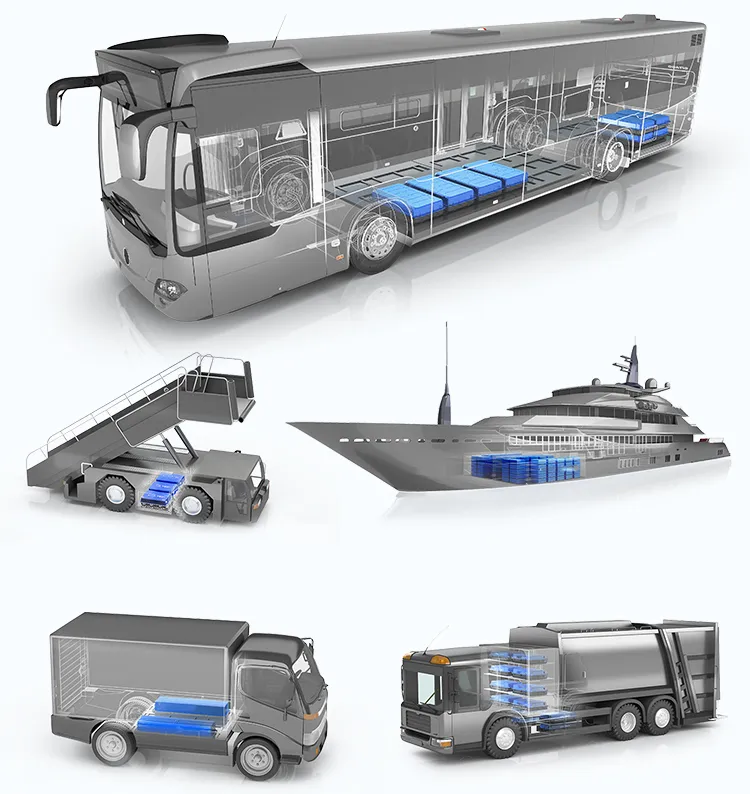

Our standard modules are widely utilized in public transportation and industrial sectors, including mining trucks, tunnel vehicles, large capacity AGVs, and skyline cranes.
Specializing in R&D, production, and service of customized lithium battery solutions. Every product follows strict management systems including I S O 9 0 0 1 and I A T F 16949. Each battery undergoes rigorous testing before delivery to ensure the highest quality and safety standards.
