768V 280ah 215kwh Lithium Ion Battery System with Integrated Smart Energy Management for Commercial Storage System

1 / 5

768V 280ah 215kwh Lithium Ion Battery System with Integrated Smart Energy Management for Commercial Storage System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Product NameCommercial Energy Storage Battery System

Battery TypeLiFePO4 Lithium Ion Battery

Capacity215kwh / 305kwh / 362kwh

Standard Voltage250V-750V DC

Voltage Range200V-1000V

Cycle Life6000 Cycles @ 80% DoD

CommunicationCAN / RS-485 / RS-232

ProtectionIP54 Level

UsageSolar Energy Storage System

Warranty2 Years

CertificationCE / UN38.3 / MSDS

OEM/ODMAcceptable

★

Product Description

768V 280Ah 215kWh Lithium Ion Battery System with Integrated Smart Energy Management

We deliver fully-integrated solar-storage-charging solutions that seamlessly blend rooftop or ground-mounted PV, high-density battery storage, and ultra-fast EV chargers into a single, intelligent ecosystem. During daylight hours, premium bifacial solar modules harvest sunlight and route clean power to charge vehicles; any surplus is captured in modular, liquid-cooled LFP battery racks for later use. At night or during grid outages, the stored energy is dispatched on demand—eliminating peak charges and ensuring your fleet is always ready.

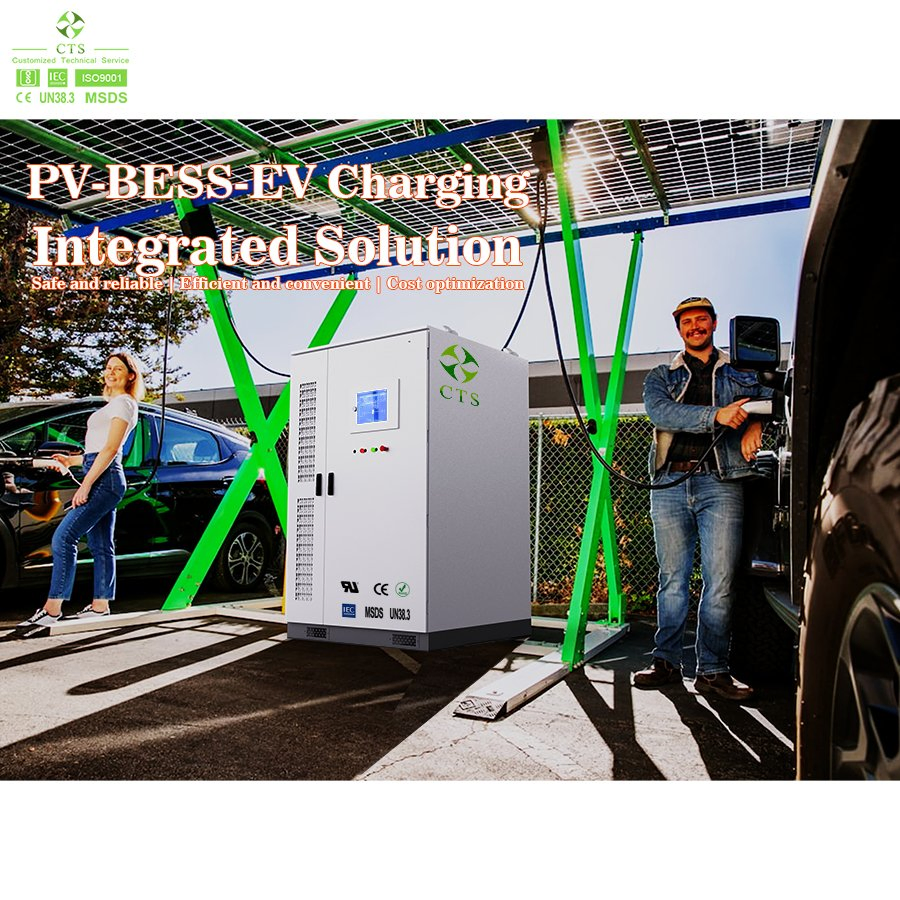

All-in-One Energy Solution: Integrated PV panels, battery storage, and EV charger for commercial and industrial use.
Smart Energy Management: Built-in EMS for self-consumption optimization and intelligent scheduling.
High Efficiency & Safety: Premium PV modules and safe LiFePO4 batteries with advanced BMS.

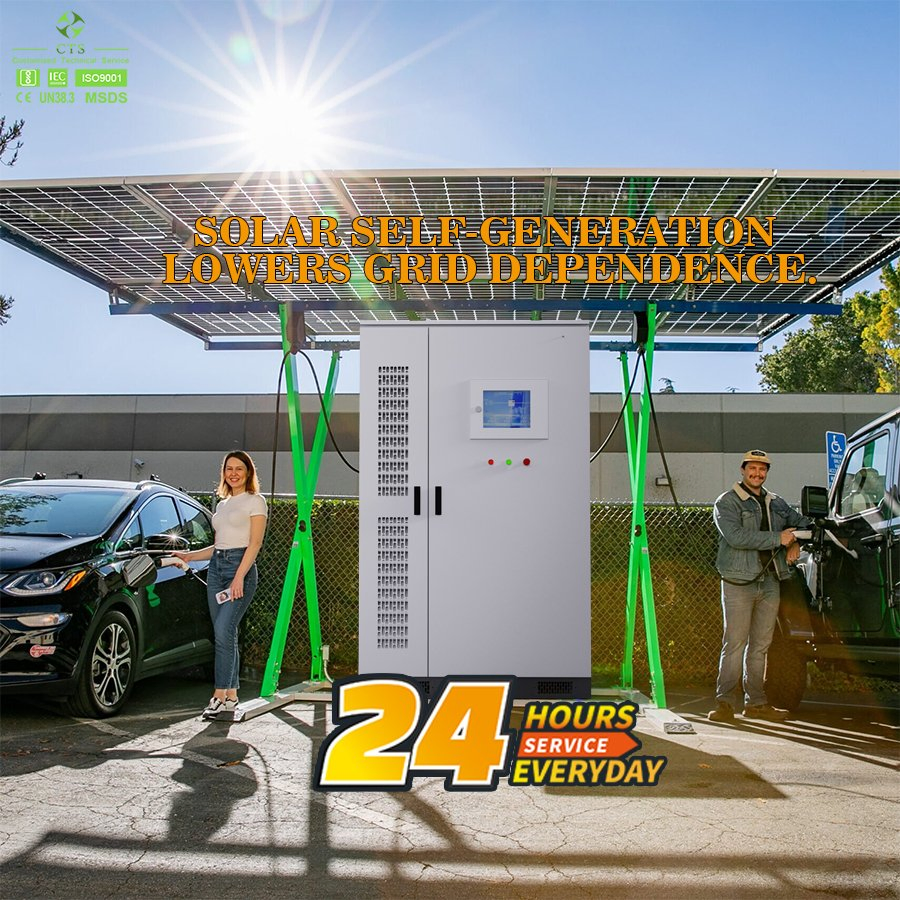

Energy Independence: Reduces dependence on the power grid by using self-generated solar energy.
Peak Shaving: System charges during low-cost valley hours and discharges during peak hours.

Integrated Smart Energy Management System

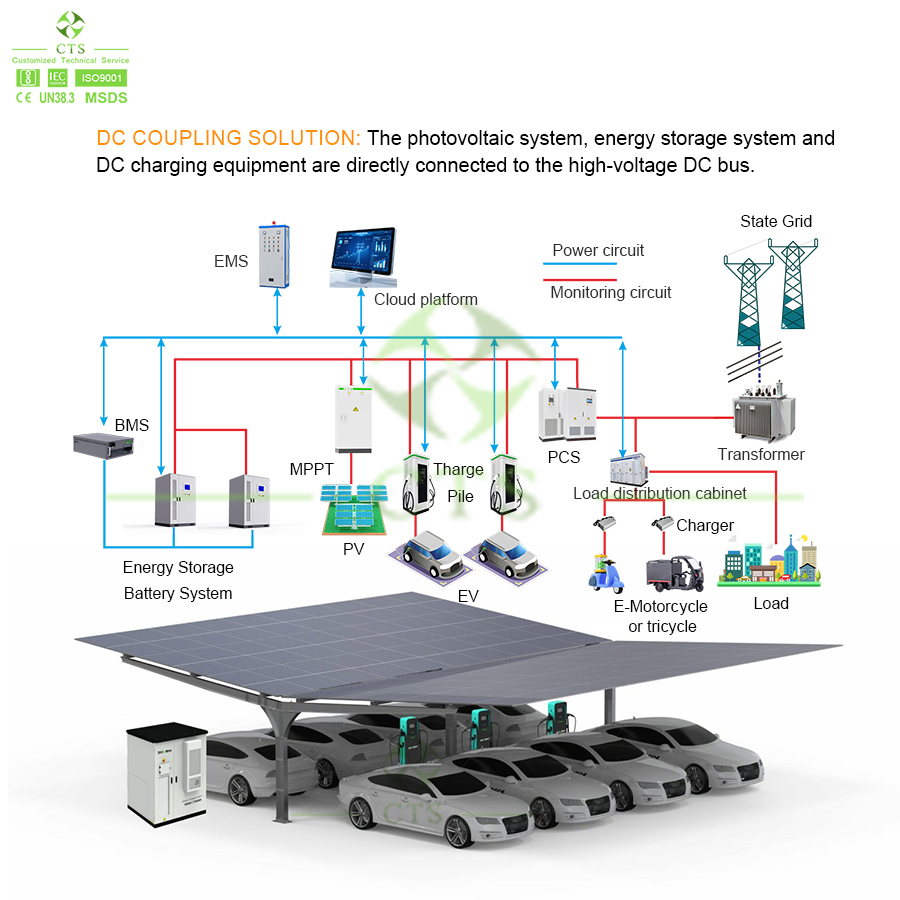

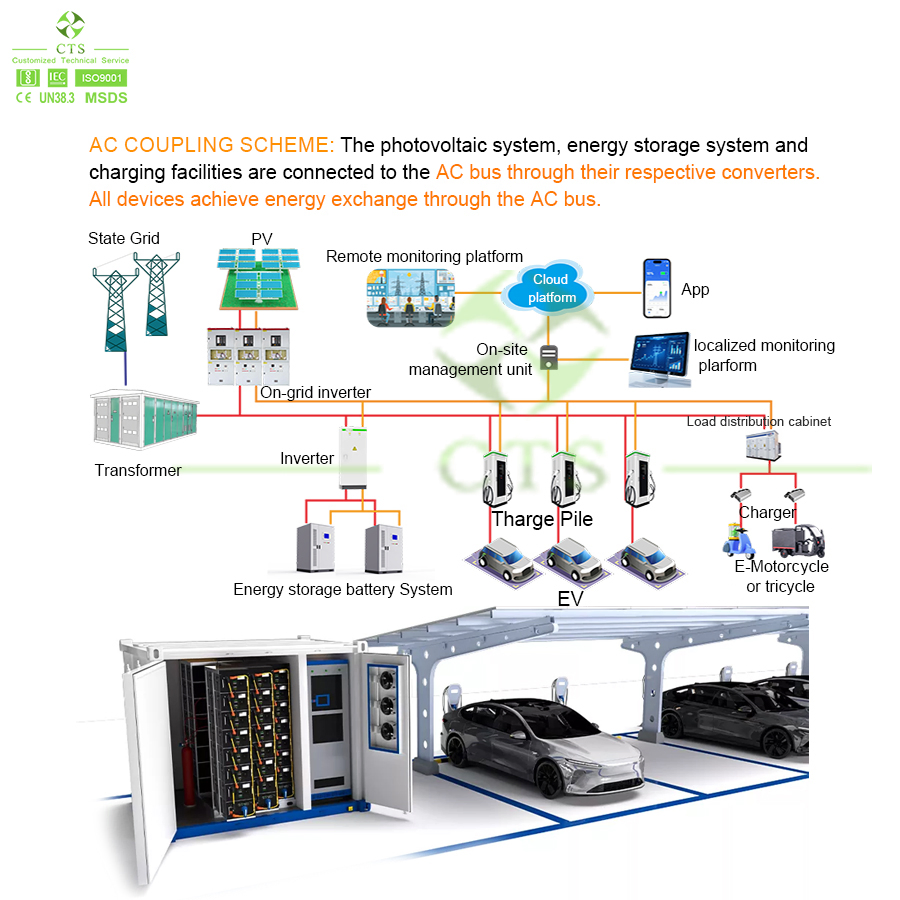

The AC-coupled solution connects the PV system, energy storage, and charging facilities to a common AC bus, enabling energy exchange among all devices. The DC-coupled solution connects the systems directly to a high-voltage DC bus, improving efficiency by reducing multiple DC/AC conversions.

📋

Technical Parameters

Model	215KWh+100KW	305KWh+100KW	362KWh+100KW
Battery Energy	215KWh	305KWh	362KWh
PCS Power	100KW	100KW	100KW
MPPT Power	120KW	120KW	120KW
MPPT Range	250~850Vdc	250~850Vdc	250~850Vdc
AC Voltage	400V/230V	400V/230V	400V/230V
Protection	IP54	IP54	IP54
Size (mm)	158010502090	158011902355	158011902355
Weight (kg)	~2500kg	~2930kg	~3230kg

✔

Product Advantages

1. Reduce Costs Reducing electricity consumption via PV generation; avoid peak electricity prices through peak shaving and valley filling.

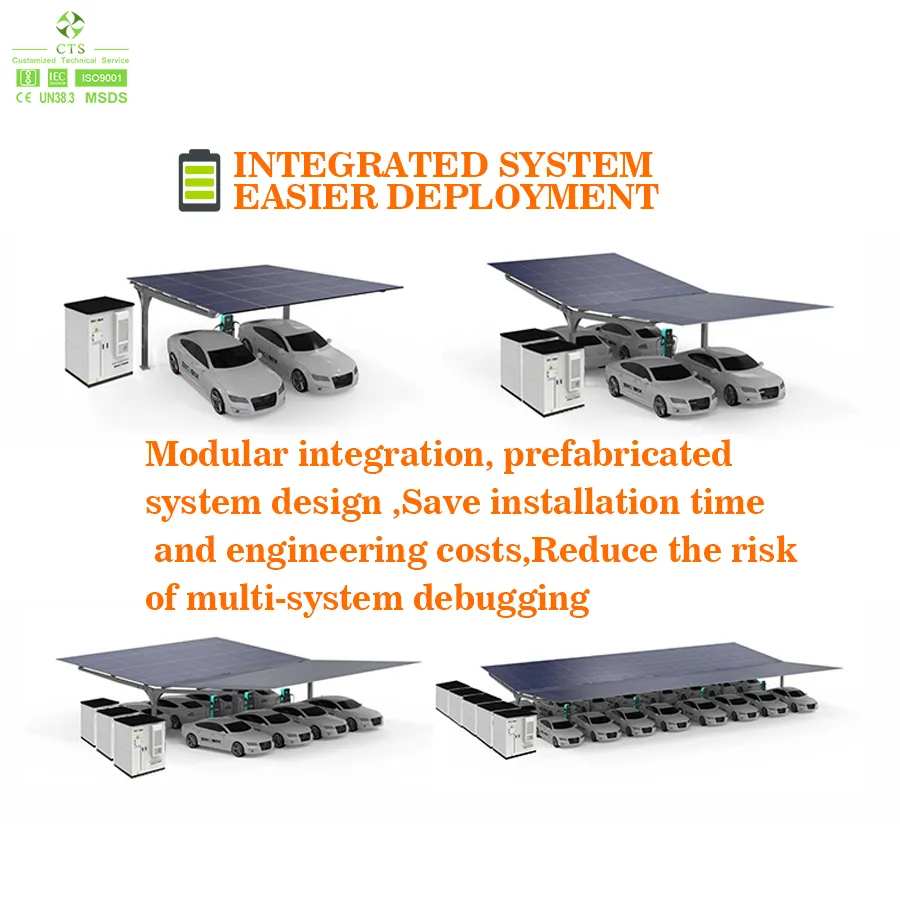

2. Easier Deployment Modular integration and prefabricated design save installation time and reduce multi-system debugging risks.

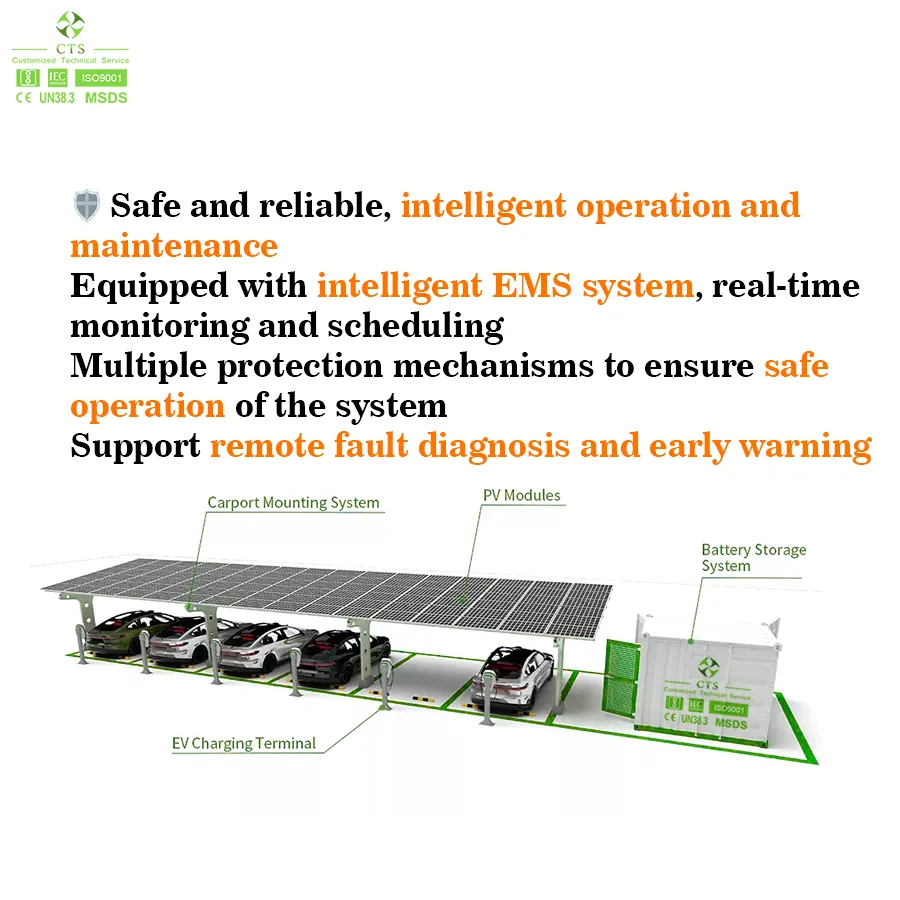

3. Safe & Reliable Equipped with intelligent EMS for real-time monitoring and scheduling; multiple protection mechanisms and remote diagnosis.

4. Grid Load Relief Distributed generation + storage reduces dependence on traditional grids and mitigates load risks from EV charging.

◪

Applications

Industrial & Commercial Parks: Self-use during the day, stored or sold power for night or peak hours.

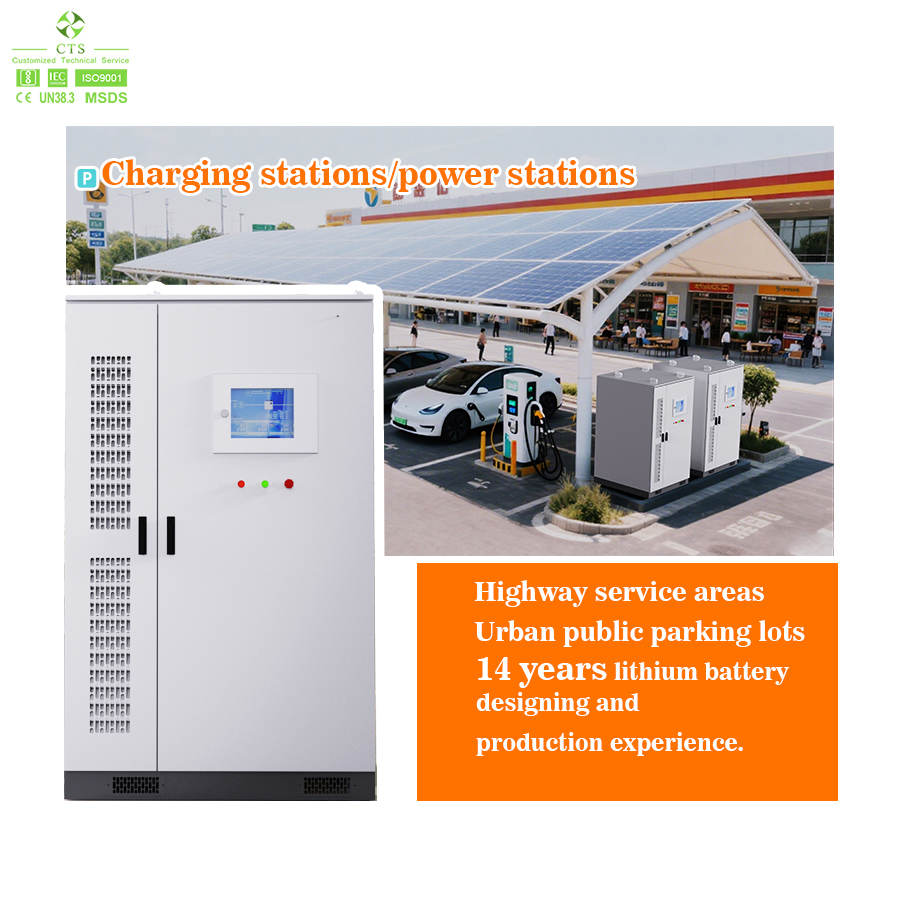

Charging/Power Stations: Highway service areas and urban public lots, combining PV to solve grid expansion issues.

Off-grid Areas: Remote mountainous areas, islands, and camps requiring stable green power.

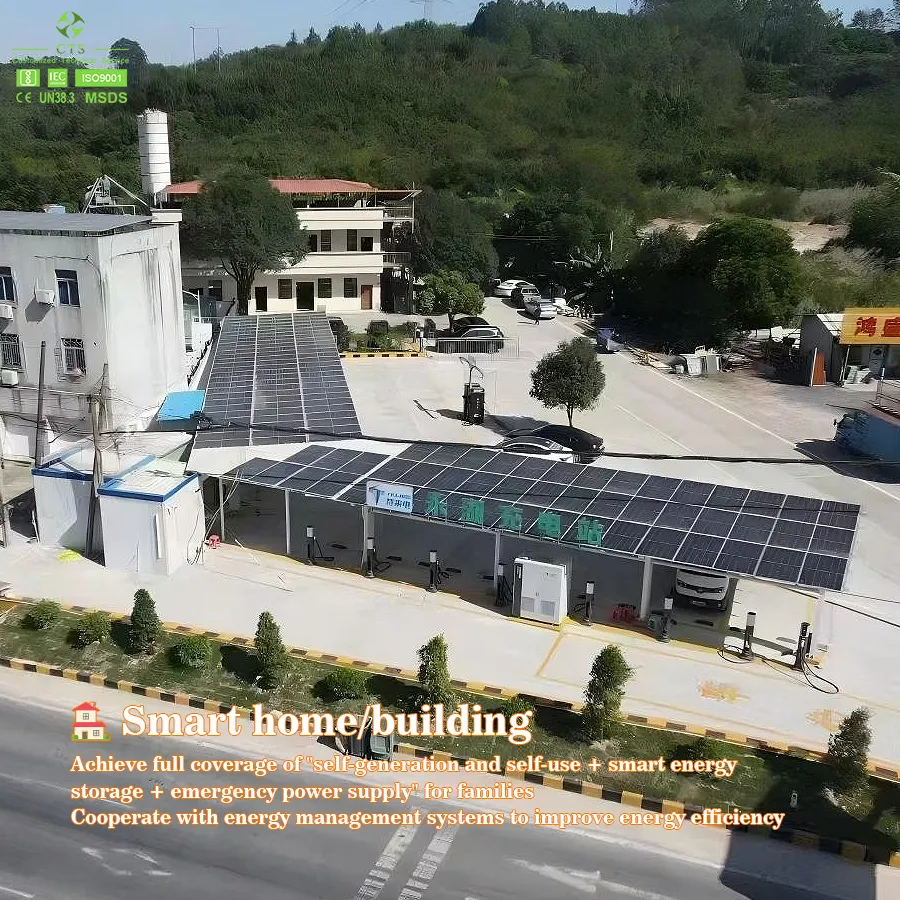

Smart Home/Building: Full coverage of self-generation, storage, and emergency power supply.

❤

Why Choose Us?

⚡ Professional Engineering: 30+ senior engineers offering 24-hour online service.

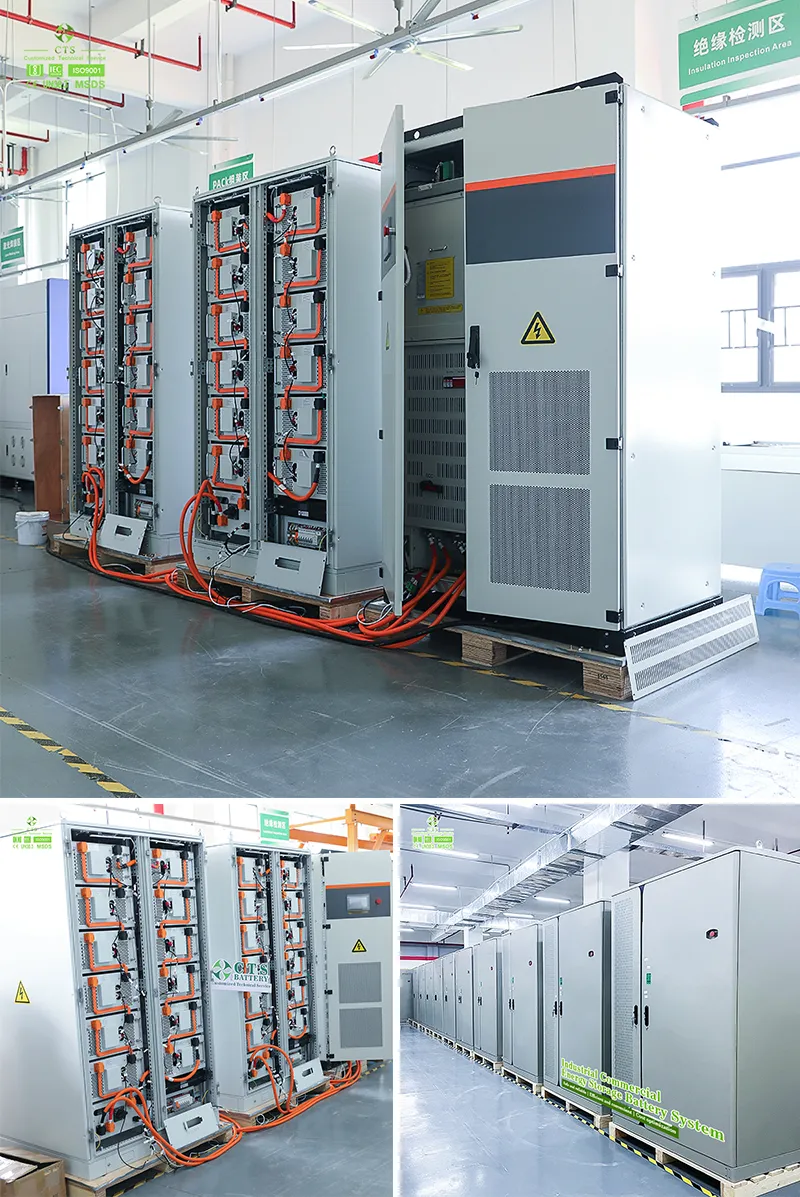

🏭 Large Scale Production: 10,000m² factory with 1GWH annual production capacity.
🛠 One-stop Customization: Service for 12V to 1000V battery systems.
🔍 Strict Quality Control: 100% OQC testing with 25 detection contents.

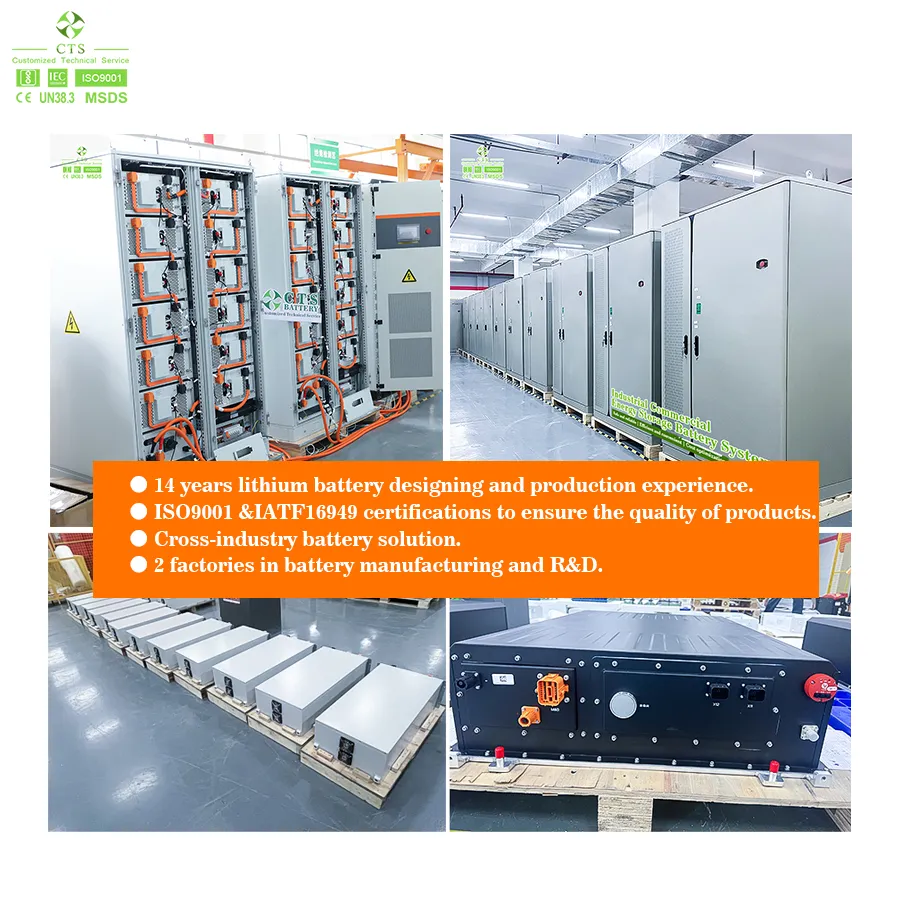

📜 Certification: ISO9001 & IATF16949 certified quality management.
🌍 Global Experience: 14 years of design and production for international markets.

Frequently Asked Questions

What is the expected cycle life of this energy storage system?

The system utilizes Grade A+ LiFePO4 cells, offering over 6000 cycles at 80% Depth of Discharge (DoD), ensuring long-term reliability for over 10 years of typical use.

Can the system be installed outdoors?

Yes, the system features an IP54 protection level rating, making it suitable for industrial environments and outdoor installations with appropriate weather protection.

Is this system compatible with different solar inverter brands?

The system is designed to be widely matched with major inverter brands and supports CAN, RS-485, and RS-232 communication protocols for seamless integration.

Do you provide customized solutions for different power needs?

Absolutely. We offer one-stop customized services for battery systems ranging from 12V to 1000V, including various capacities like 215kWh, 305kWh, and 362kWh to fit your specific industrial or commercial requirements.

How is the quality of the battery cells ensured?

We use only Grade A+ lithium cells and perform 100% OQC (Outgoing Quality Control) testing with 25 distinct detection contents. Our production follows ISO9001 and IATF16949 management systems.

What is the warranty period for this commercial storage system?

The standard warranty for our commercial energy storage battery system is 2 years, backed by global technical support.
