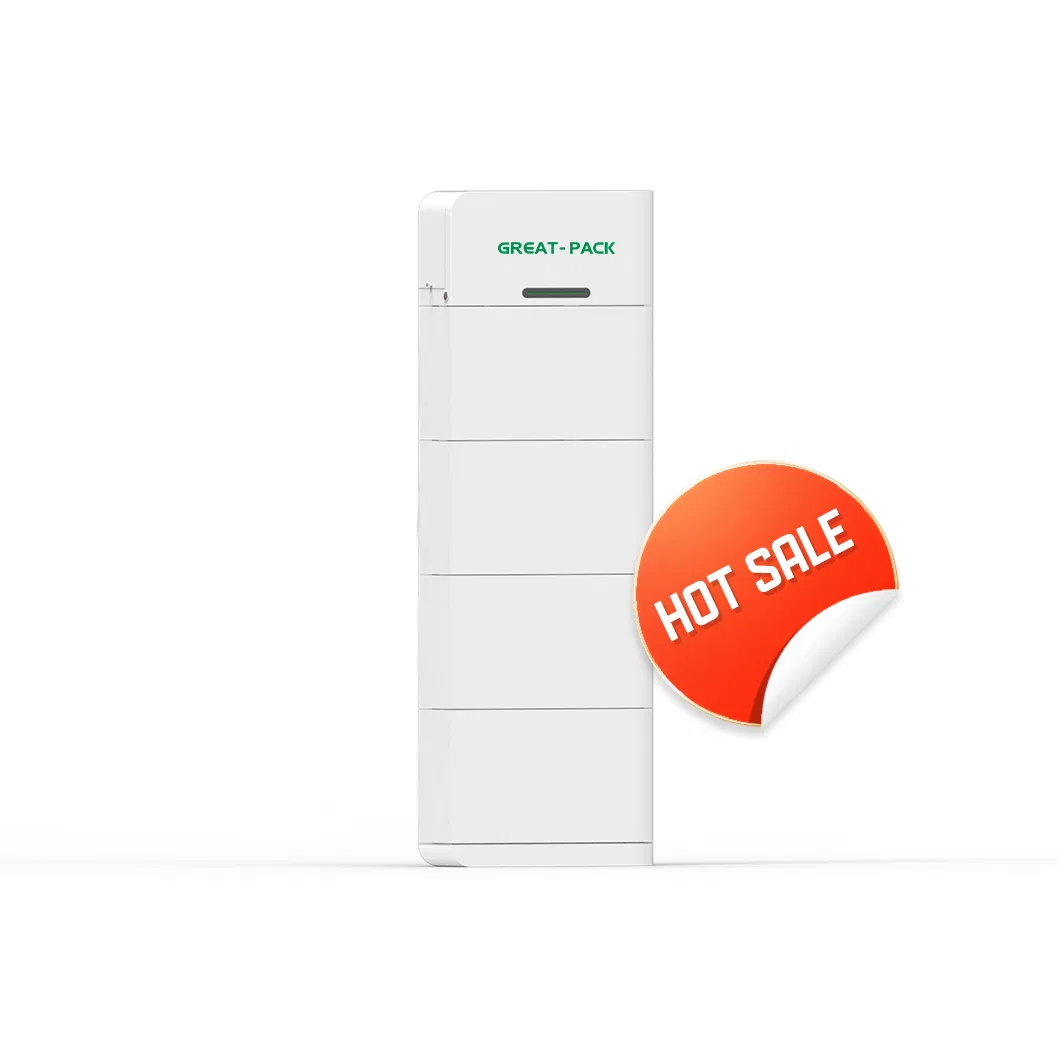

Hv 20kwh 15kwh 10kwh High Voltage Modular LiFePO4 Battery Pack

1 / 5

Hv 20kwh 15kwh 10kwh High Voltage Modular LiFePO4 Battery Pack

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊

Basic Information

Model NO.GP-HV20K

RechargeableYes

CellsLFP 3.2V 50ah Prismatic

Warranty10 Years

CertificationCE/RoHS/Un38.3/MSDS

ApplicationHome Energy Storage, Solar & Wind System

OEM/ODMAcceptable

IP ClassIP65

🔋

Product Description

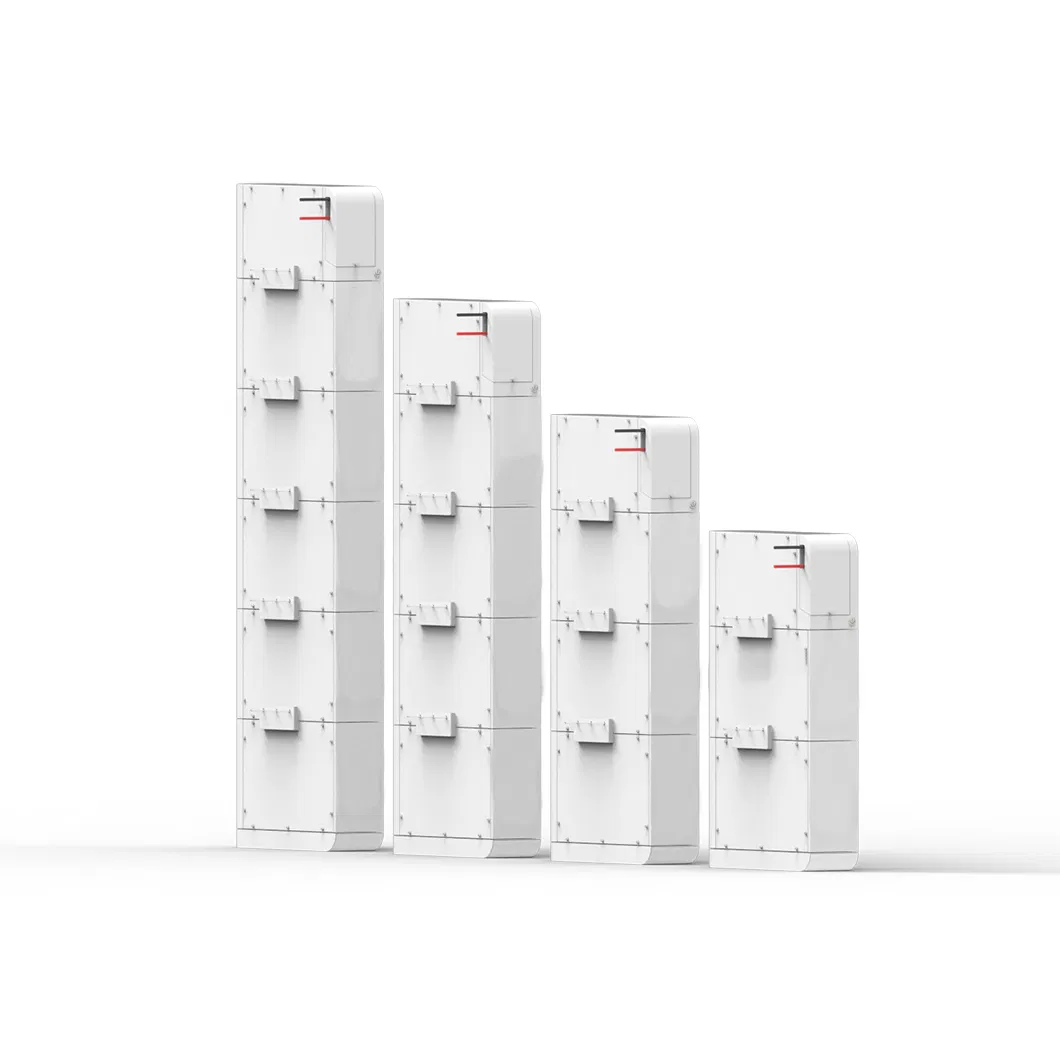

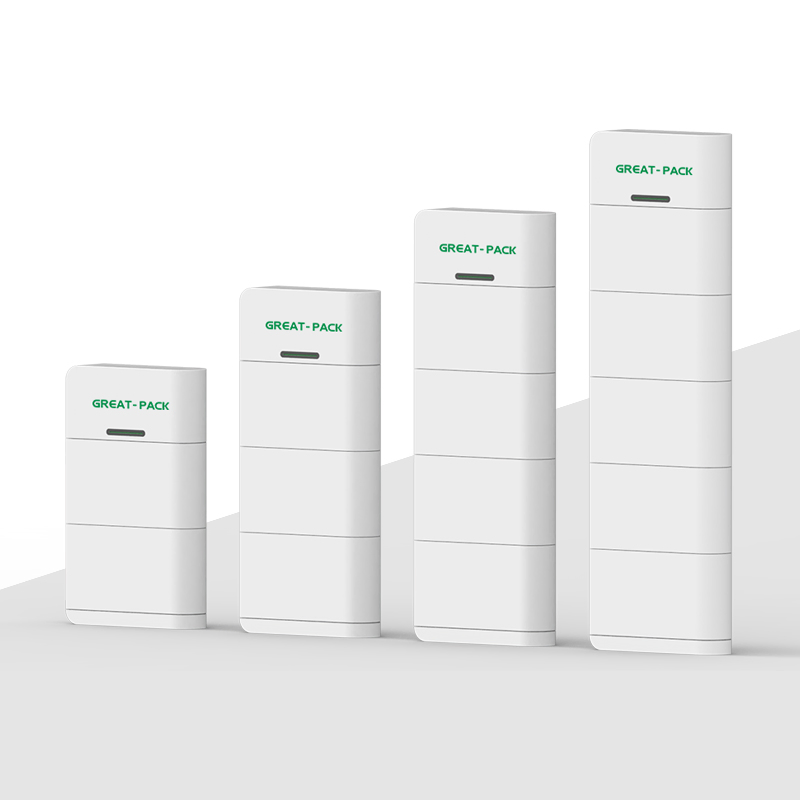

HV 20kwh 15kwh 10kwh High Voltage Modular LiFePO4 Battery Pack

Technical Specifications

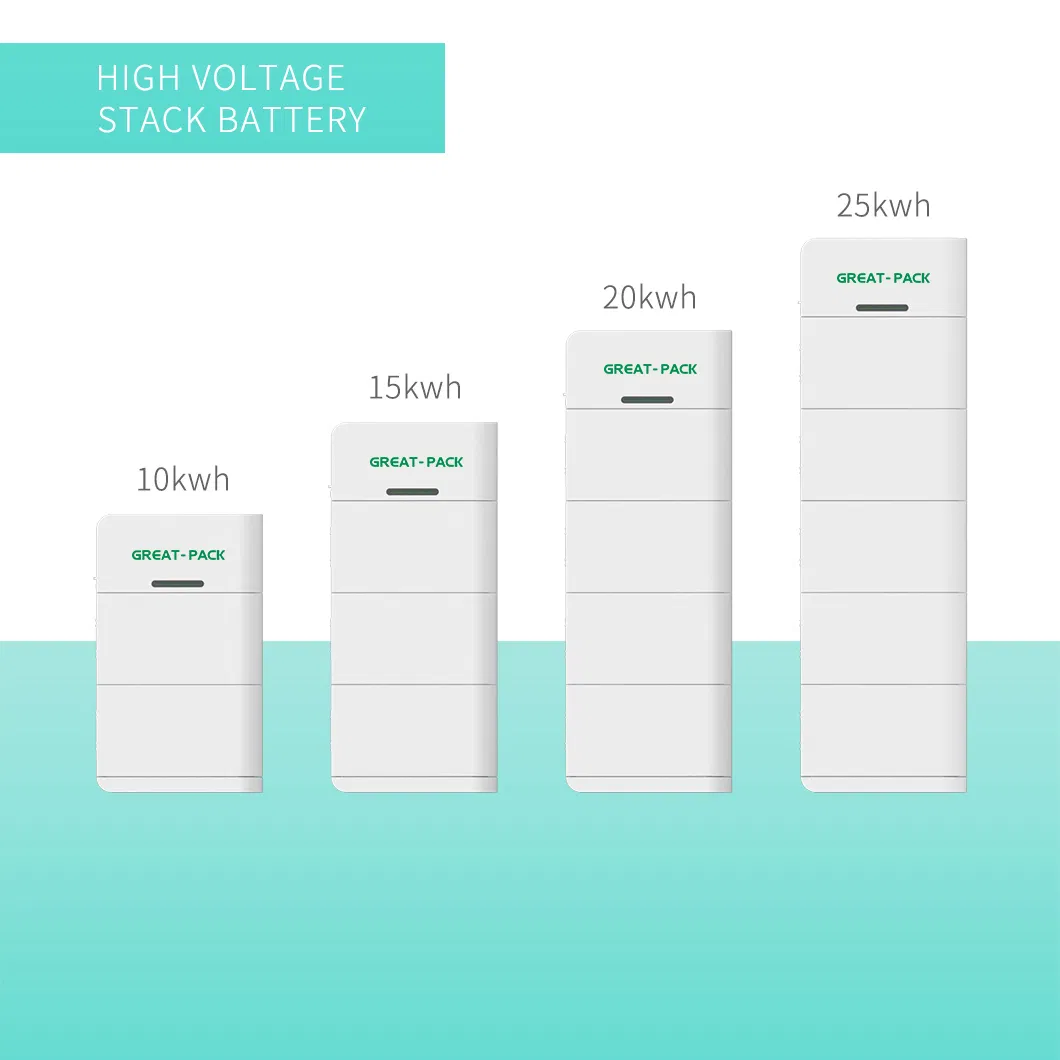

Model	GP-HV10K	GP-HV15K	GP-HV20K	GP-HV25K
Battery Module	102.4V 50Ah, 5KWh, 49kg, 630185345mm
Number of Modules	2	3	4	5
Nominal Voltage	204.8V	307.2V	409.6V	512V
Energy	10.24KWh	15.36KWh	20.48KWh	25.60KWh
Charge Voltage	224V	336V	448V	560V
Max Current	50A (Charge / Discharge)
Dimensions (W/D/H)	630185955mm	6301851300mm	6301851650mm	6301852000mm
Weight	112kg	161kg	210kg	259kg

📸

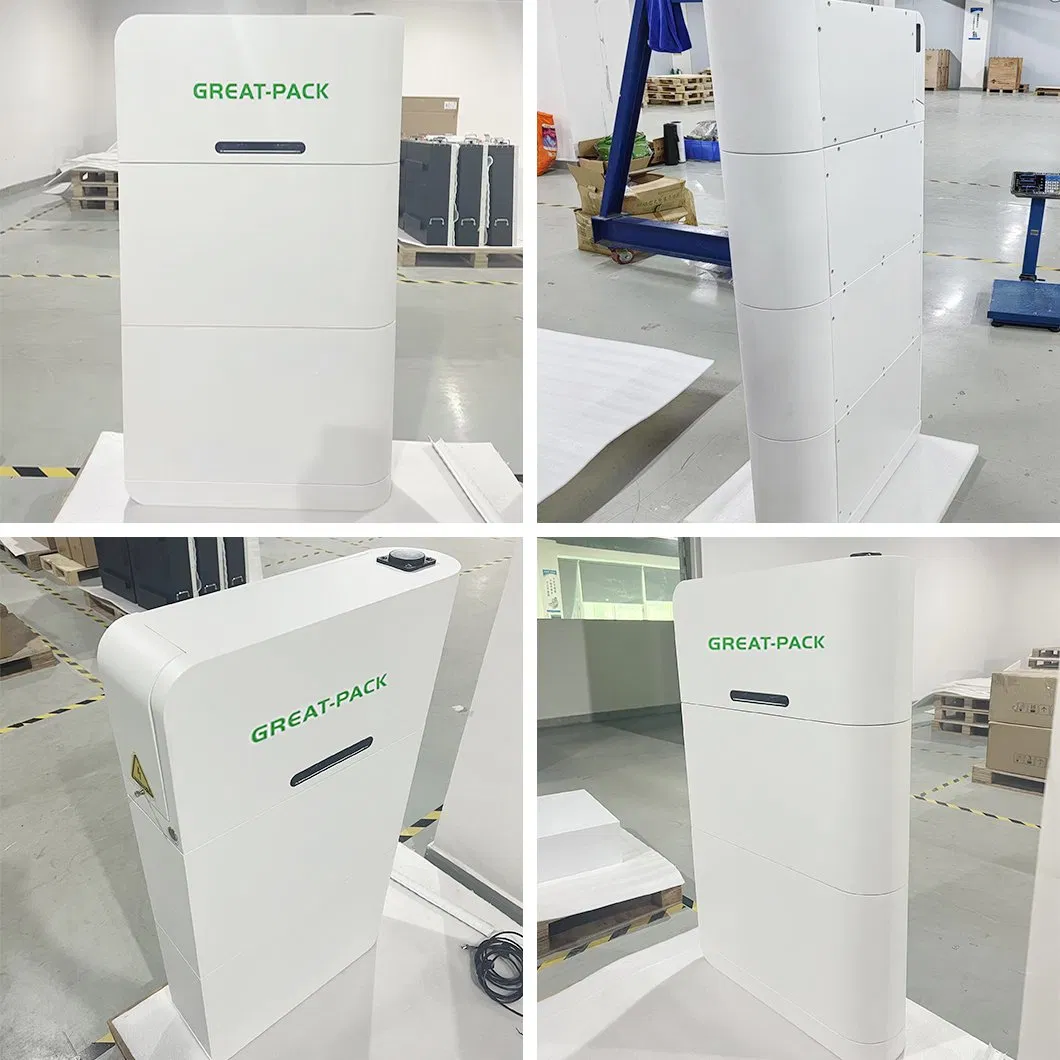

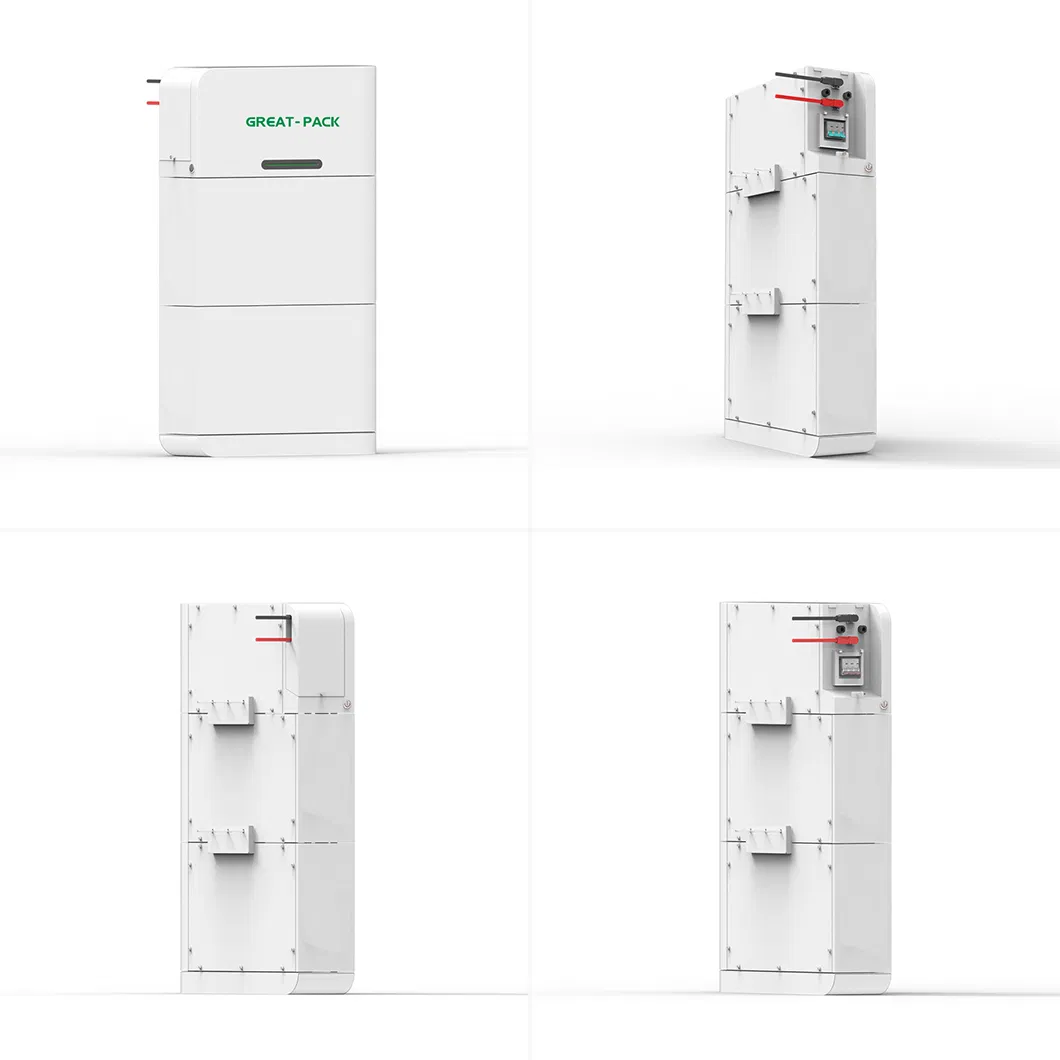

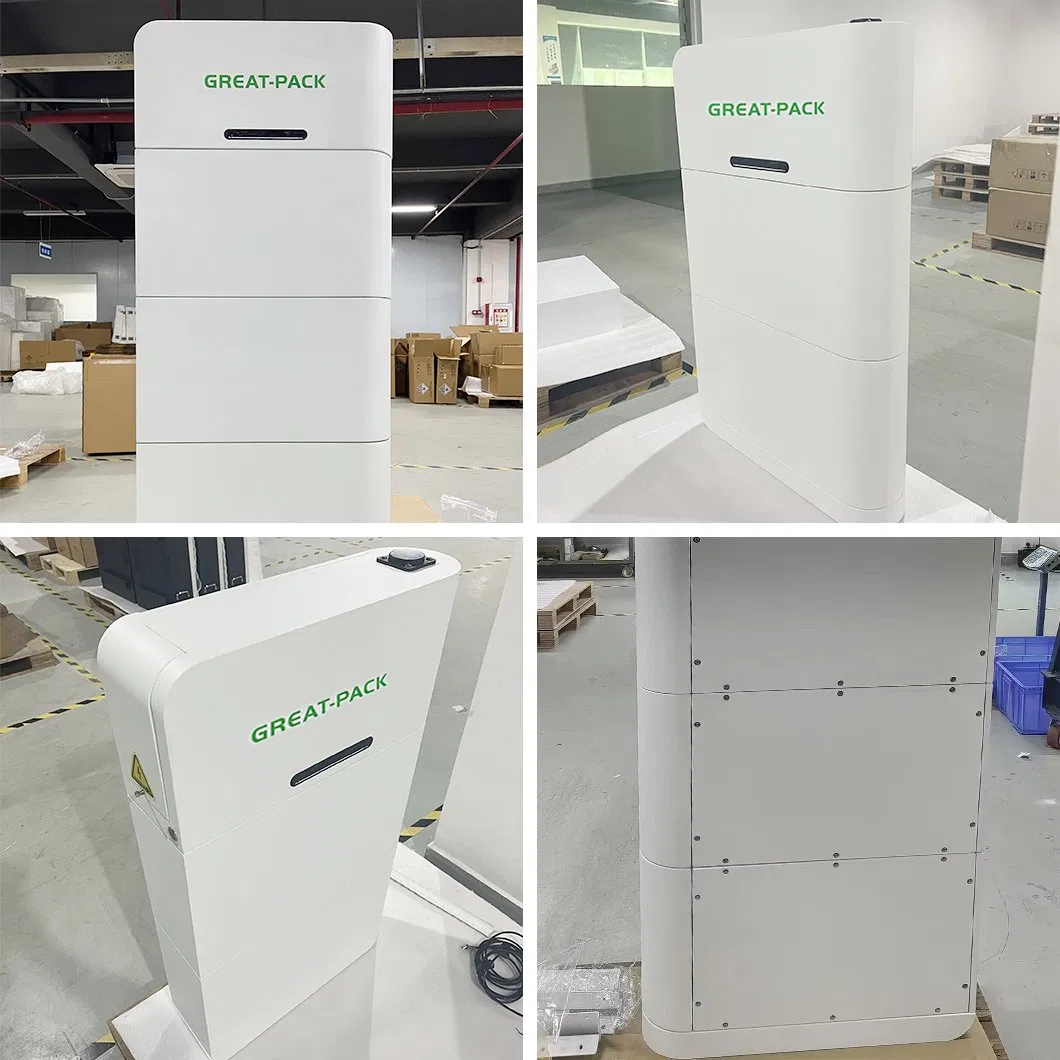

Detailed Photos

🌍

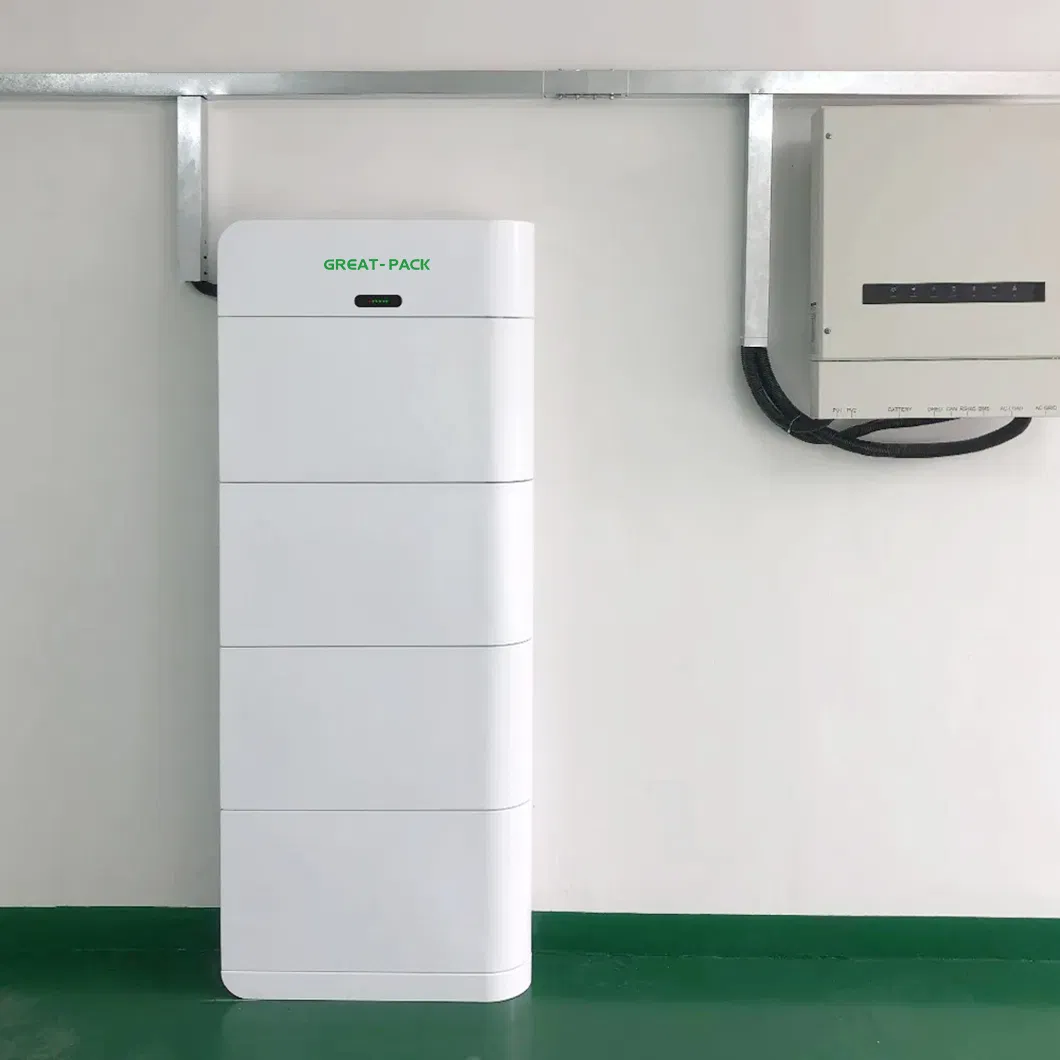

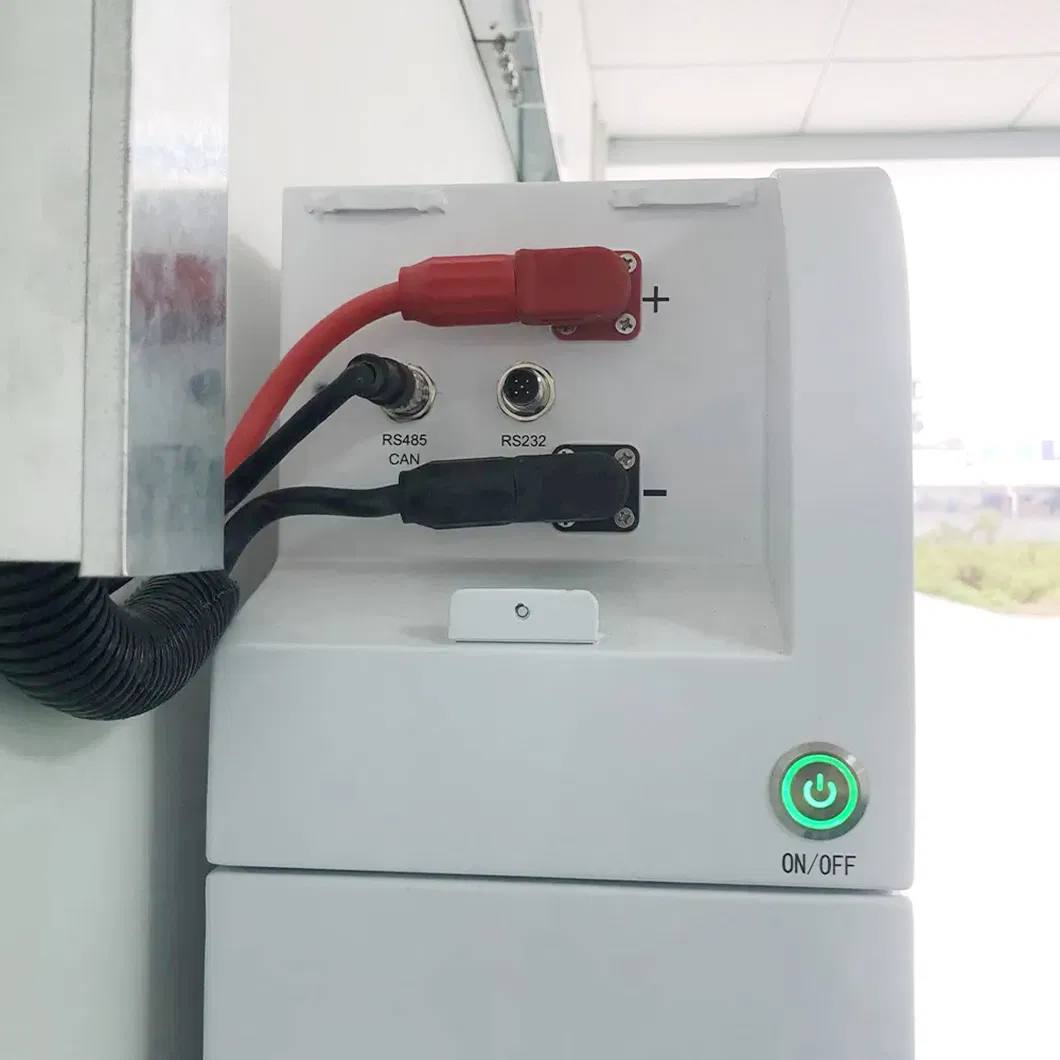

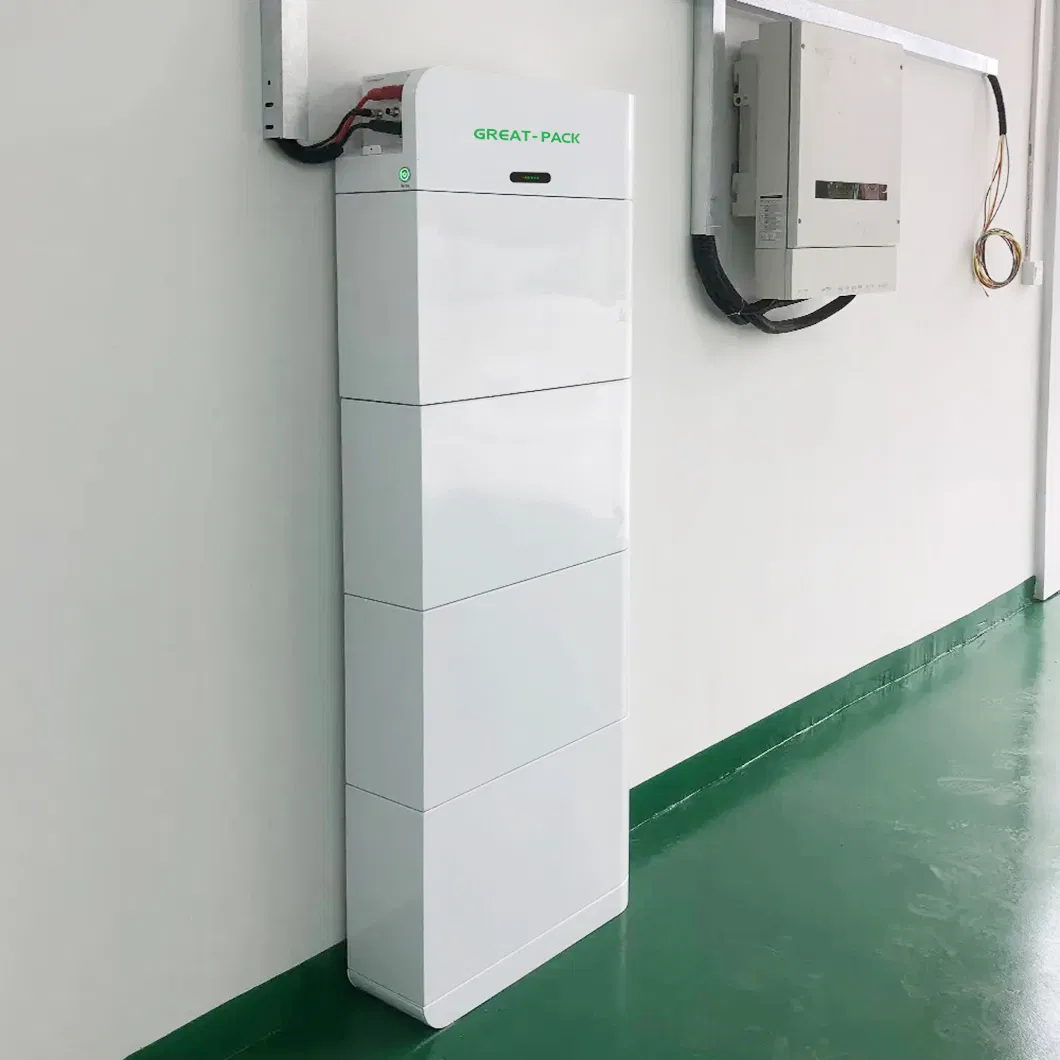

Global Projects & Compatibility

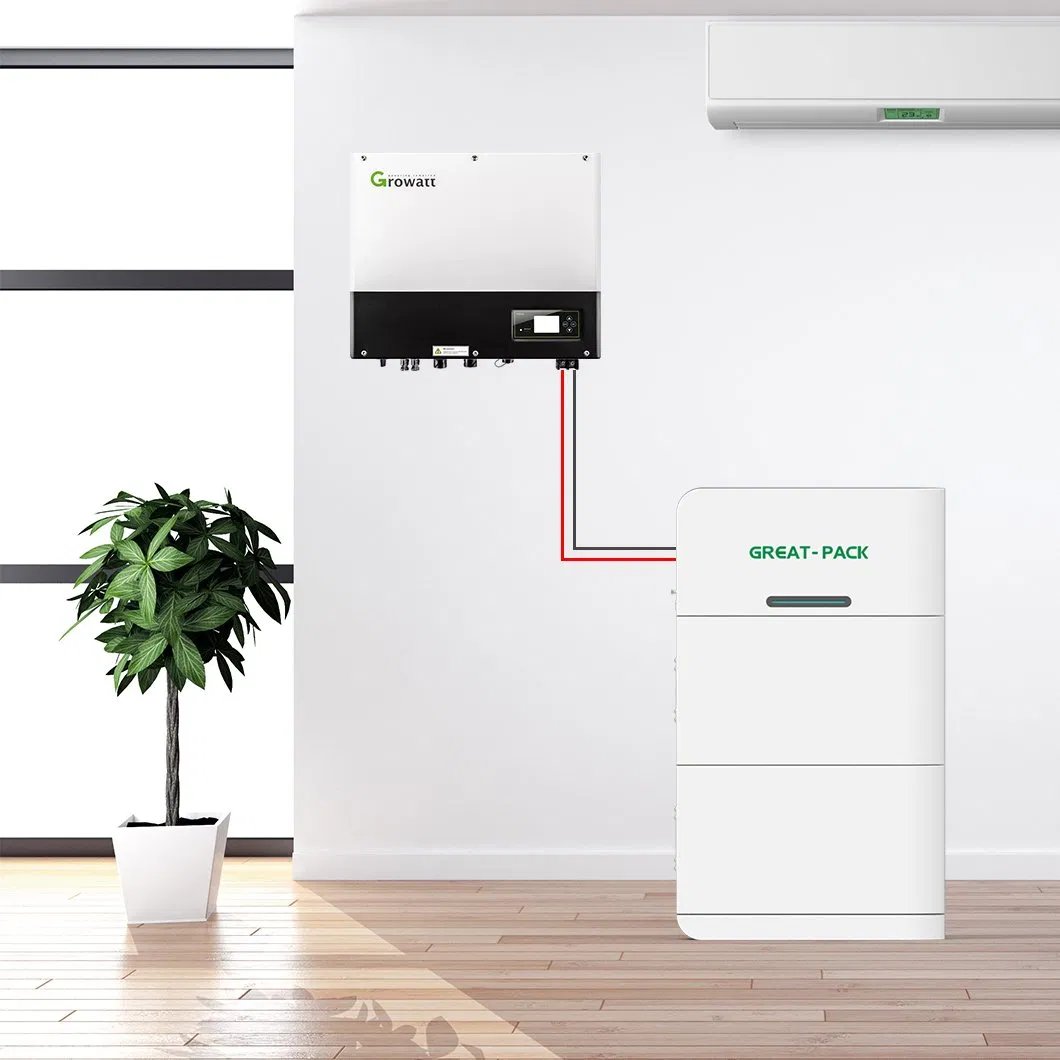

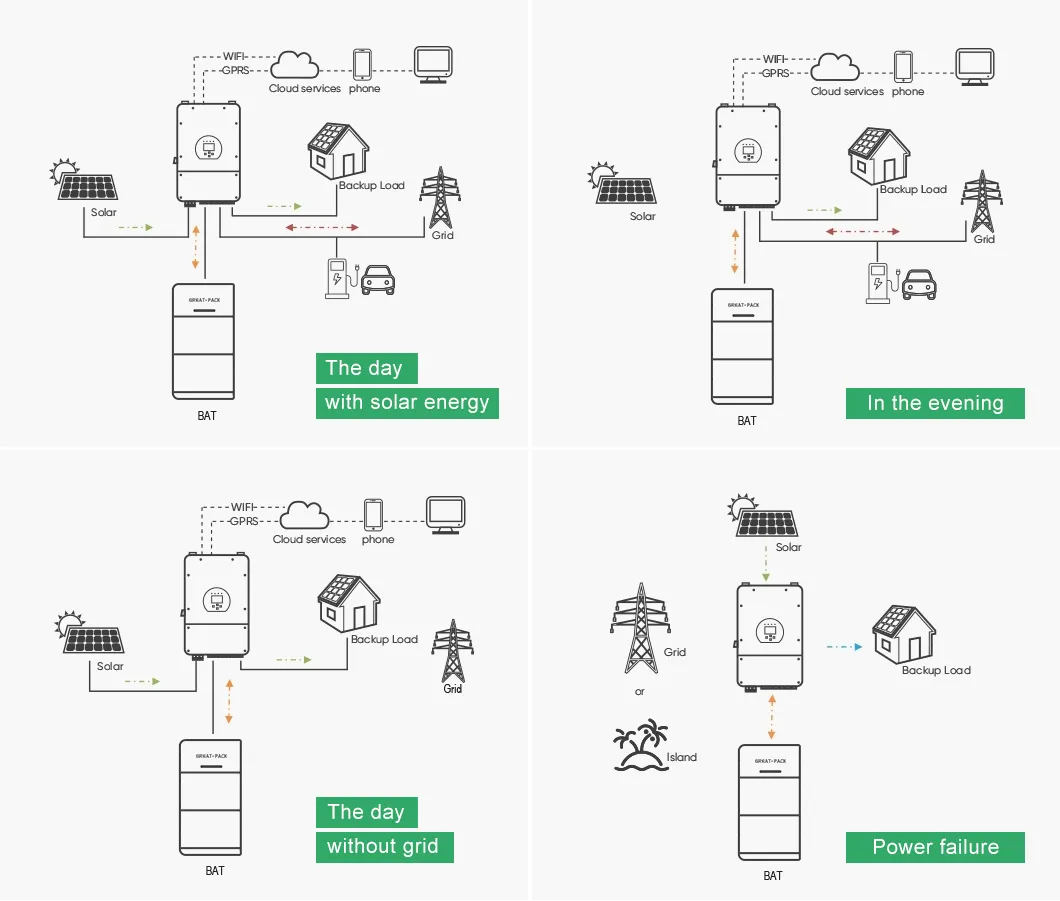

Our batteries are widely used in solar systems, wind systems, UPS, and telecom systems, especially in photovoltaic off-grid and hybrid systems. Compatible with major inverters: Growatt SPH, Goodwe ET, Deye SUN, Sermatec SMT, Megarevo, Solis, SMA, Sunways, and more.

💡

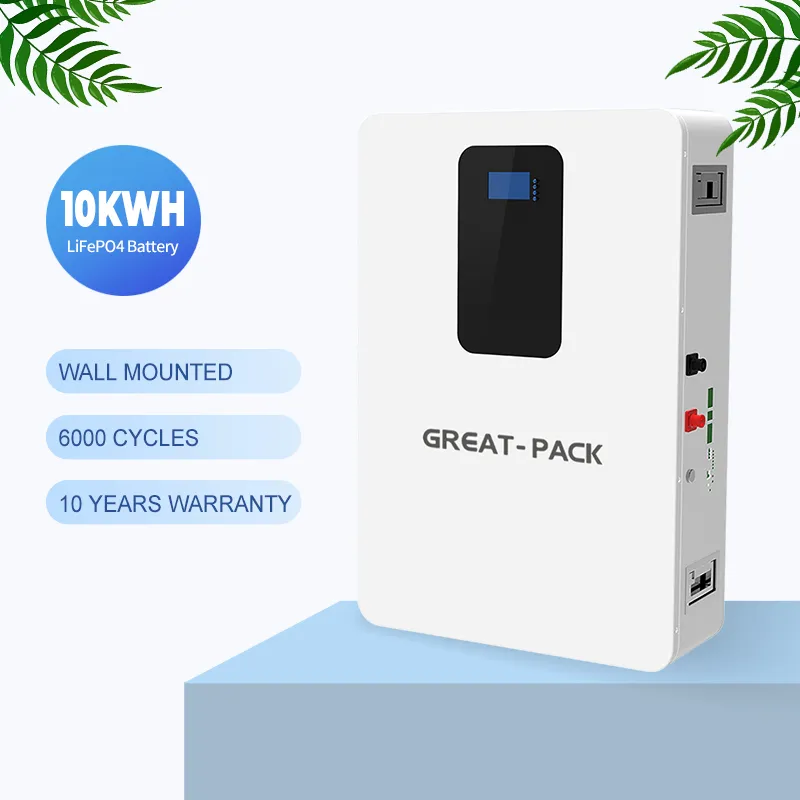

Recommended Products

🏭

Professional Manufacturing

Specializing in LiFePO4, Li-polymer, and Li-ion rechargeable batteries. Our team has over 8 years of experience in the lithium battery field, providing one-stop power solutions and excellent OEM/ODM services. All products meet global standards for green and clean energy.

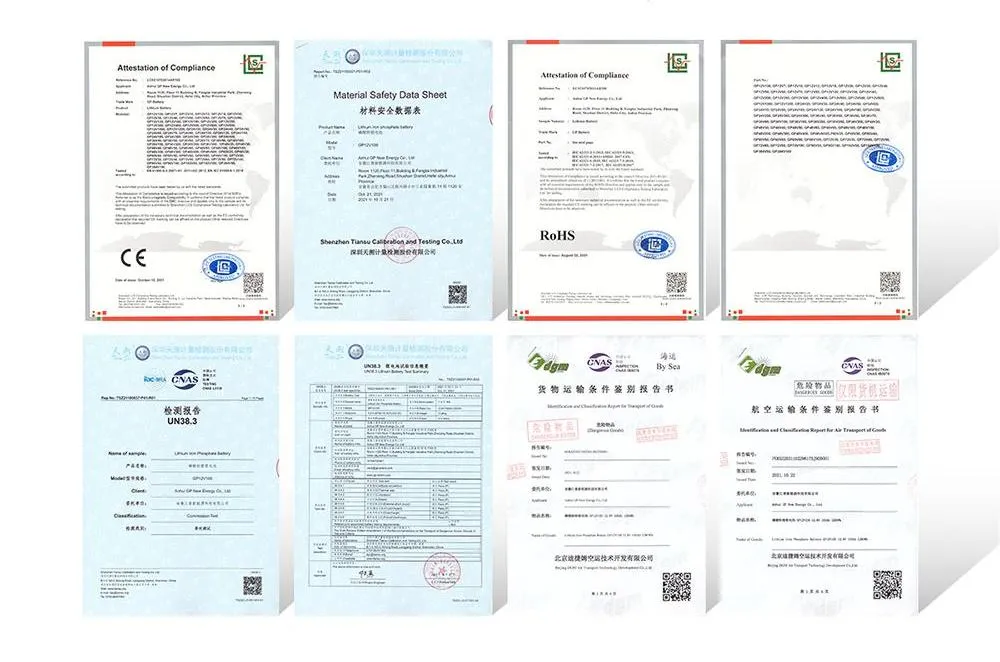

Exhibitions & Certifications

❓

Frequently Asked Questions

QCan the product be shipped to my area?

We export to most regions including Central/South America, EMEA, SEA, SSA, and AU. We will confirm the specific shipping logistics once your region is provided.

QWhat is the typical lead time for orders?

For standard requirements (e.g., 200kw), the lead time is approximately 10 working days.

QWhat payment methods are accepted?

We accept 100% TT, or a 30% TT deposit in advance with the remaining 70% balanced upon goods being ready for shipment.

QHow long is the warranty and what does it cover?

We provide a 10-year battery warranty. If the BMS is damaged, we provide a replacement BMS; if a cell is damaged, we provide a new battery pack.

QAre these batteries compatible with my current inverter?

Our modular batteries are compatible with most leading brands such as Growatt, Goodwe, Deye, Victron, and SMA.

QWhat safety certifications do the batteries hold?

All batteries are fully certified with CE, UN38.3, RoHS, and MSDS to ensure safe international transport and operation.
