⚙️ Basic Information
Nominal Voltage
24V / 51.2V
Discharge Rate
Low Discharge Rate
Lifetime
More Than 3000 times
Package Size
980cm * 545cm * 640cm
📊 Technical Specifications

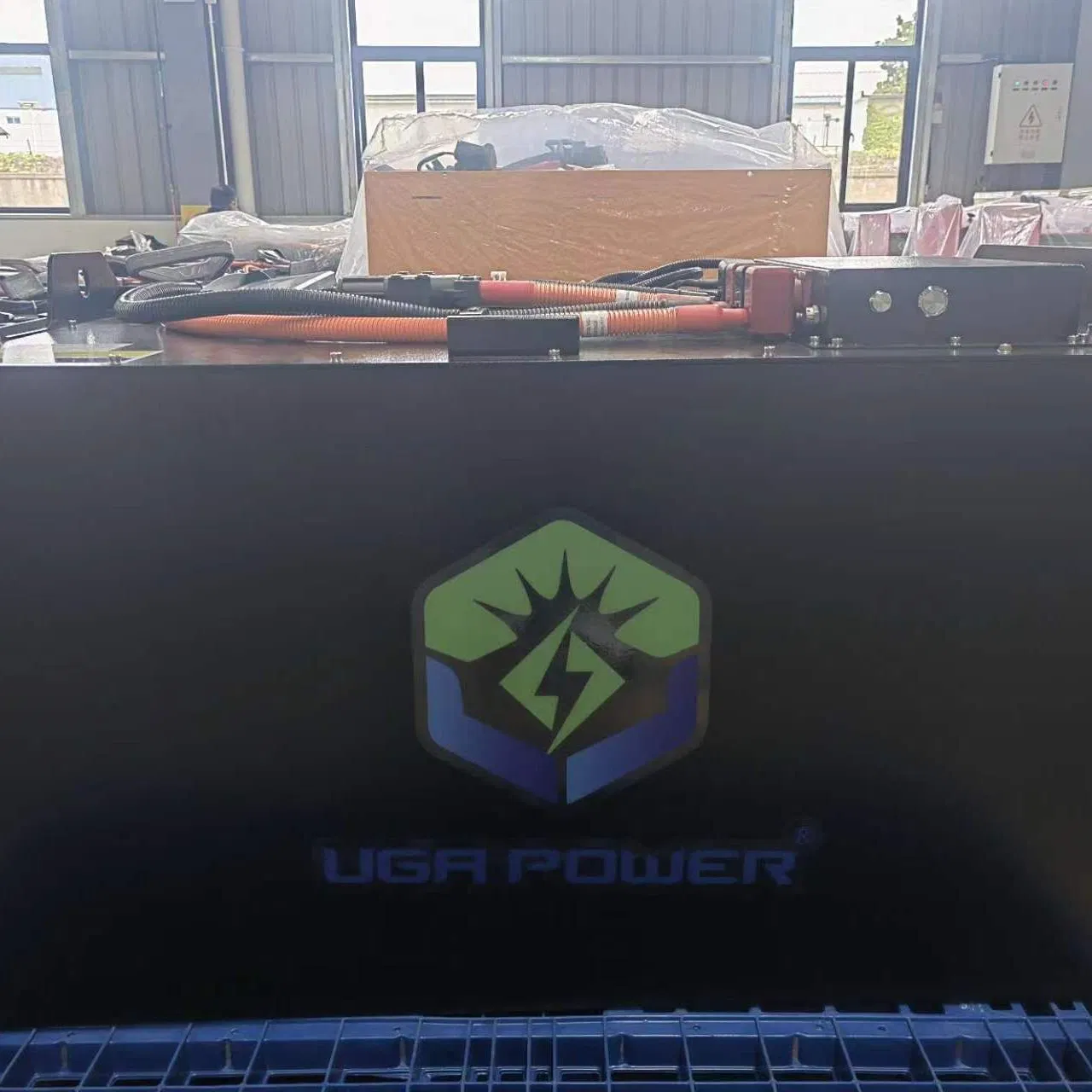

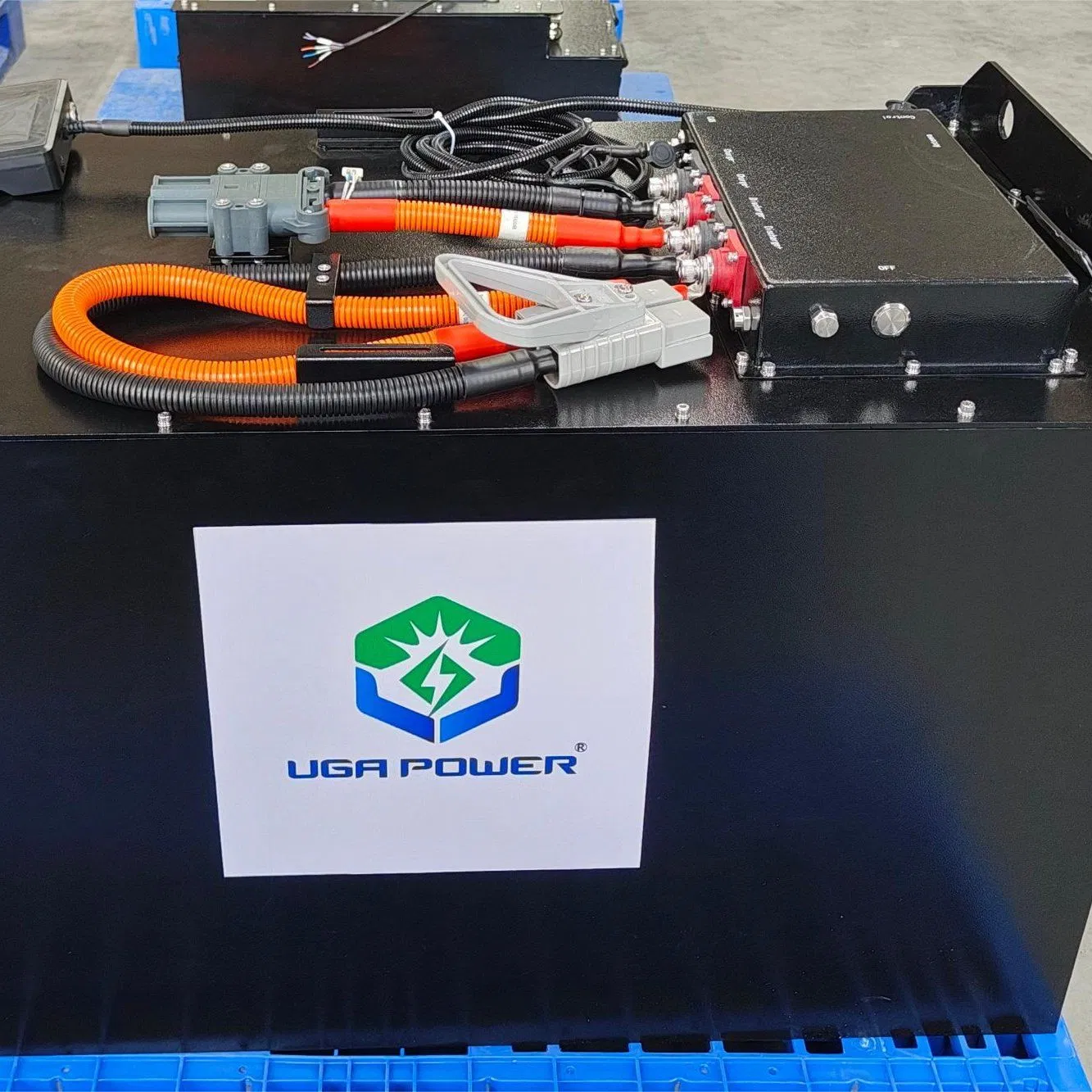

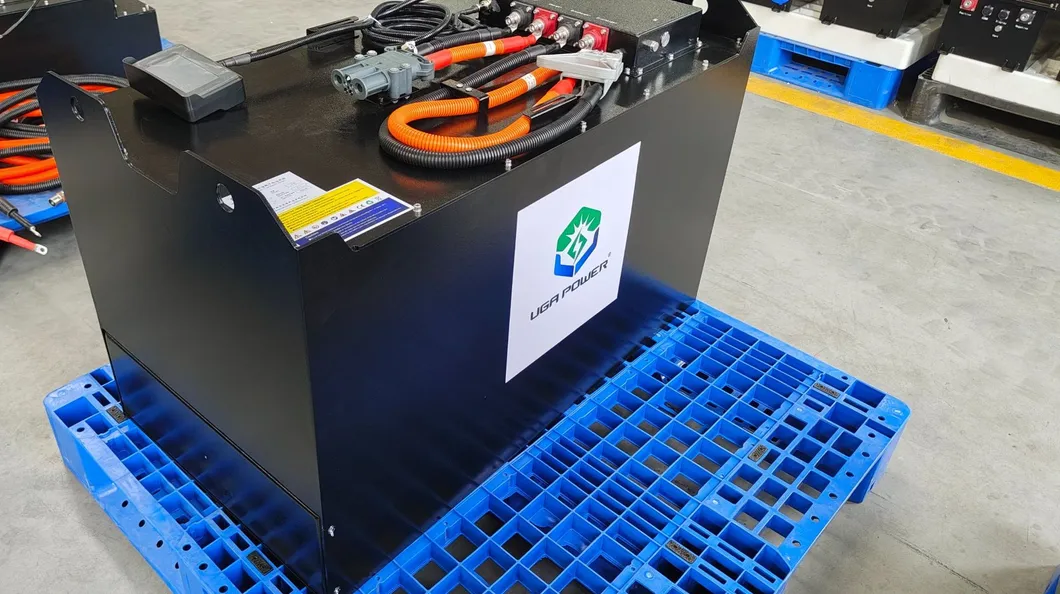

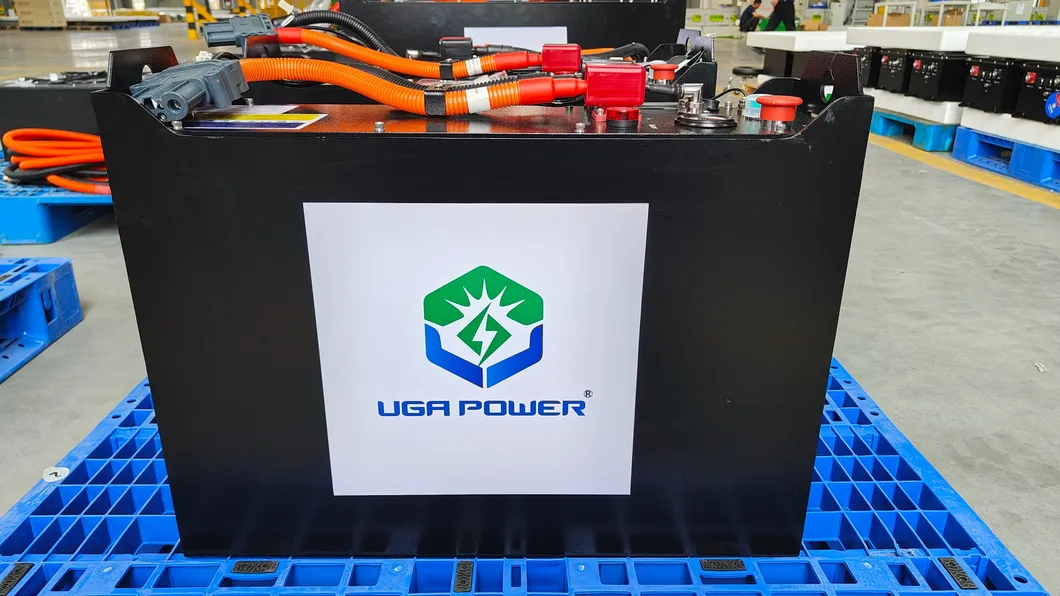

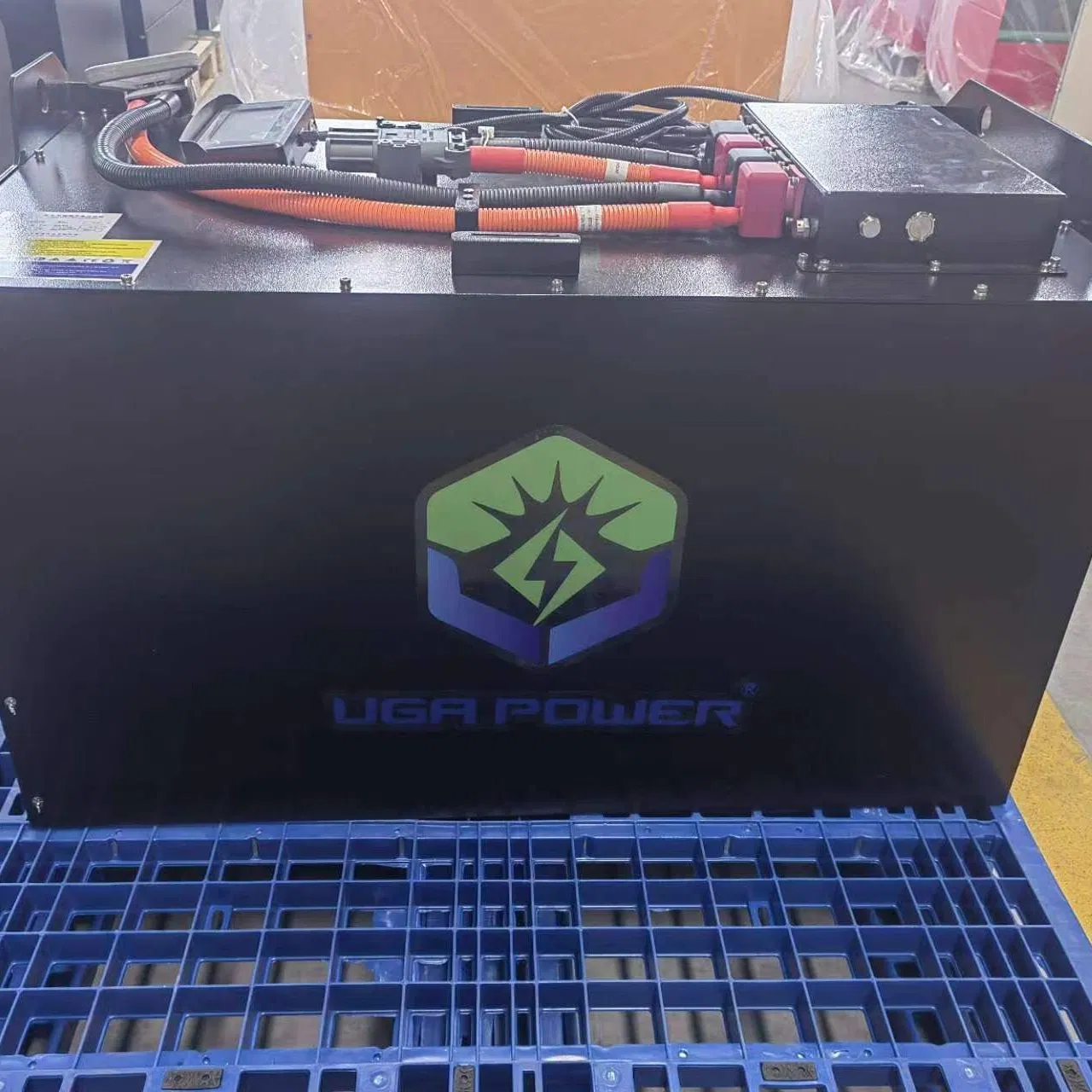

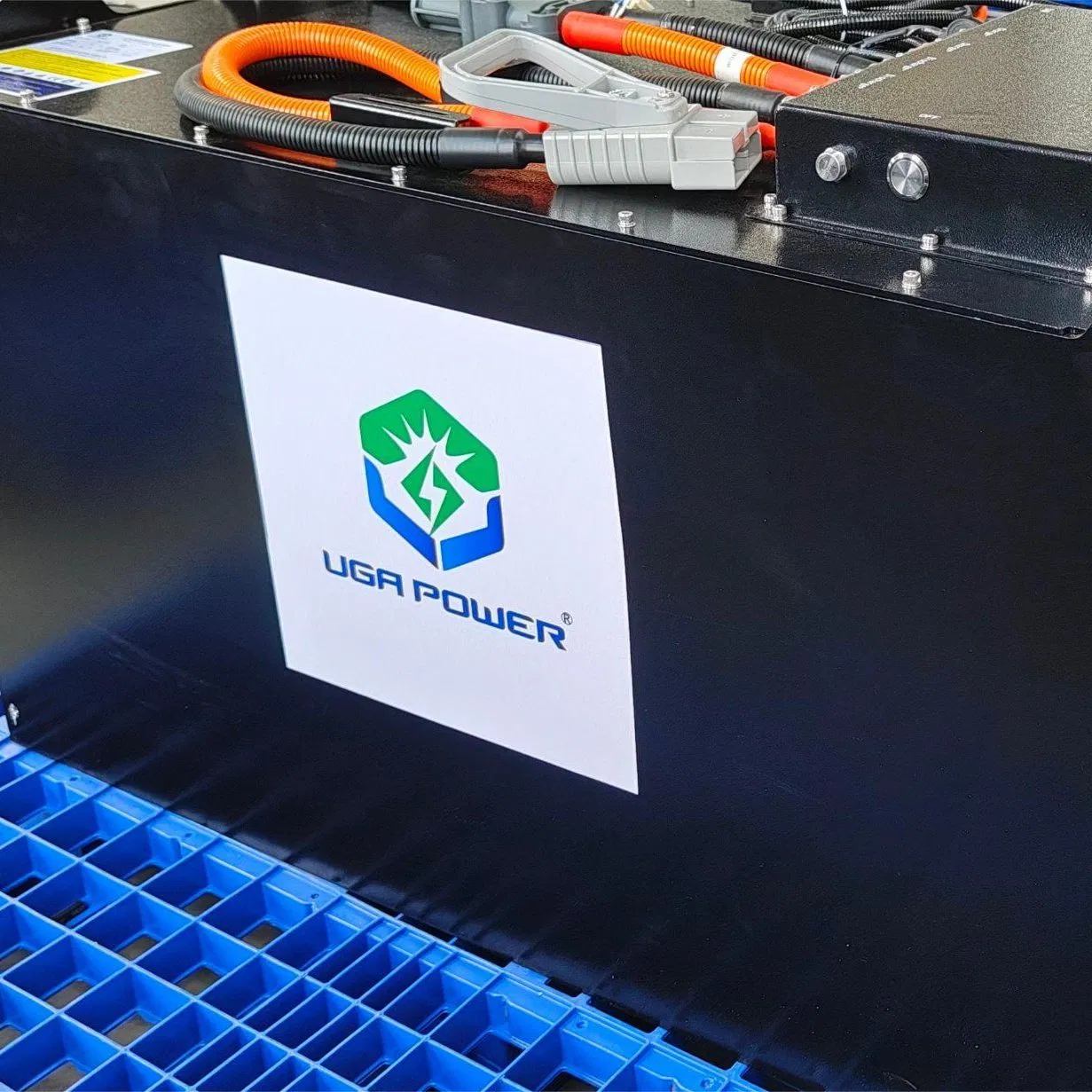

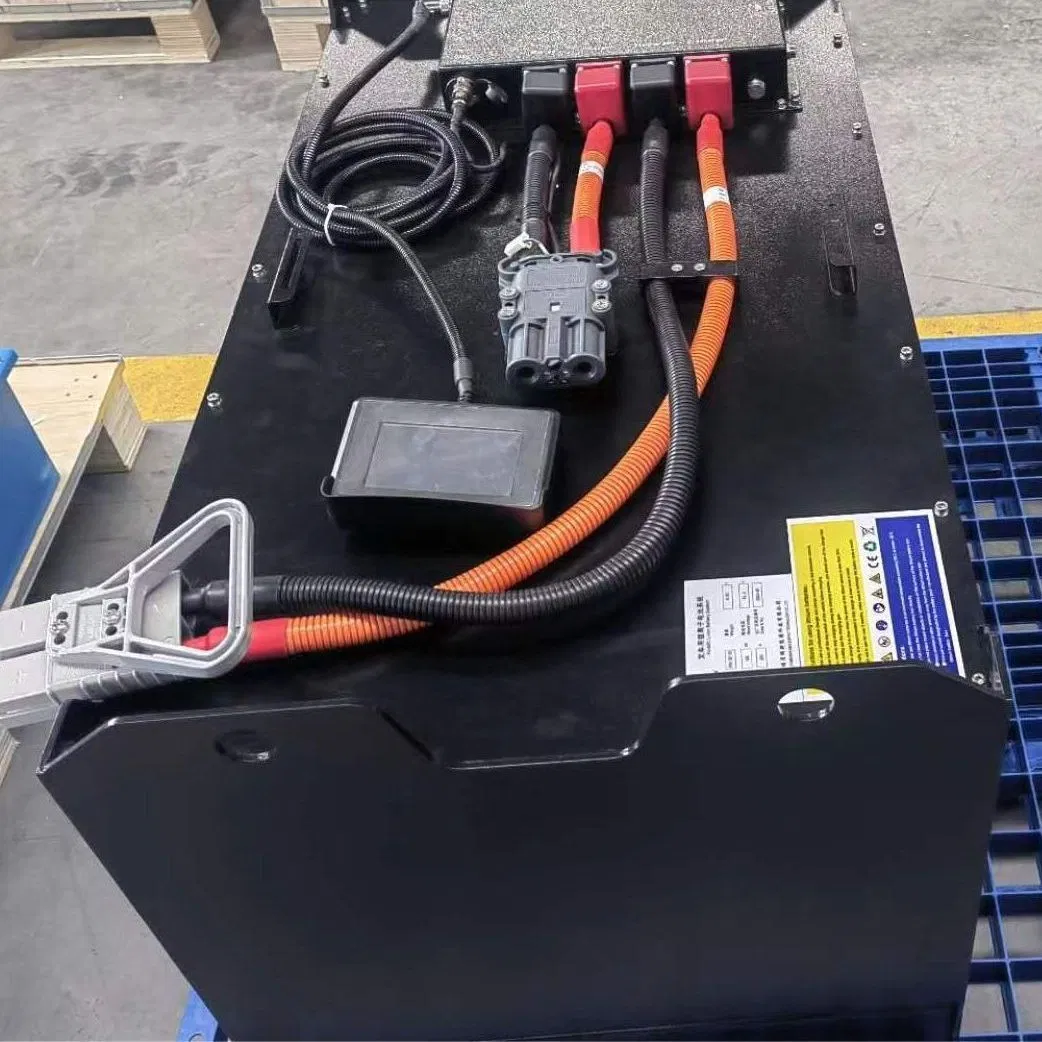

Traction Lithium Battery / LiFePO4 Battery for Electric Forklifts
| NO. |
Item |
General Parameter |
Remark |
| 1 | Cell Model | 36130-110AH | Single 36*130*200mm |
| 2 | Casing Material | Aluminum alloy | Single cell |
| 3 | Standard Capacity | 440Ah | 0.3CA |
| 4 | Rated Voltage | 51.2V | Work voltage: 3.20V |
| 5 | Max. Charge Voltage | 58.4V | Ave. charge: 3.65V |
| 6 | Cut-off Voltage | 44V | Ave. discharge: 2.75V |
| 7 | Standard Charge Current | ≤200A | - |
| 8 | Charging Time | About 2 h | - |
| 9 | Continuous Discharge | 200A | - |
| 10 | Peak Discharge | 400A | 10 seconds |
| 11 | Battery Dimension | ≤978*545*636mm | RAL9005 (Black) |
| 12 | Total Weight | About 820 kg | Approx. |
🚀 Key Applications
Forklifts
Pallet Trucks
Underground Mining Locomotives
Subway Tunnel Locomotives
Powered Industrial Vehicles

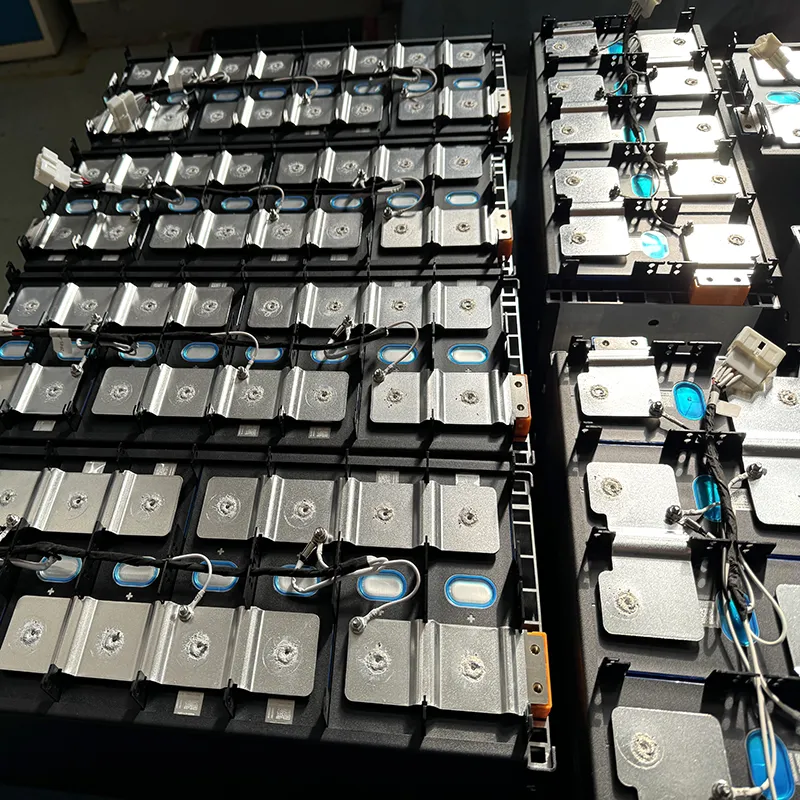

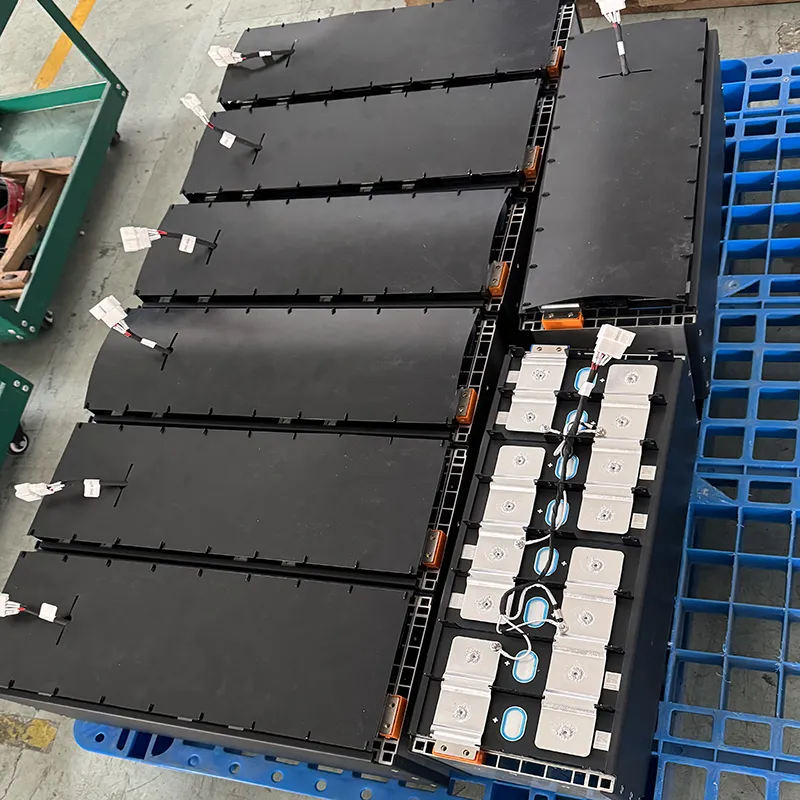

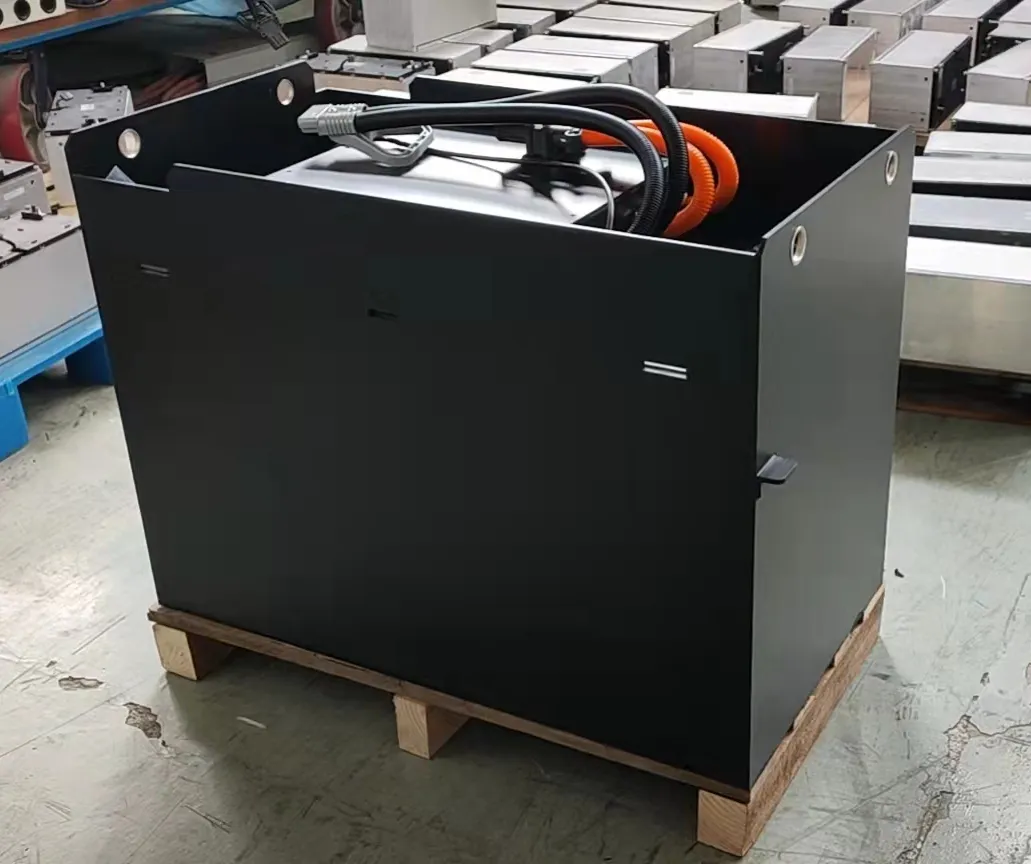

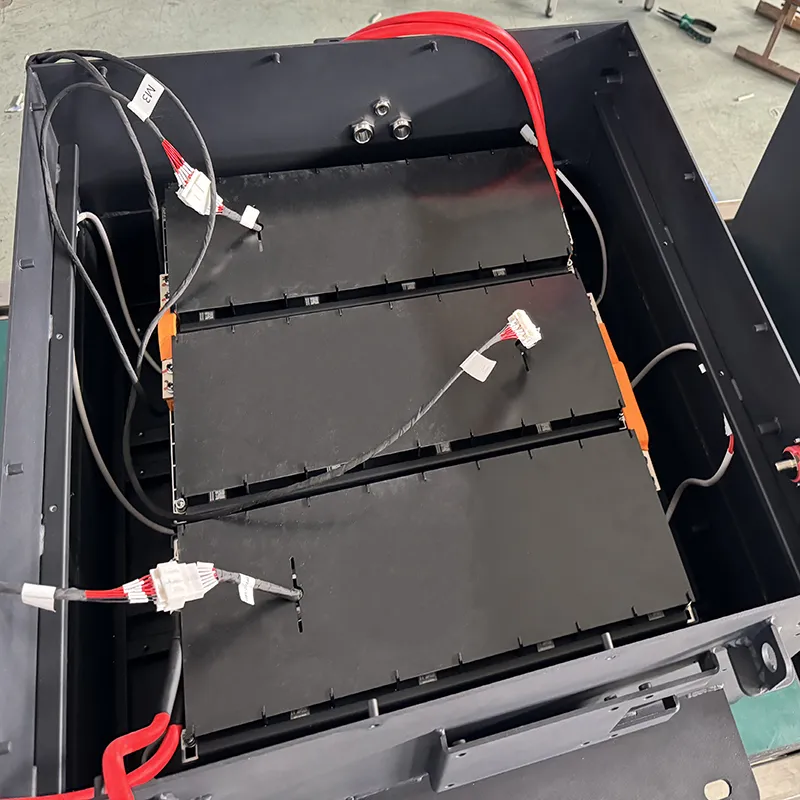

🏭 Workshop & Production
🌟 Key Features
High Energy Density: Offers superior density for longer operational hours without increasing weight.
Extended Lifespan: Up to 3,000 charging cycles, significantly outlasting lead-acid batteries.
Rapid Charging: Supports fast charging to ensure minimal downtime and improved productivity.
Enhanced Safety: LiFePO4 chemistry provides thermal and chemical stability to prevent overheating.
Low Maintenance: No water top-ups or equalization charges required, lowering operational costs.
Consistent Power: Reliable output throughout the entire discharge cycle for steady performance.
Environmentally Friendly: Free from toxic heavy metals and fully recyclable.
Wide Temperature Range: Operates efficiently in various environmental conditions, indoors or outdoors.
❓ Frequently Asked Questions
What is the lifespan of this LiFePO4 forklift battery?
The battery is designed for durability and can deliver more than 3,000 charging cycles, which is much longer than traditional lead-acid alternatives.
Does this battery support fast charging?
Yes, it supports rapid charging. A full charge can be achieved in approximately 2 hours, allowing for quick turnarounds in busy warehouse operations.
Is the battery maintenance-free?
Absolutely. Unlike lead-acid batteries, LiFePO4 batteries do not require regular water top-ups or equalization charges, significantly simplifying your maintenance routine.
How safe is LiFePO4 technology for industrial use?
LiFePO4 is one of the safest lithium-ion chemistries available. It is thermally and chemically stable, which greatly reduces the risks of fire or explosion during high-intensity use.
Can this battery operate in extreme temperatures?
Yes, it is engineered to function efficiently across a broad temperature range, making it suitable for both indoor cold storage and outdoor applications.
What are the environmental benefits?
The battery is environmentally friendly as it contains no toxic heavy metals like lead or cadmium and is fully recyclable, supporting sustainable business practices.
