Heavy-Duty IP54-Secured Liquid-Cooled C&I Battery Backup Storage System for Emergency Power Resilience

1 / 5

Heavy-Duty IP54-Secured Liquid-Cooled C&I Battery Backup Storage System for Emergency Power Resilience

Customization:	Available
Container Size:	650028002896mm
Weight:	44t

Send Inquiry

Product Description

📊 Overview - Basic Information

Model NO.	JSKJ-ESS-DC5000-A
Nominal Voltage	1331.2V
Warranty	5 Years
Nominal Capacity	3768ah
Cycle Life	8000 Cycles
Cell Type	LFP Battery
Cell Configuration	12P416S
Rated Energy	Expandable to 100MWh+
Charge/Discharge Rate	0.5P
Operating Voltage Range	1164.8-1497.6V
Cooling Method	Liquid + Air Cooling Dual Thermal Management
Fire Detection	Temp, CO, Smoke Sensors
Waterproof Design	IP54 (Outdoor Durability)
System Architecture	Triple Fire Protection + Triple BMS
Package Size	650.00cm * 280.00cm * 289.60cm
Package Gross Weight	44000.000kg

🔋 Product Description

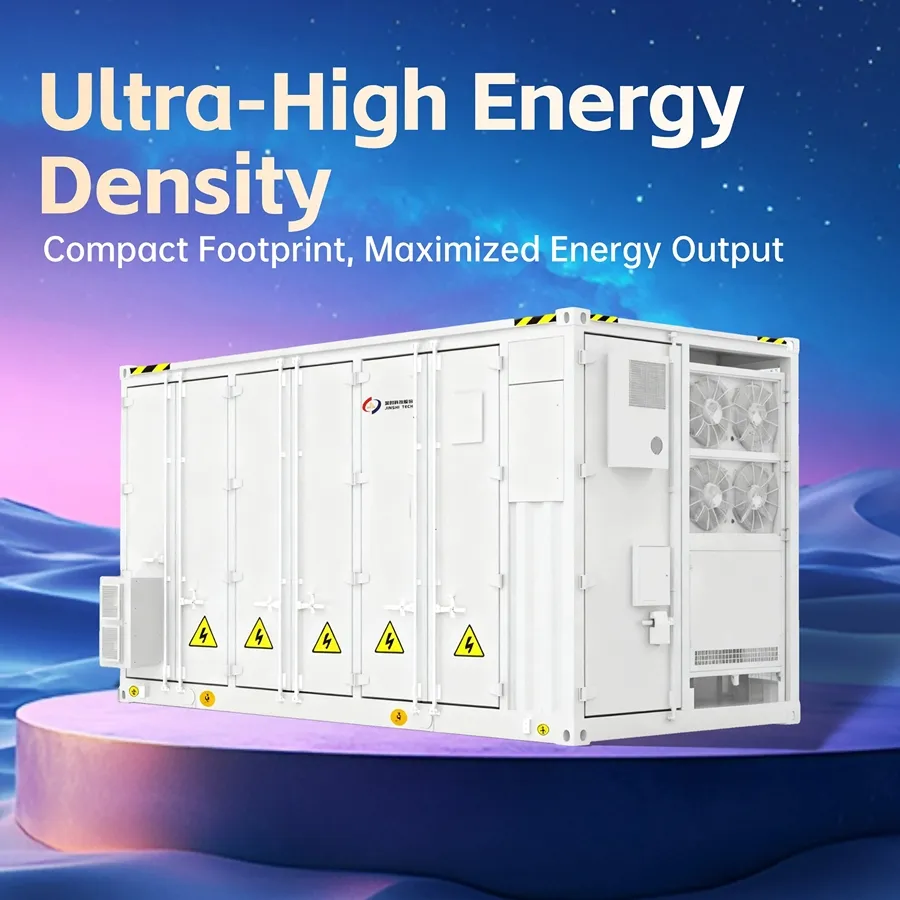

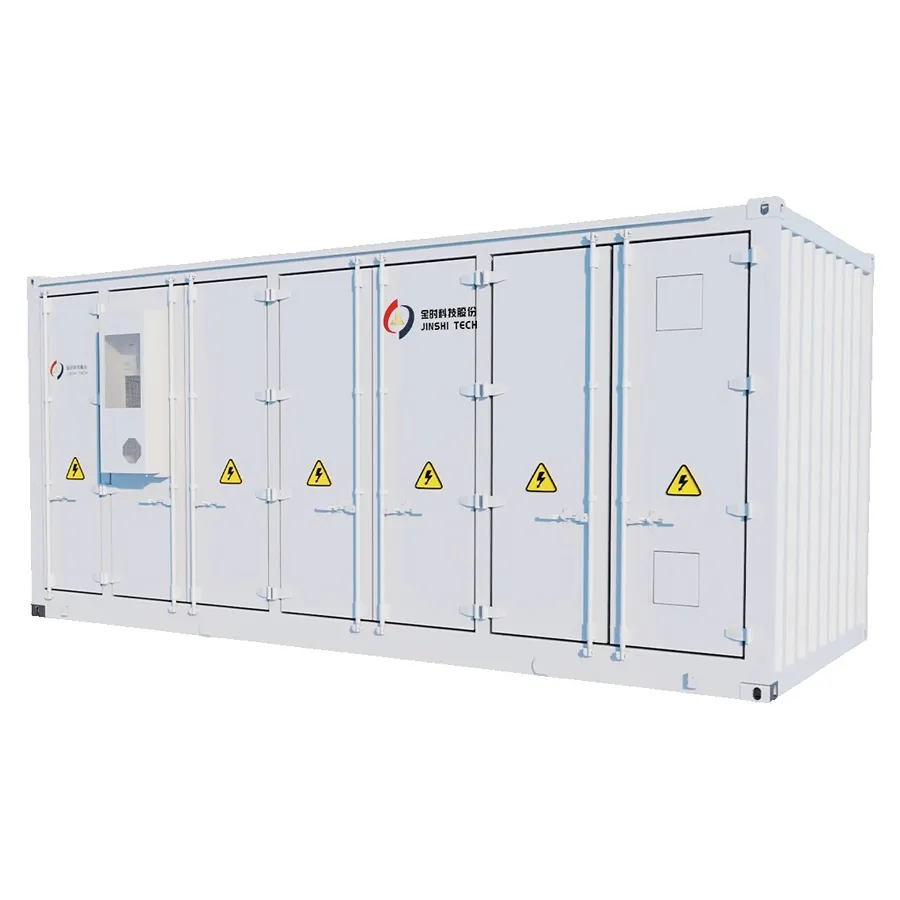

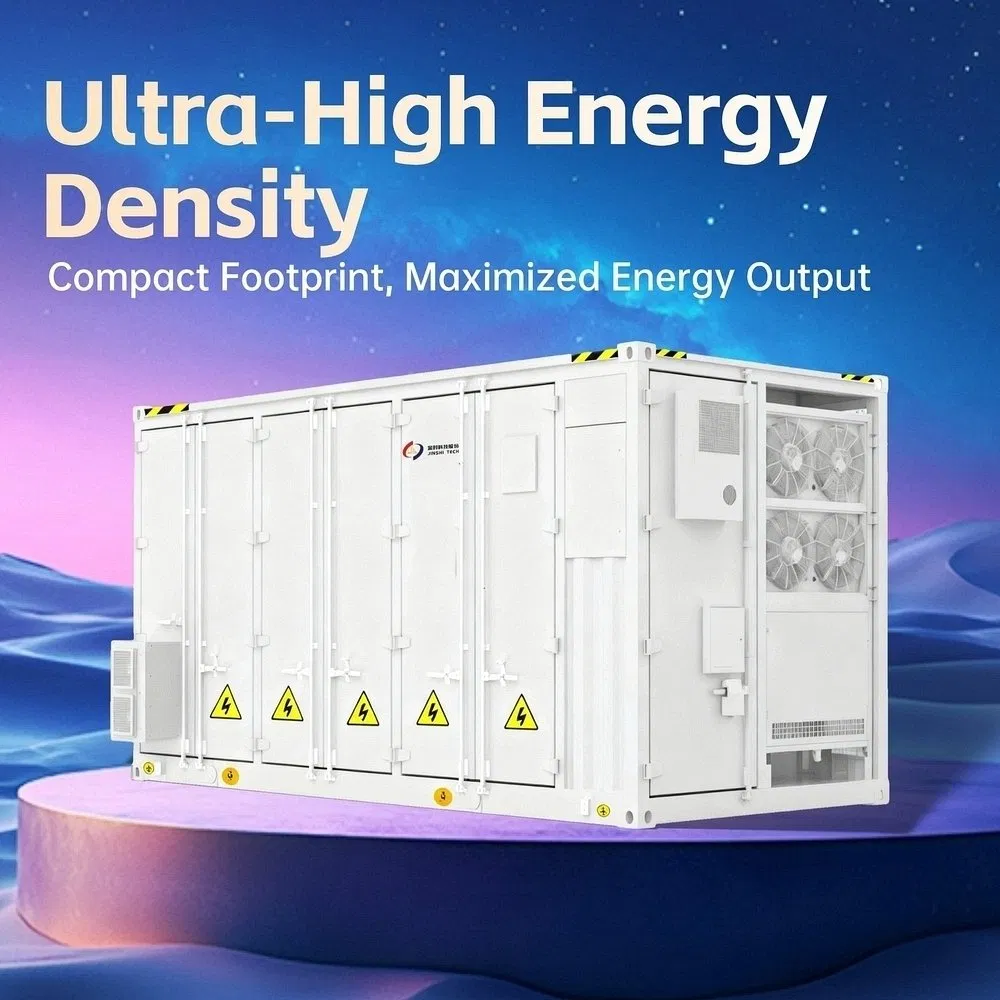

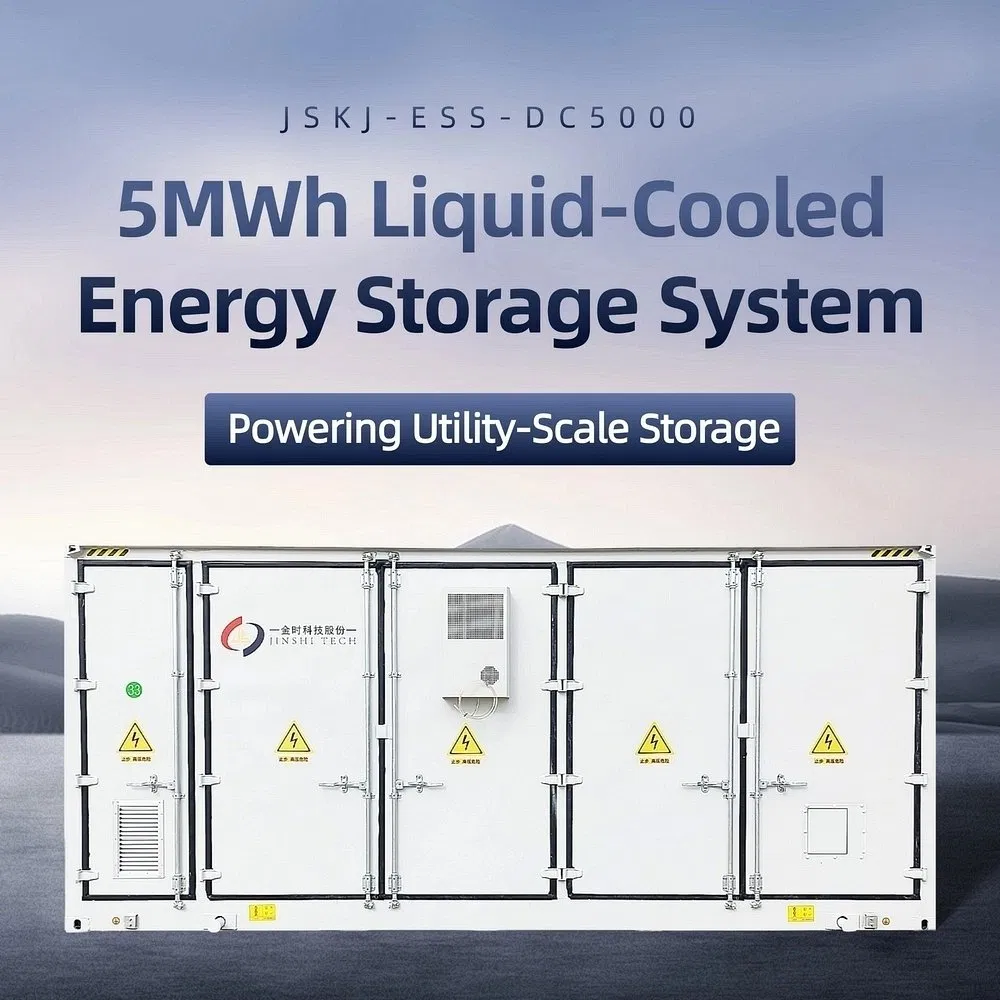

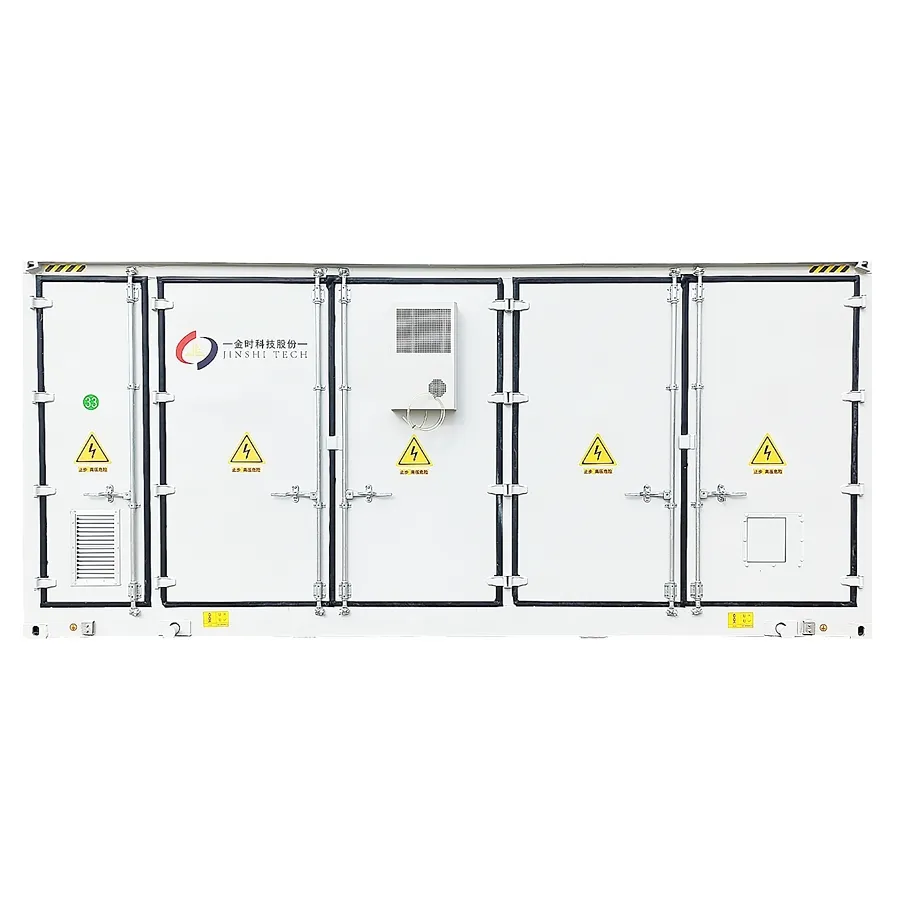

5MWH BATTERY STORAGE CONTAINER

The 5MWh liquid-cooled system enhances energy density by 30% and extends battery life by 50% via AI-driven thermal management. Ideal for grid-side peak shaving, frequency regulation, and industrial energy arbitrage.

🛡️

24/7 BMS Monitoring
Continuous Battery Management System oversight for maximum safety.

⚡

High-Frequency Regulation
Fully compatible with rapid response grid service requirements.

🔥

Advanced Fire Suppression
Supports NOVEC 1230, Liquid Nitrogen, and Perfluorohexanone.

🔗

Easy Scalability
Supports multi-cabinet parallel connection for large-scale energy needs.

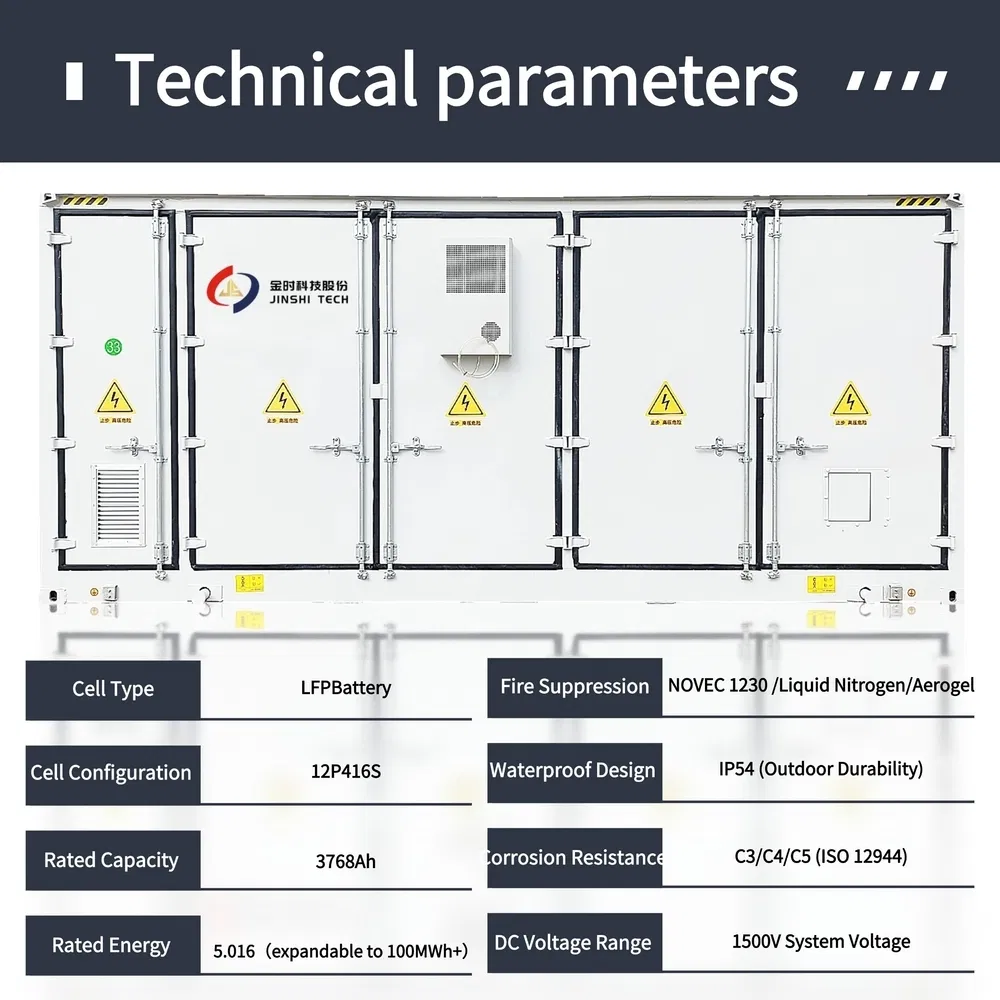

⚙️ Technical Parameters

Rated Capacity	3768Ah
Rated Voltage	1331.2V
Standard Charge/Discharge Current	1884A/1884A
Corrosion Resistance	C3/C4/C5 (ISO 12944)
DC Voltage Range	1500V System Voltage
Application Scenarios	Inland, Plateau, Coastal

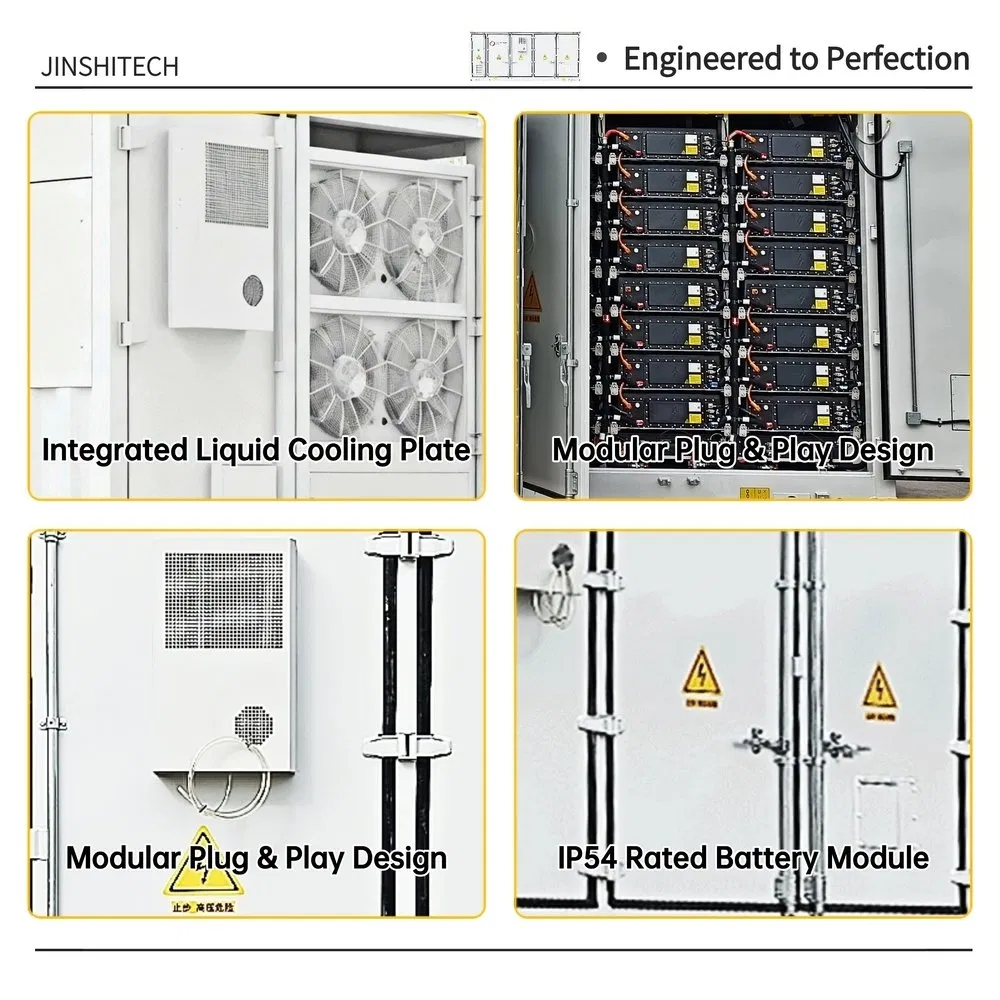

📸 Detailed Features & Photos

🚀 TRIPLE-LAYER FIRE PROTECTION

Three-level fusing system with targeted explosion discharge design; supports NOVEC 1230, perfluorohexanone, and liquid nitrogen fire suppression agents.

🔍 COMPREHENSIVE MONITORING

24/7 BMS with real-time temperature, CO, and smoke sensors; triple BMS redundancy ensures fail-safe operation.

🌍 ROBUST ENVIRONMENTAL PROTECTION

IP54 waterproof rating for outdoor durability; C3/C4/C5 corrosion resistance (ISO 12944) suitable for inland, plateau, and coastal applications.

❓ Frequently Asked Questions

Q1: What is the expected cycle life of the battery system?

The system utilizes high-quality LFP cells providing a cycle life of up to 8000 cycles, ensuring long-term reliability for industrial applications.

Q2: Can the storage capacity be expanded in the future?

Yes, the system supports multi-cabinet parallel connection, allowing for easy scalability to 100MWh or more depending on your energy requirements.

Q3: What kind of fire protection is integrated?

We employ a triple-layer fire protection strategy, including three-level fusing and support for NOVEC 1230, perfluorohexanone, and liquid nitrogen suppression.

Q4: Is the system suitable for coastal or high-altitude environments?

Absolutely. With an IP54 waterproof rating and C3/C4/C5 corrosion resistance, the system is designed for inland, plateau, and coastal applications.

Q5: How is the temperature managed within the container?

The system features a dual thermal management approach combining liquid cooling and air cooling to maintain optimal operating temperatures and extend battery life.

Q6: What customization options are available?

We support on-demand customization including specific LOGO branding, color schemes, and appearance size adjustments to meet your project needs.
