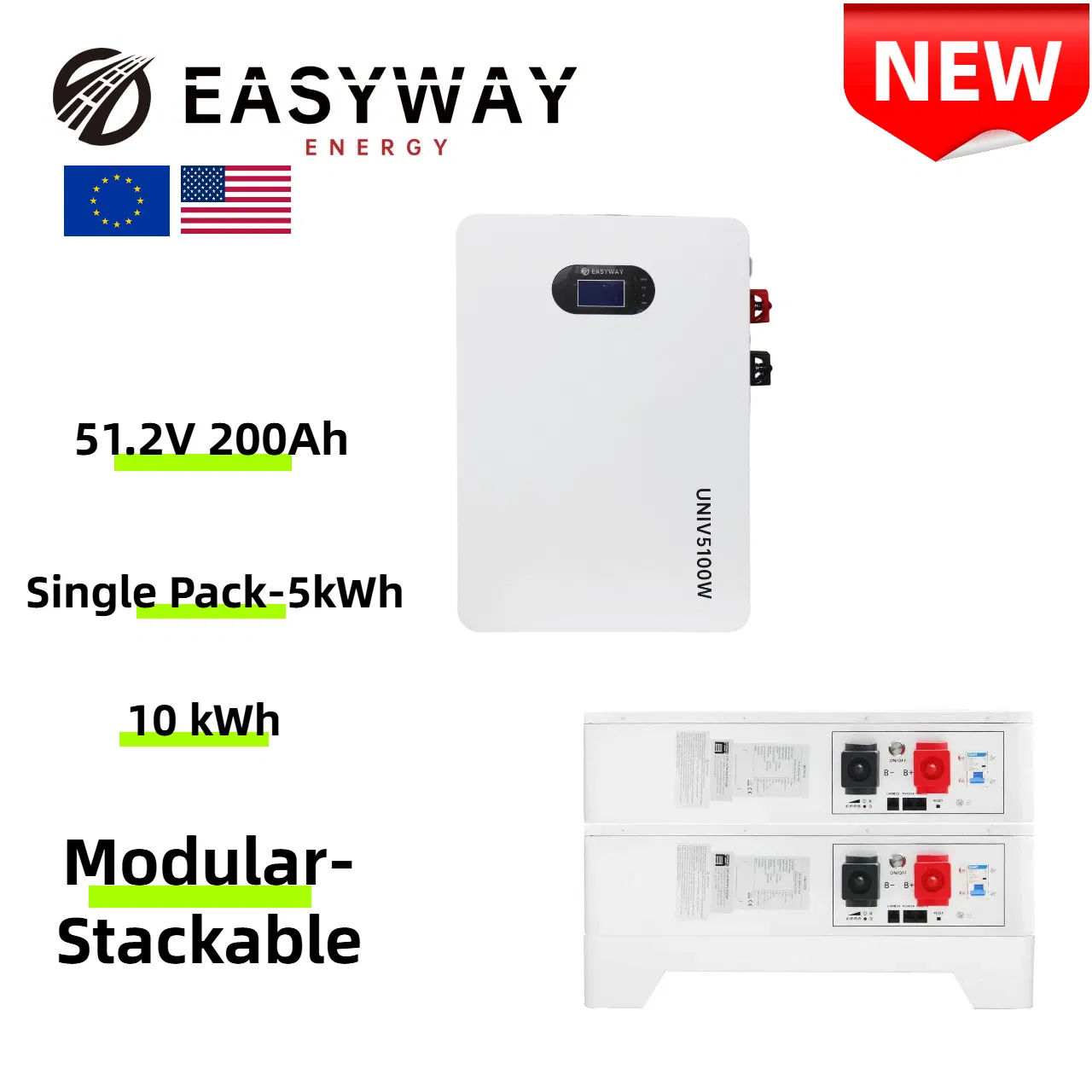

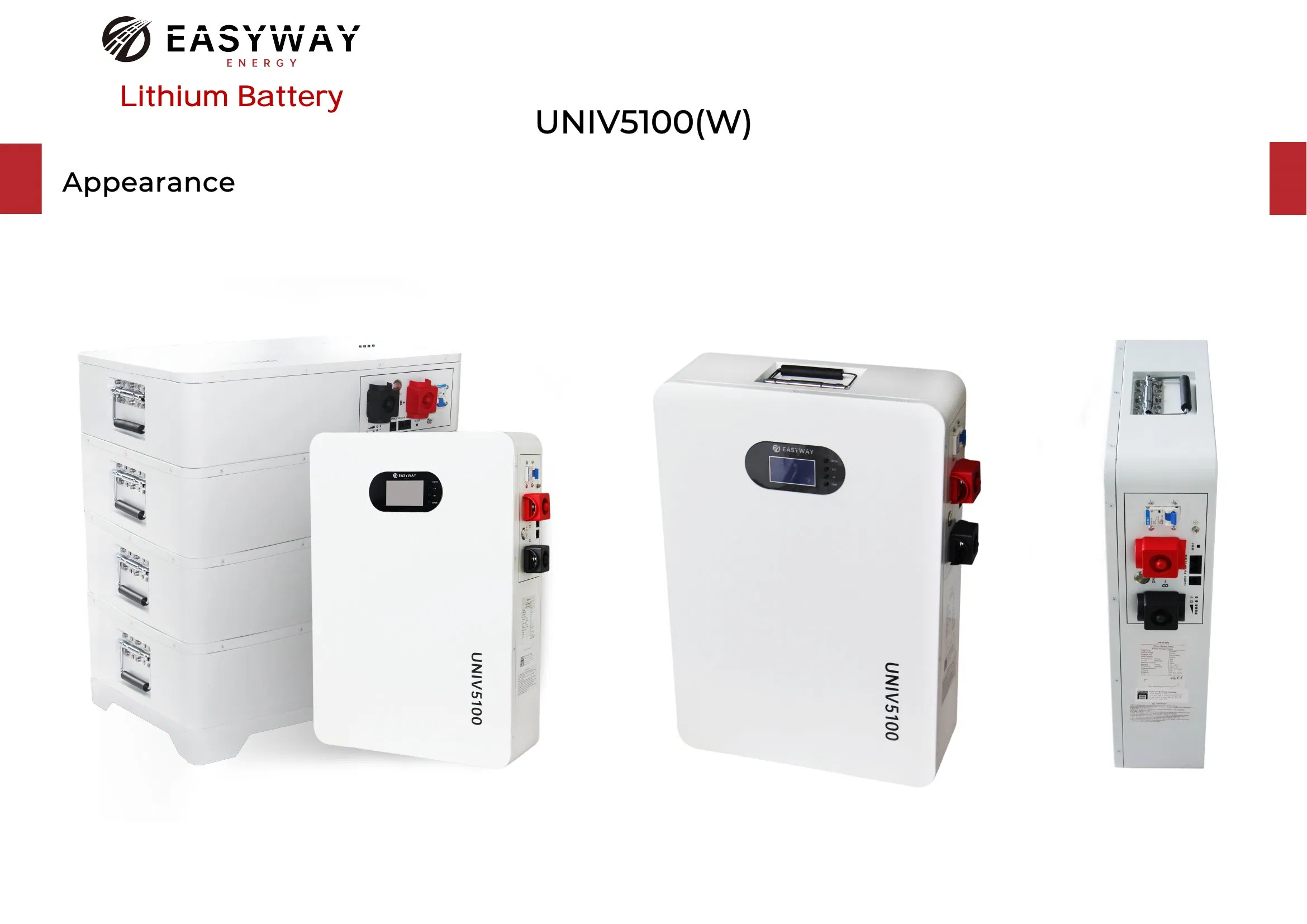

Eway 10kwh Modular Stackable Low Voltage for 5kw Pack with Lithium Battery

Eway 10kwh Modular Stackable Low Voltage for 5kw Pack with Lithium Battery

Eway 10kwh Modular Stackable Low Voltage for 5kw Pack with Lithium Battery

Eway 10kwh Modular Stackable Low Voltage for 5kw Pack with Lithium Battery

Eway 10kwh Modular Stackable Low Voltage for 5kw Pack with Lithium Battery

1 / 5

Eway 10kwh Modular Stackable Low Voltage for 5kw Pack with Lithium Battery

Eway 10kwh Modular Stackable Low Voltage for 5kw Pack with Lithium Battery

Eway 10kwh Modular Stackable Low Voltage for 5kw Pack with Lithium Battery

Eway 10kwh Modular Stackable Low Voltage for 5kw Pack with Lithium Battery

Eway 10kwh Modular Stackable Low Voltage for 5kw Pack with Lithium Battery

Eway 10kwh Modular Stackable Low Voltage for 5kw Pack with Lithium Battery

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

UNIV-LV-ST10K

Battery Type

LiFePO4 Battery

Rated Capacity

10.24kwh / 200ah

Standard Voltage

51.2V

Discharge Rate

0.5c

Usage

Home Storage Battery

Life Span

>15 Years

Warranty

10 Years

Cooling Type

Natural Cooling

Dimension

600*386*410mm

📦

Packaging & Delivery

Package Size

68.00cm * 49.00cm * 21.90cm

Gross Weight

50.000kg

Transport Package

Carton / Pallet

🖼️

Product Overview

Modular Stackable Battery

Lithium Battery Pack

Low Voltage Storage

Battery Module Detail

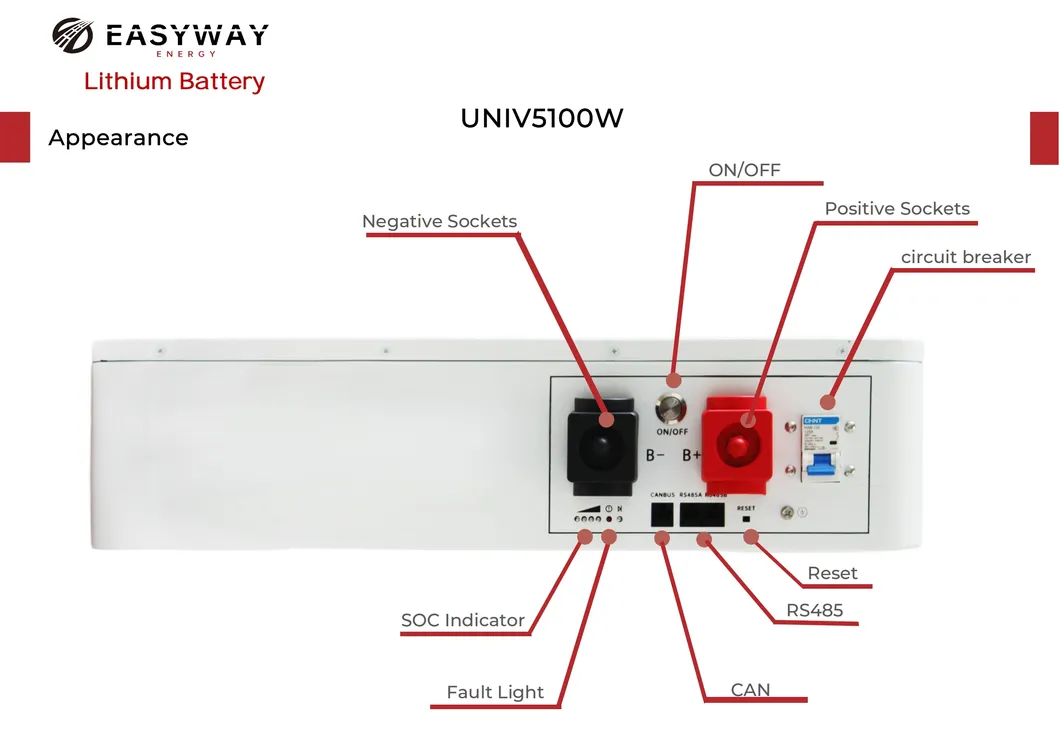

Stackable Design

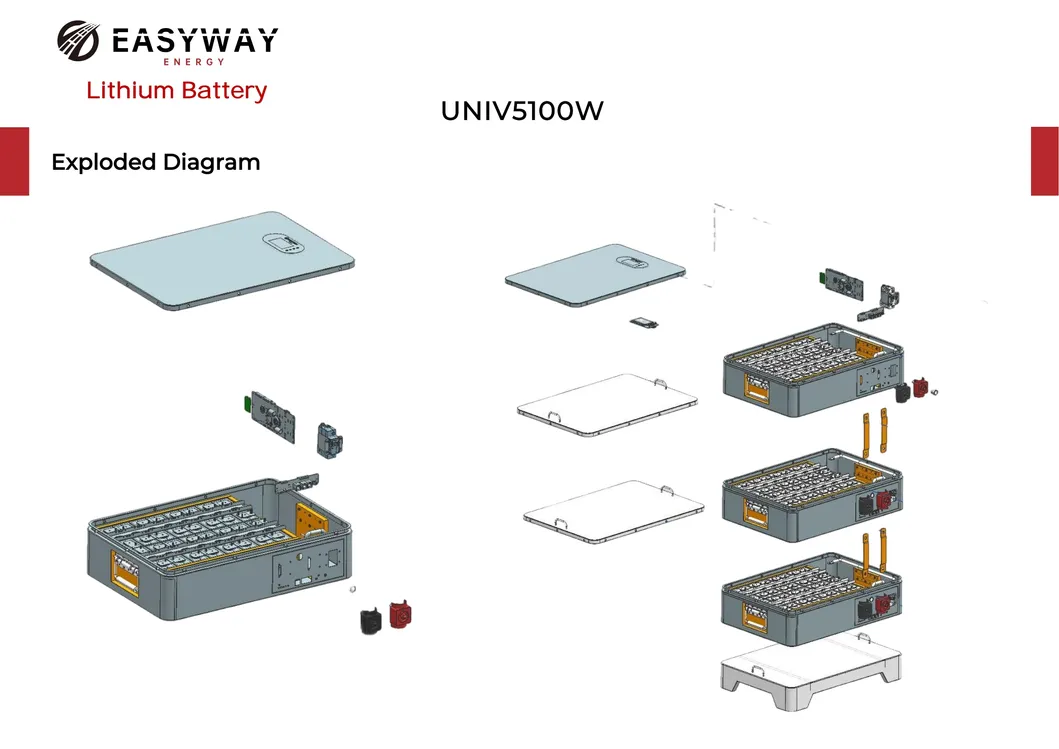

Modular Energy System

📊

Detailed Specifications

Module	UNIV5100W	ST10K	ST15K	ST20K	ST25K	ST30K	ST40K
Module Quantity	1 Module	2 Modules	3 Modules	4 Modules	5 Modules	6 Modules	8 Modules
Cell	51.2V 100Ah	51.2V 200Ah	51.2V 300Ah	51.2V 400Ah	51.2V 500Ah	51.2V 600Ah	51.2V 800Ah
Total Energy	5.12kWh	10.24kWh	15.36kWh	20.48kWh	25.6kWh	30.72kWh	40.96kWh

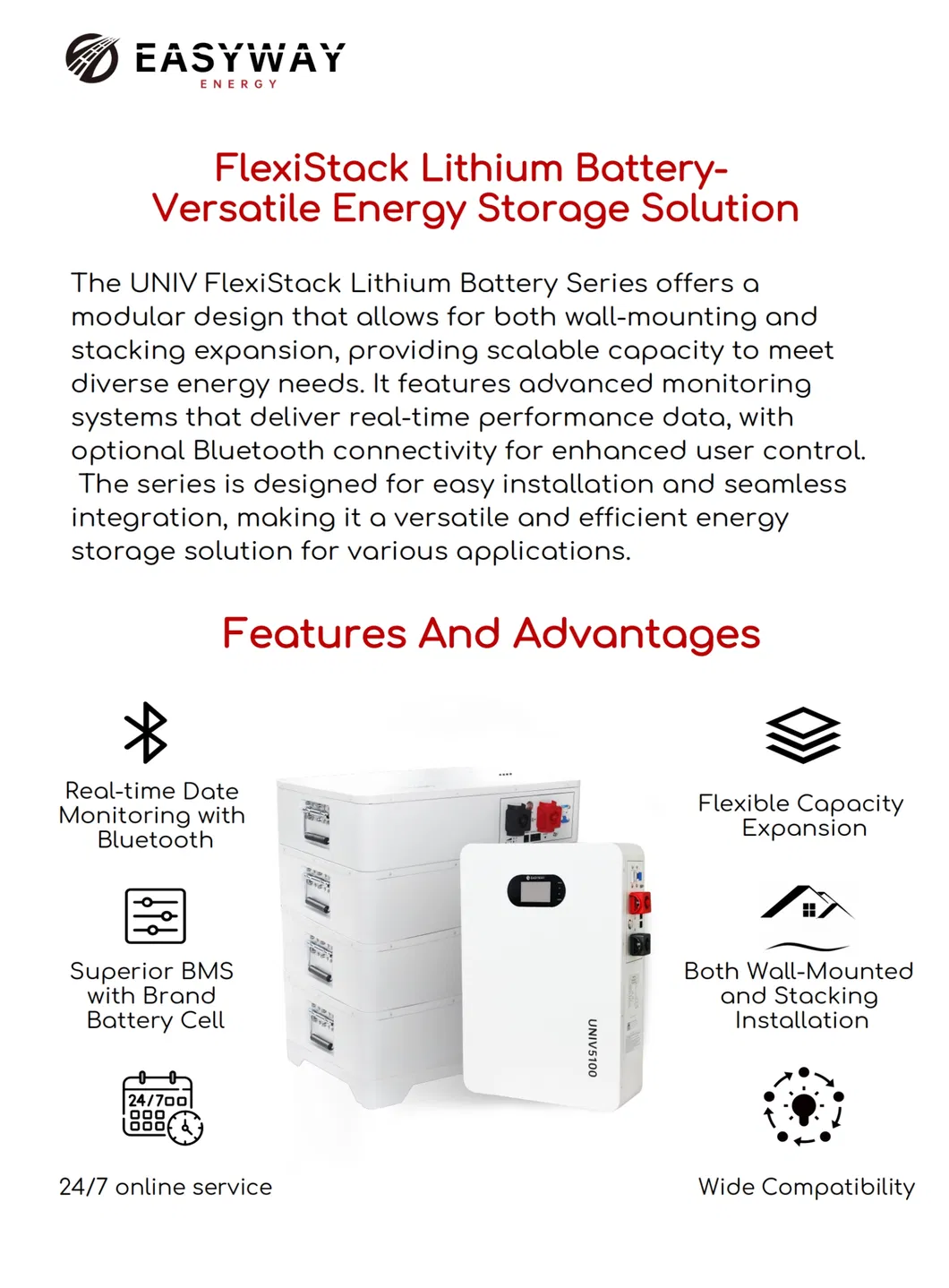

Spec Image 1

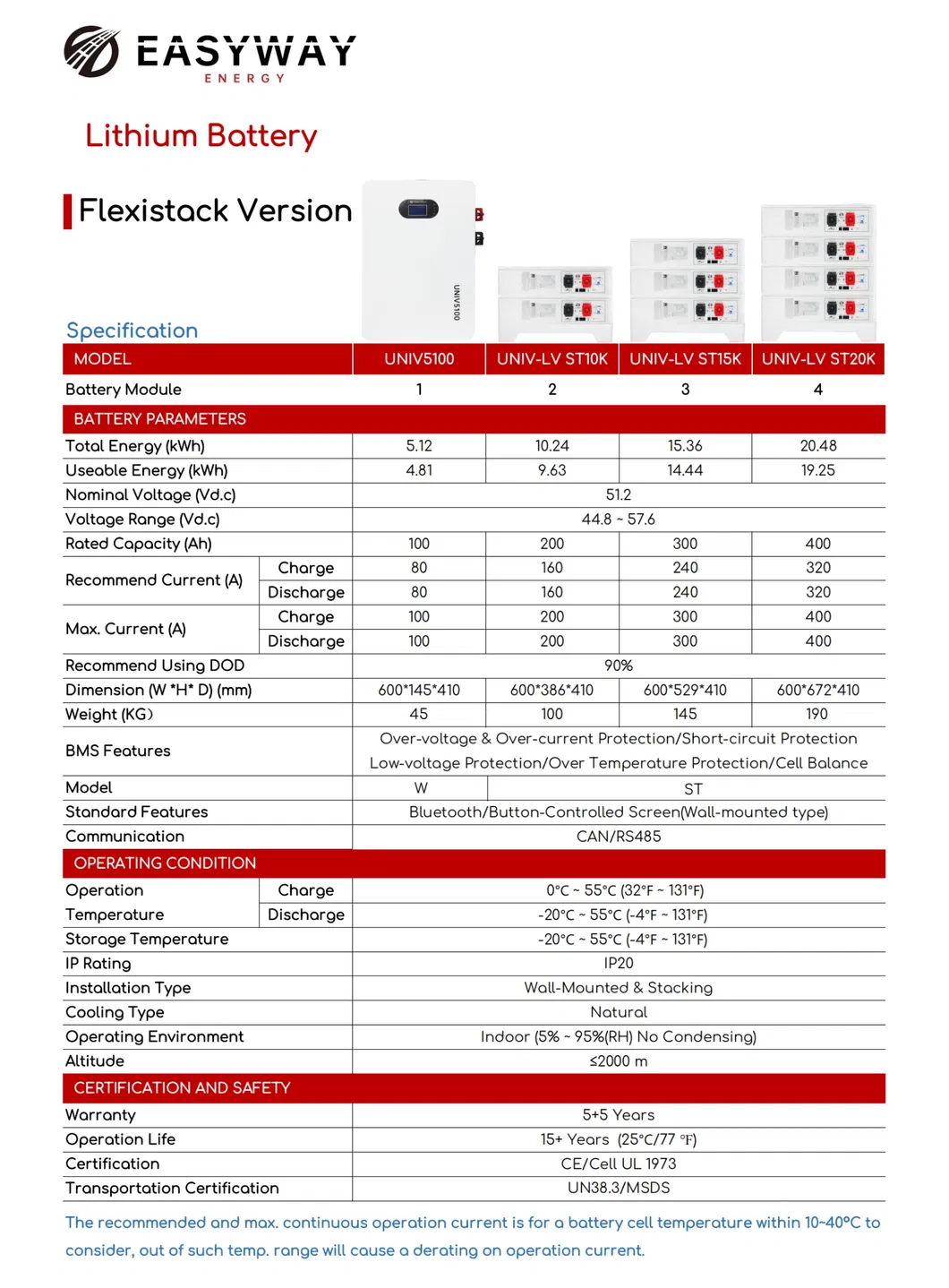

Spec Image 2

⚡

Intelligent Platform & Working Principle

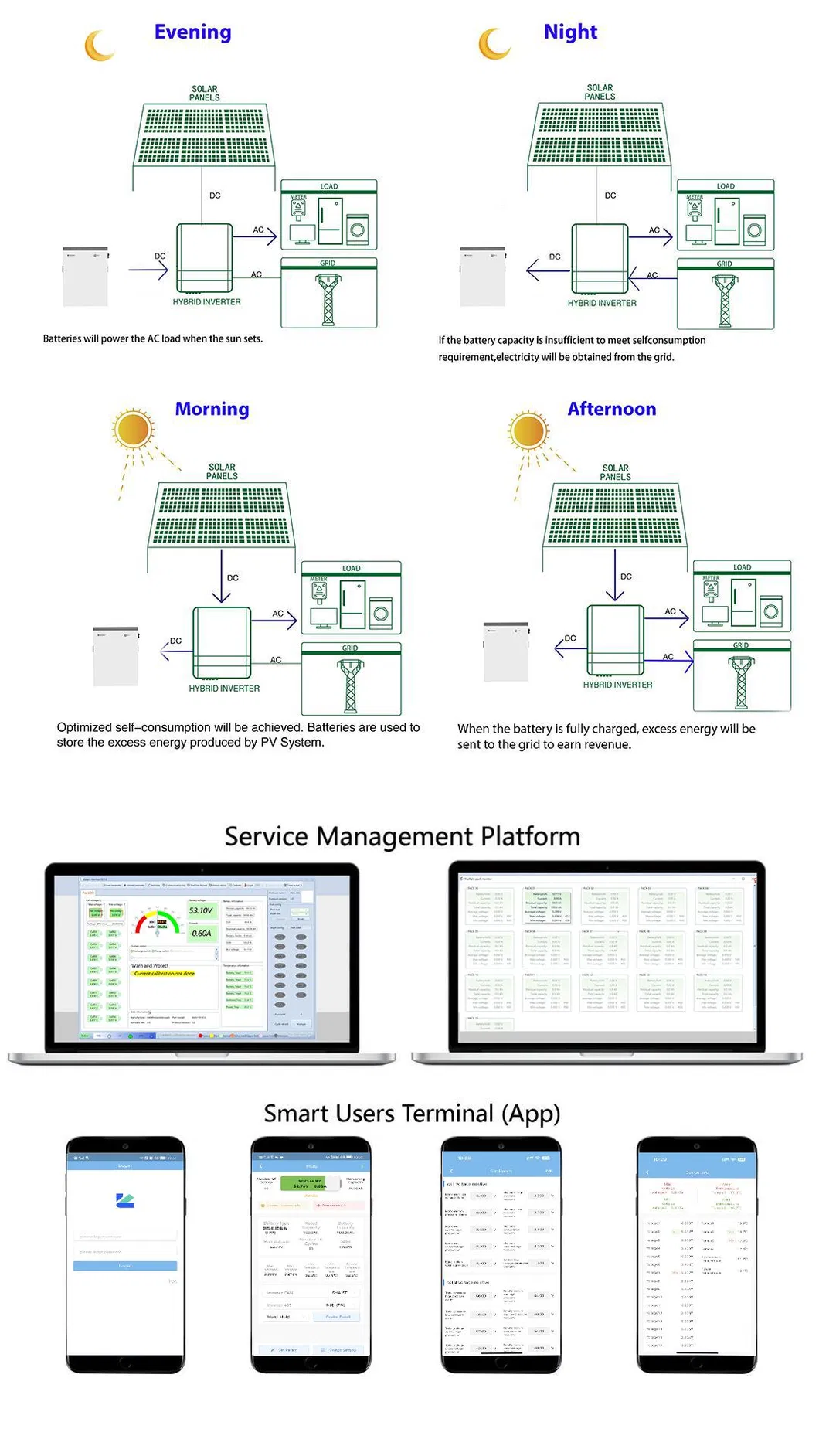

Working Principle

Smart Monitoring

System Connection

Interface

Safety Features

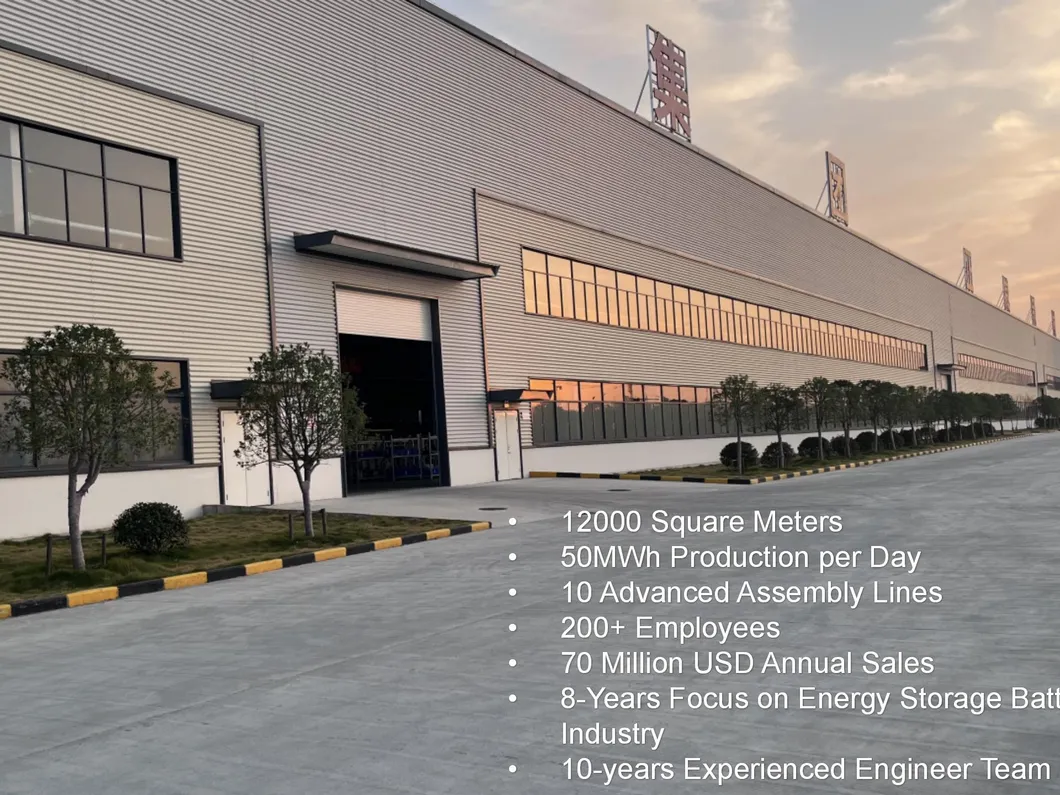

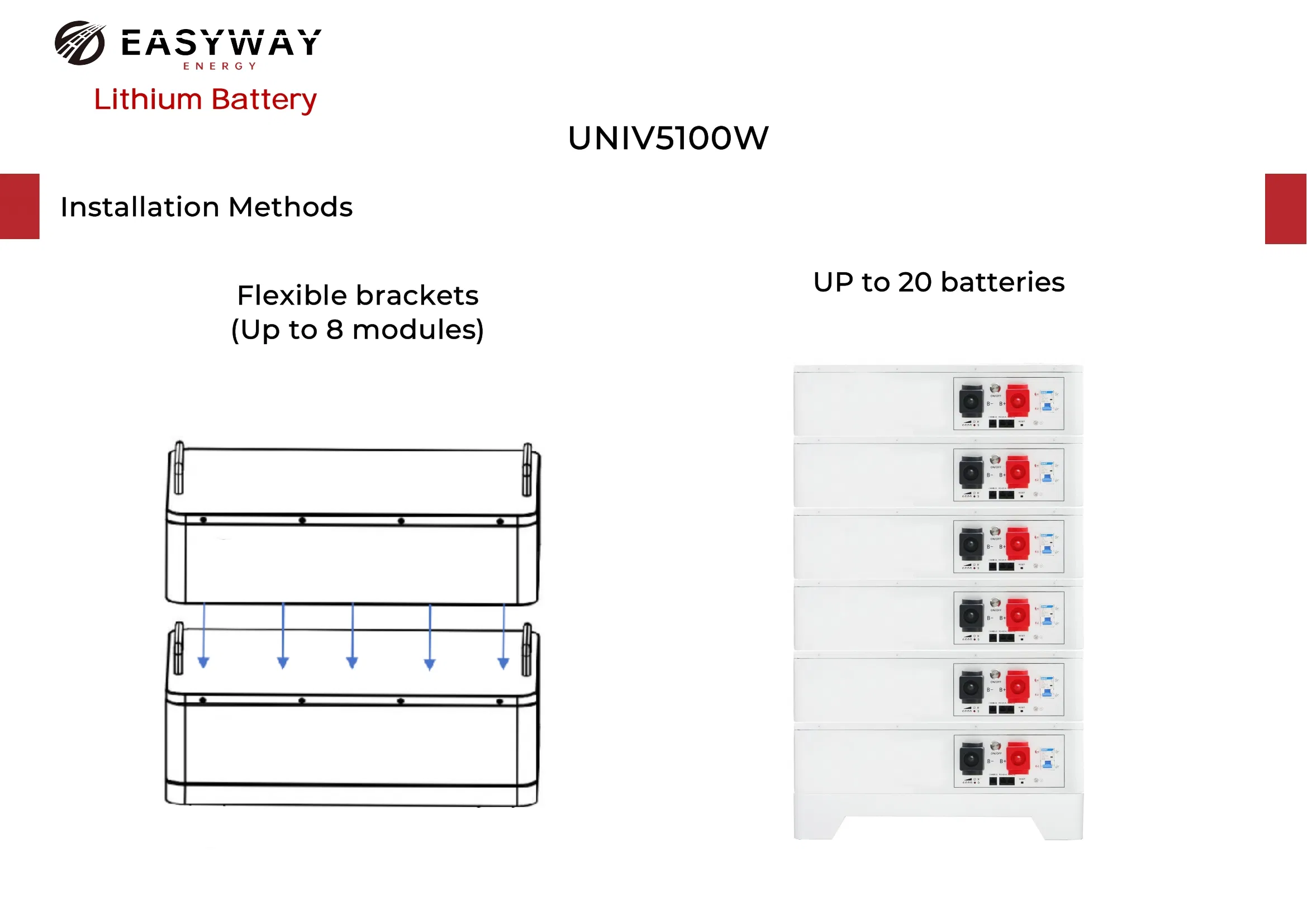

Installation

Application

❓

Frequently Asked Questions

Q1. How long is the lifespan of the battery?

Our batteries are built with grade A LiFePO4 cells, with a cycle life of up to 6000+ at 80% DoD.

Q2. What is the warranty period and support?

We offer a 5+5 year warranty which includes after-sales service and technical support, such as BMS replacement or battery module support.

Q3. Which inverter brands are compatible?

Our BMS supports Canbus and RS485 communication protocols, making them compatible with most well-known inverter brands on the market.

Q4. What is the typical delivery time and packaging?

Delivery usually takes around 30 days depending on order volume. Units are securely packed in either reinforced cartons or wooden crates.

Q5. Do you support customization like OEM or ODM?

Yes, we support full customization including logo stickers, OEM, and ODM services to meet specific project requirements.

Q6. Do the products have safety certifications for transport?

Yes, all products come with necessary certifications including CE, MSDS, and UN38.3 for safe international transport.
