| Model NO. | 48v100ah | Rechargeable | Yes |
|---|---|---|---|
| Nominal Voltage | 51.2V | Rated Capacity | 100Ah |
| Energy | 5120Wh | Cell Type | Grade A 3.2V 100Ah LiFePO4 |
| Cycle Life | 3000+ times | BMS | 16S 100A Smart BMS |
| Continuous Discharge | 100A | Max Discharge (Peak 3s) | 200A |

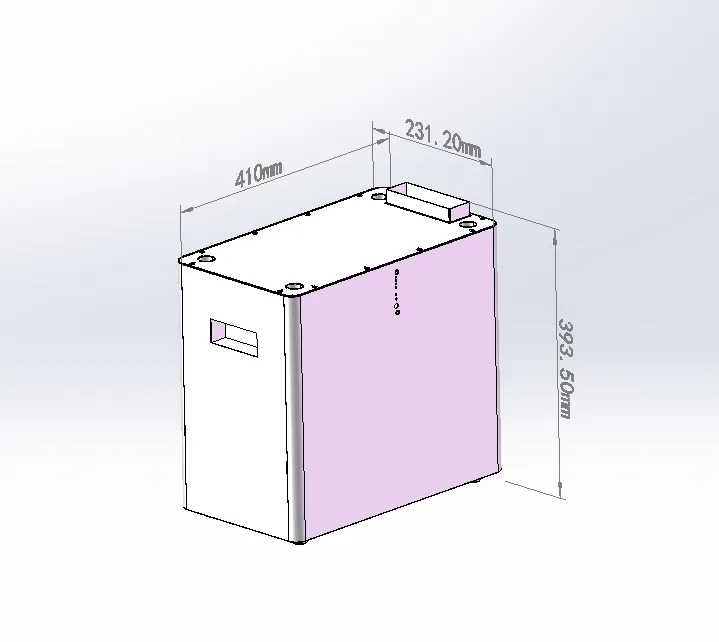

| Dimensions | L410*W231.2*H393.5mm | Weight | 44kg |
| Case Material | Plastic Box | Charge Method | CC/CV |
| Item | Specification | Remarks |
|---|---|---|
| Typical Capacity | 100Ah | 0.5C discharge |
| Charging Voltage | 58.4±0.05V | Max |
| Discharging Voltage | 40V | Min Cut-off |
| Standard Charge Current | 20A | 0.2C (0 ~ +45°C) |
| Internal Impedance | ≤170mΩ | AC 1kHz |

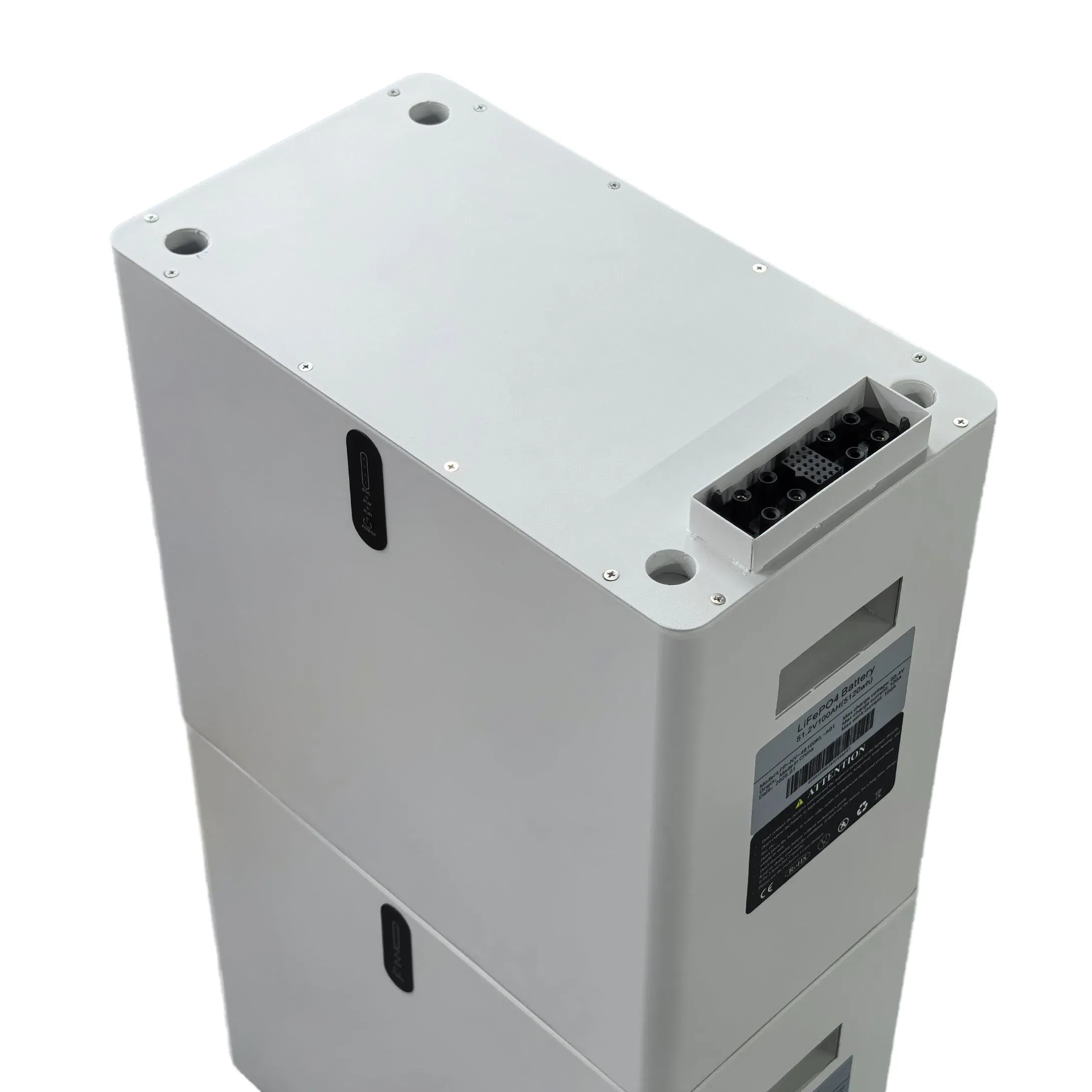

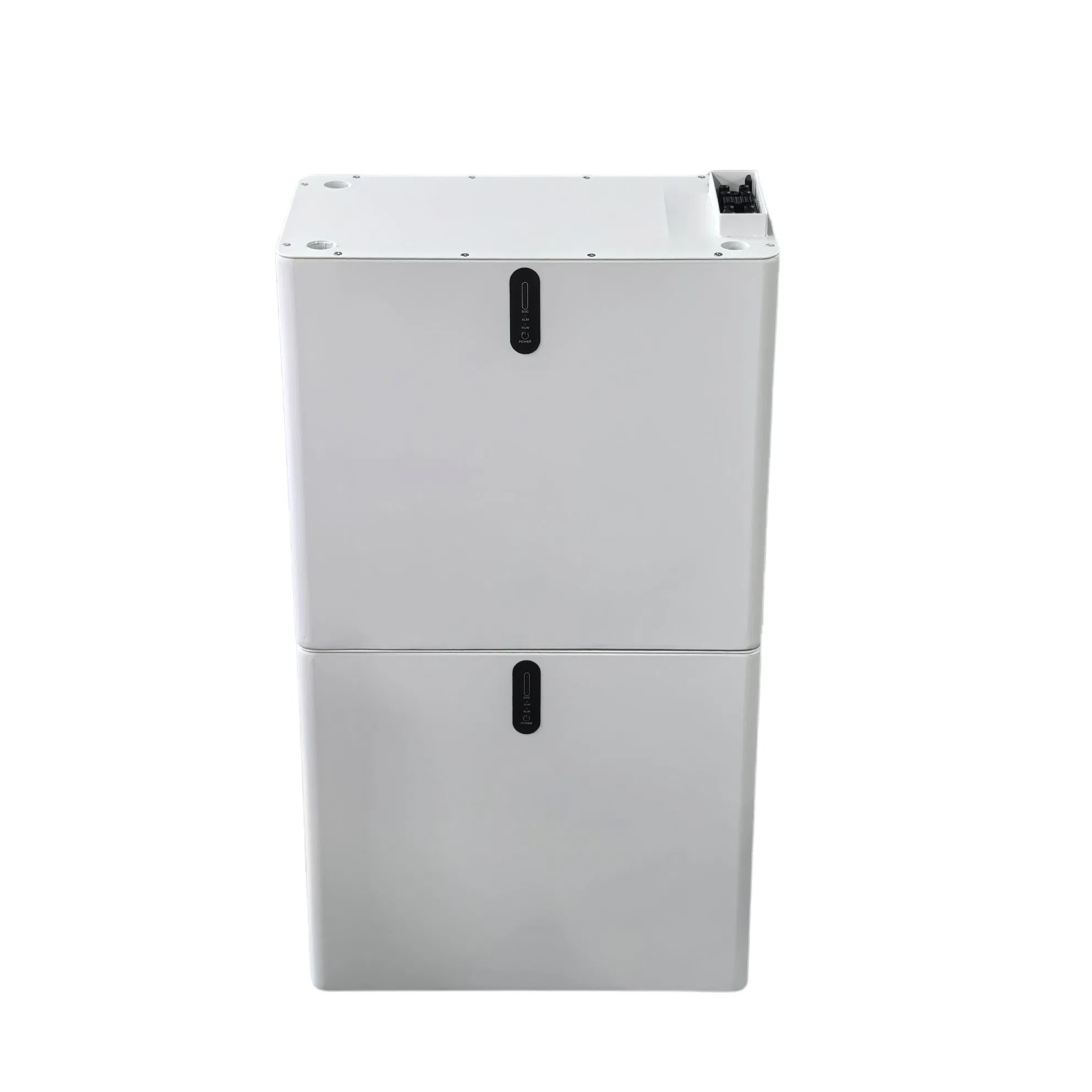

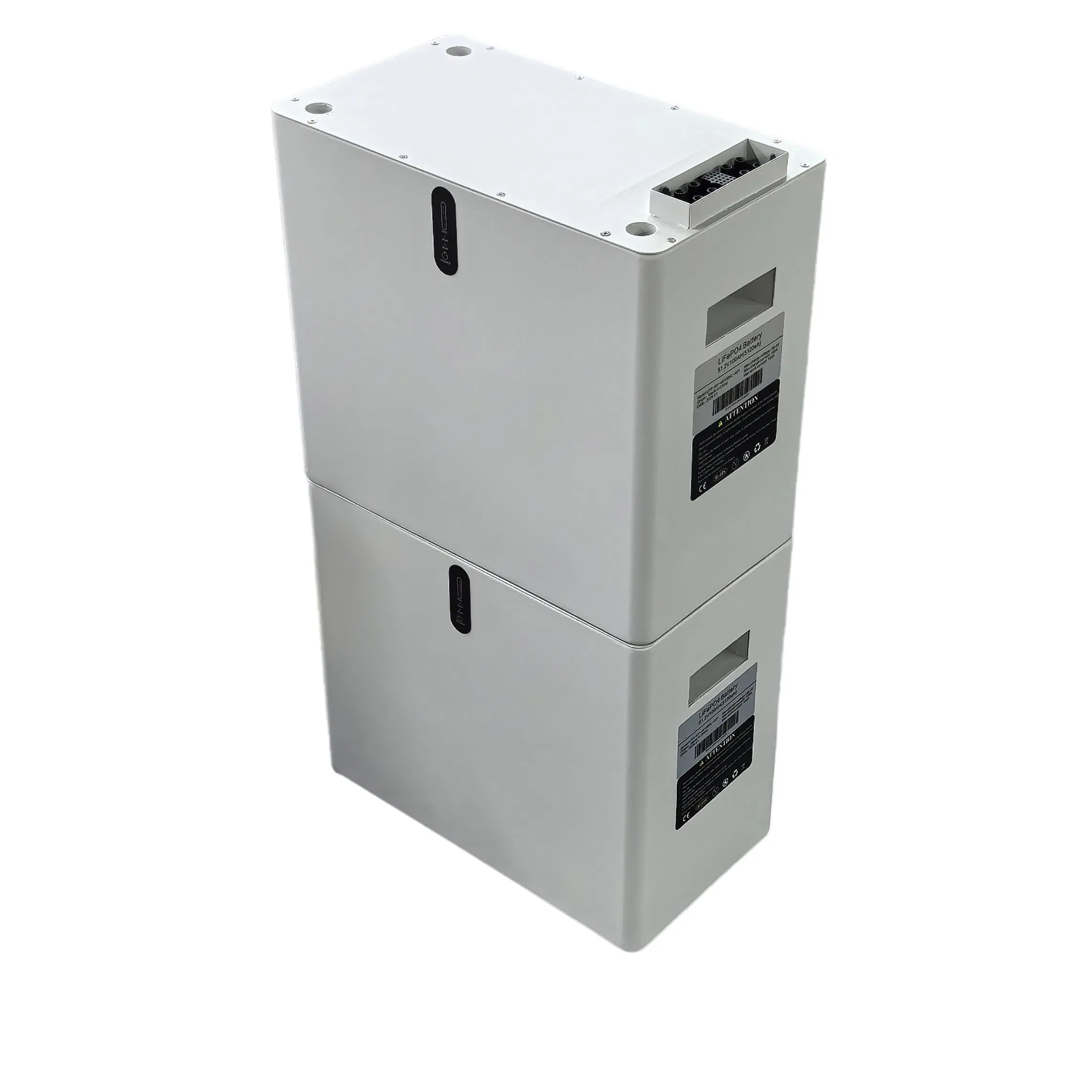

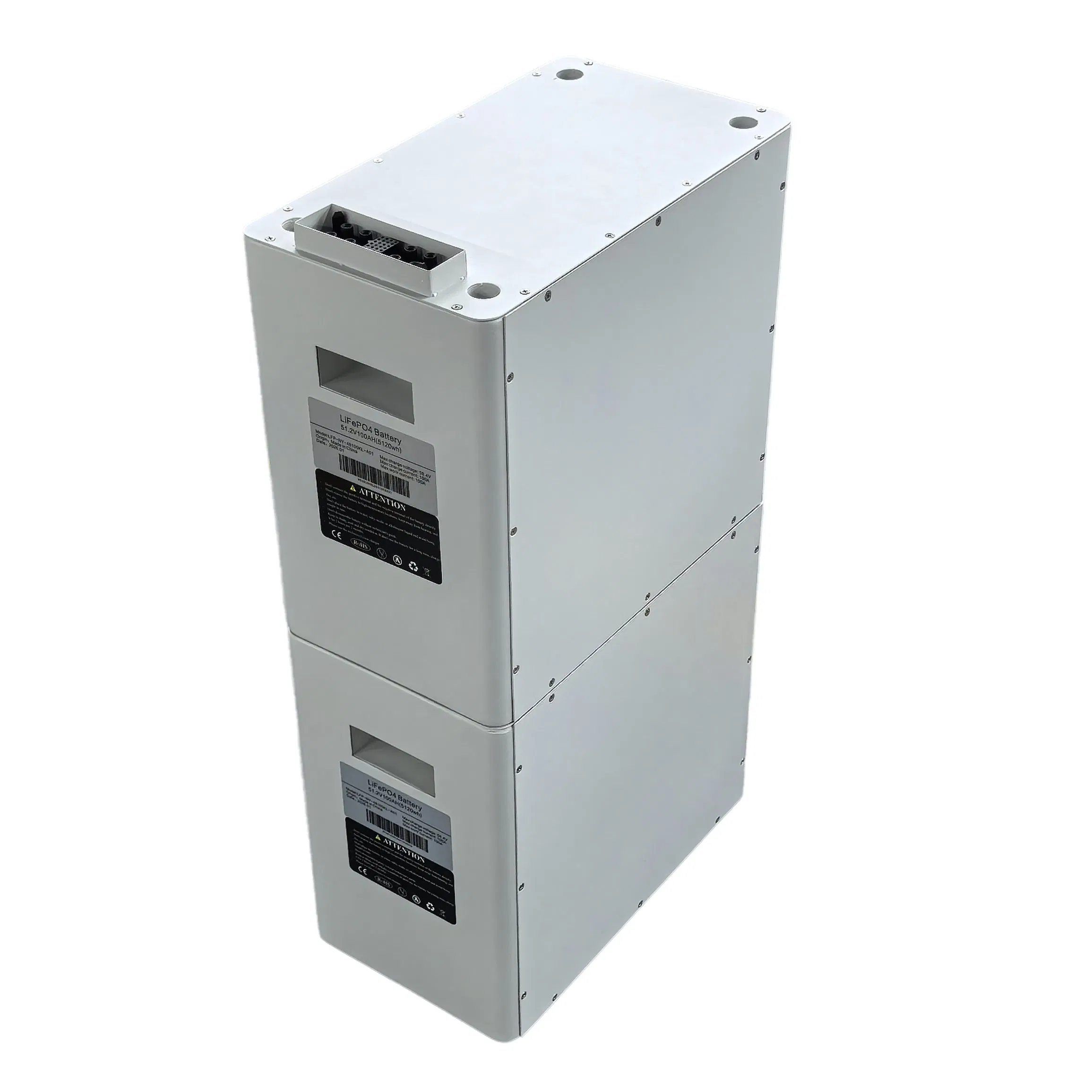

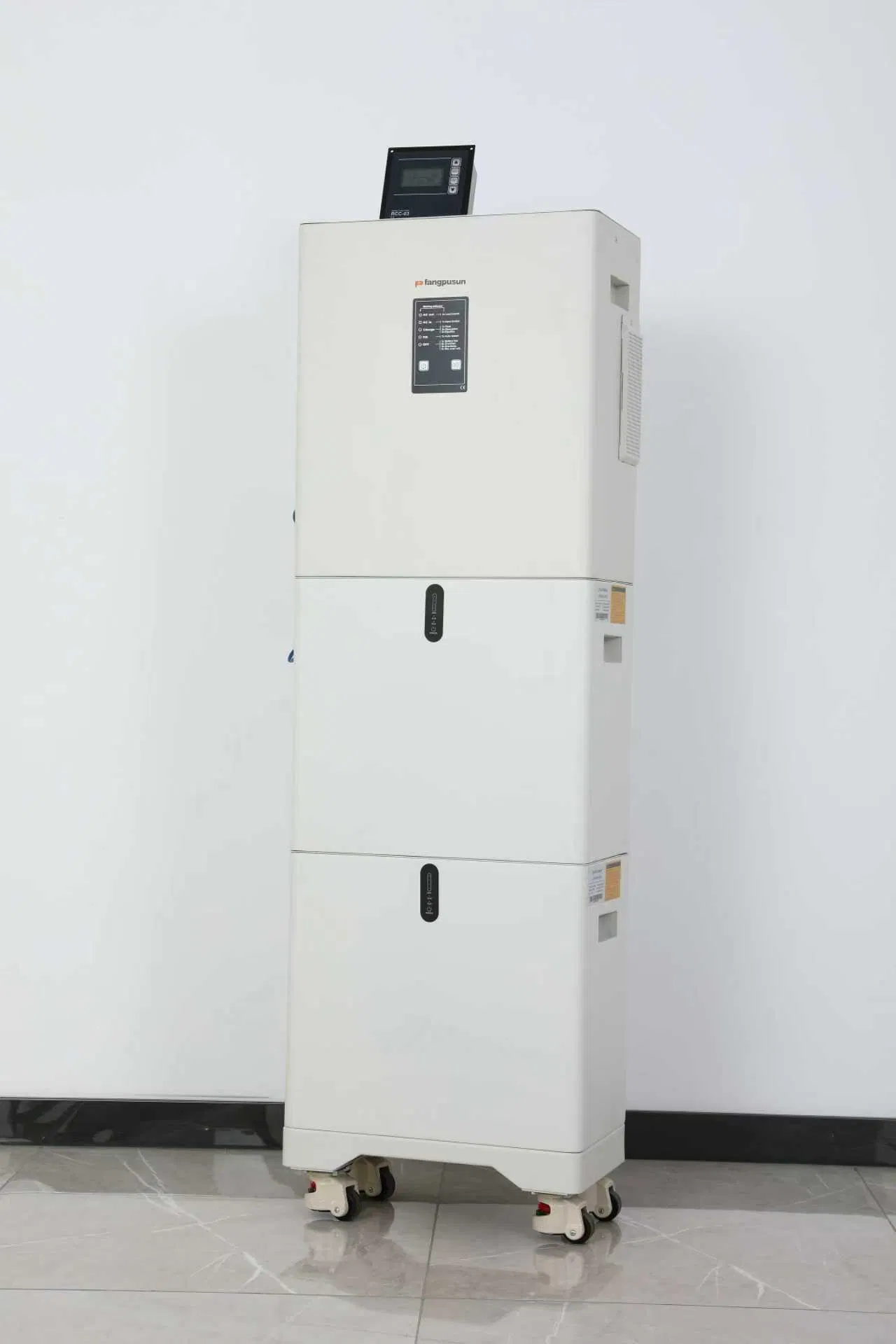

Our battery packs are designed for modularity and can be used individually or in parallel (5 kWh / 10 kWh) with compatible inverters.
The battery unit supports up to 3000 charge/discharge cycles. Even after extensive use, it maintains approximately 80% of its initial capacity.
After 28 days of storage at 20°C, the capacity retention rate remains ≥ 95%.
