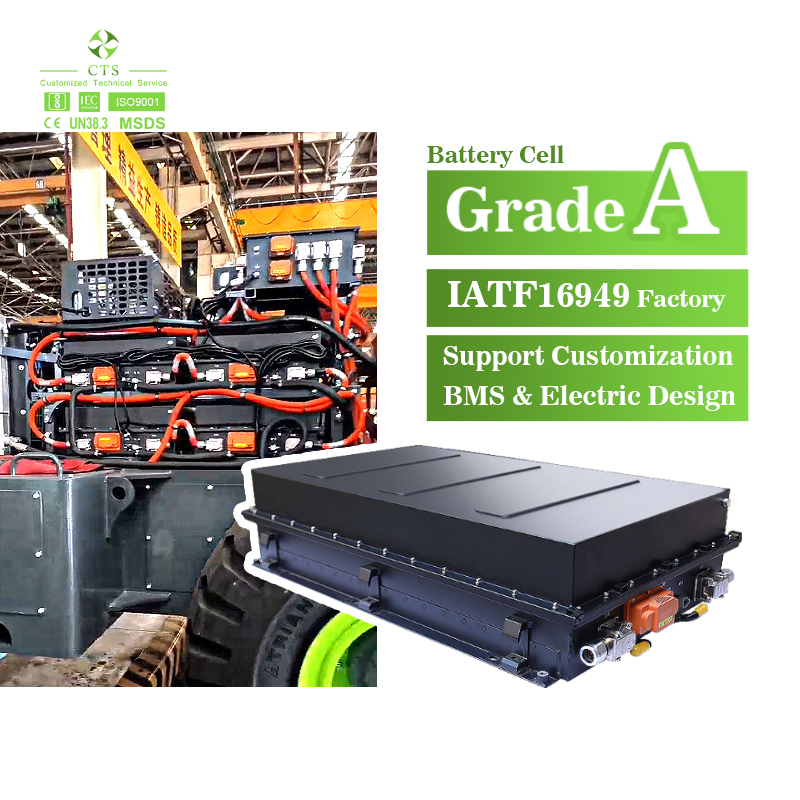

48V 300ah 15kwh High-Power LiFePO4 Battery Pack IP67 Modular Design for Forklifts and Agvs

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Type
Lithium Battery Pack
Rated Voltage
614V
Charging Voltage
700V
Capacity
208Ah
Power
141kWh
Electrolyte
Li-ion
Certification
ISO9001, RoHS, CE
Protection
BMS + Relay
Weight
1000kg
Application
Electric Vehicle, Bus, Truck
Battery Type
Lithium Ion NCM / LiFePO4
IP Rating
IP67
Product Description
48V 300Ah 15kWh High-Power LiFePO4 Battery Pack
IP67 Modular Design optimized for Forklifts and AGVs. Standard EV Battery Module for Electric Buses and Heavy Trucks, supporting systems up to 600kWh.

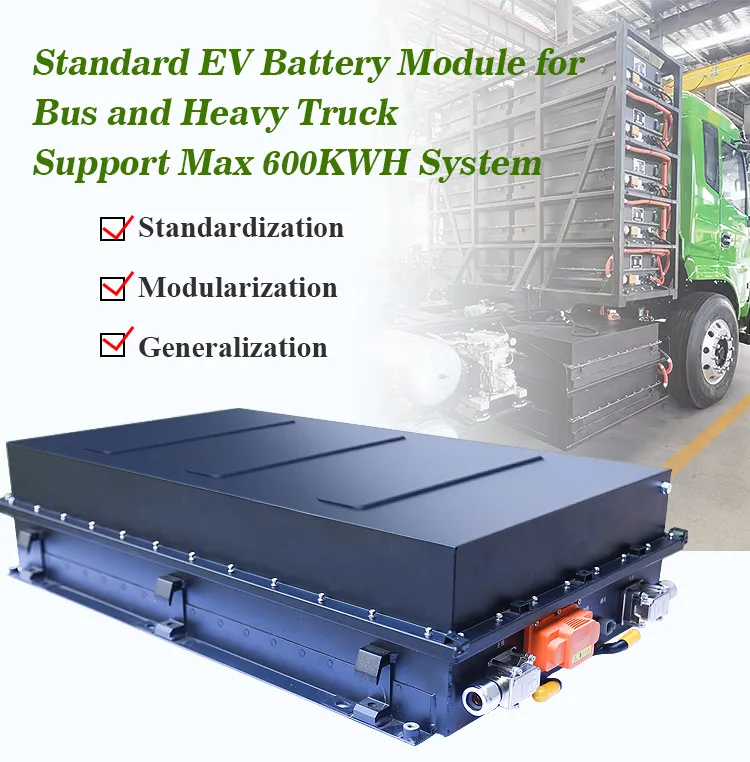

LiFePO4 Battery Pack

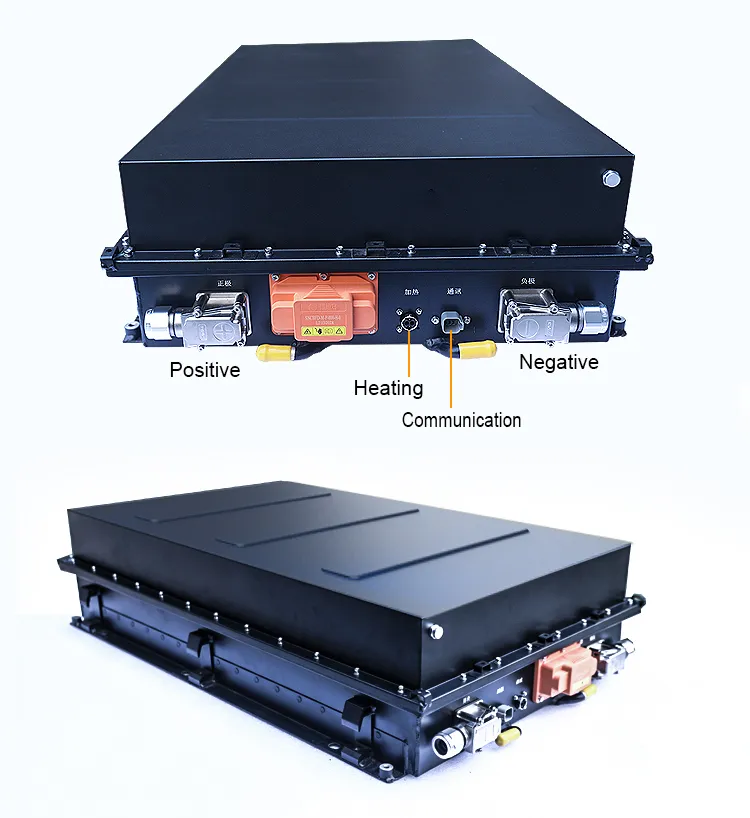

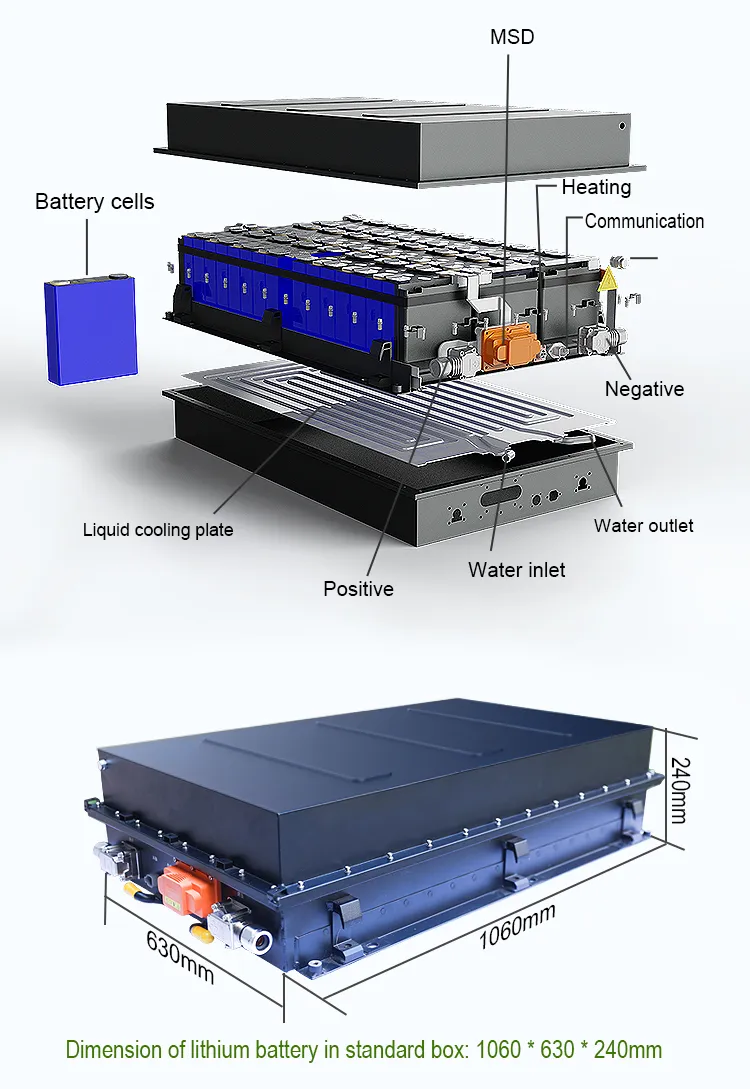

Battery Module Detail 1 Battery Module Detail 2
MODEL F128206 F128230 F153206 F153230
Cell Type 3.2V 206Ah 3.2V 230Ah 3.2V 206Ah 3.2V 230Ah
Rated Voltage 128V 128V 153.6V 153.6V
Energy 26.386kWh 29.44kWh 31.16kWh 35.328kWh
Cycle Life >3000 cycles (90% DOD, 0.5C)
IP Protection IP67
Core Technology

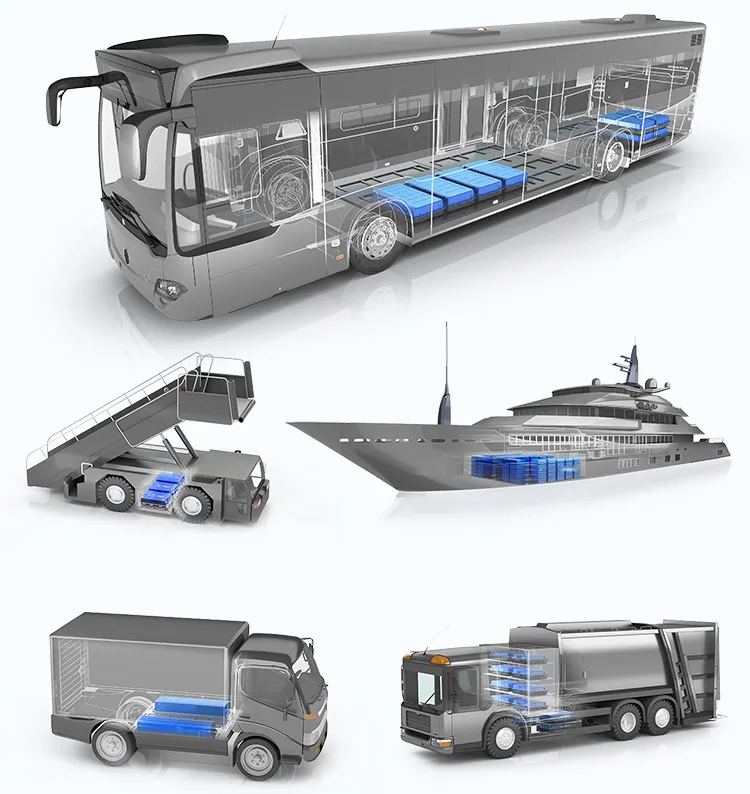

Core Technology Overview
A. Multiple Voltage and Capacity Choices:
Supports connection of up to 12 modules (4S3P) in one system. Modules can be connected freely up to 656V and 600kWh.

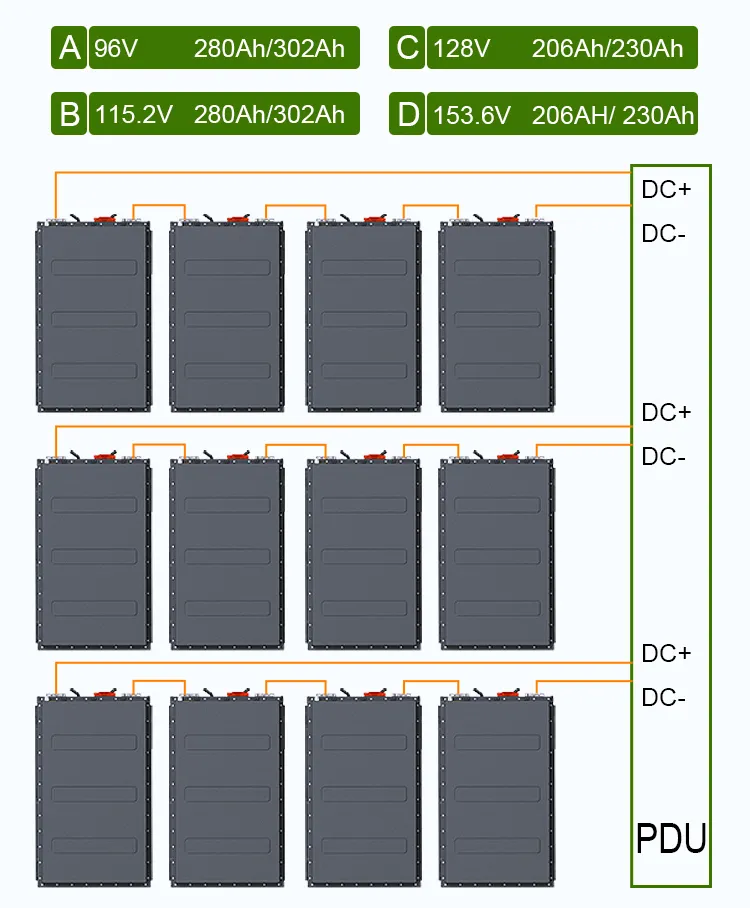

Module Configuration
❄️
B. Longer Life:
Redesigned liquid cooling system for improved thermal consistency and extended service life.
🛡️
C. Safer EV Battery Module:
Utilizes reliable LiFePO4 cells with a multi-tiered safety system.

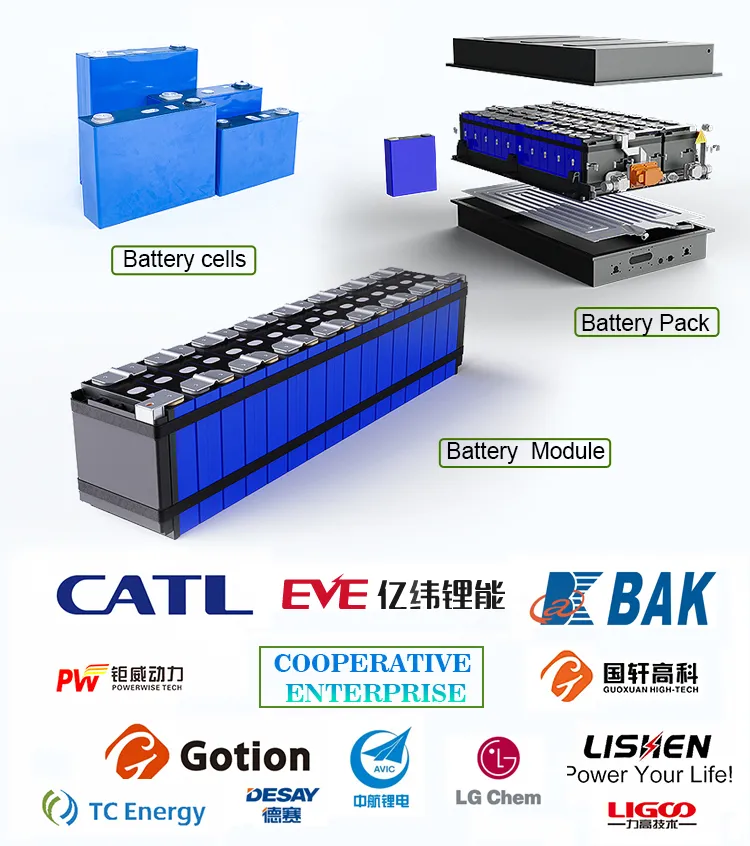

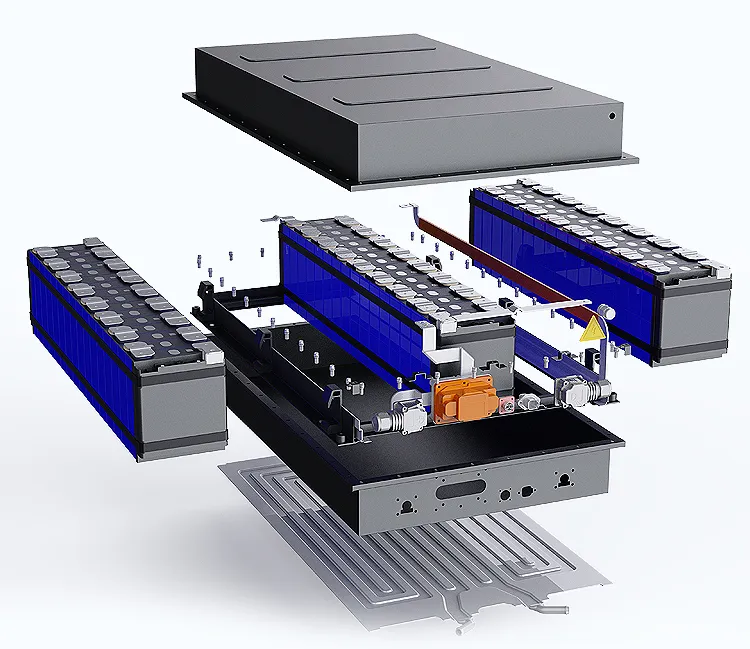

Safety System 1 Safety System 2
📊
D. SOC Calculation:
Real-time dynamic calibration considering vehicle operation conditions. High accuracy measurement of cell voltage, temperature, and current.
🔍
E. Faults Diagnosis:
Monitors insulation, water leakage, cell voltage range, temperature extremes, communication faults, and sensor accuracy.

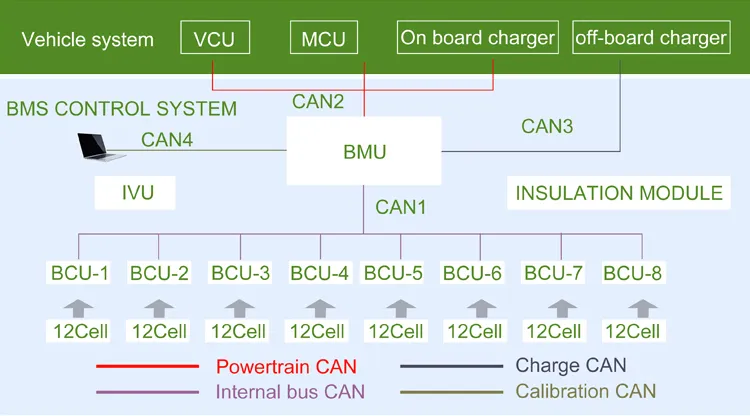

Diagnosis System
🔌
F. Electrical System Design:
Standard box features two-way high voltage input, double-gun charging, and dedicated outputs for water cooling compressors and motor driving.
Electrical Diagram
Product Applications

Our standard modules are widely utilized in public buses and industrial vehicles, including mining trucks, tunnel vehicles, large-capacity AGVs, and skyline cranes. We provide tailored solutions for diverse market requirements.

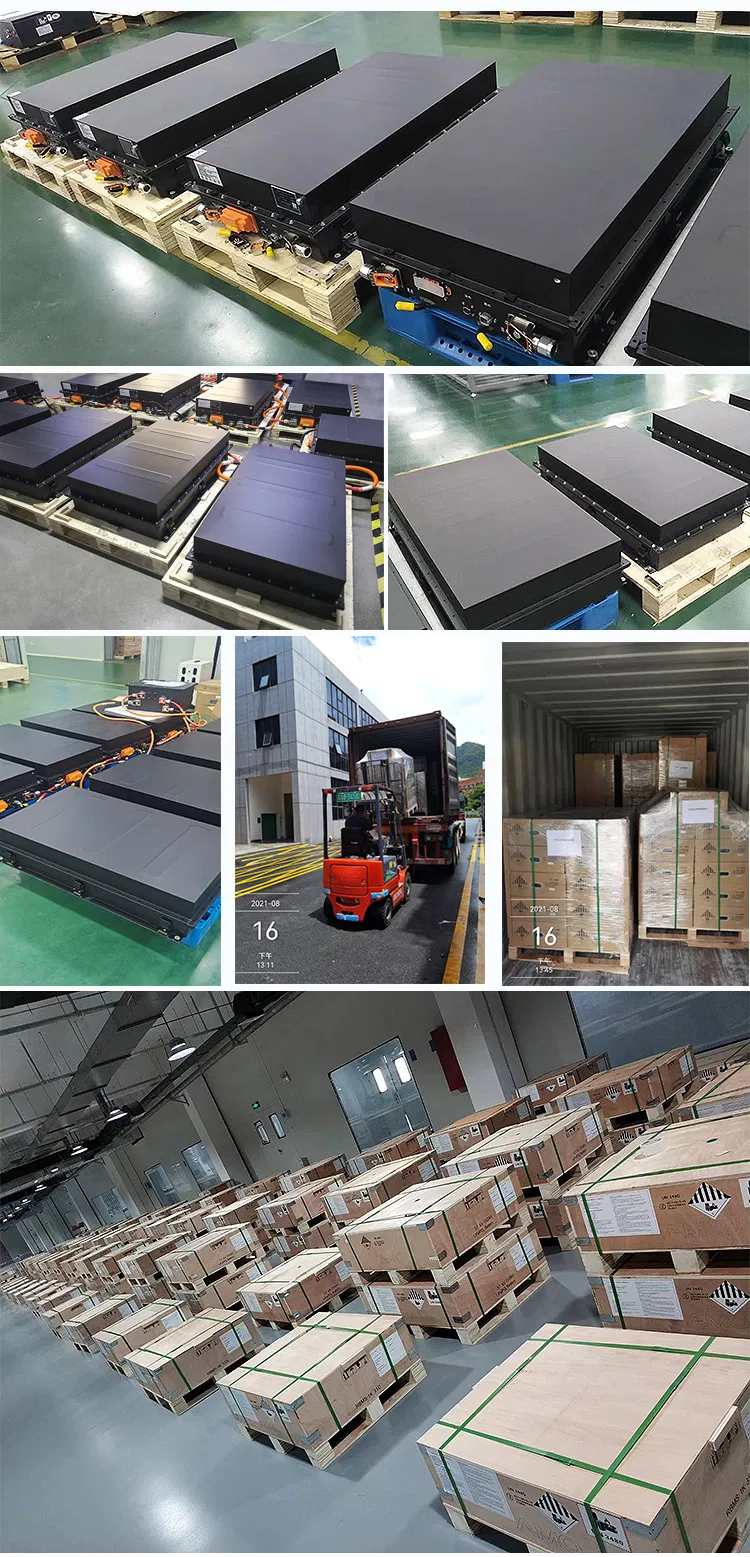

Applications Showcase
Manufacturing Excellence

Since 2011, we have focused on one-stop customization of lithium battery products, including electric vehicle batteries, large energy storage systems, and high-end industrial batteries. With over 30 types of cells, we produce battery packs ranging from 12V to 800V and 10Ah to 1000Ah.

Our facilities utilize advanced automated equipment and technology to ensure the highest quality standards, holding certifications such as ISO 9001, ISO 14001, and OHSAS 18001. We are committed to efficient innovation in the renewable energy sector.

Factory Overview
Frequently Asked Questions
Q1: What is the expected cycle life of these battery packs? A: These LiFePO4 battery packs offer a cycle life of over 3,000 cycles at 90% Depth of Discharge (DOD) under 0.5C conditions.
Q2: Are the battery modules protected against water and dust? A: Yes, the modules feature an IP67 protection rating, making them highly resistant to dust and water ingress, suitable for harsh industrial environments.
Q3: What cooling method is used for thermal management? A: The system utilizes an advanced liquid cooling system to ensure thermal consistency, which enhances safety and extends the battery's lifespan.
Q4: Can these modules be scaled for larger power requirements? A: Absolutely. The modular design supports the connection of up to 12 modules in a single system, reaching capacities up to 600kWh and voltages up to 656V.
Q5: What types of vehicles are these batteries suitable for? A: They are ideal for electric buses, heavy-duty trucks, mining vehicles, forklifts, AGVs, and other industrial machinery.
Q6: Does the system include a Battery Management System (BMS)? A: Yes, every pack is equipped with an integrated BMS and relay system for real-time monitoring, SOC calculation, and fault diagnosis.
