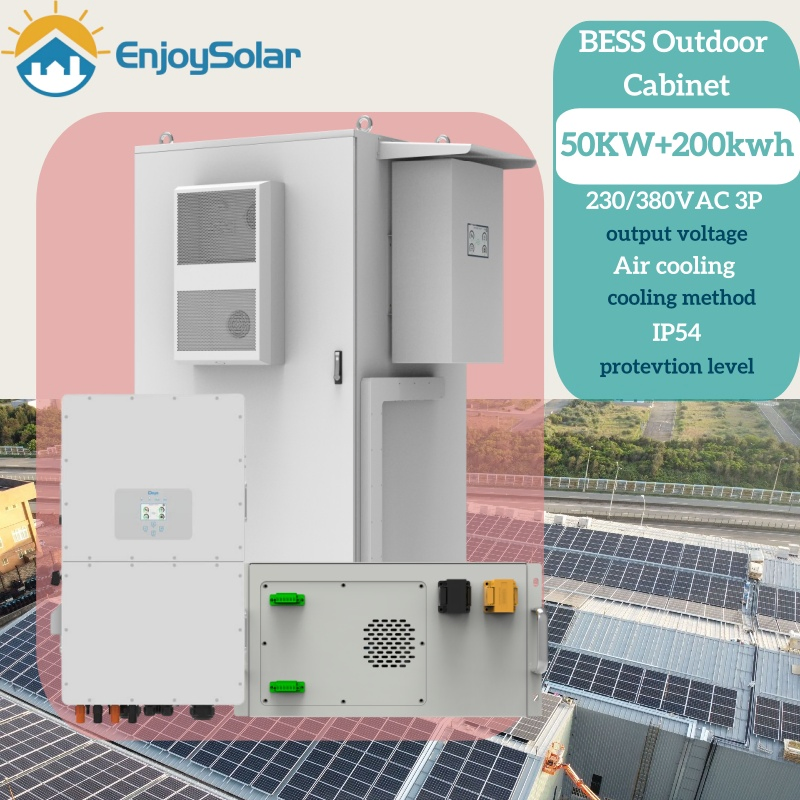

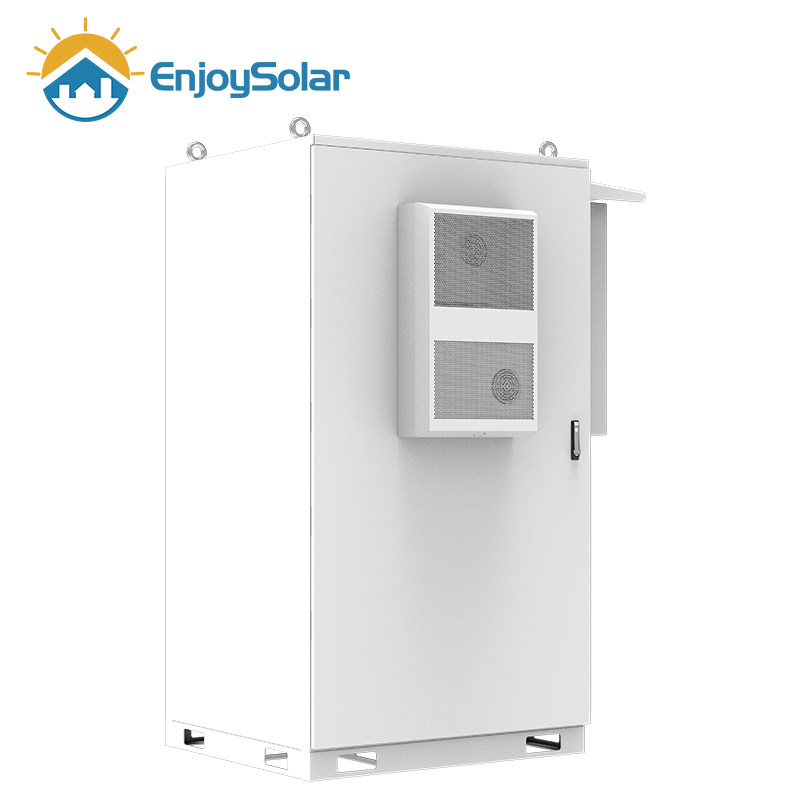

Es 100kwh 200kwh Solar Lithium Ion Battery Cabinet with Eve 3.2V 280ah 314ah LiFePO4 Cell for Commercial Solar Battery Energy Storage System

1 / 5

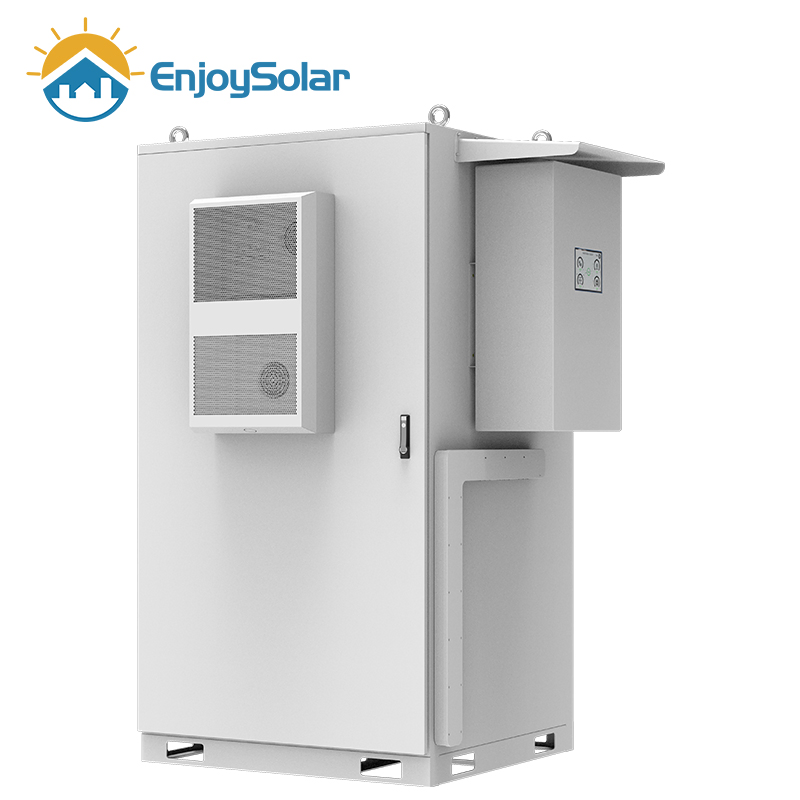

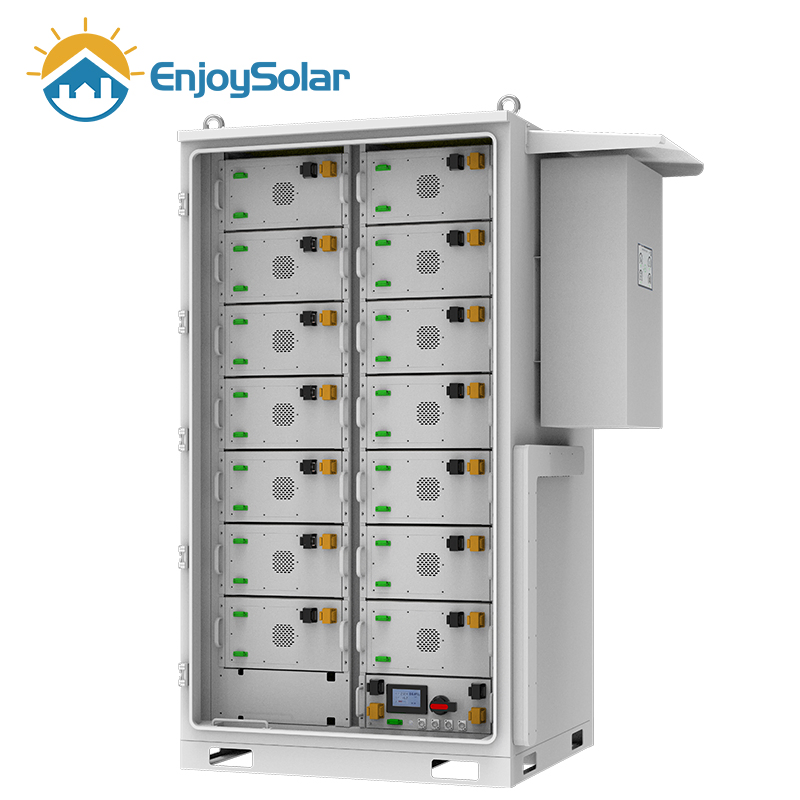

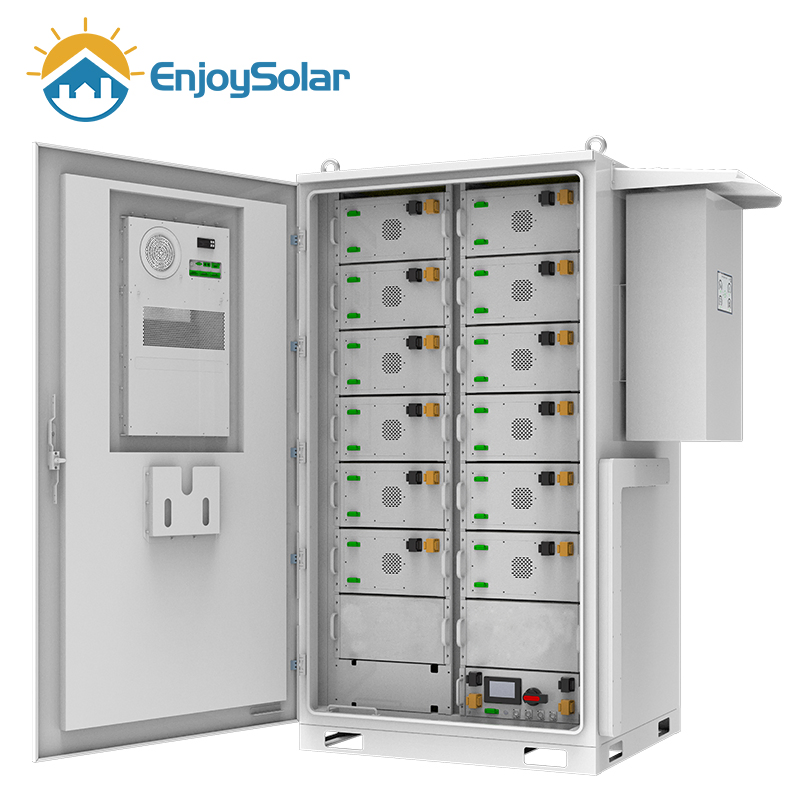

Es 100kwh 200kwh Solar Lithium Ion Battery Cabinet with Eve 3.2V 280ah 314ah LiFePO4 Cell for Commercial Solar Battery Energy Storage System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Product Overview

Model NO.	ES-200K
Rechargeable	Yes
Nominal Voltage	358.4V/716.8V
Nominal Capacity	200kwh
Cycle Life	6000cycles+
Warranty	10 Years

Protection Class	IP55
Firefighting	Aerosol
Inverter Power	50kw
AC Output	Three Phase 220V/380V
Certificates	CE, TUV, UL, Un38.3
Operating Temp	0°C ~ 50°C

Product Description

Energy Storage Integration

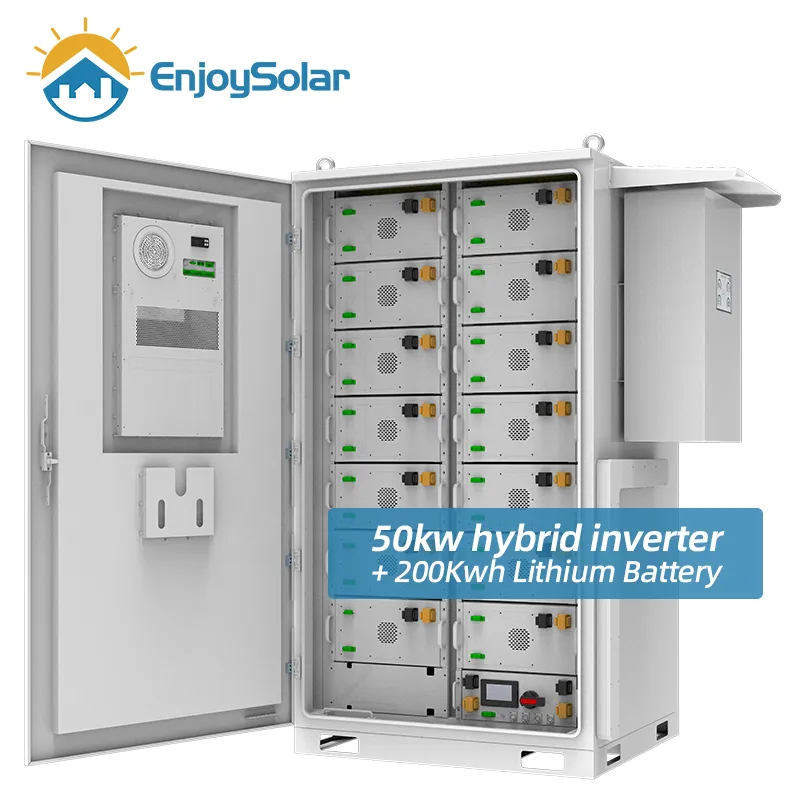

ES-200K Smart Solution

✓

Safer: Cobalt Free Lithium iron Phosphate (LFP) Battery. High efficiency, high power density, and intelligent BMS protection.

✓

Reliable: Supports high discharge power, IP55 rated, natural cooling, works from -20ºC to 55ºC.

✓

Flexible: Modular design for easy expansion. Perfect for residential and commercial self-consumption.

✓

Convenient: Auto-networking modules, remote monitoring, and easy USB firmware upgrades.

Core Components

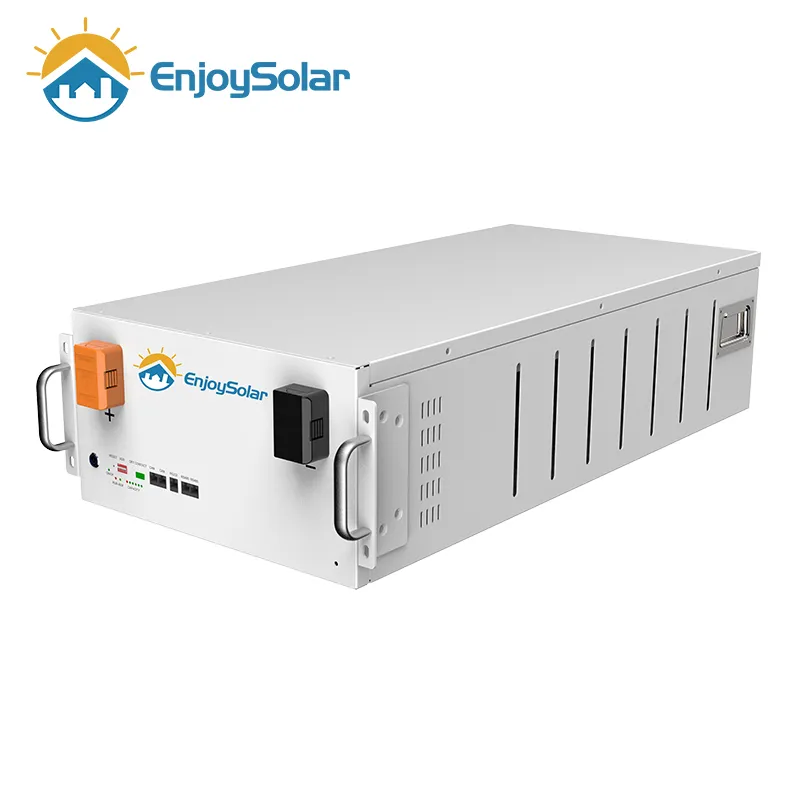

51.2V 280Ah Battery Module

• 19-inch modular design, lightweight & compact.
• 3.2V 280Ah aluminum core for higher density.
• Intelligent system control for stable performance.
• Design life of over 10 years.

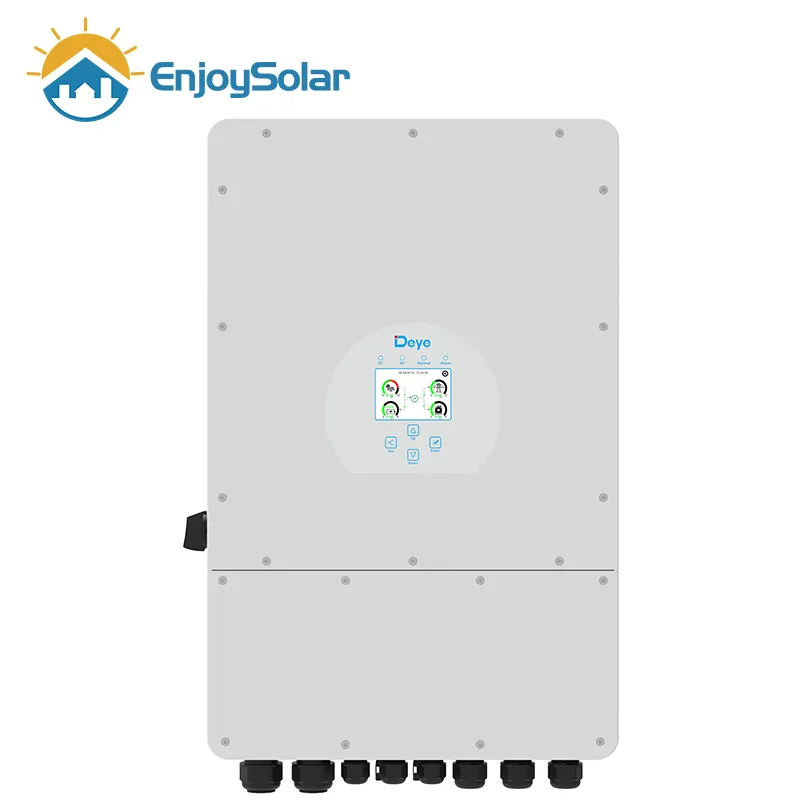

50Kw Hybrid Solar Inverter

• 100% unbalanced output for each phase.
• AC couple to retrofit existing solar systems.
• Max 10 pcs parallel for on-grid/off-grid.
• Supports diesel generator energy storage.

Technical Parameters

MODEL	ES-100K	ES-200K	ES-172K
Nominal Voltage	358.4V	716.8V	614.4V
Nominal Capacity	280AH	280AH	280AH
Cabinet Size (mm)	125012452175	162612452175	162612452175
Weight (kg)	1260KG	2200KG	2000KG
Max Charge/Discharge	140A	140A	140A
Cooling Method	Air-cooled	Air-cooled	Air-cooled
Design Life	10 years+	10 years+	10 years+
Cycle Life	>6000 times	>6000 times	>6000 times
AC Rating	50KW	50KW/100KW	50KW/100KW

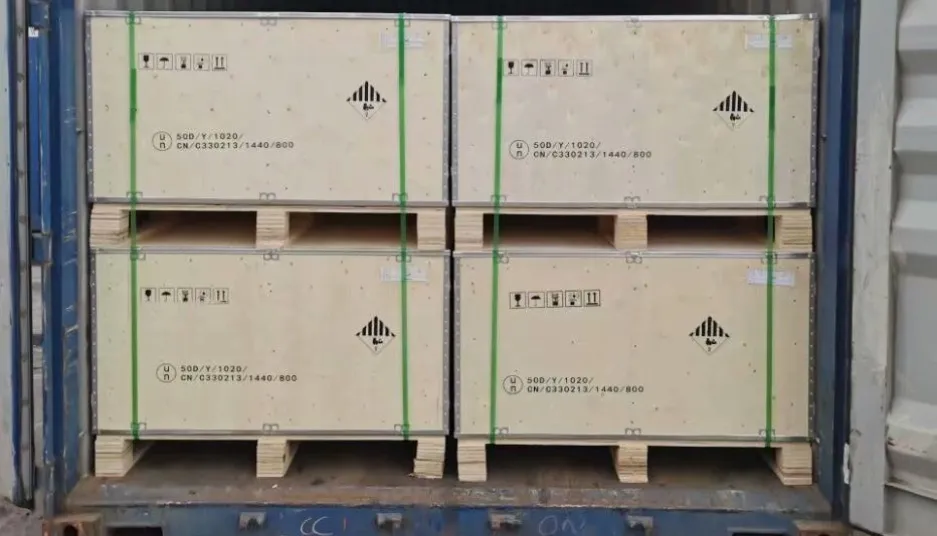

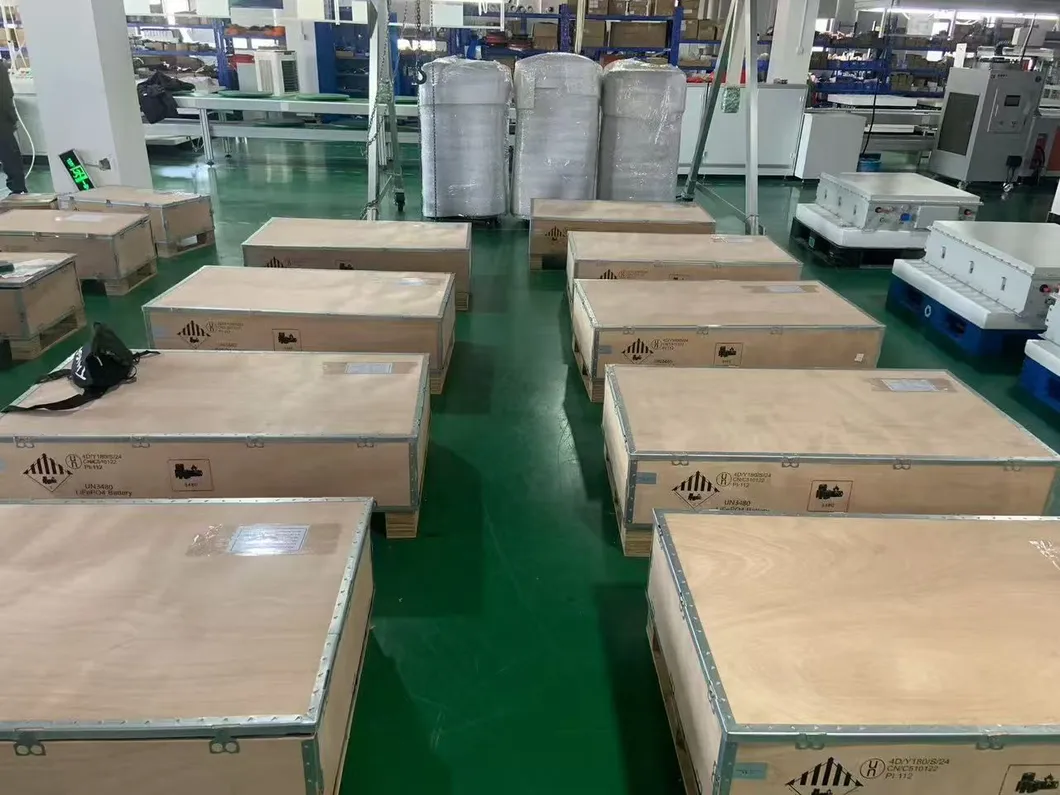

Packaging & Shipping

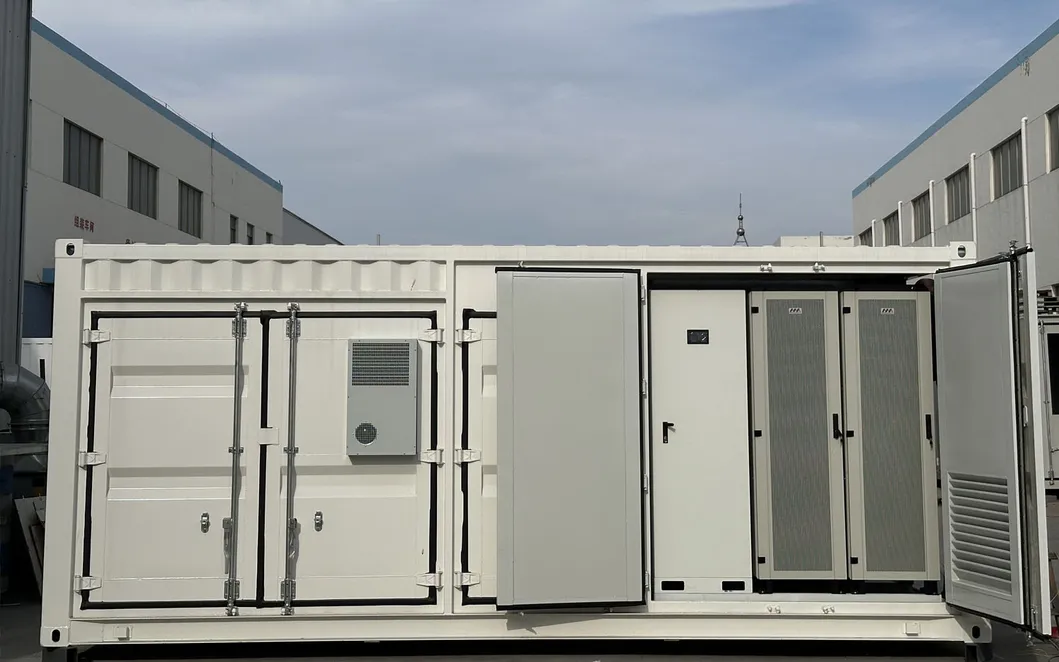

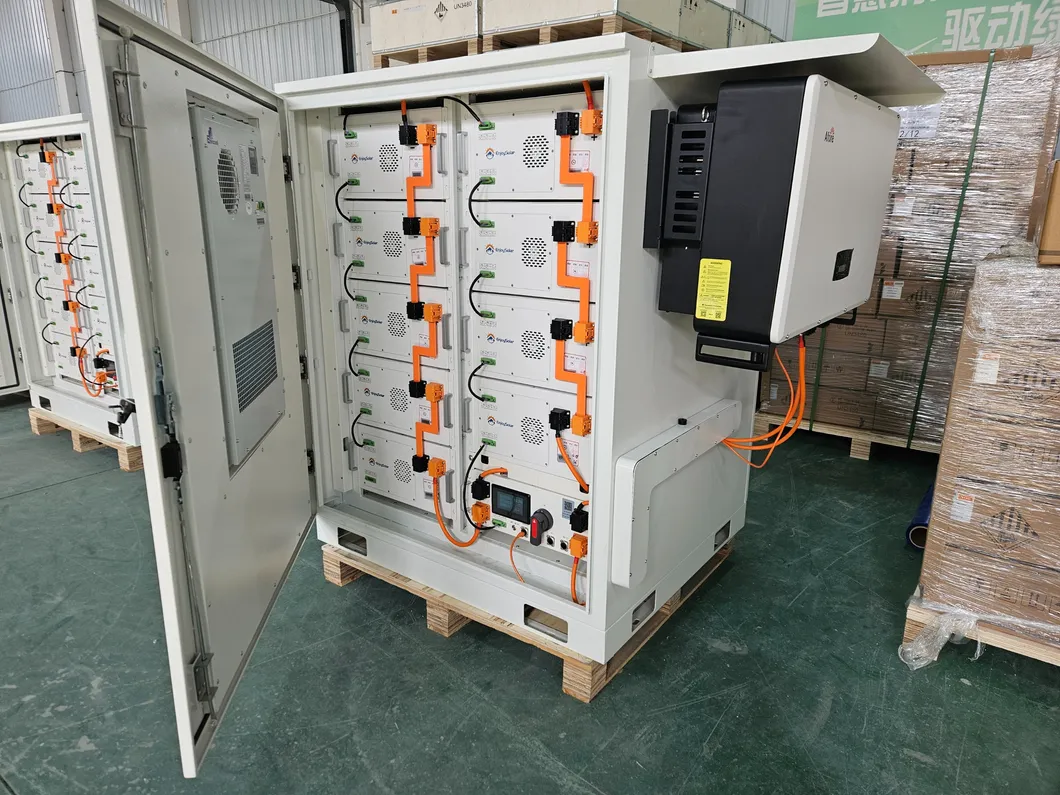

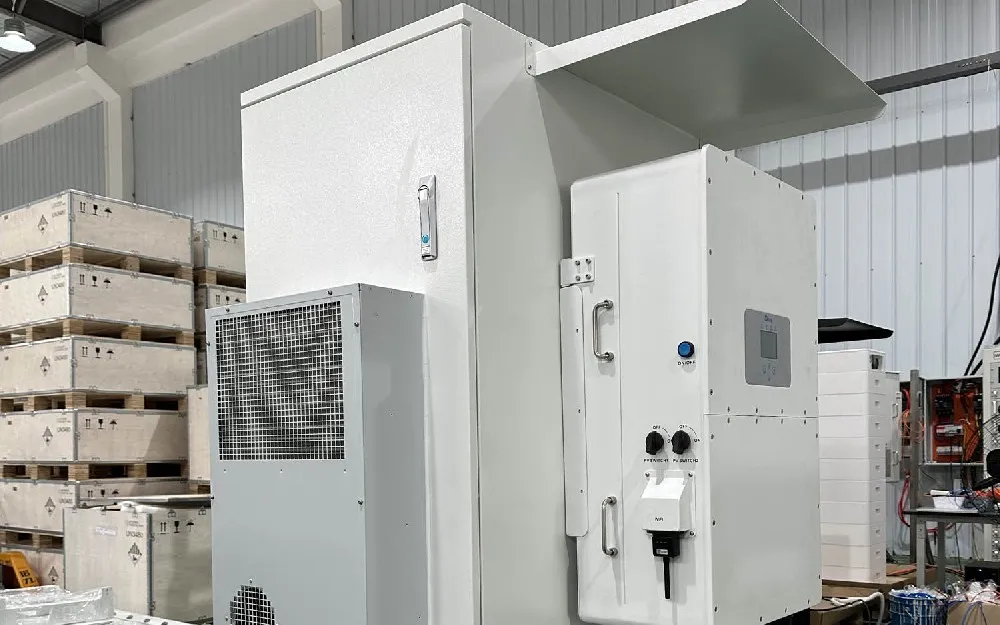

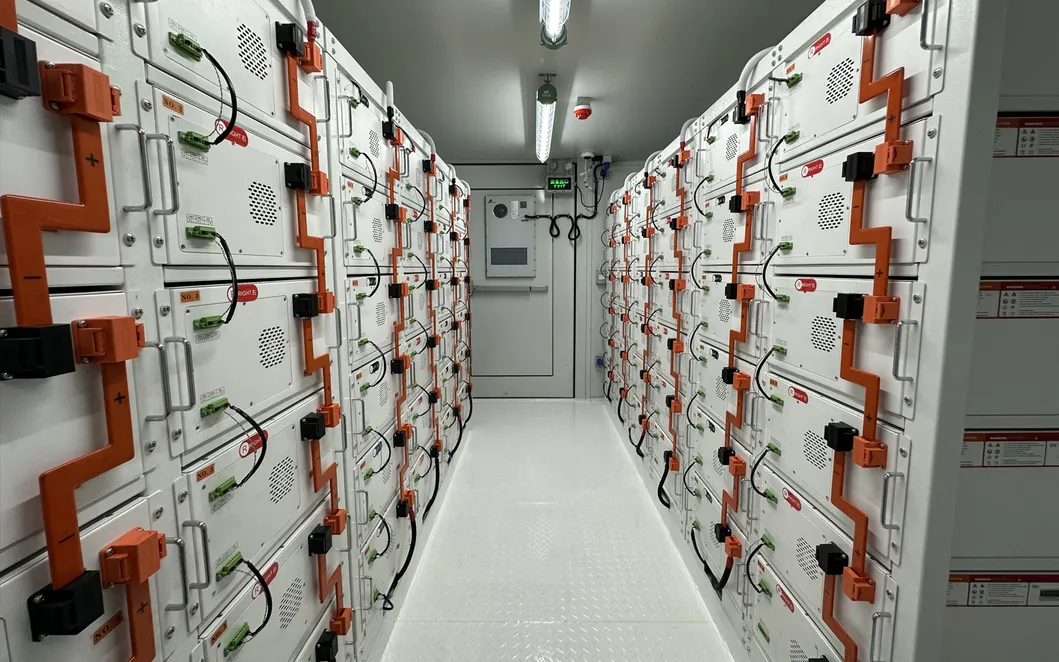

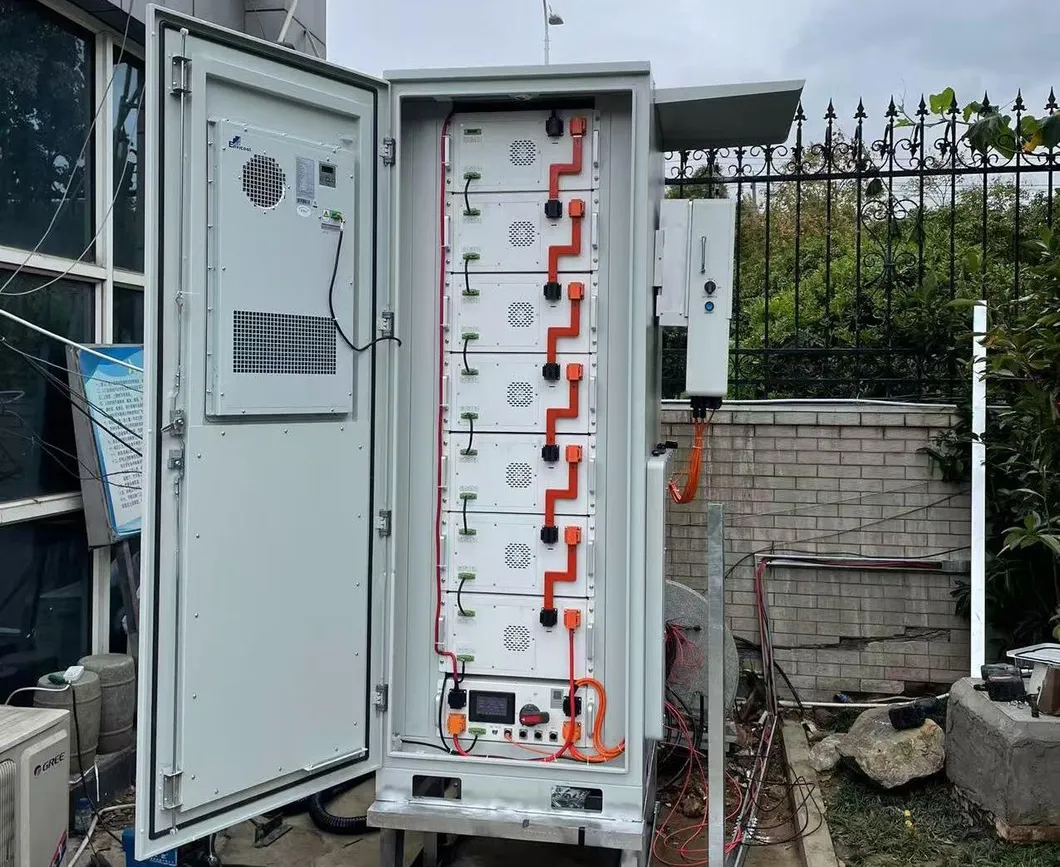

Global Portfolio

Our Showroom

Frequently Asked Questions

What are your main products?

We offer a wide range of solar products, including integrated solar systems, solar panels, hybrid inverters, powerwalls, lithium-ion batteries, and mounting systems.

Are you a factory or a trading company?

We are a dedicated factory with over seven years of professional experience in manufacturing high-quality solar energy series products.

Do you support OEM and field installation?

Yes, as a professional manufacturer, we provide full OEM services, on-site installation support, and comprehensive after-sales technical service.

How do you ensure product quality?

Quality is our priority. We have a professional QC team that strictly monitors every stage of production. Products are only packaged after meeting all quality requirements.

What are your competitive advantages?

We utilize fully automatic production lines with advanced equipment from Japan and Germany, ensuring competitive pricing, superior quality, and large-scale supply capacity.

How can I get support for my order?

You can contact our sales team via our online chat or by sending an inquiry; we will respond immediately to assist with your requirements.
