Basic Info.
Model NO.
WV-100KW-215KWh-0.5C
Nominal Capacity
100kw/200kwh+
Application
Commercial and Industrial
Battery Type
LiFePO4/Lithium
Battery Capacity
100-600kwh
Parallel
Yes, up to 3 Units
Certificate
CE Un38.3 IEC En50549
⚡

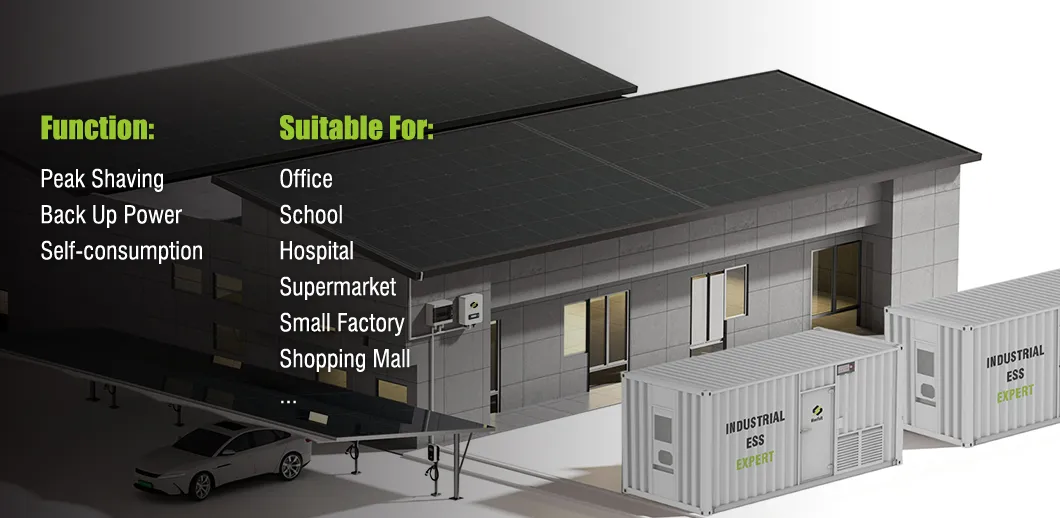

Commercial ESS
⚙️

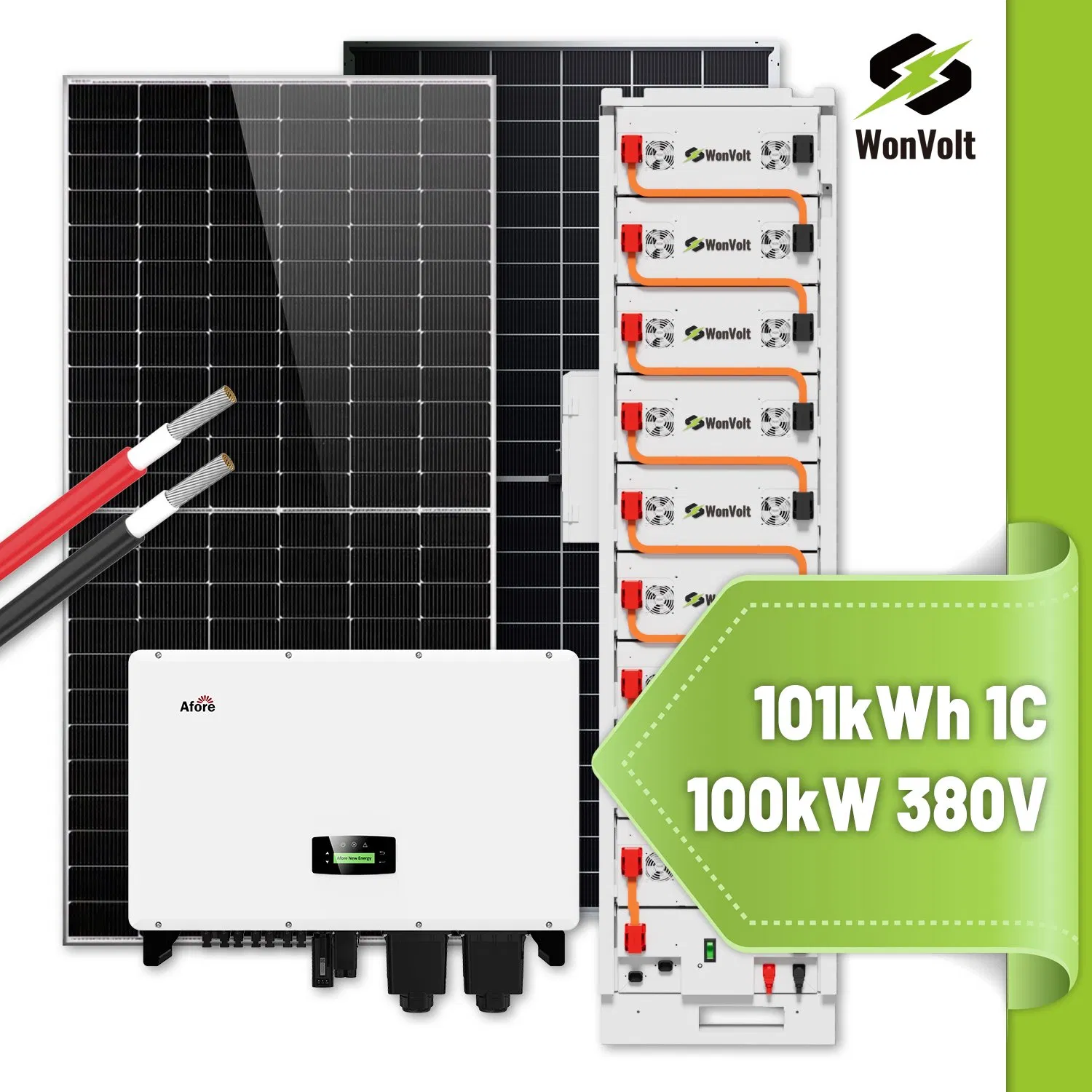

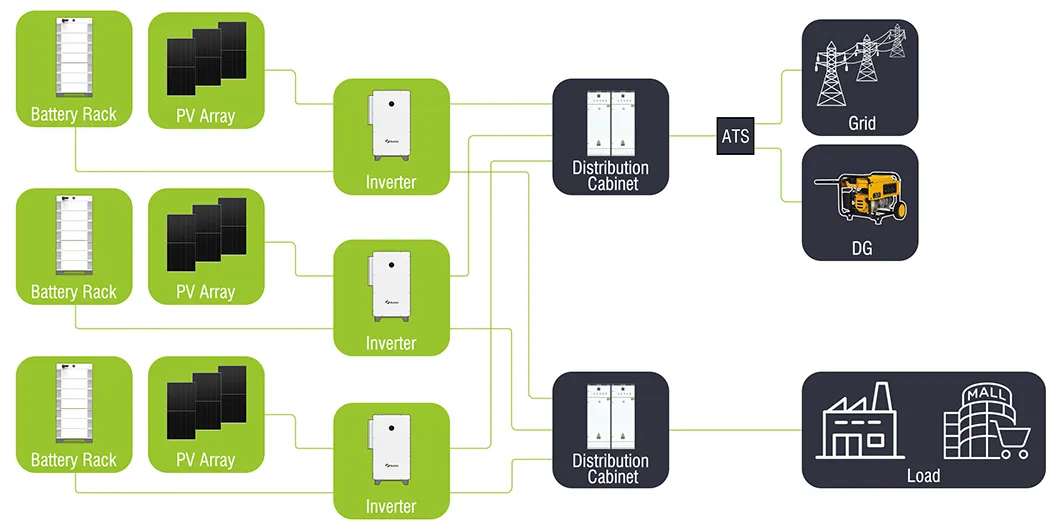

System Configuration
| Equipment |
Model |
WV-100KW-200.7KWh-C |
WV-200KW-401KWh-C |
WV-300KW-602KWh-C |

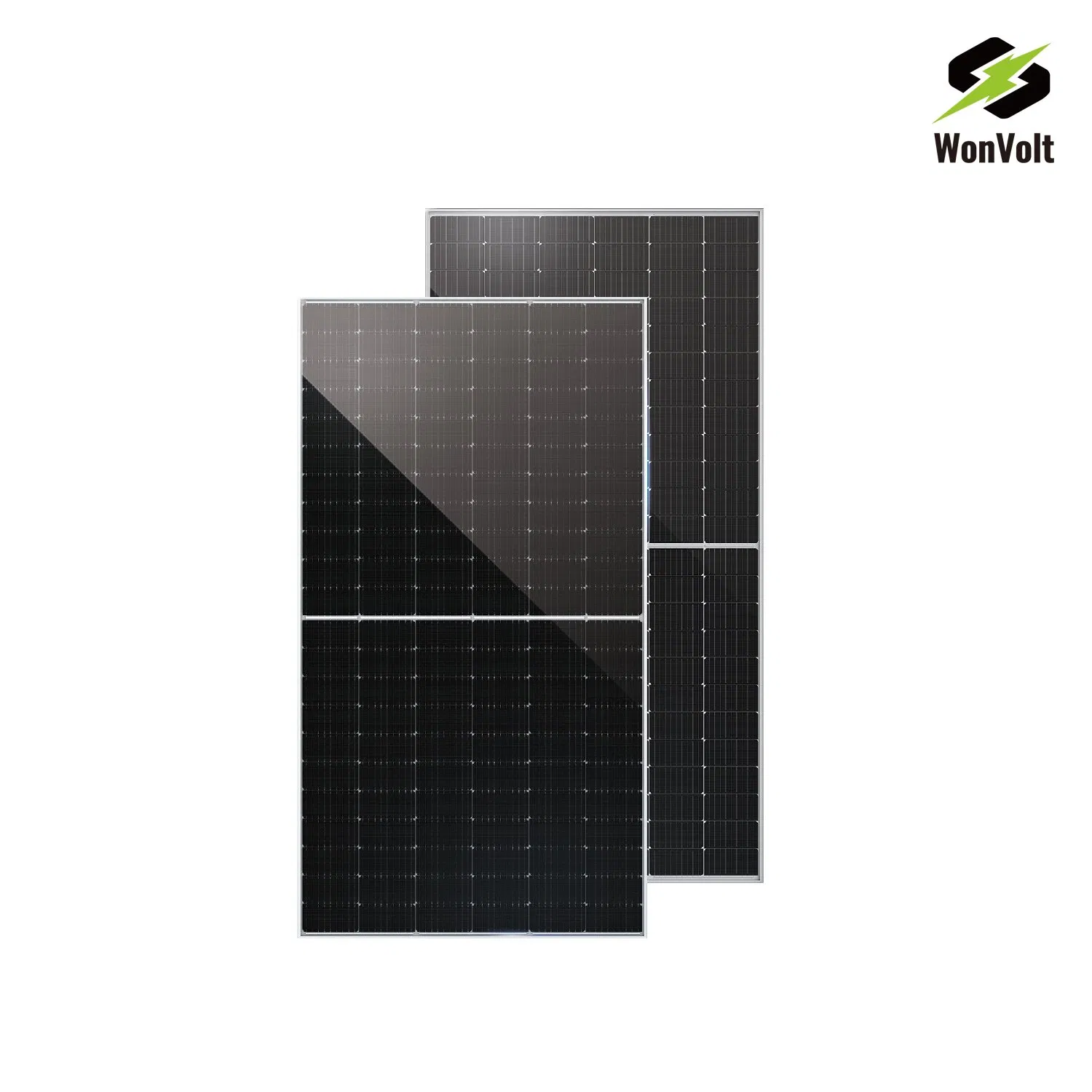

| PV Module | WV-72KUN-565 | 187 | 374 | 561 |
| Inverter | WIT-100K-HU | 1 | 2 | 3 |

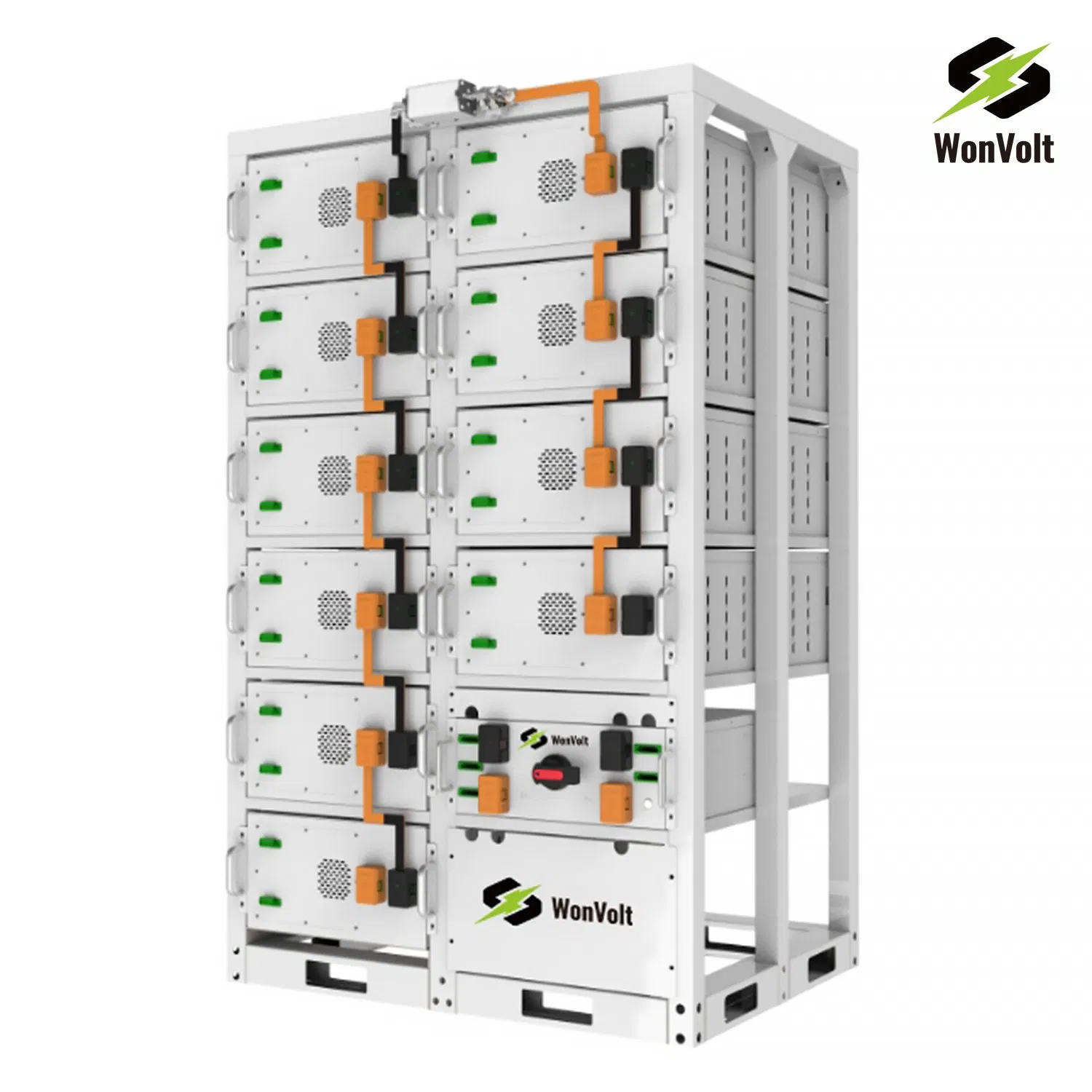

| Battery | WV51280H | 14 | 28 | 42 |
| Control Box | - | 1 | 2 | 3 |
| Connector | MC4 | 40 | 80 | 120 |

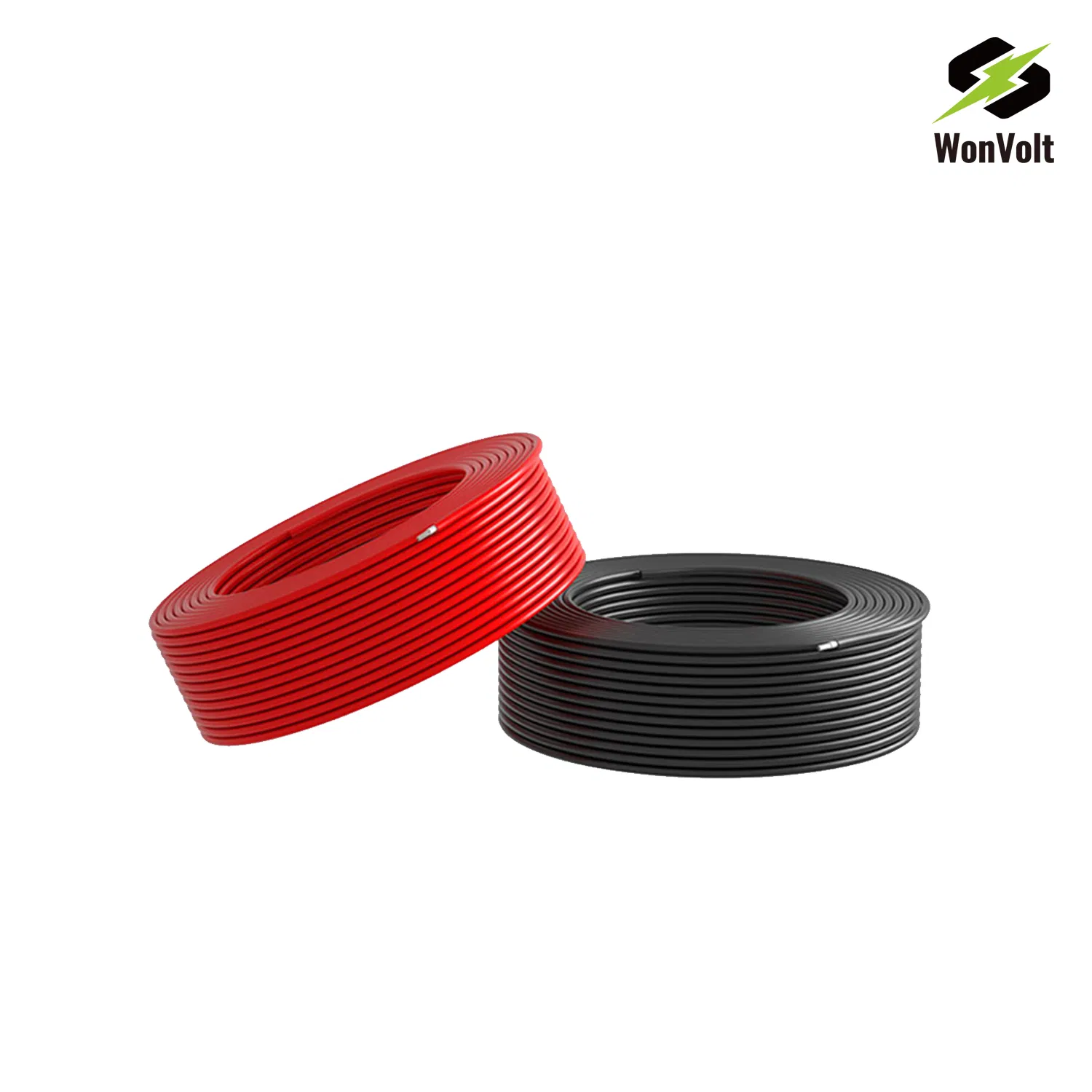

| PV cable | PV1-F 1*4mm2 | 1100 | 2200 | 3300 |
| ATS (Optional) | ATS300KW | 1 | 1 | 1 |
📘

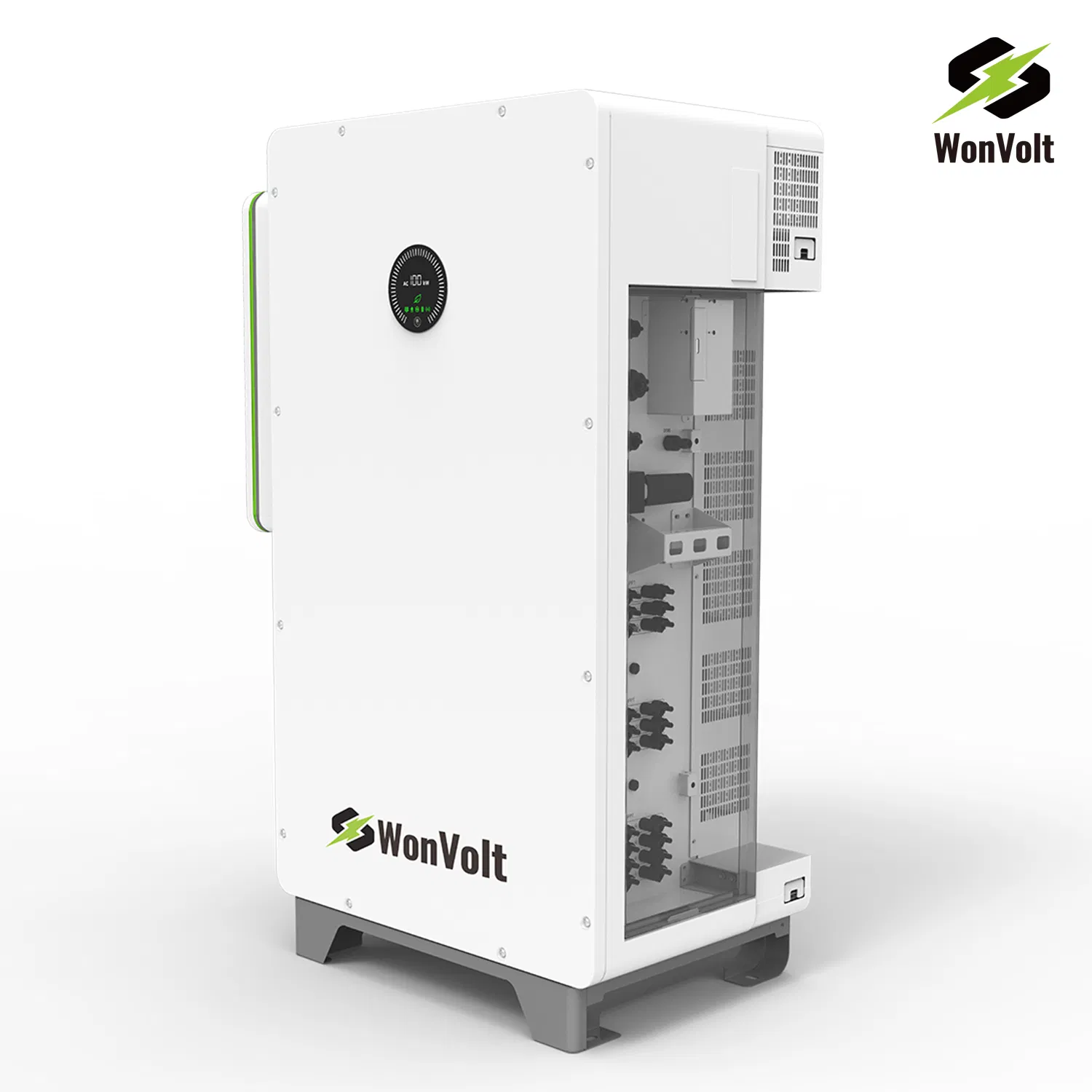

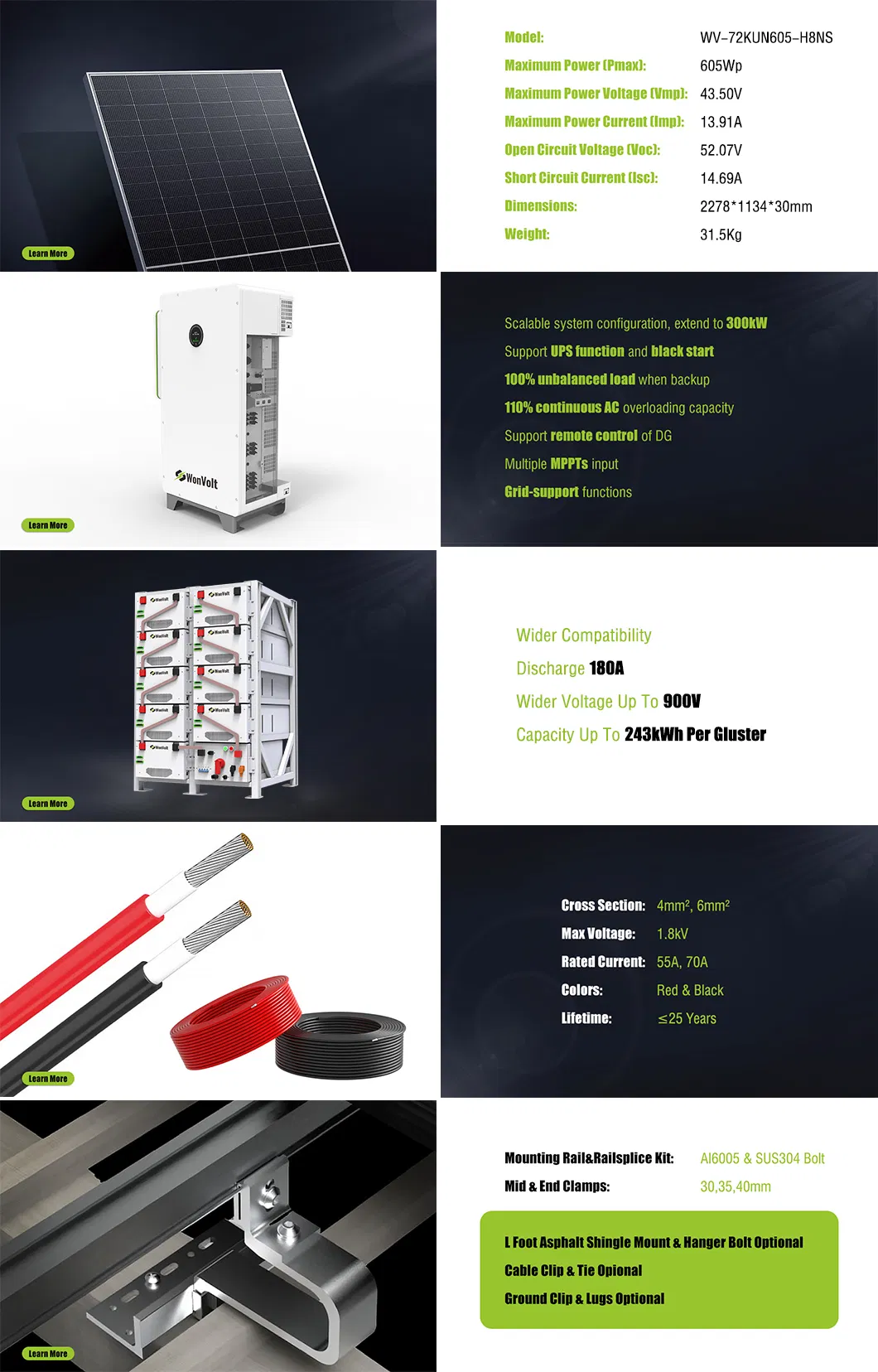

Product Details
🛠️

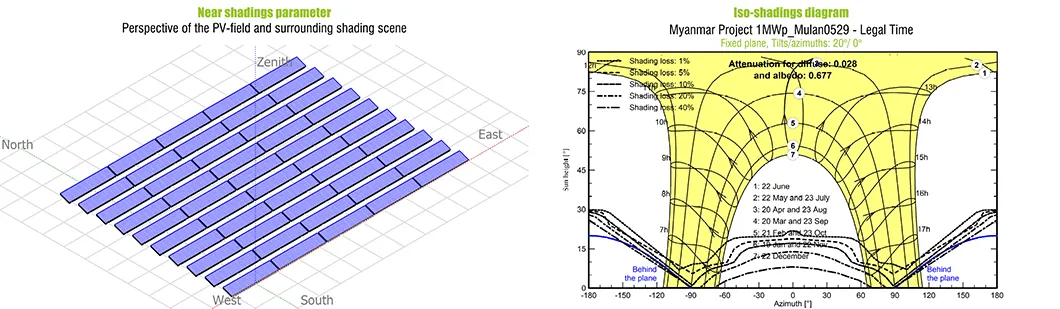

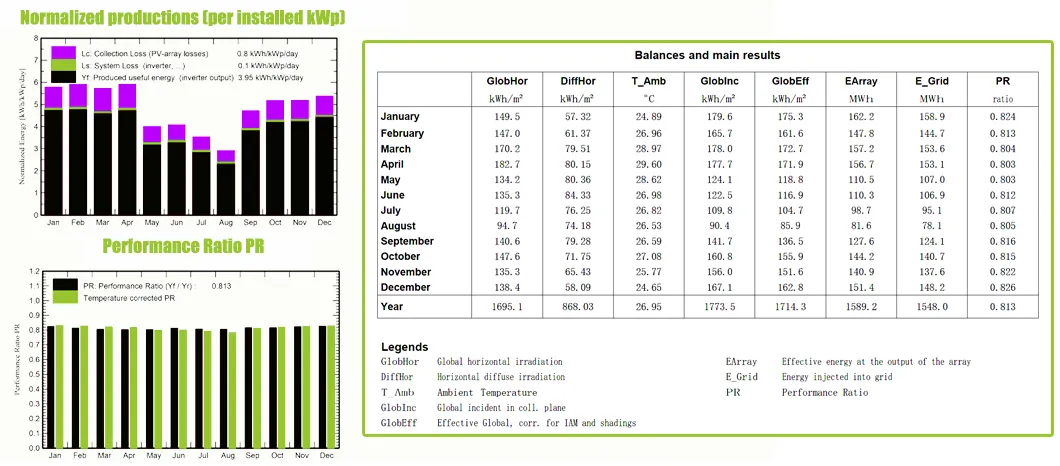

Technical Support
🏭

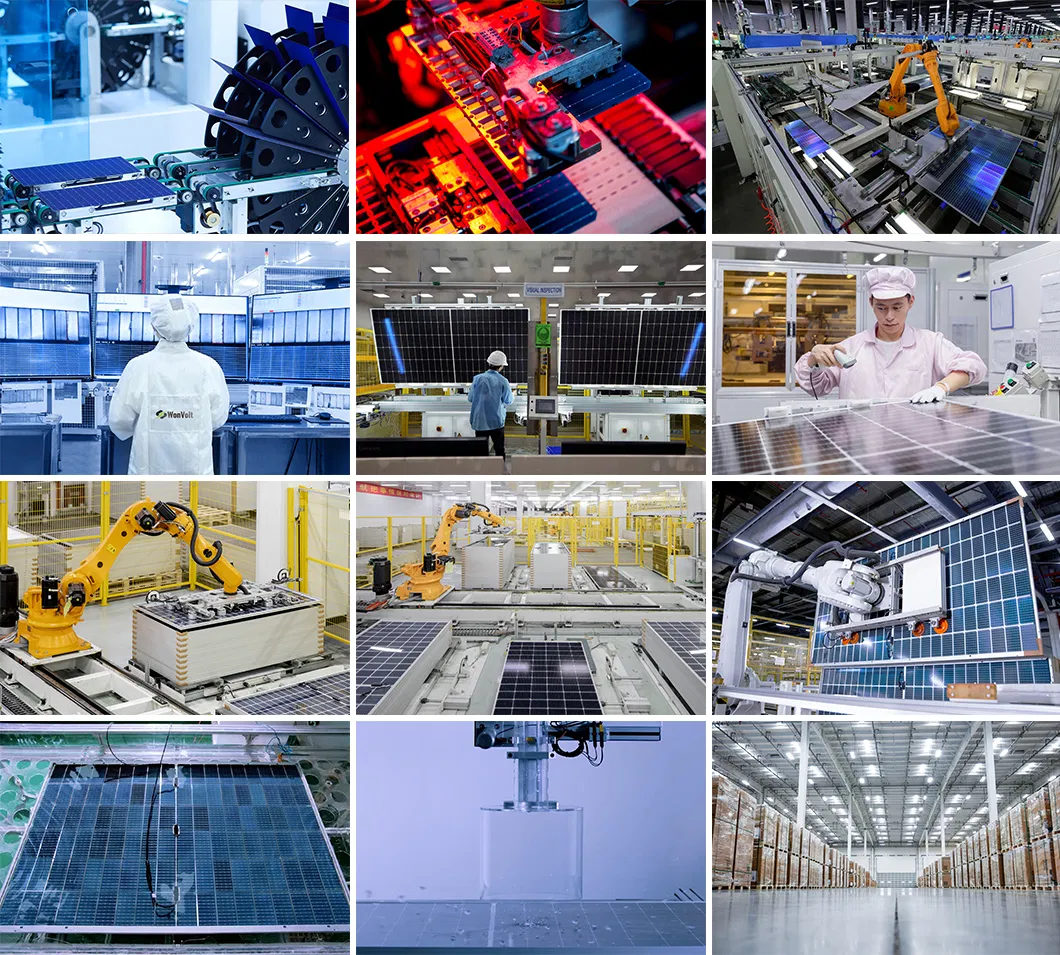

Manufacturing & Reference Projects
❓
Frequently Asked Questions
What is the life expectancy of the Battery Energy Storage System?
The system utilizes high-quality LiFePO4 cells with a cycle life of over 6,000 times, ensuring long-term reliability for commercial and industrial applications.
Can multiple units be connected in parallel?
Yes, this system supports parallel configuration for up to 3 units to meet higher energy demands.
What type of cooling system is integrated?
The system is equipped with a Smart Air Cooling mechanism to maintain optimal operating temperatures and battery health.
Does the system support off-grid operation?
Yes, it supports UPS mode, Black Start capabilities, and can be integrated with Diesel Generators (DG).
What certifications does the product hold?
The ESS is fully certified with CE, UN38.3, IEC, and En50549 standards, ensuring international safety and quality compliance.
What is the primary application for this 100kW/215kWh system?
It is specifically designed for Commercial and Industrial (C&I) sectors, providing energy arbitrage, peak shaving, and emergency backup power.
