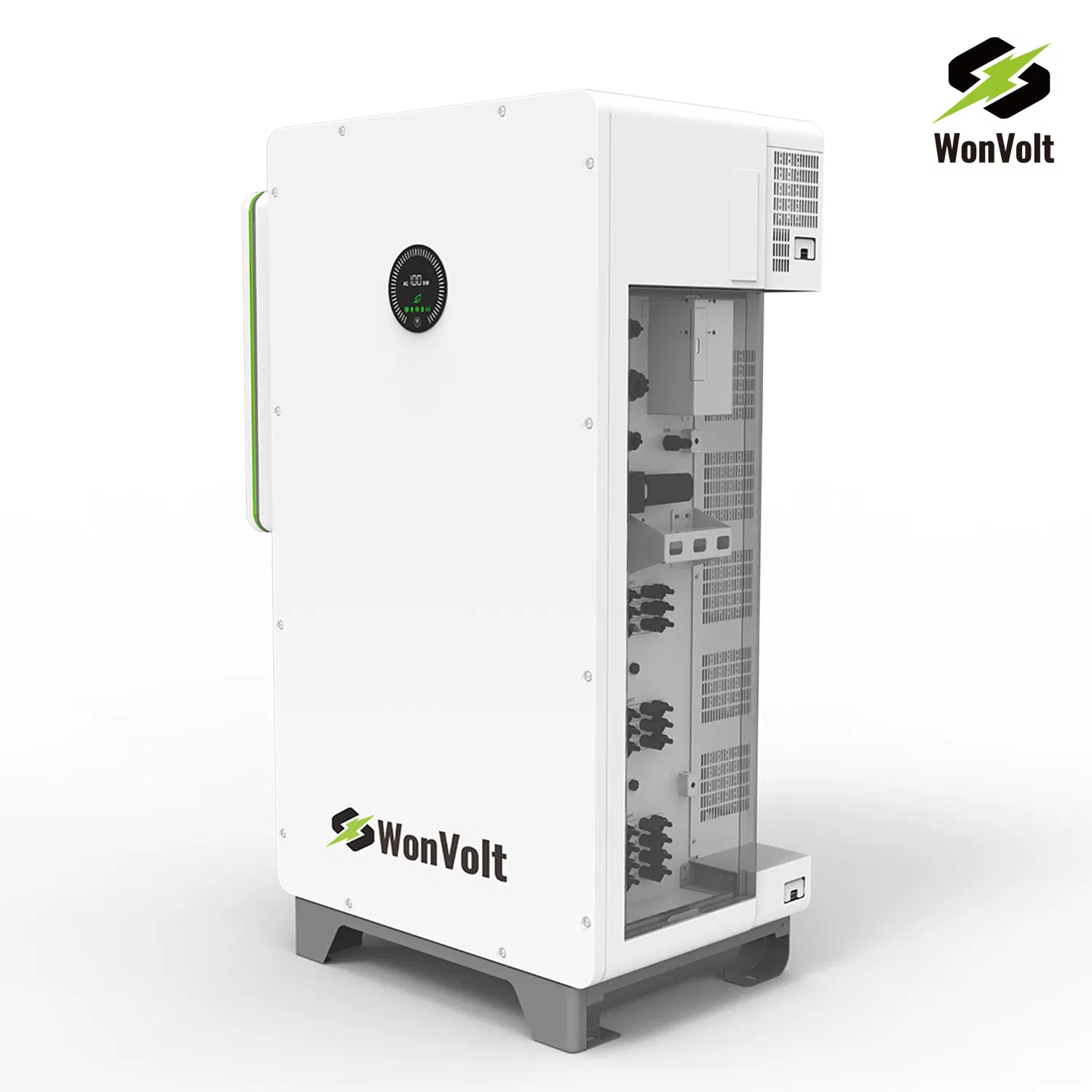

100kw/215kwh Ess Battery System for Solar Integration - Smart Load Management

1 / 5

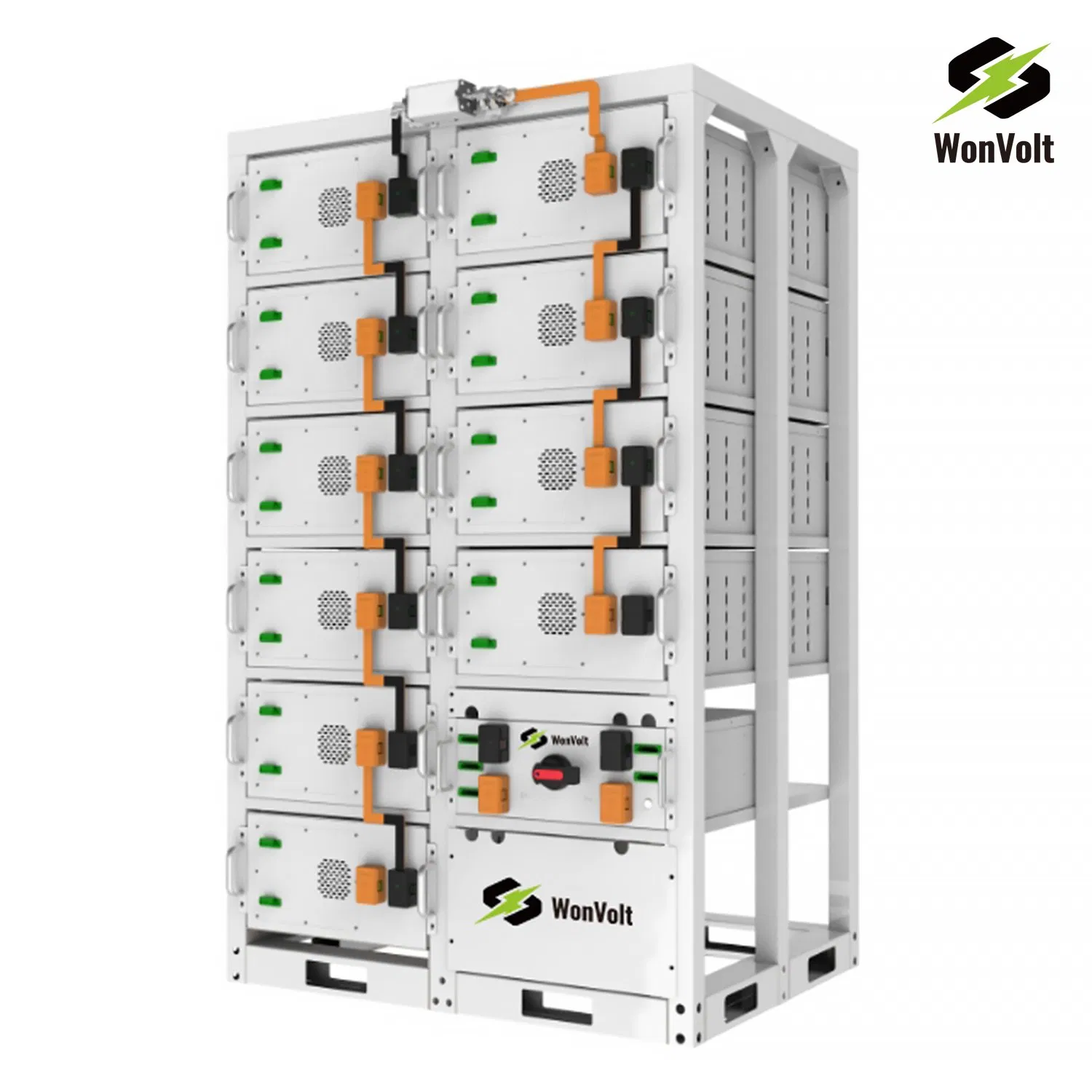

100kw/215kwh Ess Battery System for Solar Integration - Smart Load Management

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊 Basic Information

Model NO.

WV-100KW-215KWh-0.5C

Cycle Life

6000 Times

Nominal Capacity

100kw/200kwh+

Application

Commercial and Industrial

AC Output

380V/400V/415V

Battery Type

LiFePO4/Lithium

Battery Capacity

100-600kwh

Support

UPS/Black Start/Dg

Cooling

Smart Air Cooling

PV Inputs

10 Mppts

Solar Panel

A Grade 550W-565W Module

Mounting

Rooftop or Ground

Certificate

CE Un38.3 IEC En50549

Parallel

Yes, up to 3 Units

Package

Wooden Box

HS Code

8501723000

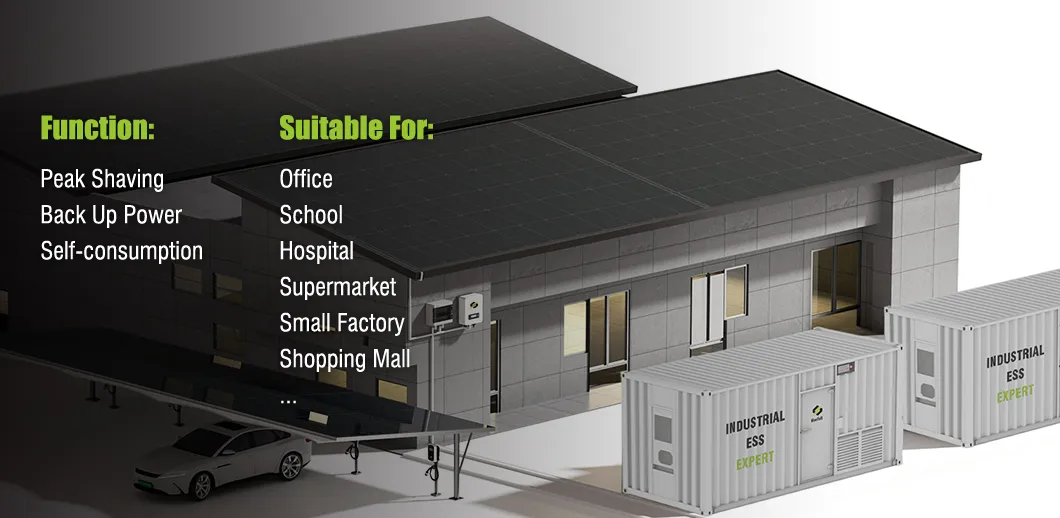

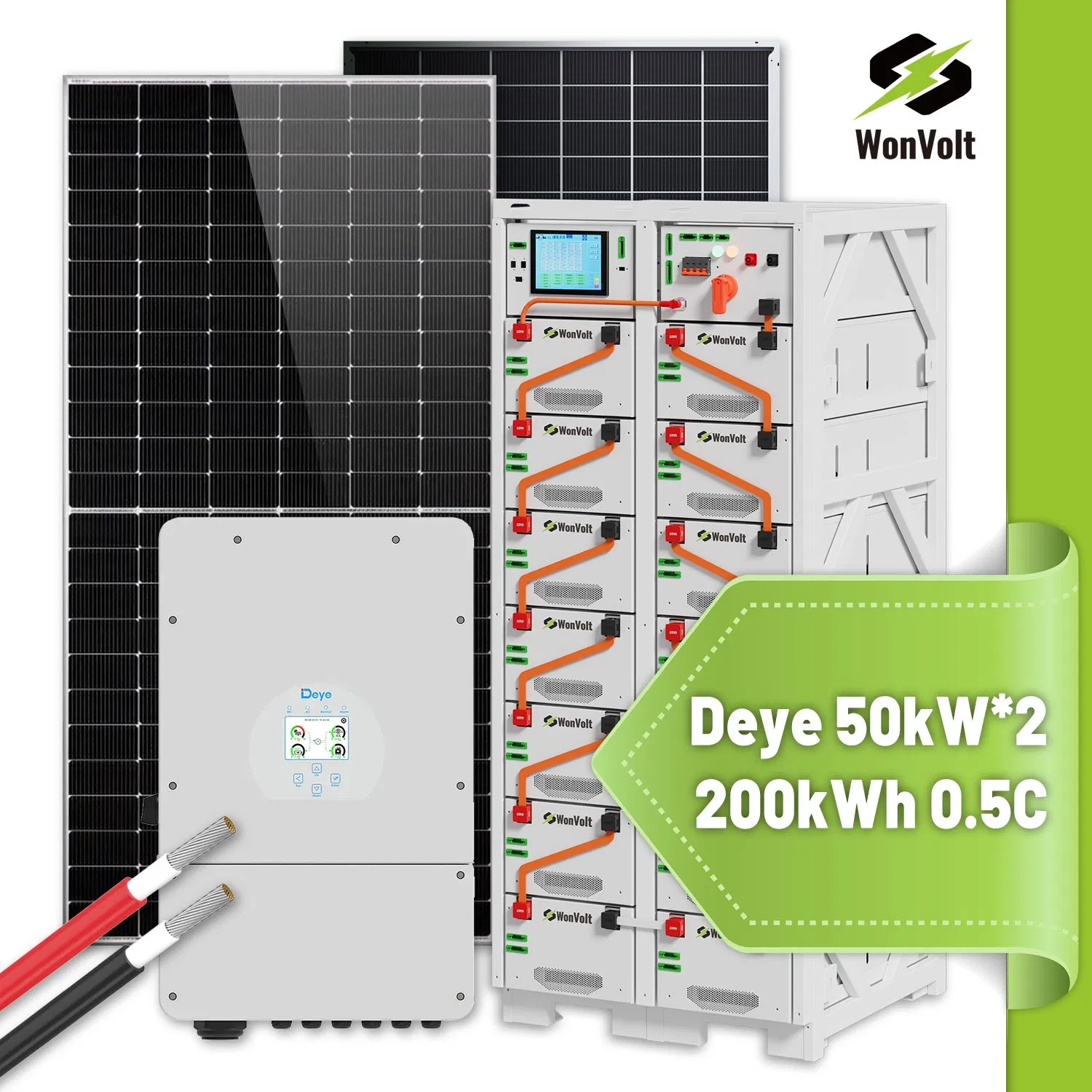

🔋 Commercial ESS

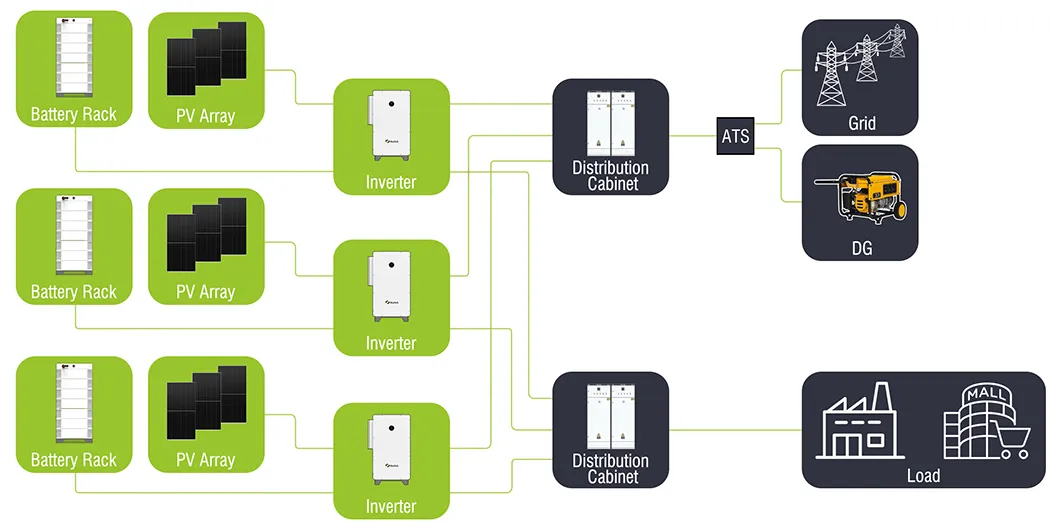

⚙️ System Configuration

Equipment	Model	100KW-200.7KWh	200KW-401KWh	300KW-602KWh

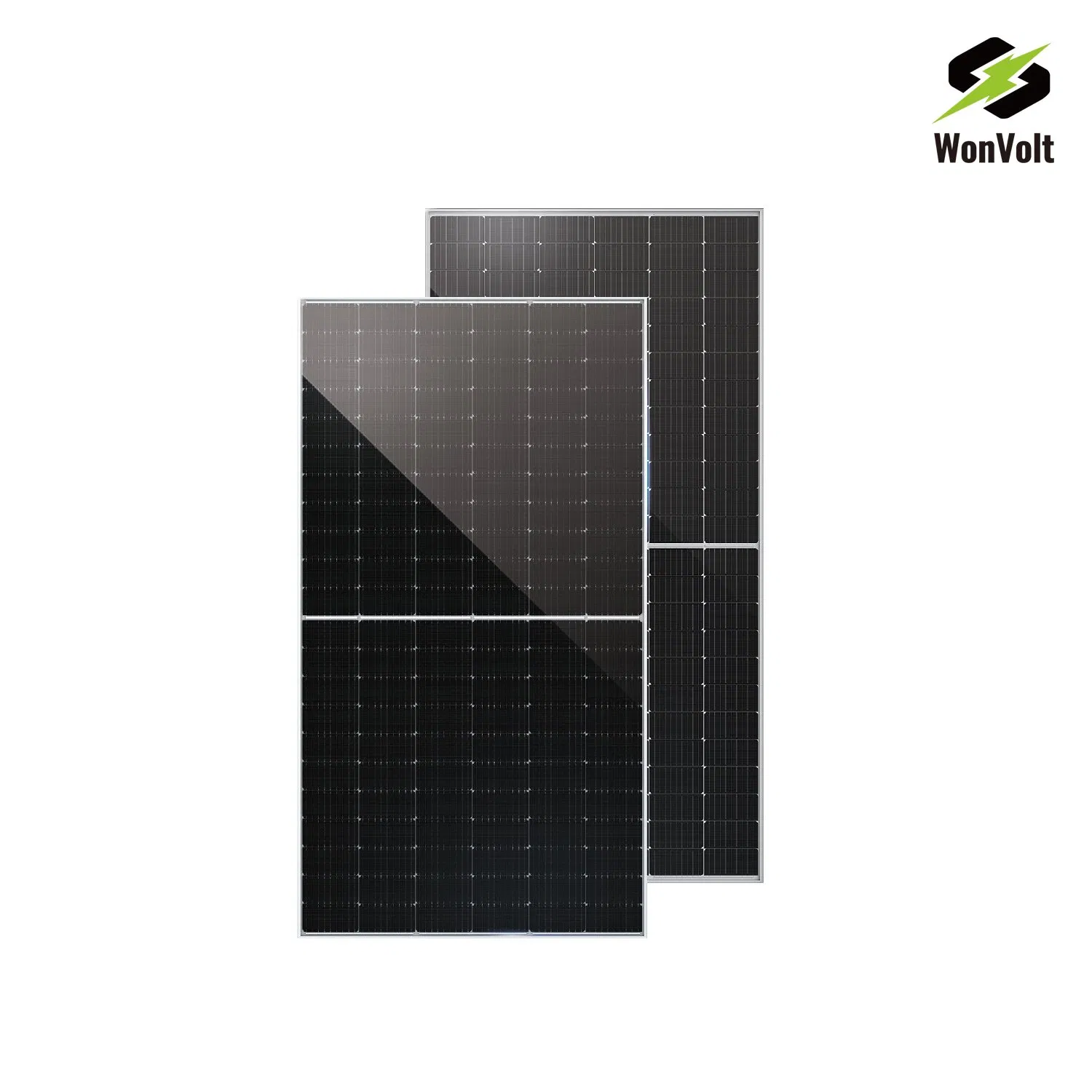

PV Module	WV-72KUN-565	187	374	561
Inverter	WIT-100K-HU	1	2	3
Battery	WV51280H	14	28	42
Control Box	Standard	1	2	3
Connector	MC4	40	80	120

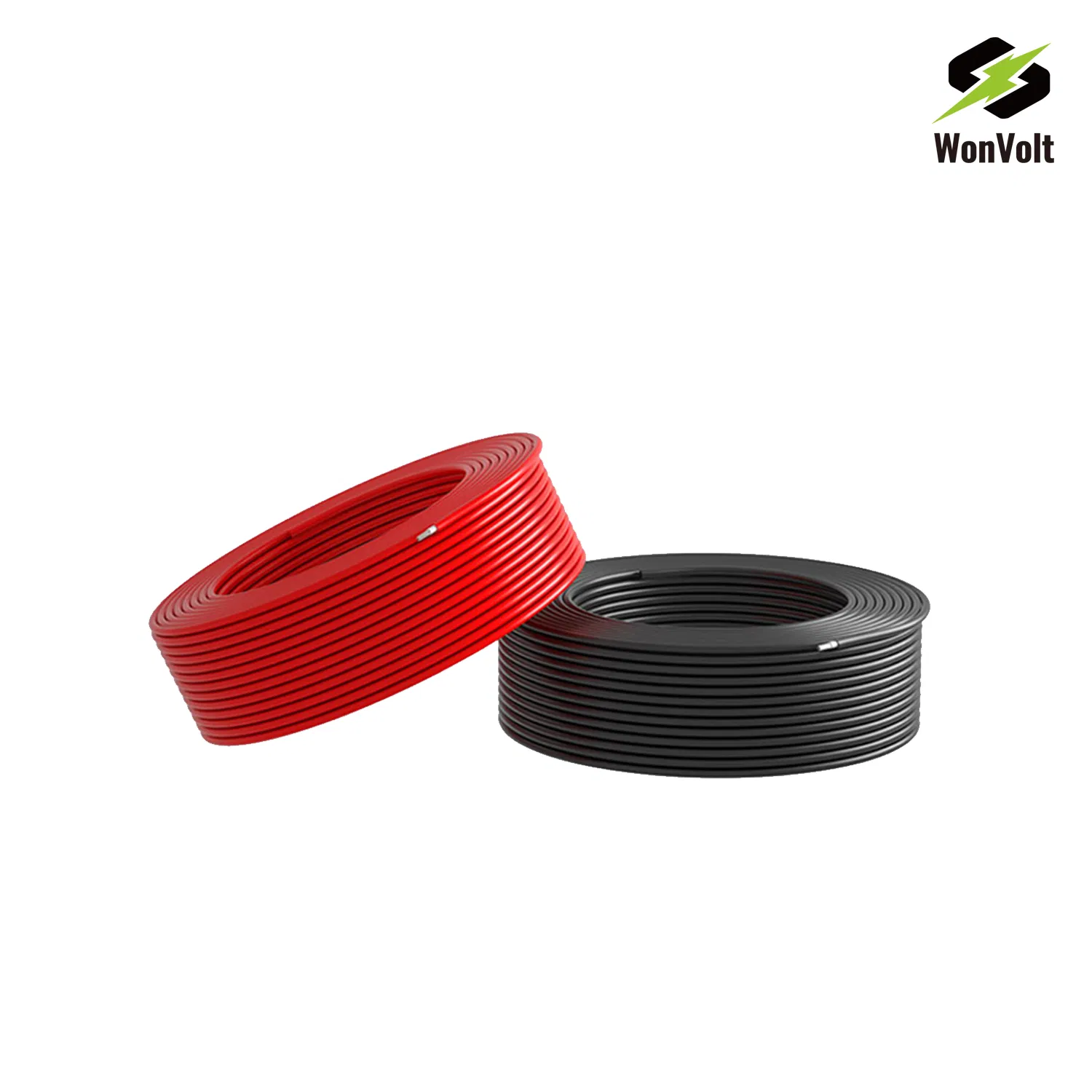

PV Cable	PV1-F 4mm2	1100	2200	3300
ATS (Opt)	ATS300KW	1	1	1
AC Cabinet (Opt)	XL-1	0	2	2
Monitoring	WIFI / SEM-X	1	1	1

📝 Product Description

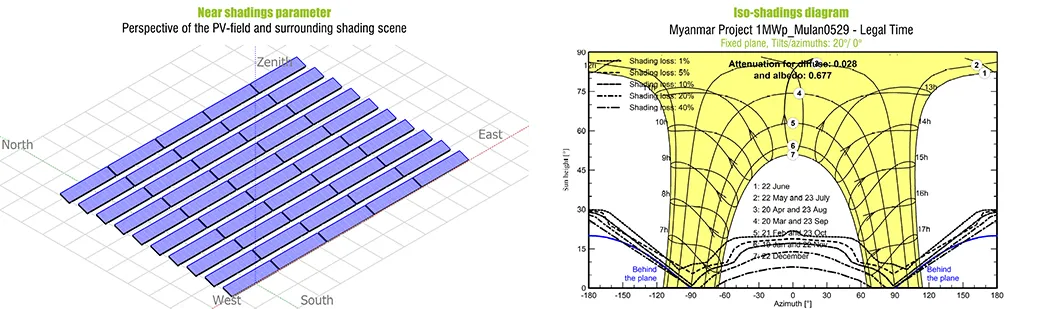

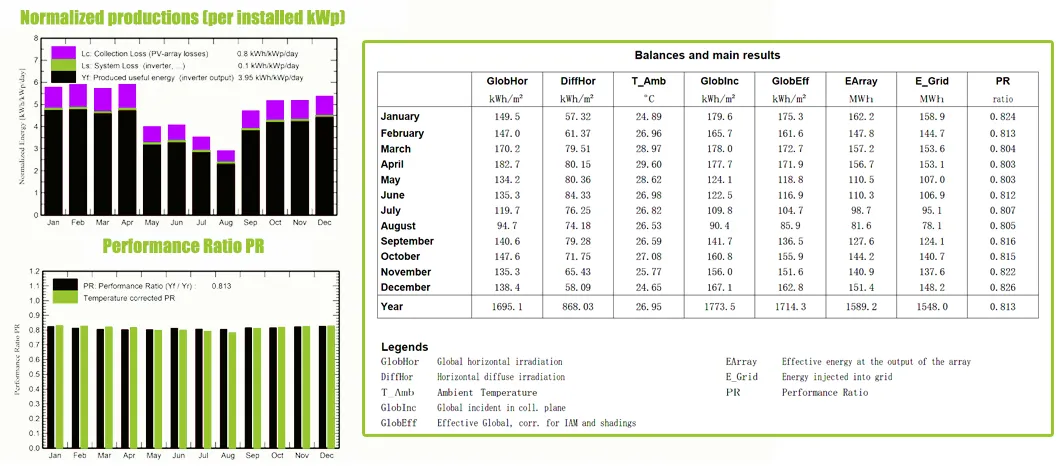

🛠️ Technical Support

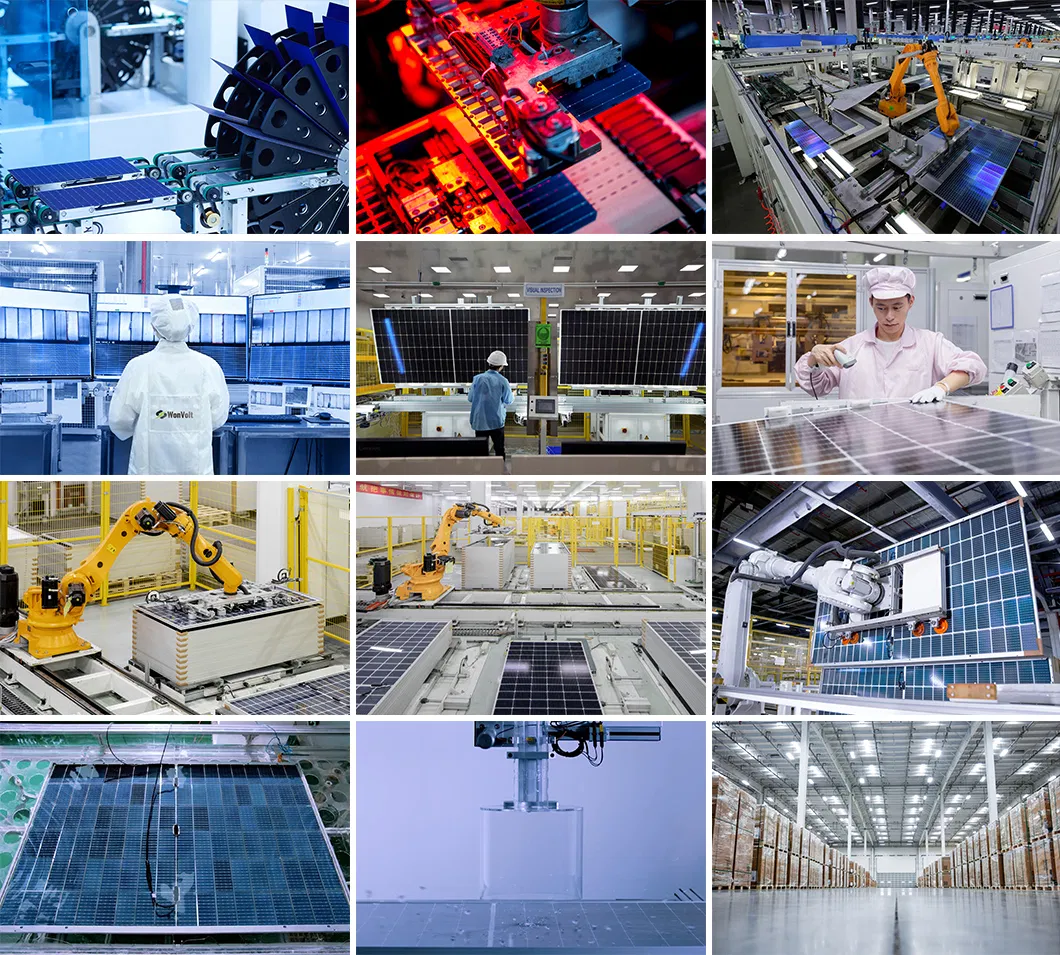

🏭 Production Facility & Projects

Frequently Asked Questions

What is the expected lifespan of the battery system?

The system utilizes high-quality LiFePO4 cells with a cycle life of over 6,000 times, ensuring long-term reliability for commercial and industrial use.

Can this ESS system be used for off-grid applications?

Yes, the system supports UPS functionality, Black Start, and Diesel Generator (DG) integration, making it suitable for both grid-tied and backup power scenarios.

Is the system expandable if my energy needs grow?

Absolutely. The system is designed for scalability and supports parallel connection of up to 3 units to increase total capacity.

How is the battery temperature managed?

The system features a Smart Air Cooling mechanism that efficiently regulates temperature to maintain optimal battery performance and safety.

How can I monitor the system's performance?

Remote monitoring is available through WIFI or the SEM-X platform, allowing you to track energy production and consumption in real-time.

What certifications does the product hold?

The system is fully certified with CE, UN38.3, IEC, and EN50549 standards, ensuring compliance with international safety and quality regulations.
