Basic Info
Model NO.SY-6S-22.2V-30Ah
RechargeableYes
SizeSmall
MOQ1
CustomizableYes
Delivery Time2-5day
Combination6s/7s/12s
Transport PackageBox
Specification207mm*90mm*67mm
HS Code8506500000
Production Capacity5,000,000 PCS
🔋

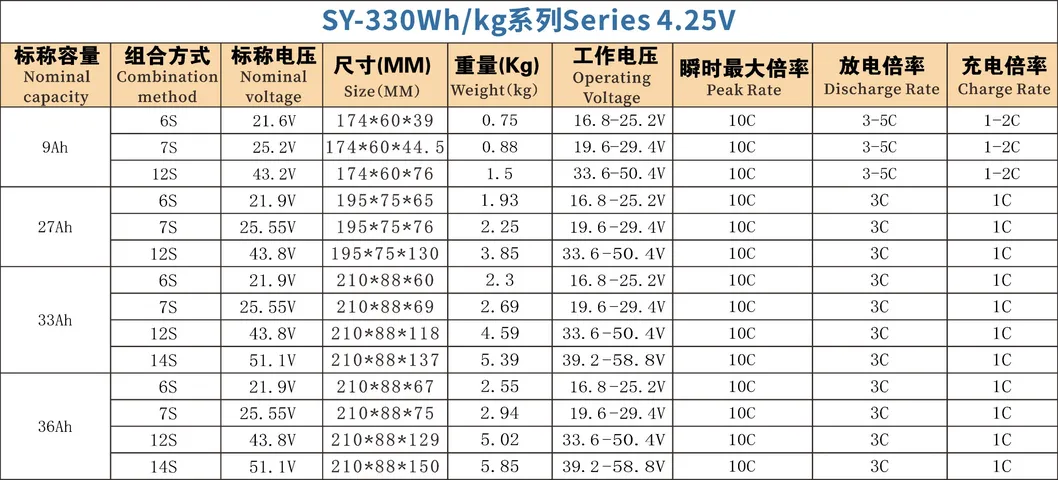

Product Description
| Model | SY-6S-22.2V-30Ah |
| Nominal Capacity | ≥30Ah |
| Nominal Voltage | 22.2V |
| Charging Cut-Off Voltage | 25.2V |
| Discharge Cut-off Voltage | 16.5V |
| Configuration | 6S1P/22.2V |
| Discharge Rate | 10C |
| Net Weight | 2.6kg |
| Dimensions | 207mm(L)*90mm(W)*67mm(H) |
| Connector Type | XT90S-F/AS150-F/… |
| Discharge wire | 10#/8# AWG |
| Charging wire | 22# AWG |
| Charge Rate | 0.5C-2C Recommended, 2C Max |
| Long Cycle Life | 1000 times (0.5C/0.5C; 100% DOD) / 500 times (0.5C/3C; 100% DOD) |
| High-Energy Density | 256wh/kg |
🛠️

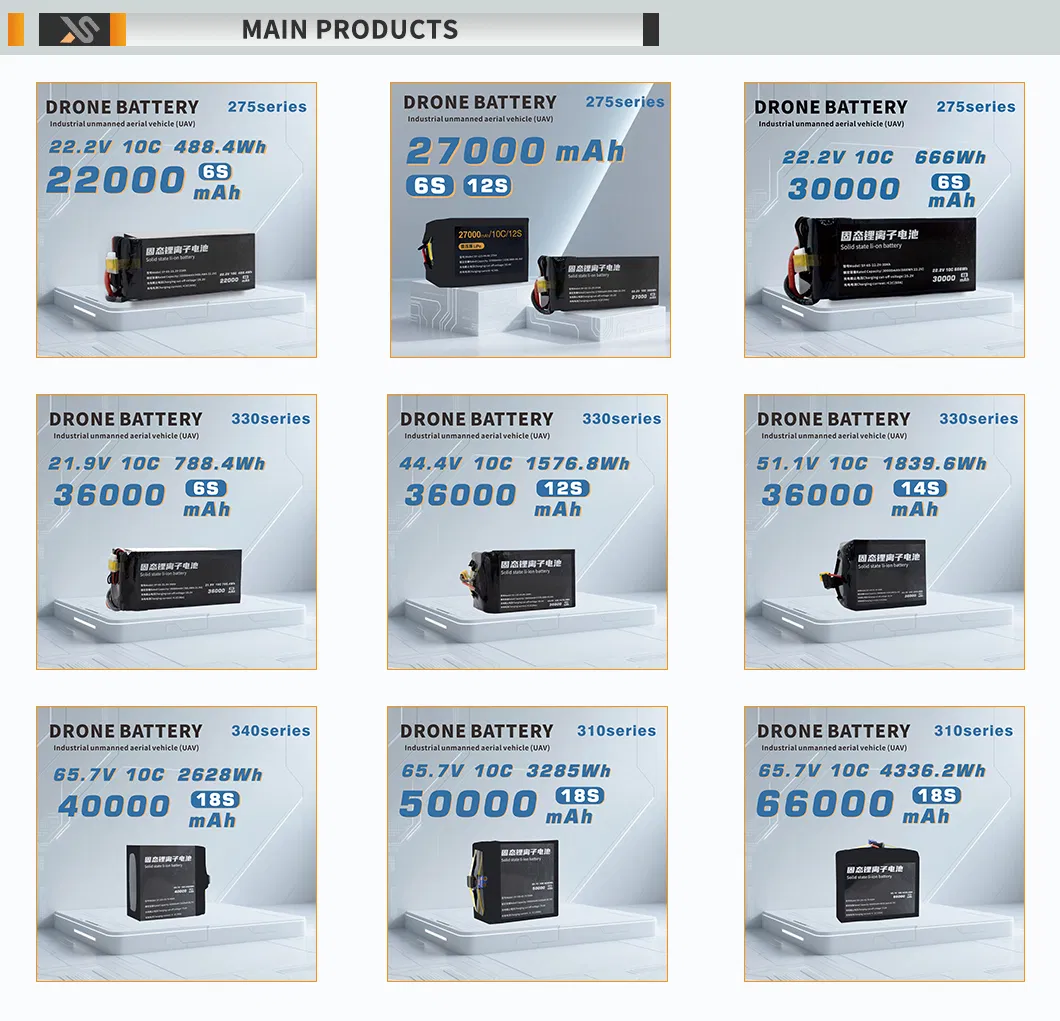

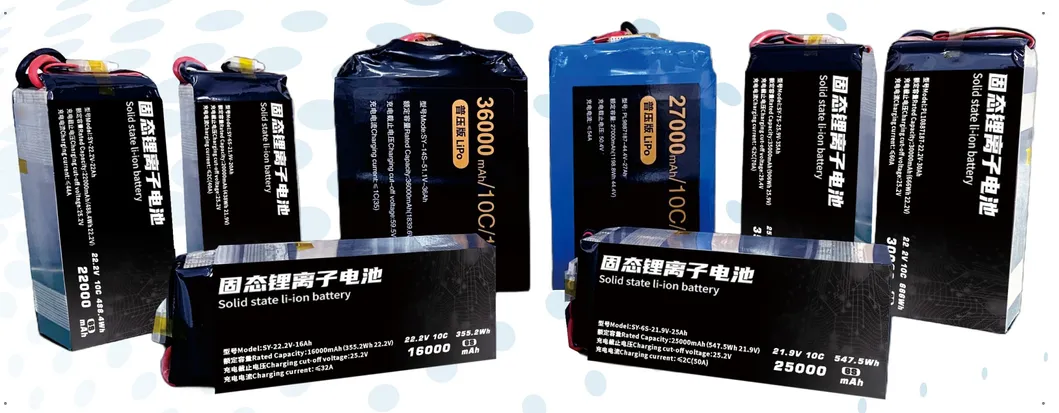

Main Products
The main products include Solid-State Lithium-Ion Battery, Terminal Block, and more, each crafted with precision and innovation for optimal performance.
🏢

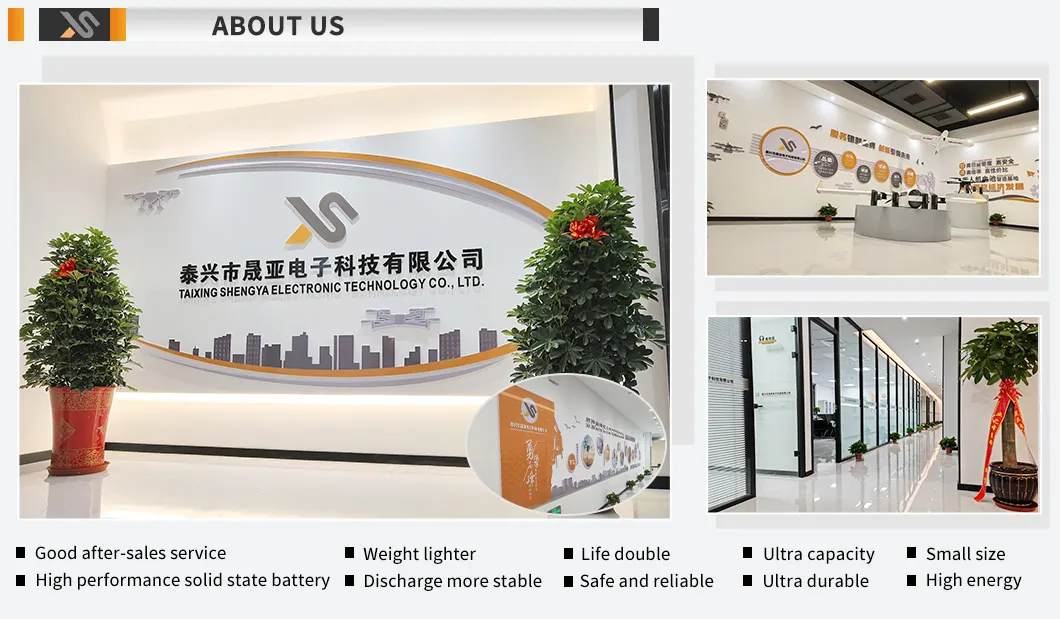

About Us
Established in 2017, we are a dedicated manufacturer specializing in the creation and distribution of top-tier high-energy density, high-rate, high-voltage, and high-safety solid-state lithium-ion batteries specifically engineered for industrial drone applications.

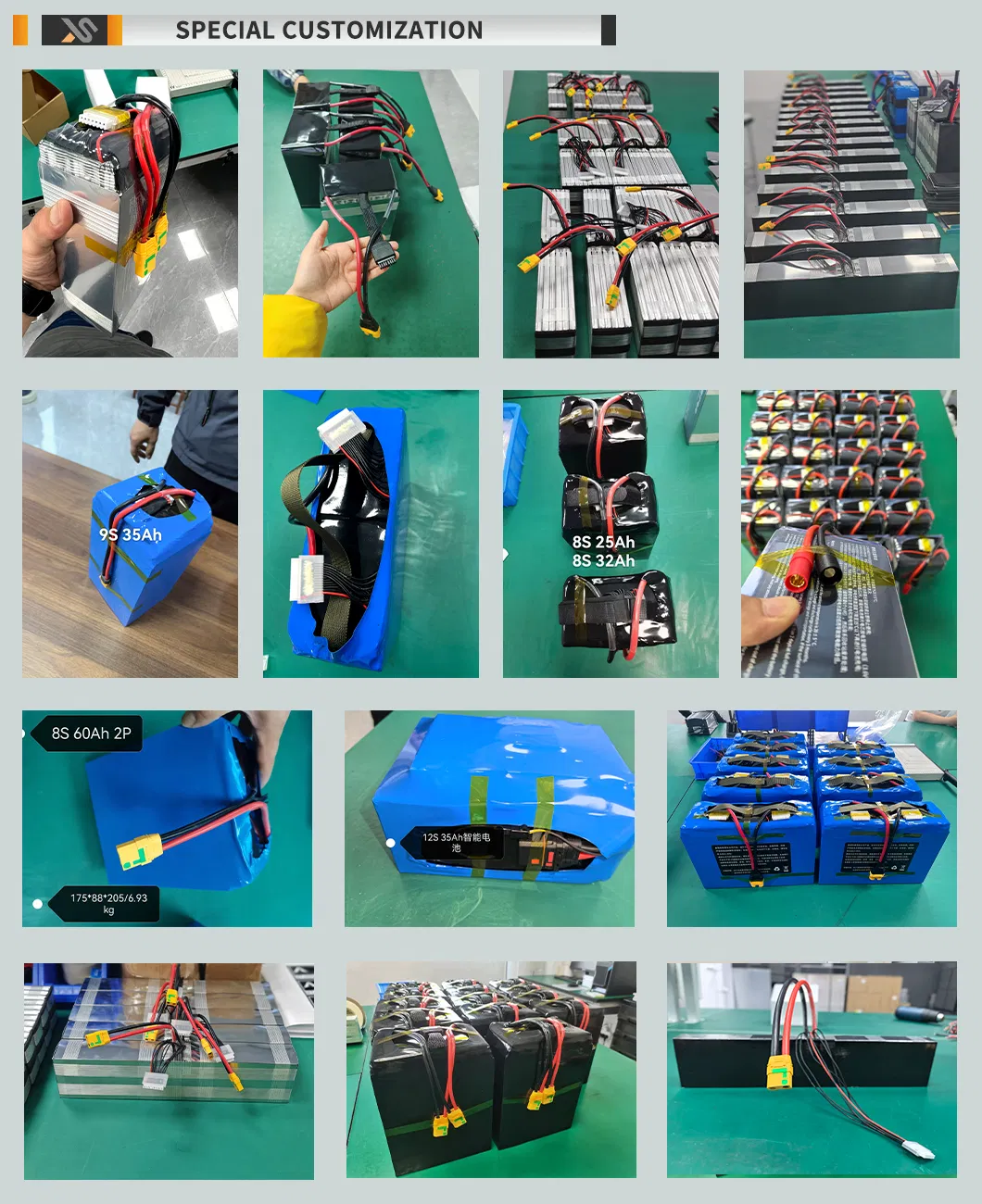

The energy density of our cutting-edge series products spans from an impressive 270wh/kg to 340wh/kg. We offer diverse battery pack assembly solutions, and smart battery packs can be meticulously customized to match unique requirements, including combination methods, outlet positioning, and plug model preferences.
🌍

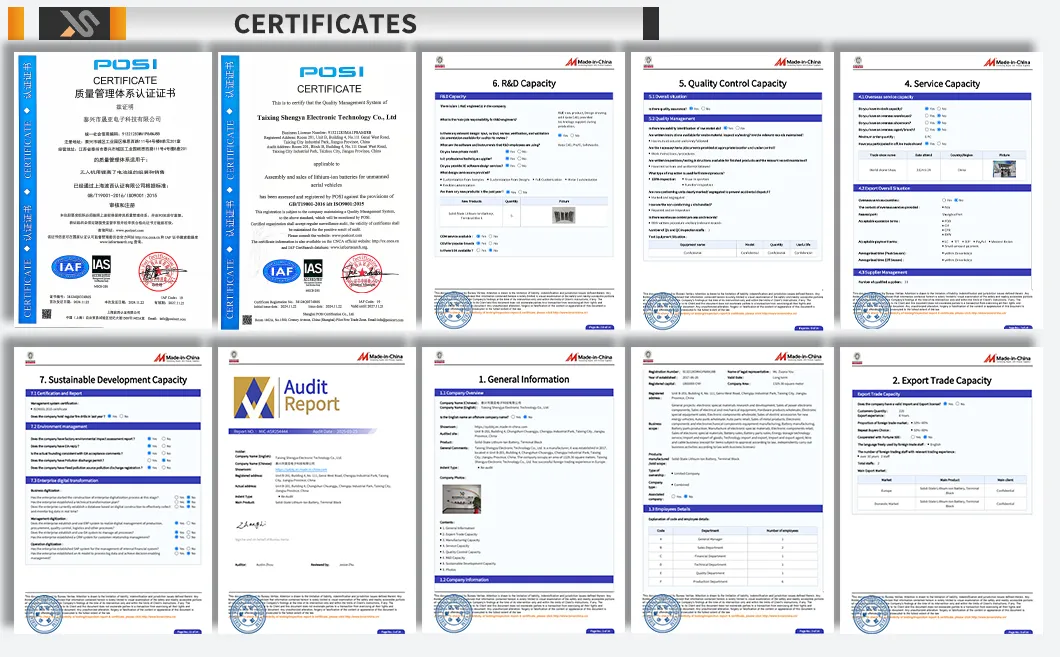

Exhibitions & Certifications
❓
Frequently Asked Questions
Do you accept sample orders?
Yes, we welcome samples to test the quality. Customized items and OEM/ODM services are also available.
How do I choose the right battery?
Please let us know your specific demands, and we will recommend a suitable battery for your application.
Are you a factory or a trading company?
We are a professional manufacturer with our own factory of approximately 3000m², consistently ranking in the top 10 within the industry.
What is your advantage compared to other suppliers?
We provide high-quality batteries with sufficient capacity and lower internal resistance. All products are inspected before shipment, and we offer a 12-month warranty.
Can I use any charger for a rechargeable lithium battery?
No. You should never use a charger that was not designed for the specific battery type. Each charger is tailored for a specific lithium chemistry.
How many times can a battery pack be recharged?
This depends on operating parameters such as drain rate, battery care, and the quality of the cells required for your application.
