Product Description

i

Basic Information

Model NO.
GW112.6-BAT-AC-G10
Nominal Capacity
200ah
Cycle Life
6000 Cycles
Weight
<1400kg
Communication Port
Can, RS485
Protection Class
IP55
Capacity
112.6kwh
Cell Type
LFP (LiFePO4)
Grid Connection
off Grid, Hybrid Grid
Specification
1055*2000*1055mm
📦

Packaging & Delivery

Package Size
110.00cm * 210.00cm * 110.00cm
Package Gross Weight
1400.000kg
Transport Package
Wooden Box Packaging
★

Product Description

Smart Control & Monitoring High Voltage Lithium Batteries 112.6kwh Lifepo4 Battery Pack

High Voltage Lithium Battery Pack
⚙

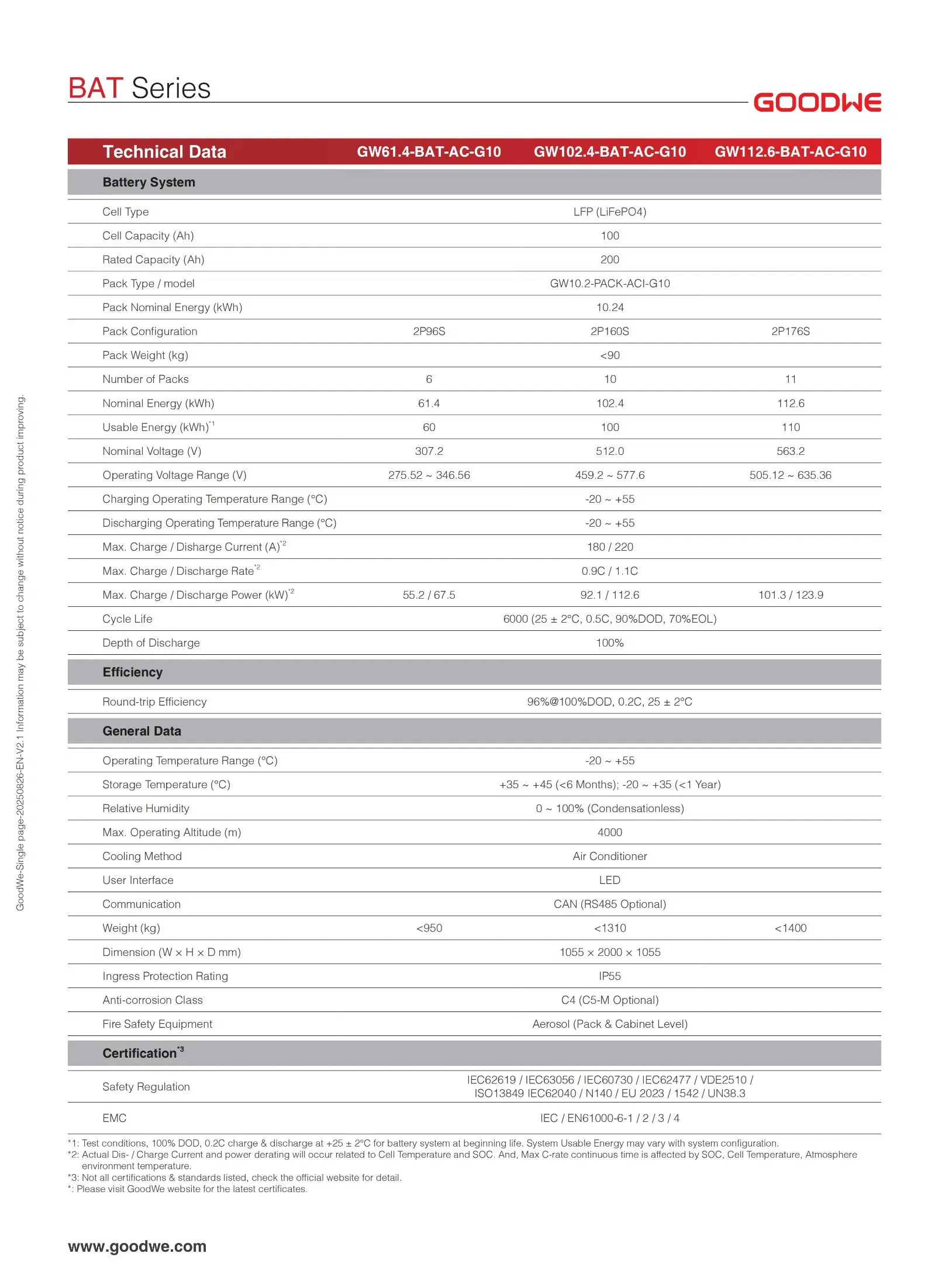

Product Parameters

Technical Data GW61.4-BAT-AC-G10 GW102.4-BAT-AC-G10 GW112.6-BAT-AC-G10
Cell TypeLFP (LiFePO4)
Rated Capacity (Ah)200
Pack Nominal Energy (kWh)10.24
Number of Packs61011
Nominal Energy (kWh)61.4102.4112.6
Usable Energy (kWh)60100110
Nominal Voltage (V)307.2512.0563.2
Operating Voltage Range (V)275.52 ~ 346.56459.2 ~ 577.6505.12 ~ 635.36
Max. Charge/Discharge Current (A)180 / 220
Cycle Life6000 (25 ± 2°C, 0.5C, 90%DOD, 70%EOL)
Ingress Protection RatingIP55
Cooling MethodAir Conditioner
Dimension (W × H × D mm)1055 × 2000 × 1055
✔

Project Case

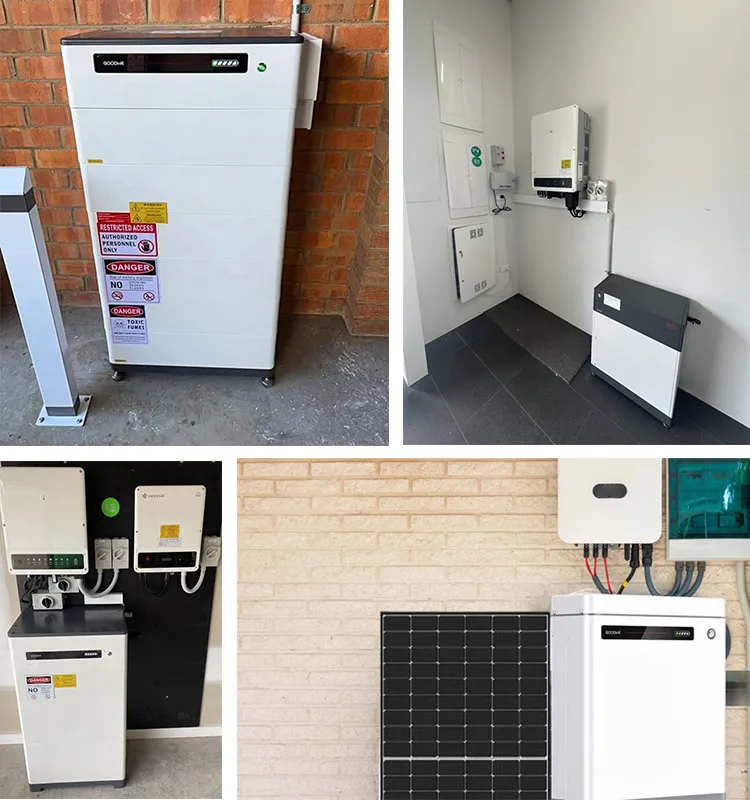

Project Case Display
◎

Manufacturing & Quality

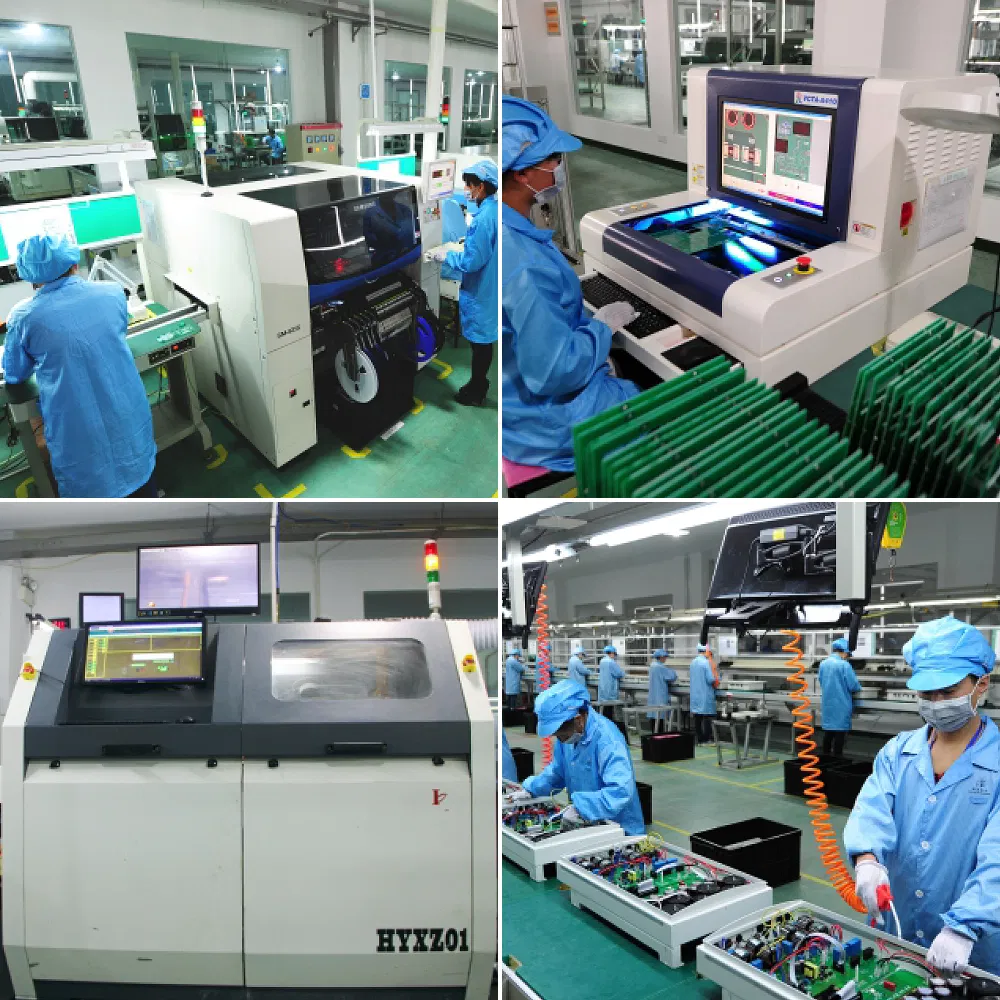

Production Line 1 Production Line 2
?

Frequently Asked Questions

What is the cycle life of this battery system?
The system offers a long cycle life of 6000 cycles at 25 ± 2°C, 0.5C, and 90% Depth of Discharge (DOD).
What type of battery cells are used?
The system utilizes high-quality LFP (LiFePO4) cells, known for their safety and stability.
Is the battery suitable for outdoor installation?
Yes, it features an IP55 ingress protection rating and C4 anti-corrosion class (C5-M optional), making it robust for various environments.
How is the battery system cooled?
The system uses an integrated air conditioner cooling method to maintain optimal operating temperatures.
What are the communication options available?
The standard communication port is CAN, with RS485 available as an optional feature.
What safety certifications does the product hold?
It complies with major international standards including IEC62619, IEC63056, VDE2510, and UN38.3.
