| Model NO. | SAS51100-HV |
| Rechargeable | Yes |
| Design Life | 15+ Years |
| Communication | RS232 / RS485 / CAN / Bluetooth / WiFi |
| Cycle Life | More Than 8000 Cycles |
| Certification | IEC / CE / UN38.3 |
| Unit Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Expansion | Up to 15 Units in Series |
| Operating Temp | -20°C to 60°C |
| Production Capacity | 1000 Pieces Per Month |

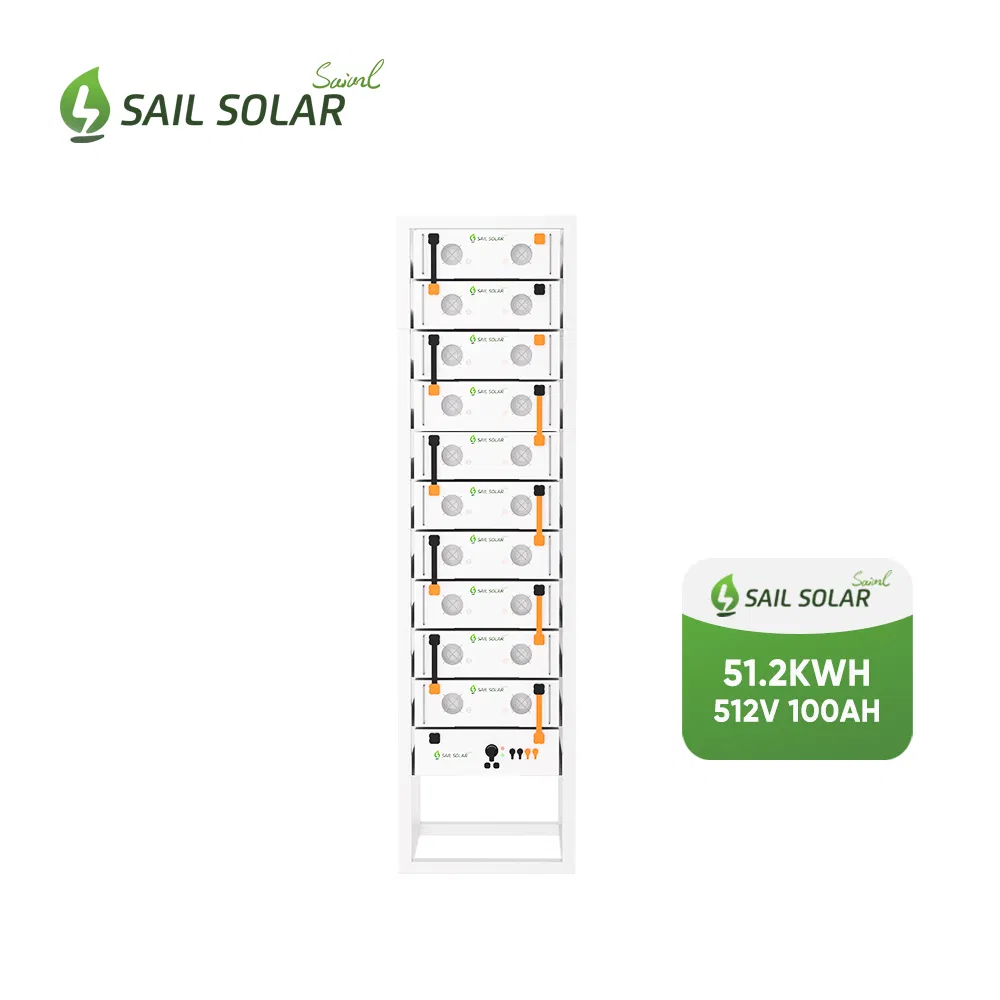

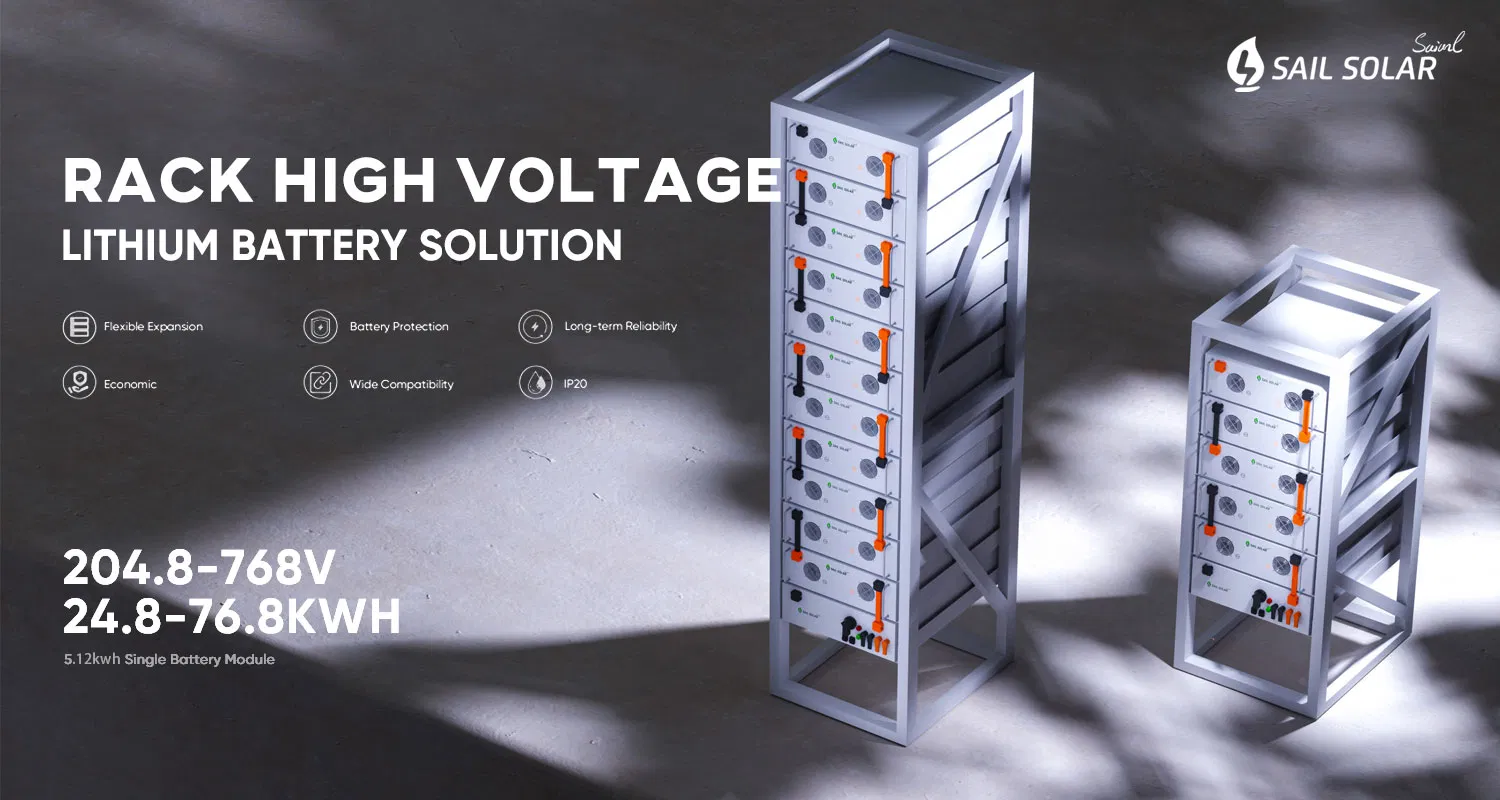

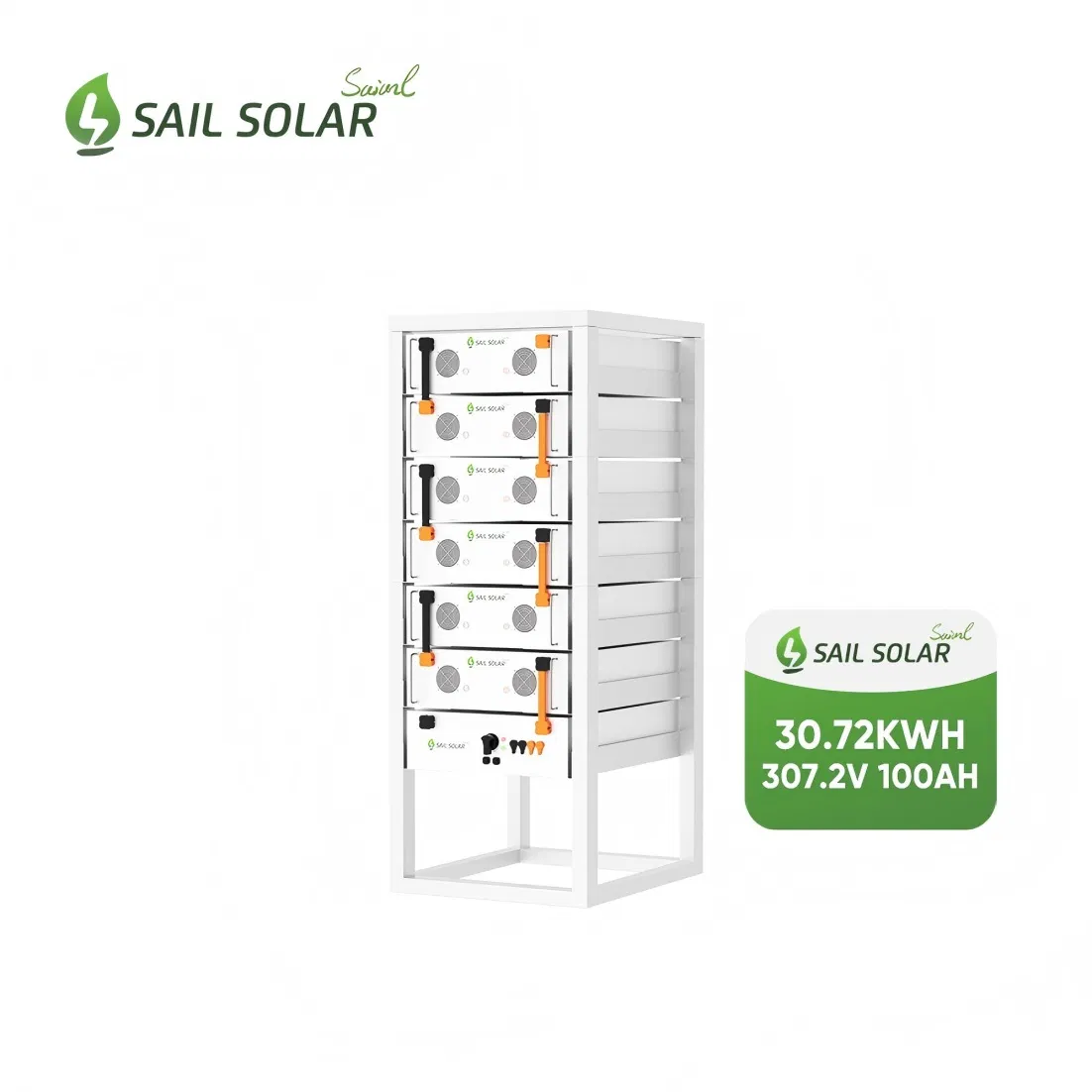

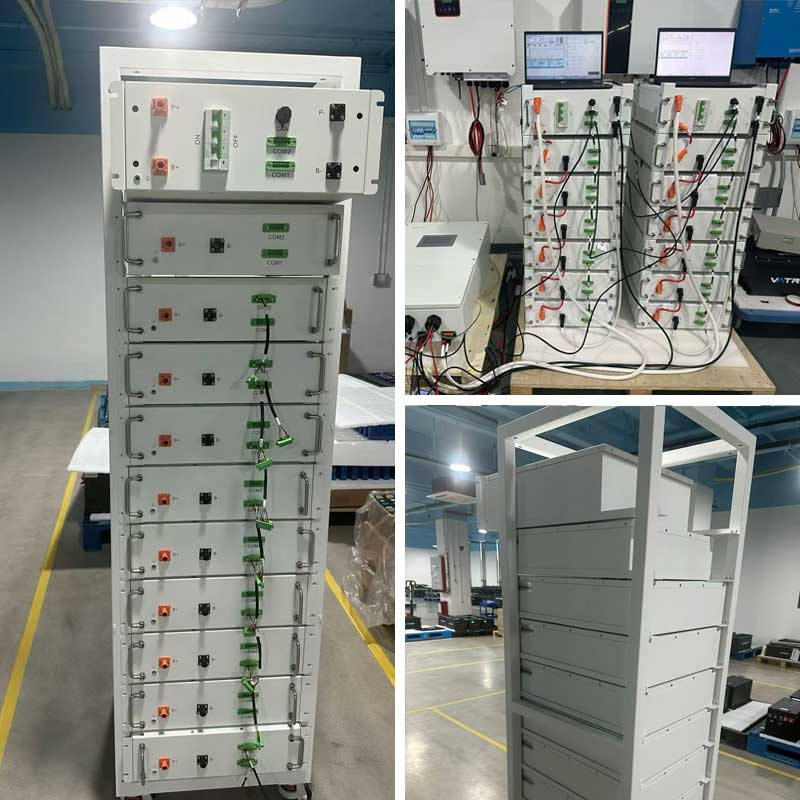

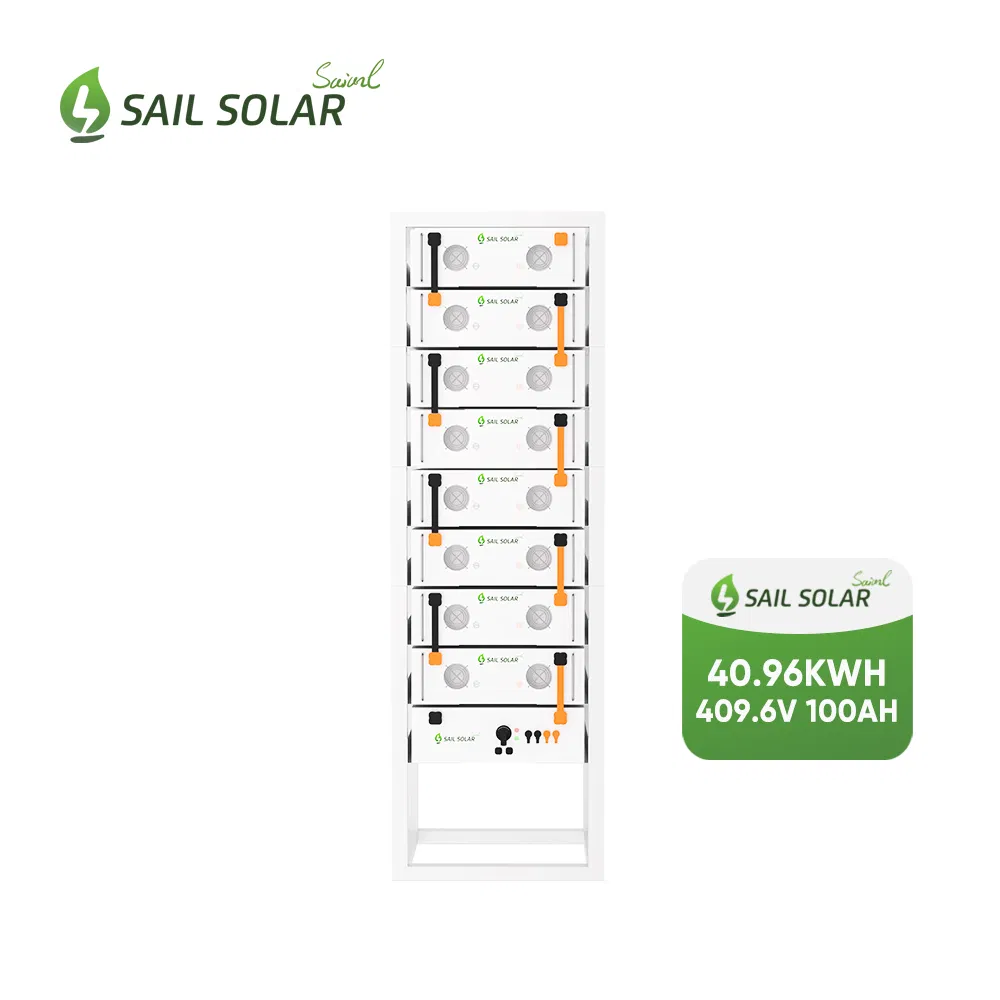

This high-voltage lithium battery cluster is designed for home energy storage, offering scalable solutions from 30kWh to 50kWh. The rack-mounted design allows for flexible customization from 4 to 15 units to meet specific power requirements.
| Battery Module Specification | |
|---|---|
| Battery Type | LiFePO4 battery |
| Nominal Voltage | 51.2V |
| Energy | 5.12kWh |
| Cycle Life | 8000 cycles @ 80% DOD, 0.5C |
| Safety Standards | UN38.3, MSDS, IEC62619, CE, UL1973, UL2054 |
| Protection Level | IP20 |

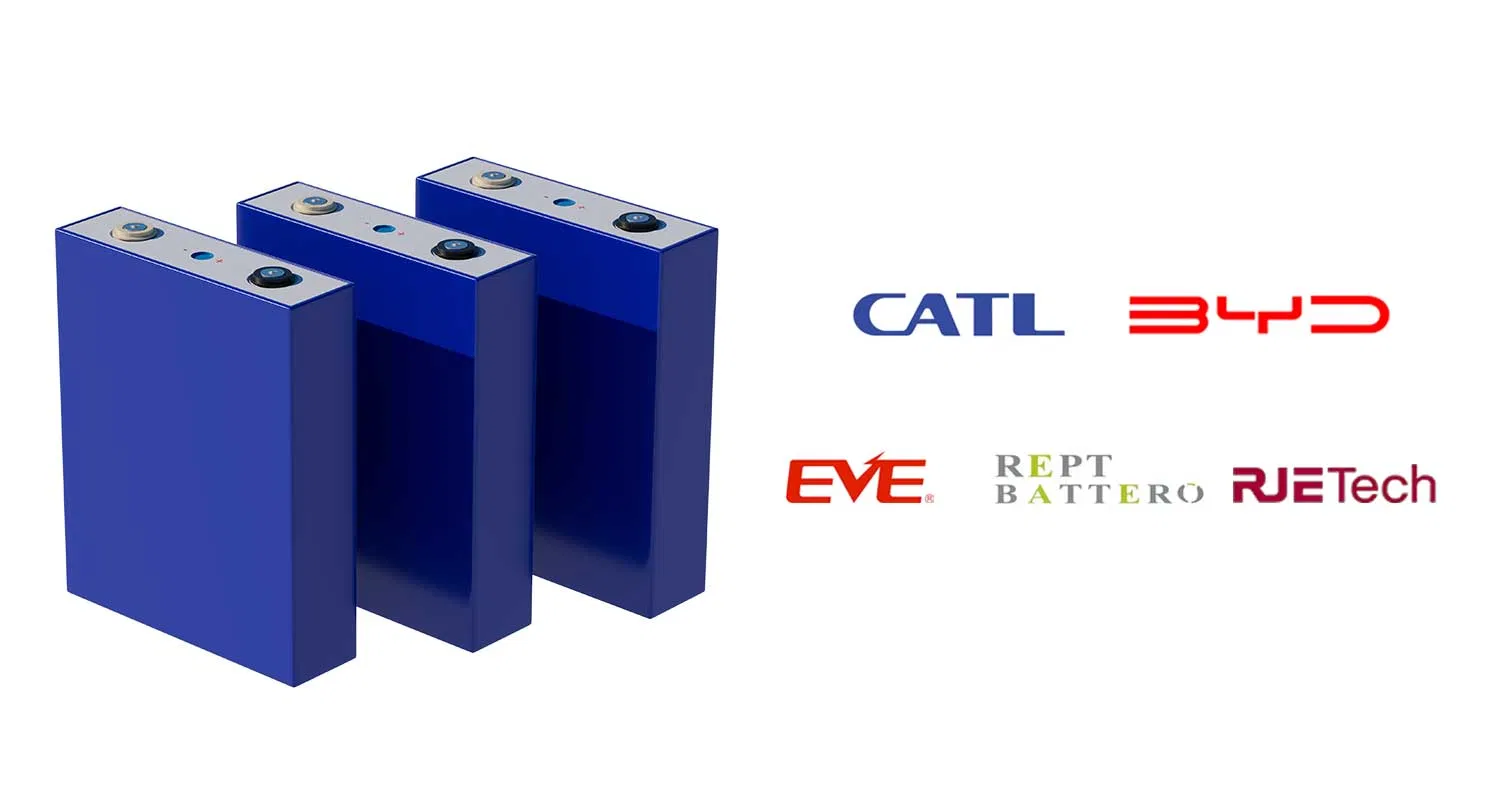

Top Brand Grade A Battery Cells
Only Grade A cells from leading manufacturers (CATL, EVE, REPT) are used to ensure the highest performance and longevity of the lithium battery systems.

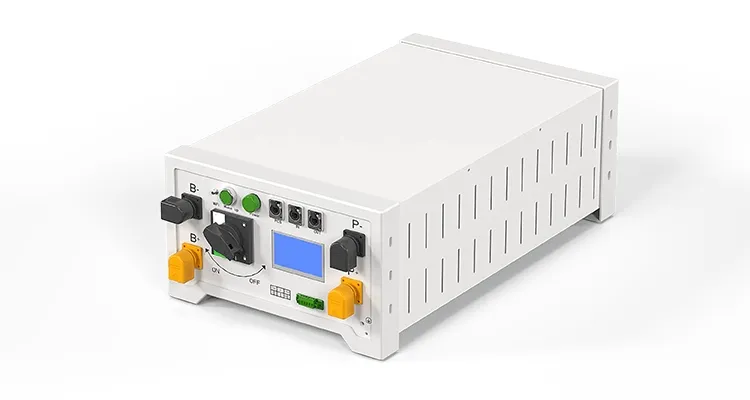

Premium BPU Management
High-voltage solutions integrate top-tier BPU boxes from brands like KGOOER, UDAN, and BYD for precise energy management and safety.
Wide Compatibility
The lithium battery modules are engineered to cooperate seamlessly with most mainstream inverters available on the global market.

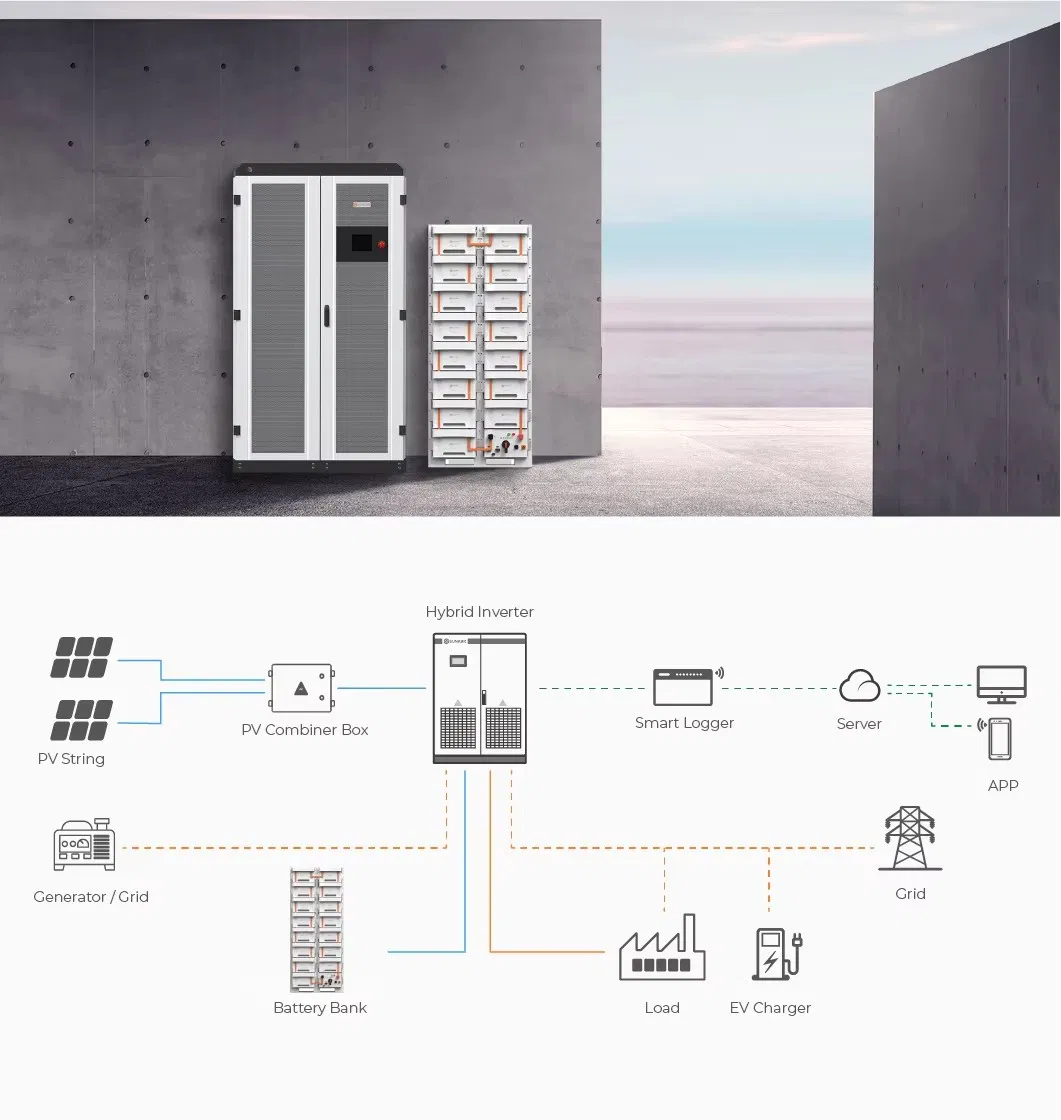

Solar panels produce DC electricity, which is converted into AC via an inverter for household use. Extra energy charges the battery for night-time or rainy day backup. The system supports state grid supplementing and allows users to sell excess electricity back to the grid. It is also suitable for commercial and industrial hybrid systems, including diesel generator integration.

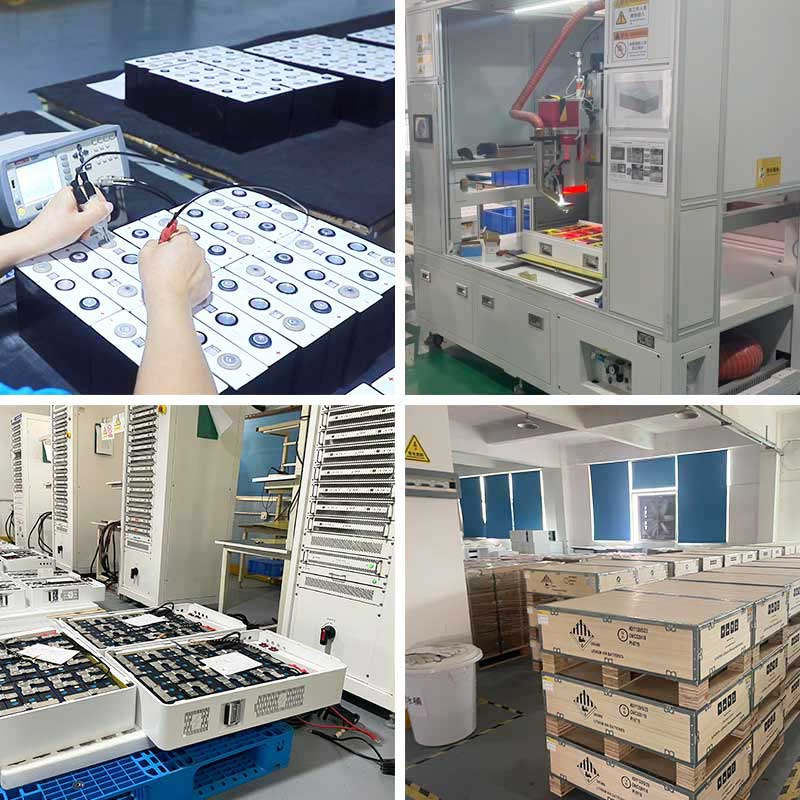

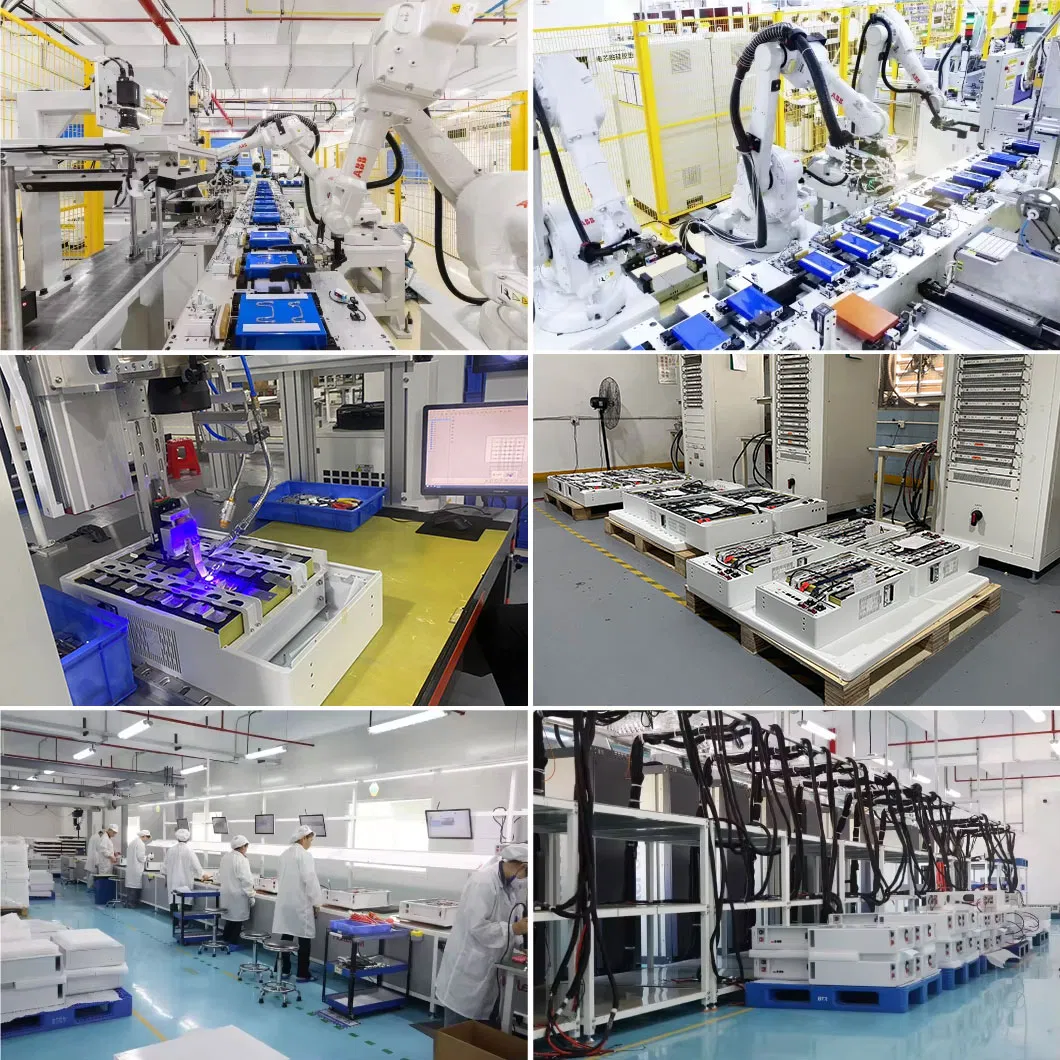

Utilizing an industry-leading intelligent manufacturing system, the production facility employs AI, machine learning, and 5G technology to ensure world-class efficiency and quality control.
Participation in more than 20 exhibitions worldwide each year across Asia, Europe, and the Americas demonstrates a commitment to global energy solutions.
