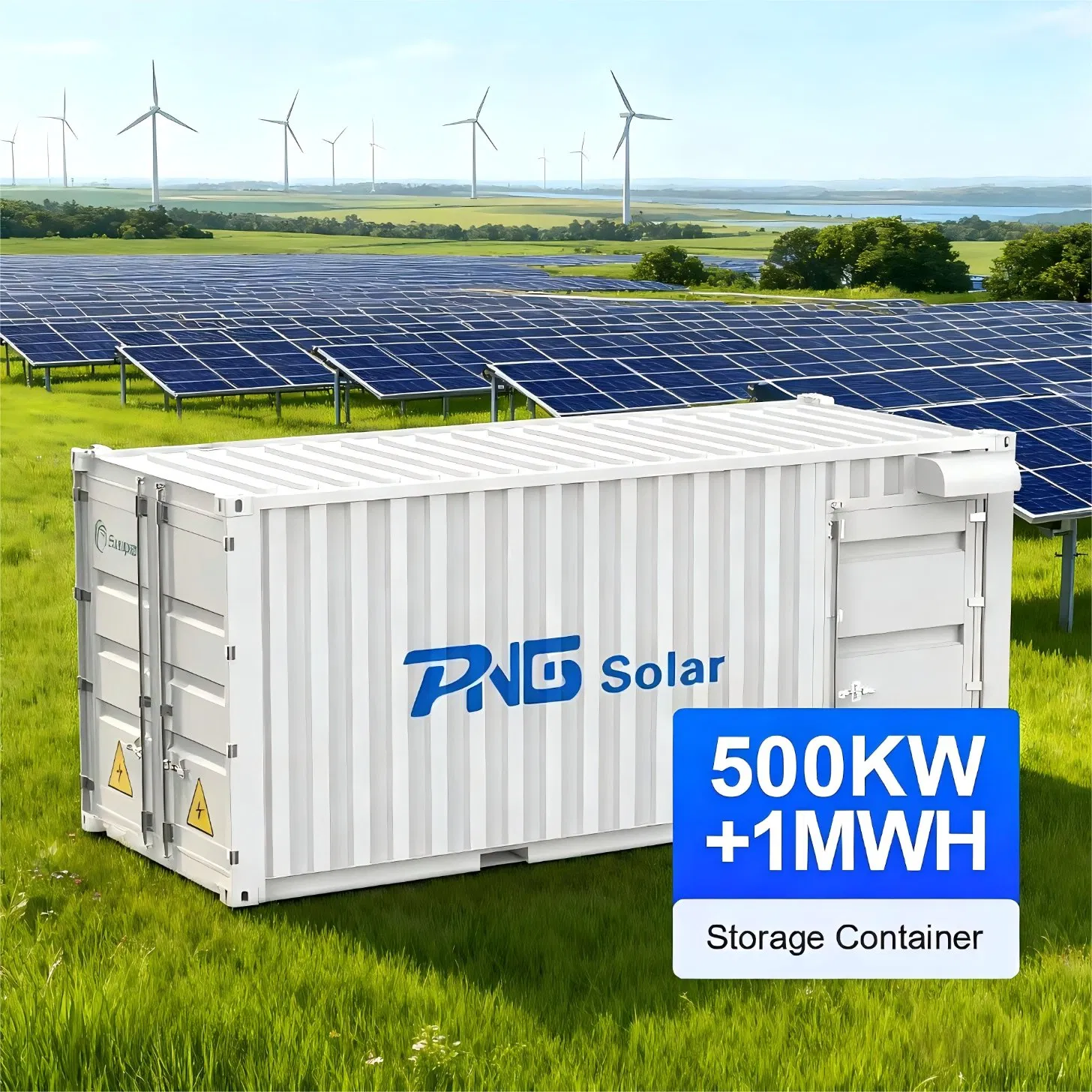

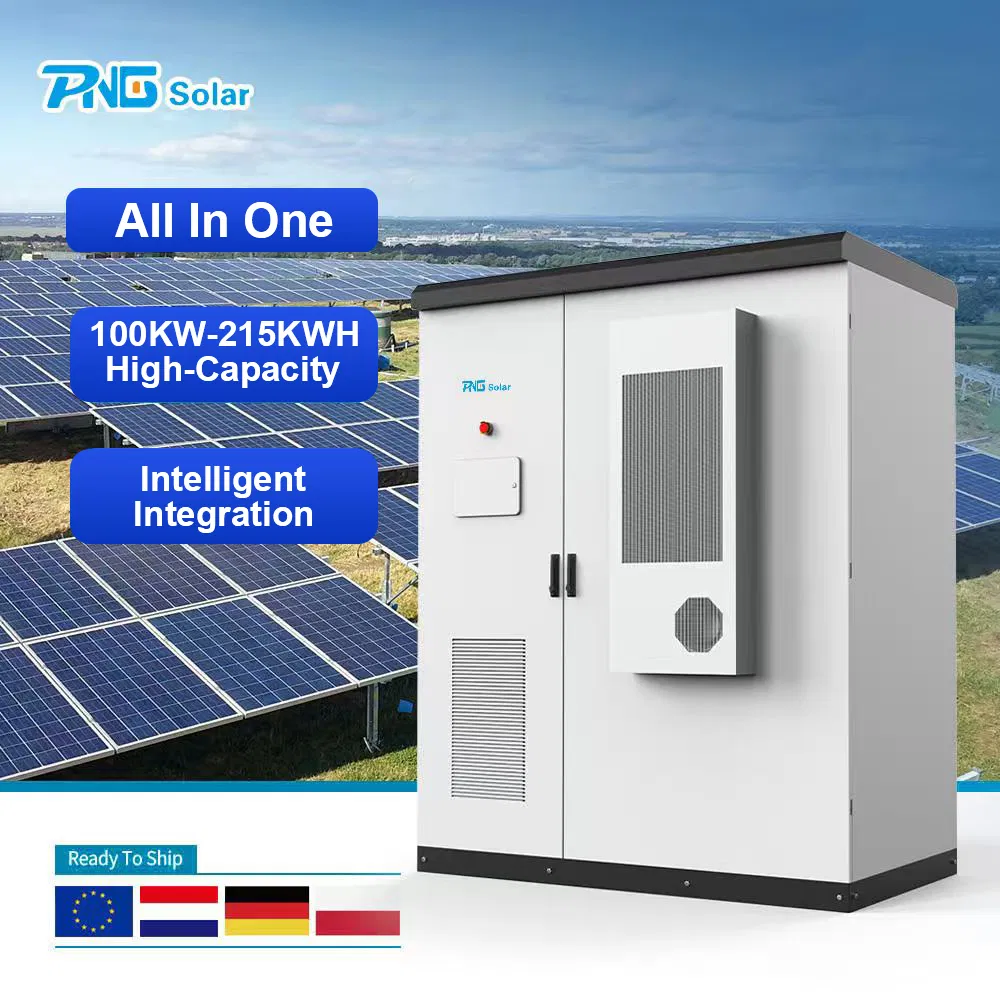

215kwh High Voltage Outdoor Energy Storage Power Hybrid Lithium Battery Lithium 100kw Solar Power System 100kw Battery Energy Storage System

Customization: Available
Application: Industrial Park Peak-Valley Arbitrage
Installation: Cabinet Floor-Mounted

Product Description

⚡ Basic Information
Model NO. PNG100KW-215KWH
Energy Capacity 100kWh-500kWh
Power Configuration 100kW-250kW
Cycle Life 6000 cycles
Cooling Method Full Liquid Cooling (Temperature Difference ≤3℃)
Cabinet Outdoor
Battery Cell 3.2V 314ah, New a+ Grade Prismatic
Design Life 10 Years
Origin China
🏢 Professional Profile
Established in 2016, our facility is a professional and leading manufacturer of quality solar modules. Located in one of the main production bases of the photovoltaic industry globally, we focus on the R&D, production, and sales of PV modules, residential, commercial, and large-scale solar plants. We supply turn-key services for domestic customers and high-quality materials for overseas markets.
3 Production Lines: Annual capacity of 1.2GW ensures optimized lead times. Sophisticated production experience and a global sales network attract customers worldwide, maintaining a position as a top producer and exporter.
For residential and commercial energy systems, we provide comprehensive solutions including on-grid, off-grid, and hybrid solar energy systems. Our core principles are: Integrity, Win-Win, and Innovation.
Energy Storage System
Energy Storage Detail 1
Energy Storage Detail 2
📦 Product Specifications

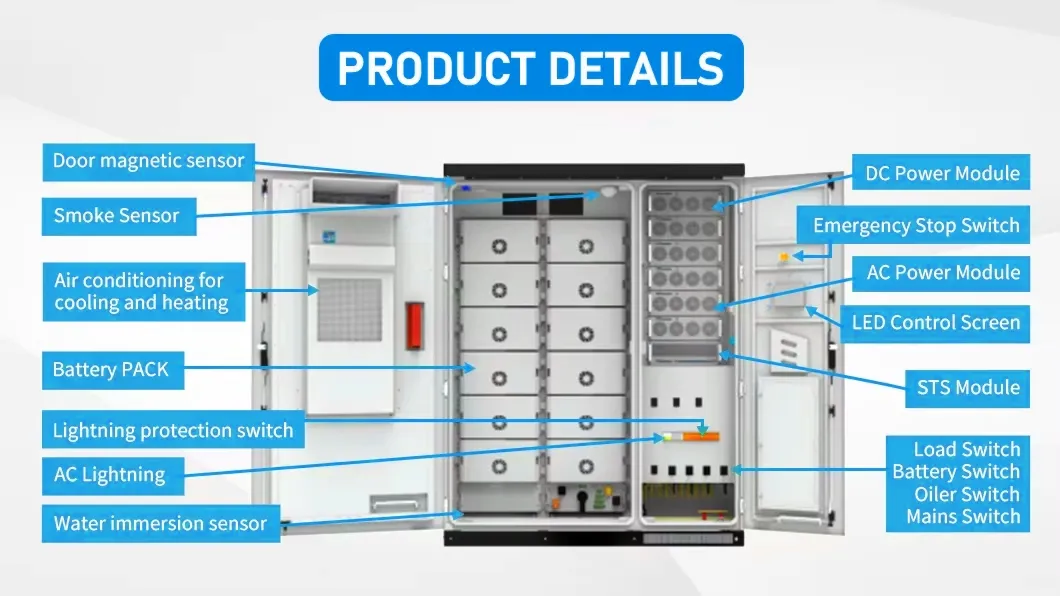

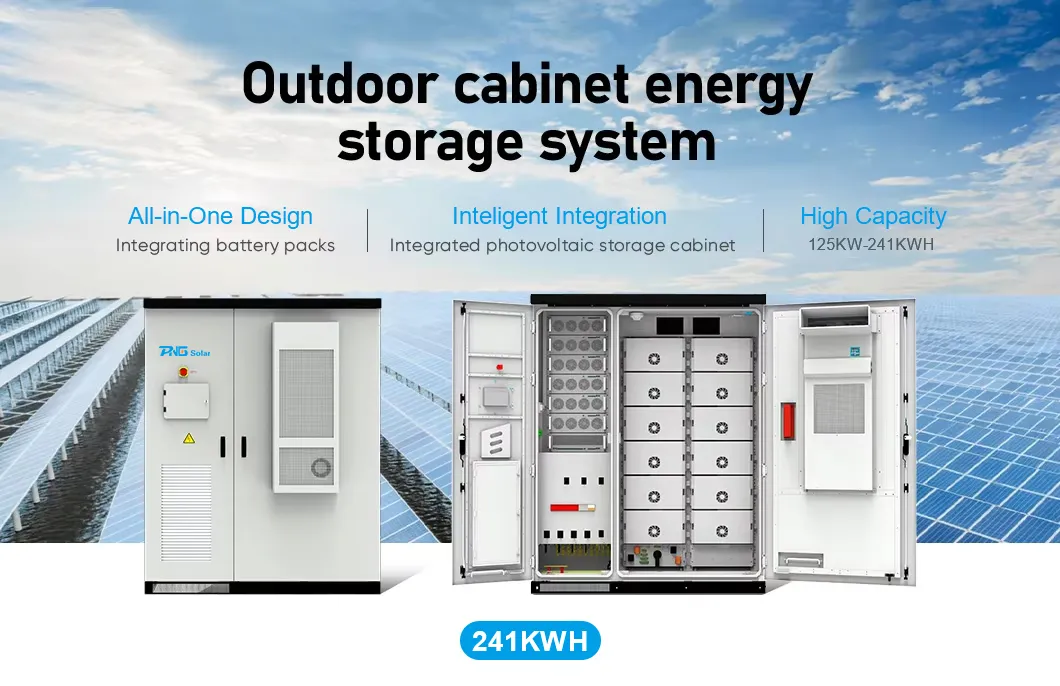

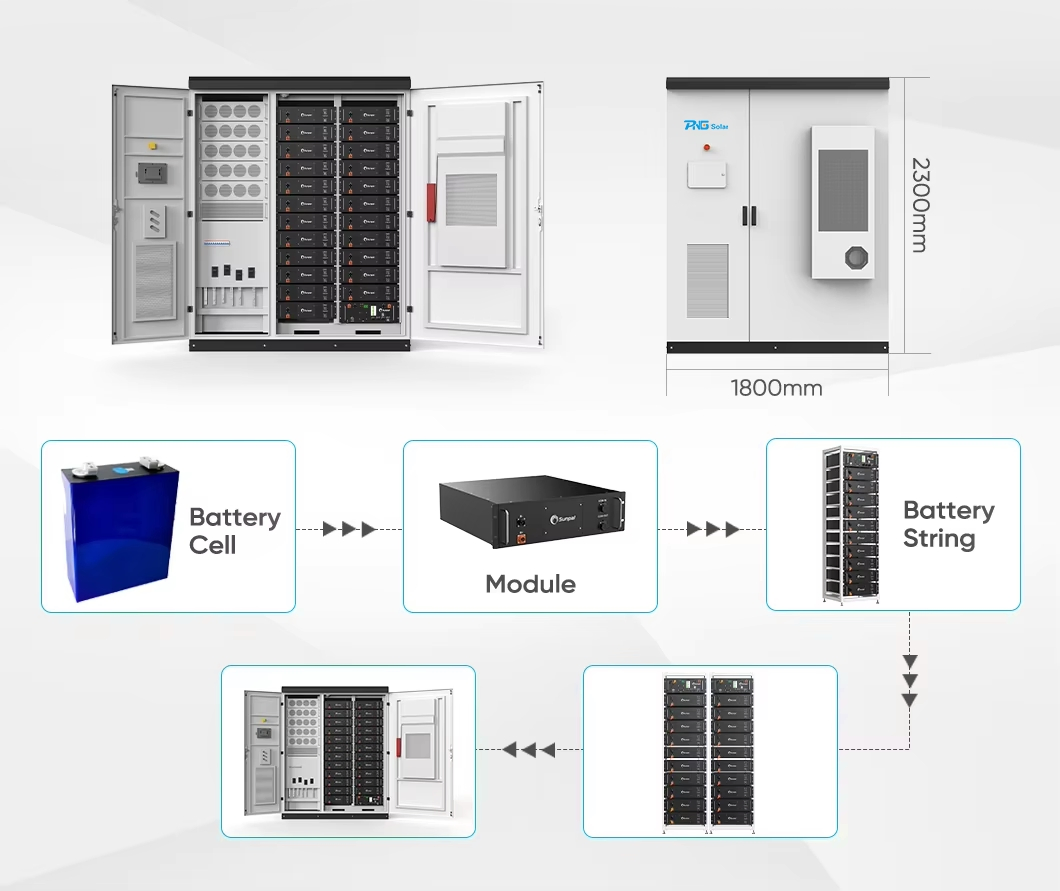

System Overview Internal Structure

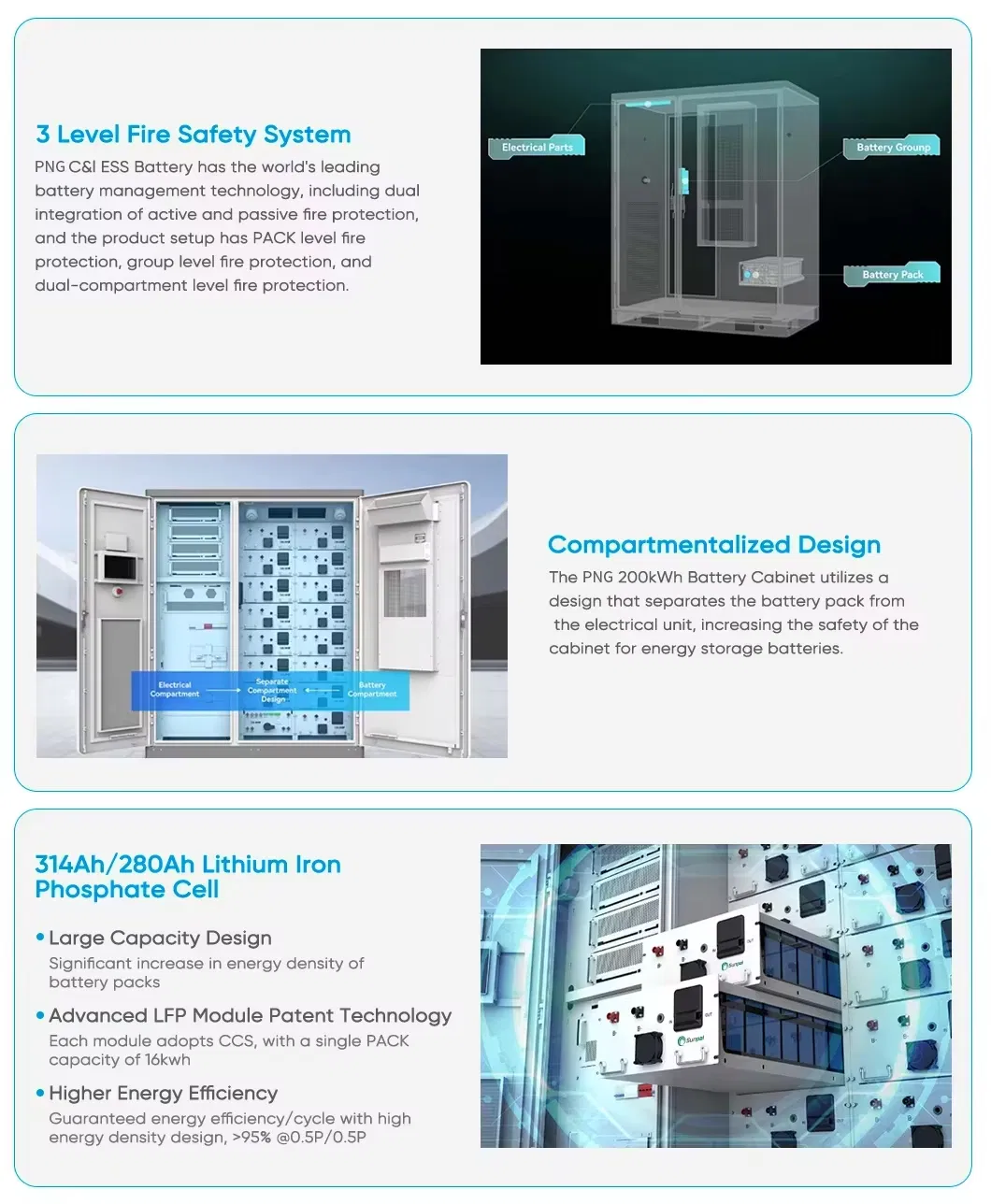

Spec Sheet 1

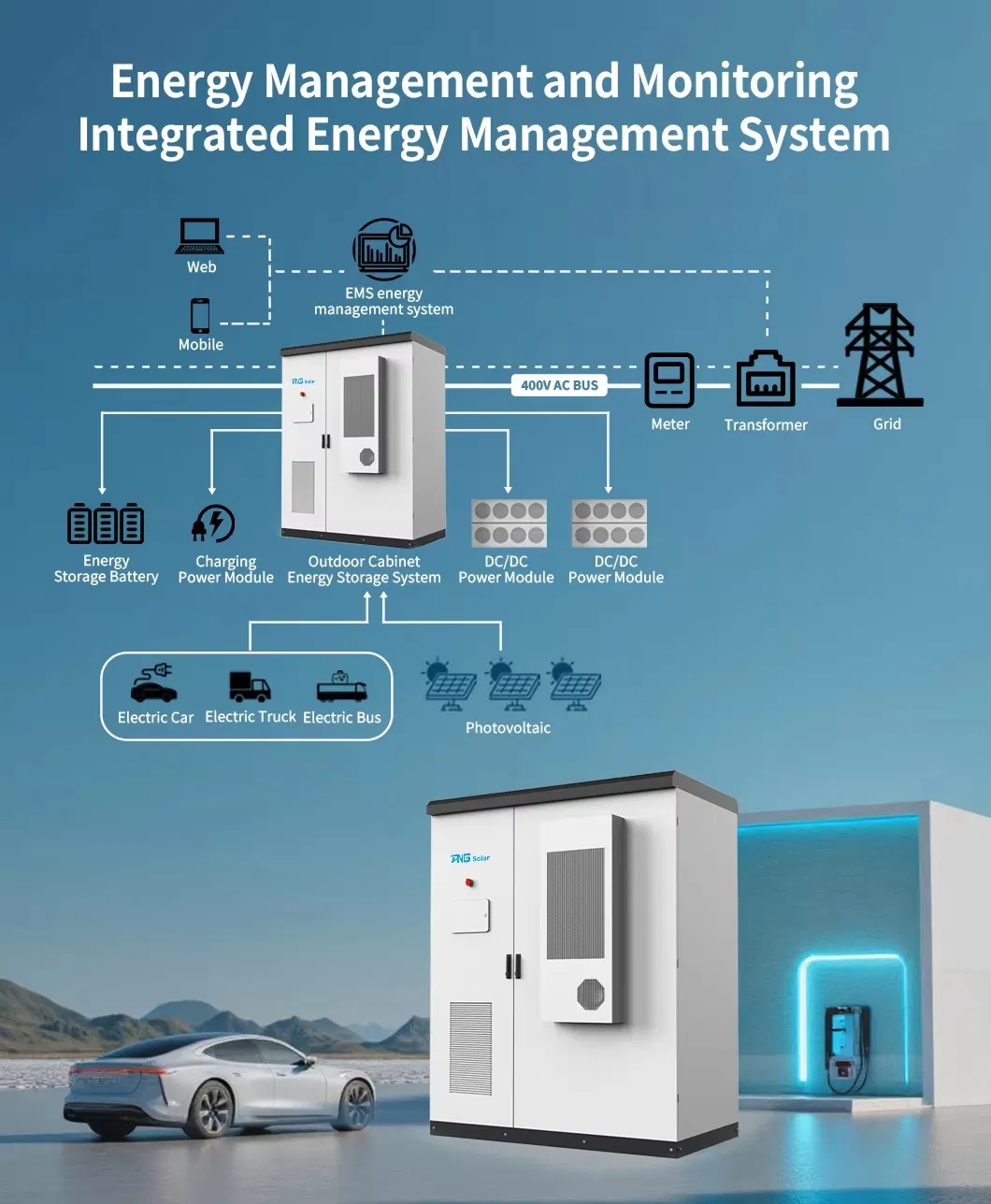

Spec Sheet 2
High-Voltage Box Specifications
Dimension483*648*222.5mm
Weight25kgs
Rated Current250A
Rated Voltage1000V

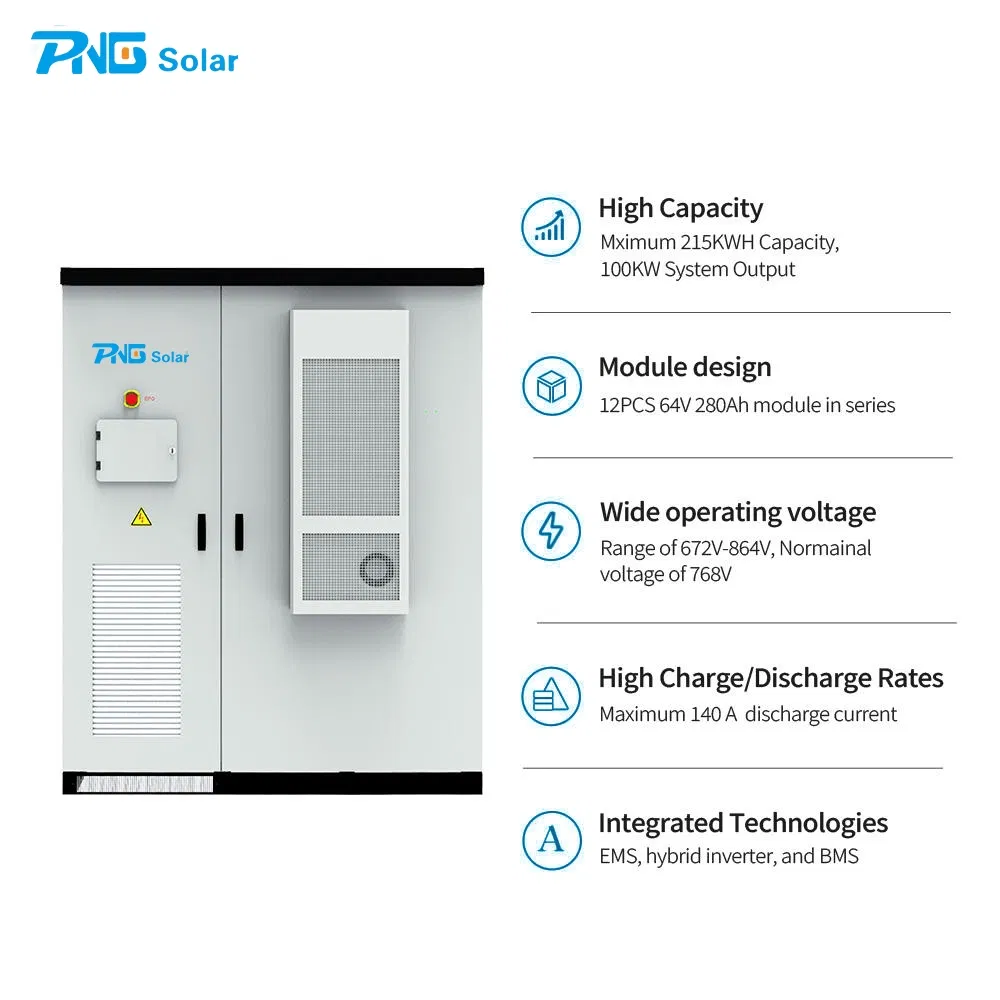

All-in-One LFP Cabinet Data
Nominal Energy215.04KWH
Nominal Voltage768V
Battery ChemistryLithium Iron Phosphate (LiFePO4)
Cycle Life>8000 cycles (@25ºC, 0.5P/0.5P)
Fire ExtinguishingAerosol fire extinguishing
Rated Output Power100KW
IP RatingIP 54
CommunicationLAN / CAN / RS485
Dimensions
🚢 Packaging & Shipping

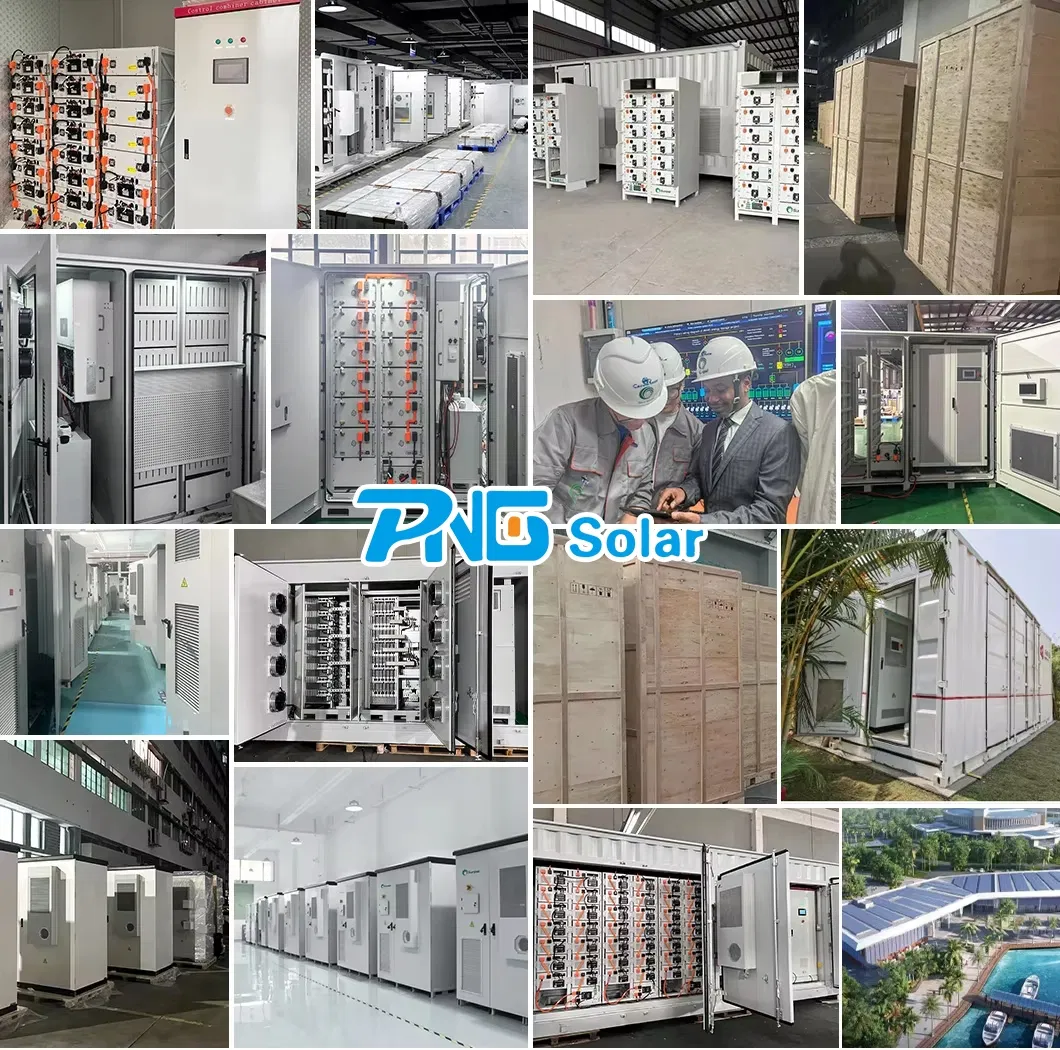

Packaging 1

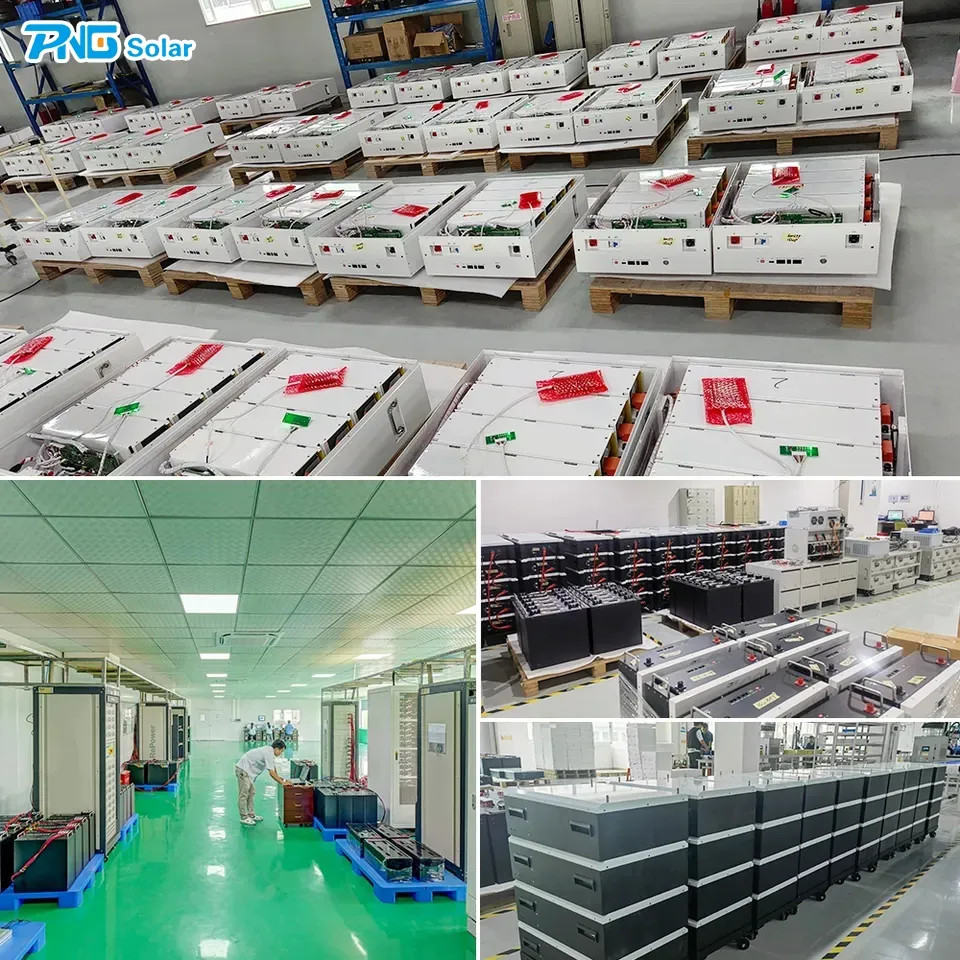

Packaging 2
✅ Successful Projects

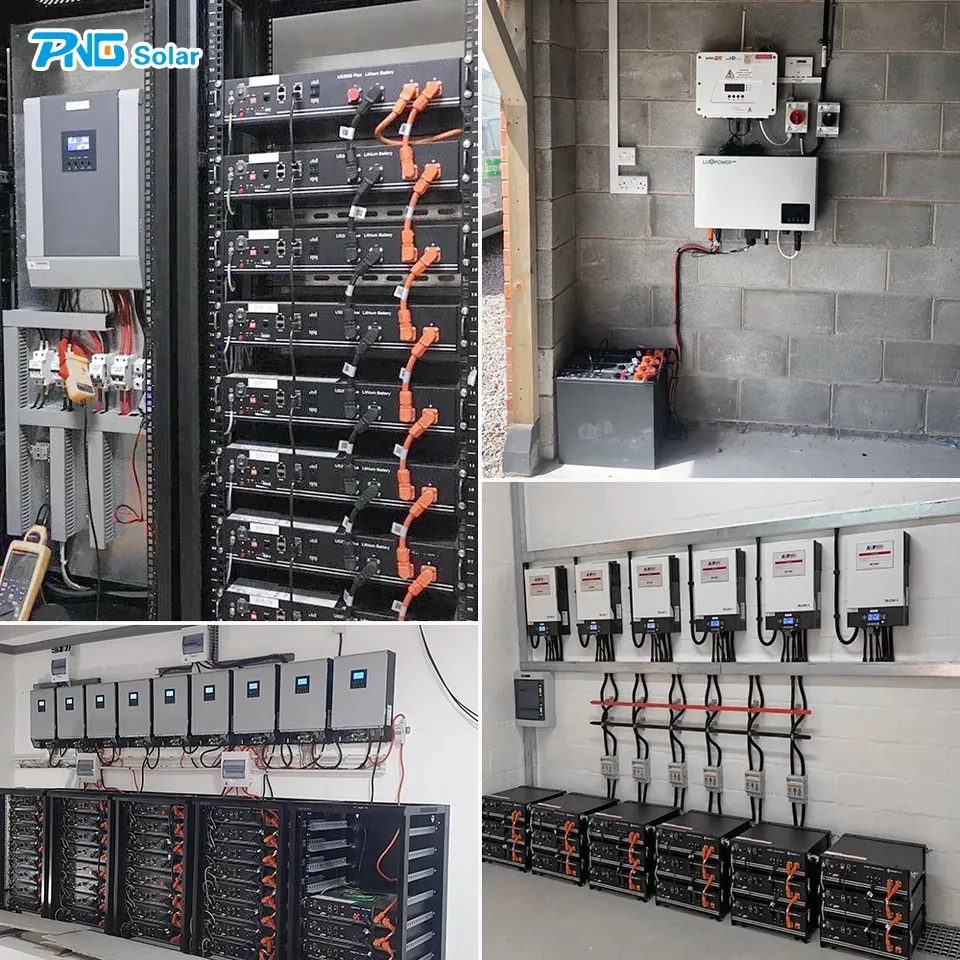

Project 1

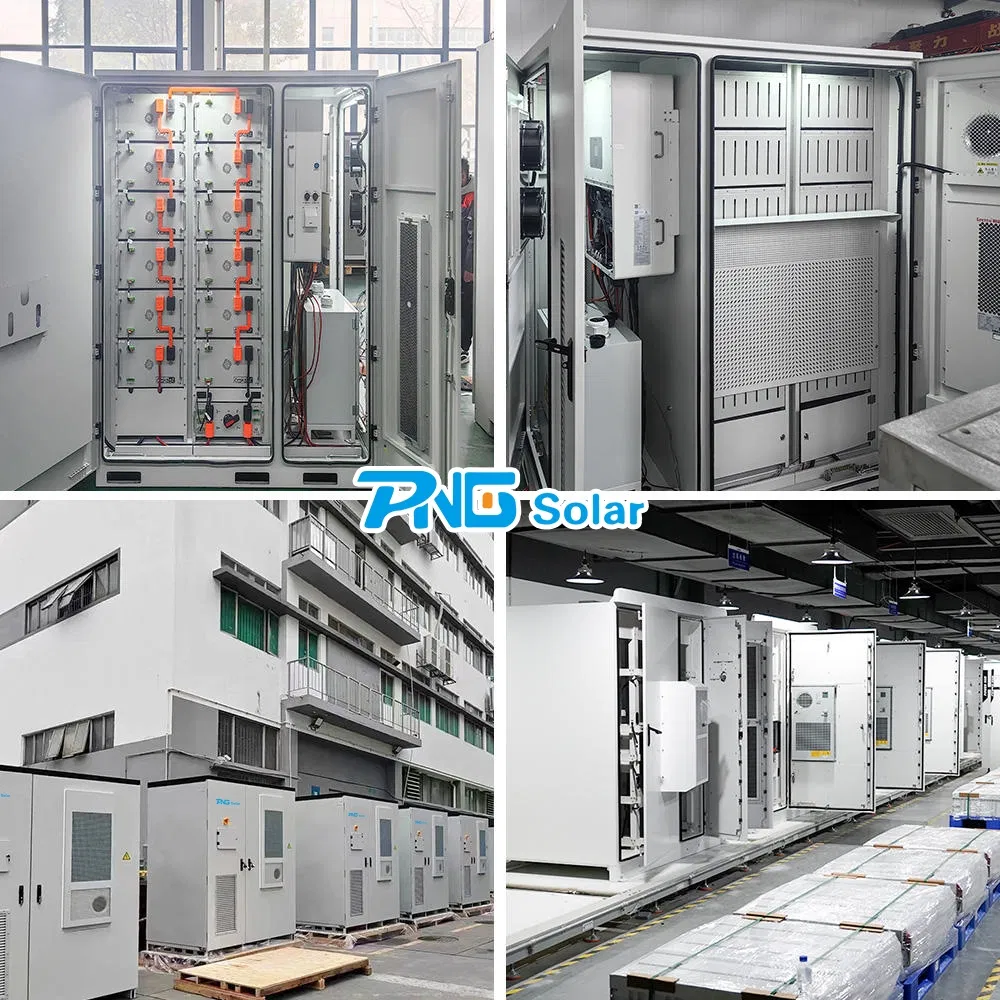

Project 2

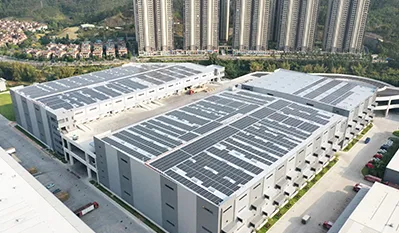

Project 3

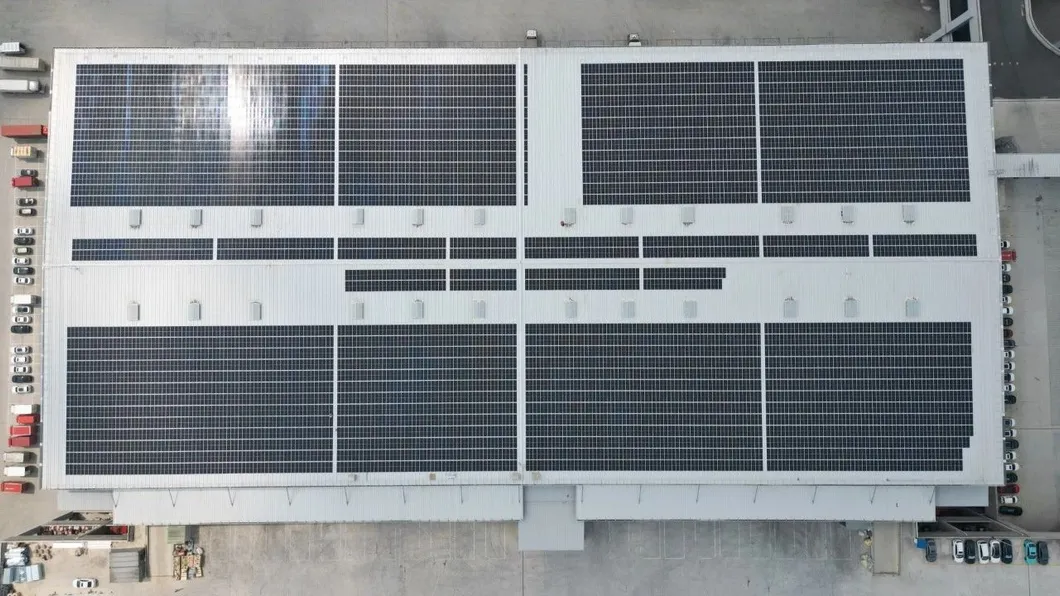

Project 4
📜 Certifications
Certificates
❓ Frequently Asked Questions
What components can I purchase for a complete solar solution?
We offer Solar Panels, complete Solar Systems (On-grid, Off-grid, Hybrid), Gel and Lithium batteries, and high-performance Inverters.
Why should I choose your energy storage solutions?
We are an audited manufacturer with a massive annual turnover and official partnerships with top-tier global brands. We prioritize long-term partnerships and only supply 100% A-grade products directly from the factory.
What is the expected lifespan of the battery system?
The battery cells are designed for high durability, offering between 6,000 to over 8,000 cycles depending on the specific model and operating conditions, with a design life of approximately 10 years.
Can the energy storage cabinet be installed outdoors?
Yes, the cabinet is designed for outdoor use with an IP54 rating, featuring robust environmental protection and an integrated fire extinguishing system.
What cooling methods are used to manage temperature?
Our systems utilize advanced cooling technologies, including full liquid cooling (maintaining temperature differences ≤3℃) or efficient air cooling depending on the specific configuration.
What international standards do your products comply with?
Our products meet several international standards, including IEC62619, IEC/EN61000, UN38.3, and MSDS certifications, ensuring safety and quality for global shipping.
