Amaxpower 2V/6V/12V Rechargeable Deep Cycle 100ah/200ah/250ah/500ah Solar Lead Carbon Battery for Wind-Energy-Storage-System/UPS-Backup/Telecom/Power Tool

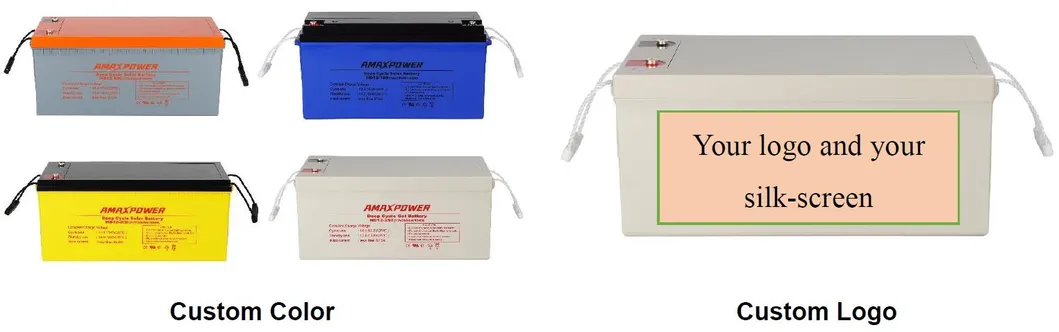

Customization:	Available
Type:	Lead-Acid Batteries
Usage:	UPS, Electric Power, Lighting, Electric Bicycle, Boat, Solar/Wind

📋 Overview

Model NO.	HC Series
Nominal Voltage	2V, 6V, 12V
Discharge Rate	High Discharge Rate
Shape	Square Battery
Electrolyte	Acid
Design Life	15-20 years
Capacity	75ah to 3000ah
Material	High Pure Lead 99.9997%
Warranty	2 Years

🔋 Product Description

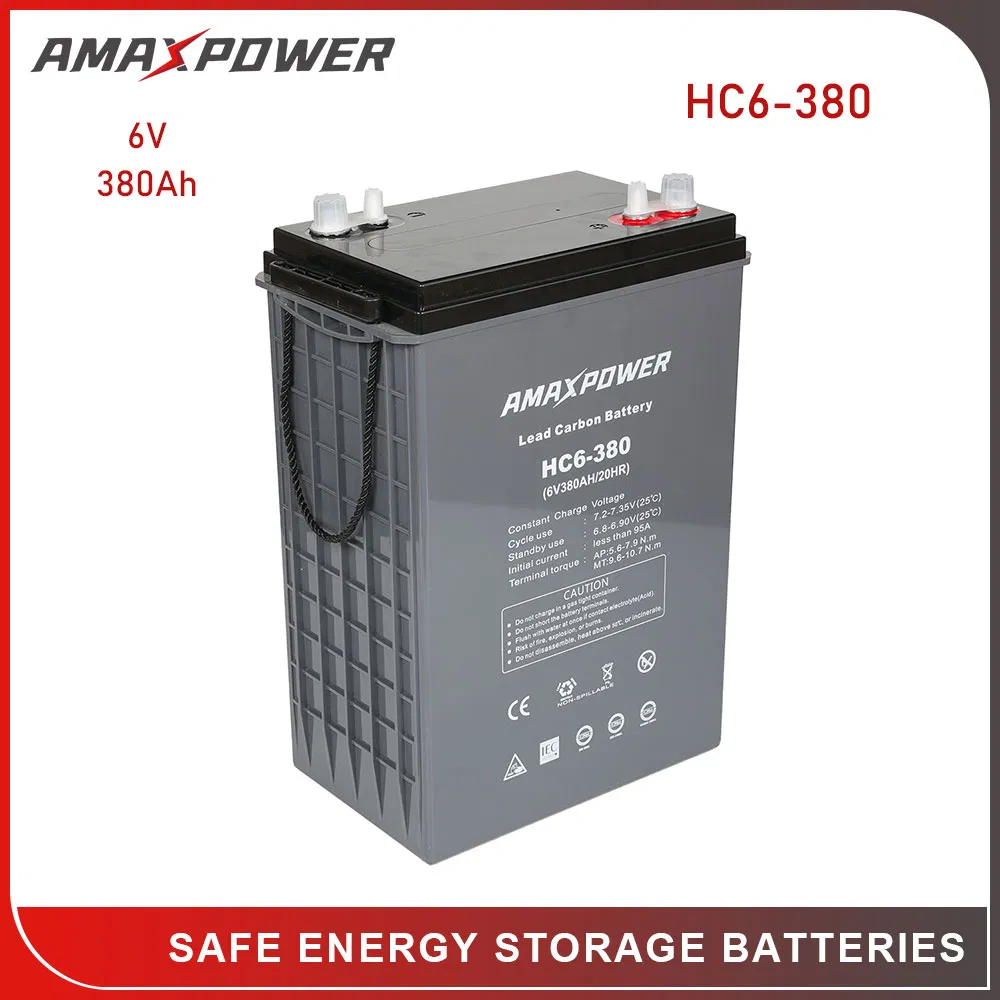

Fast Charge Long Life Lead Carbon Battery For Renewable Energy Storage System

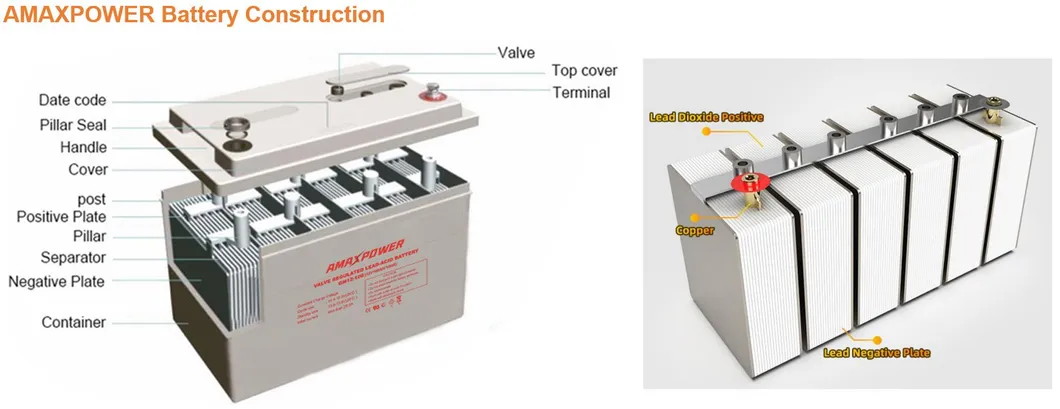

HC Series Lead Carbon battery uses functional activated carbon and graphene as carbon materials, which is added to the negative plate of the battery to make the battery with the advantages and super capacitance.

Adopted with nano Silica GEL technology and one-time Gel filling formation, this series improves rapid charge/discharge ability and extends cyclic life significantly, achieving 2000 cycles at 80% DOD.

✔ Designed life over 15 years @25ºC.

✔ Excellent recharge acceptance and super fast performance.

✔ Extreme temperature tolerance.

✔ Integrating Gel and AGM technology (no liquid electrolyte).

🌍 Applications

Solar & Wind energy storage
Smart grid and micro grid system
Solar street lights
Telecom backup system
UPS Systems & IDC
Electric vehicles & Forklifts
Floor cleaning machines
Marine equipment

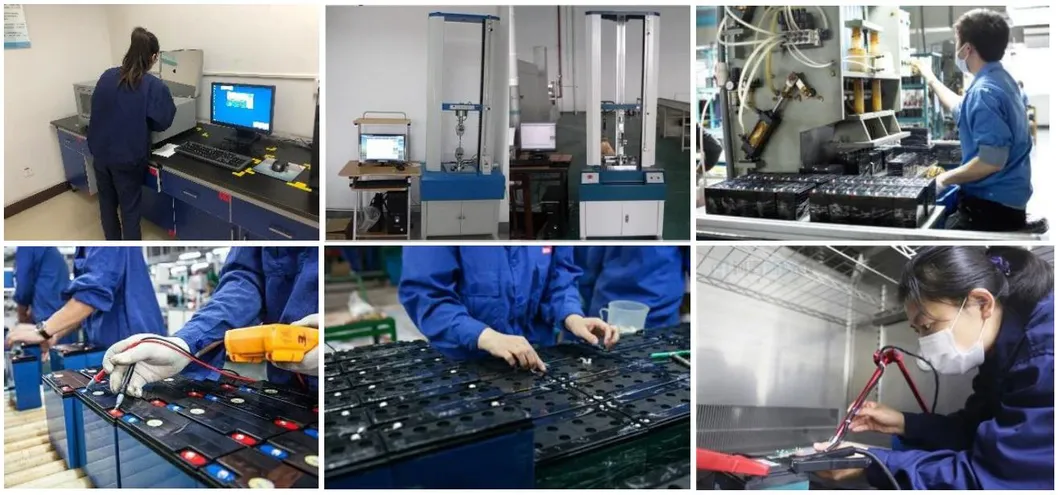

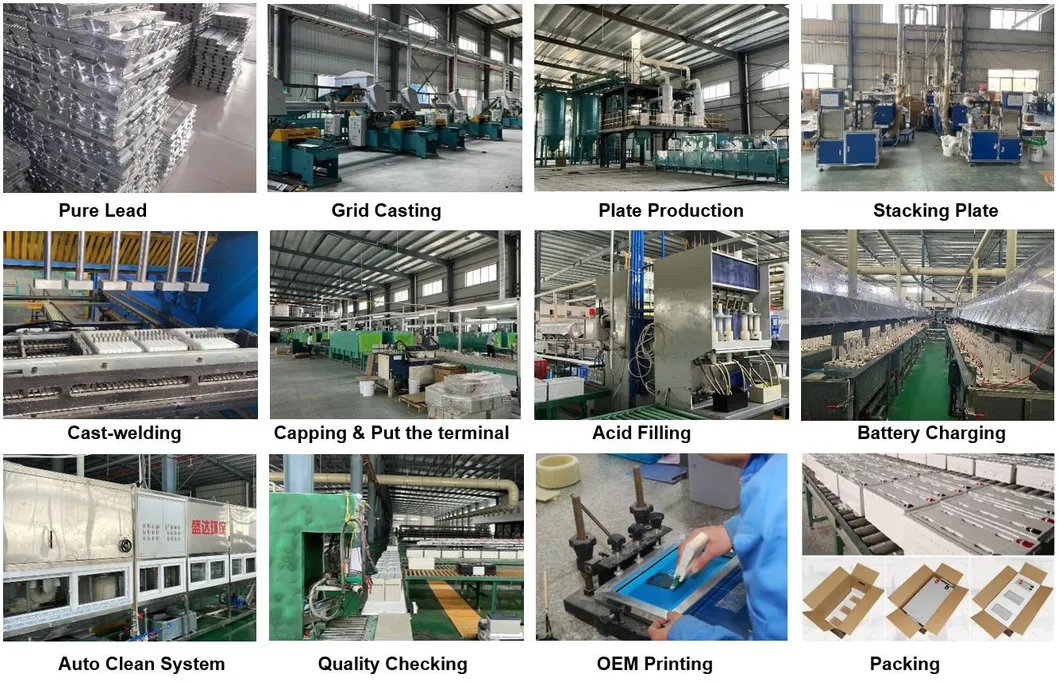

🏭 Factory Tour & Quality Control

QC Process:

Lead plate purity must pass 99.9999%.
Anti-impact battery case testing.
Precise acid filling measurement for consistency.
Rigorous online monitoring and deep cycle testing.
100% testing before shipment.

📊 Product Specifications

Model No.	Voltage(V)	Capacity (AH)	Weight (kg)	Dimensions (LxWxH mm)	Terminal
HC2-200	2	200	11.2	170x106x330	T5
HC2-500	2	500	26.0	241x171x330	T5
HC2-1000	2	1000	52.0	471x171x330	T5

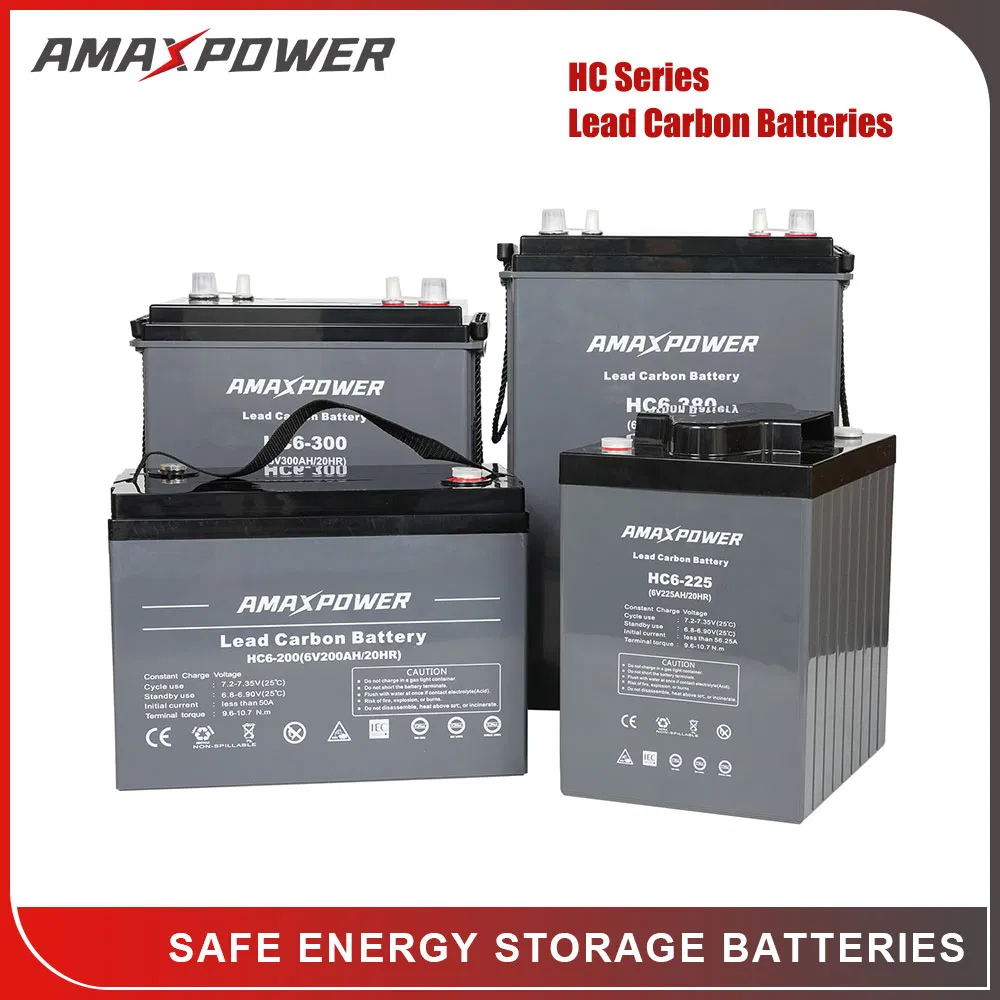

HC6-200	6	200	31.0	306x168x220	T5

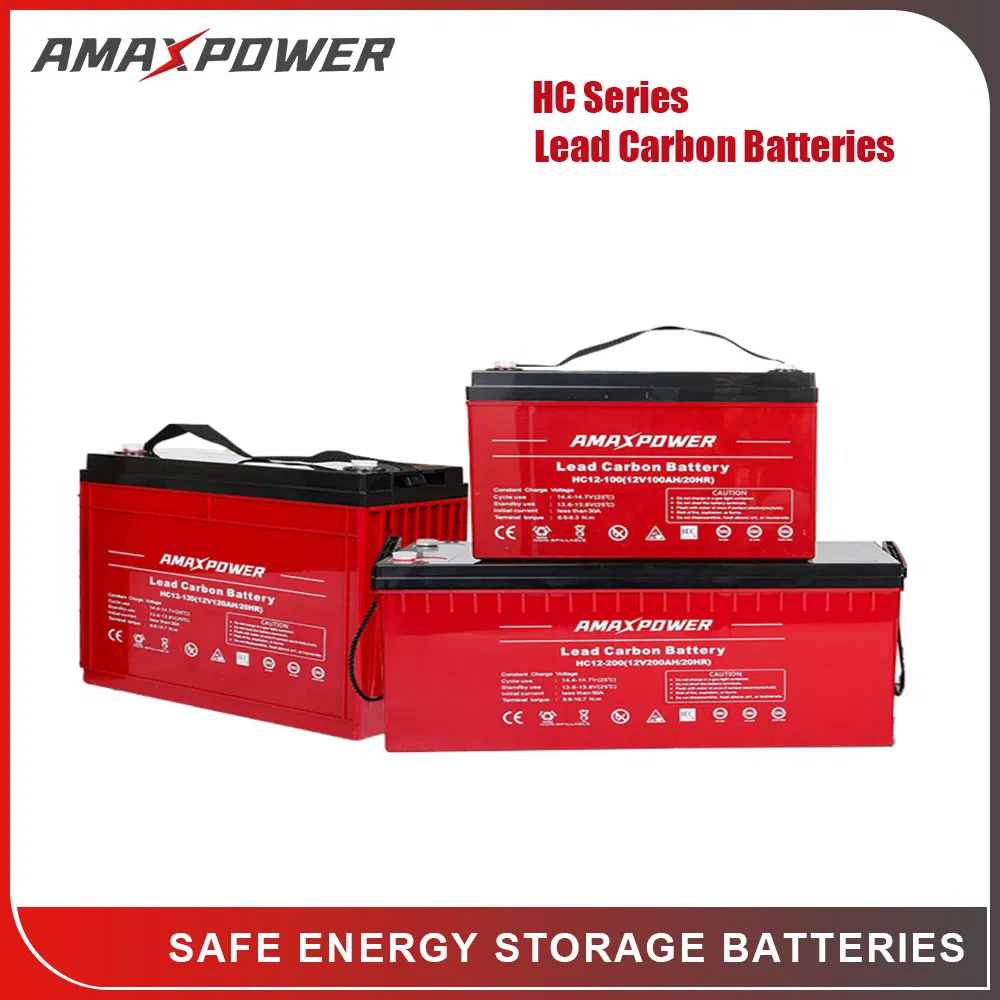

HC12-100	12	100	33.0	328x172x218	T4

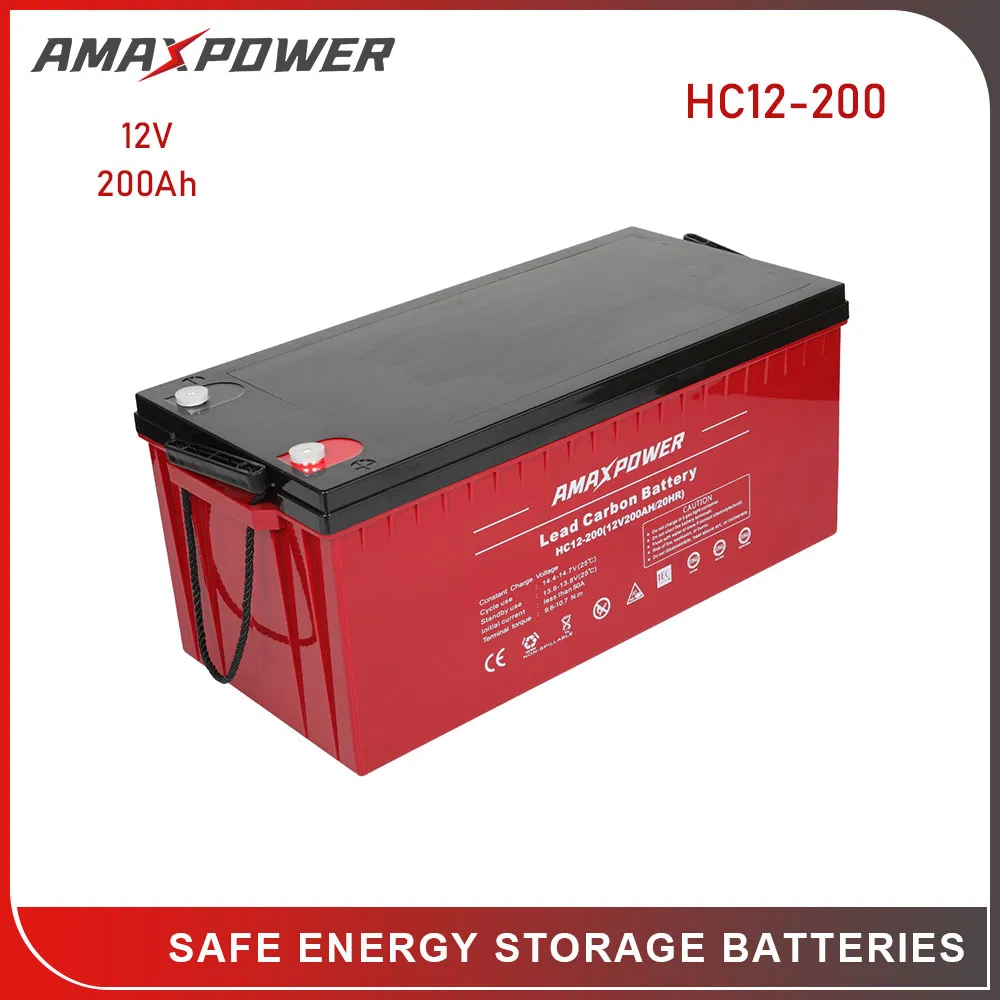

HC12-200	12	200	64.8	522x240x219	T5

❓ Frequently Asked Questions

What is the advantage of Lead Carbon batteries?

Lead Carbon batteries offer much higher cyclic life (up to 2000 cycles at 80% DOD) and superior recharge acceptance compared to standard lead-acid batteries, making them ideal for solar and PSOC applications.

Can these batteries be delivered by sea and air?

Yes, they are safe for both sea and air transport. We provide MSDS and test reports ensuring they are handled as non-dangerous products.

What is the expected design life?

The HC Series is engineered for a long service life, typically 15 years for 12V models and up to 20 years for 2V/6V models at 25ºC.

How should I maintain the VRLA battery during storage?

VRLA batteries should be stored in a cool place. They should not be stored for more than 6 months at 25°C without recharging. In hot climates, recharge every 3 months.

Can I perform a partial replacement of a battery bank?

Partial replacement is not recommended for lead-acid battery banks as it can lead to imbalances in charging and discharging, reducing the overall lifespan of the system.

Is fast charging recommended?

While Lead Carbon batteries have better acceptance, extreme fast charging is generally not recommended as it can be harmful to the battery's long-term health.
