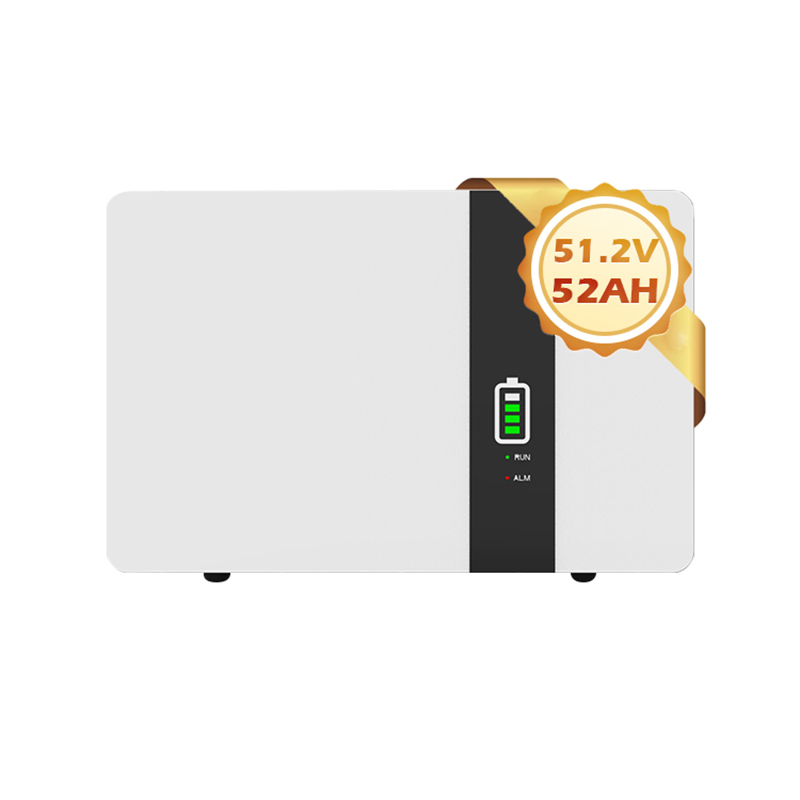

Wall Pack Automotive Charger Industrial Storage Battery 51.2V Solar Lithium-Ion Battery

1 / 5

Wall Pack Automotive Charger Industrial Storage Battery 51.2V Solar Lithium-Ion Battery

Customization:	Available
Type:	Li-ion Battery
Cathode Material:	LFP

Send Inquiry

Product Description

Overview & Basic Info

Model NO.LFPWall-2500

RechargeableYes

Product NameLiFePO4 Battery Home Energy Storage

CommunicationRS232, RS485, CAN

CertificationMSDS, UN38.3, CE, IEC62619, RoHS

Cycle Life>5000 (90% DoD)

Battery TypeLithium Ion, LiFePO4

Warranty10 Years Warranty

ApplicationHome Energy Storage Systems

Production Capacity5000 sets Per Month

Key Features

01Latest LiFePO4 prismatic cell technology

02Warranted throughout of 10MWh per 1kWh capacity

031C Discharge rate and 0.5C Charge rate

04158Wh per Kg +/- 5% for cells

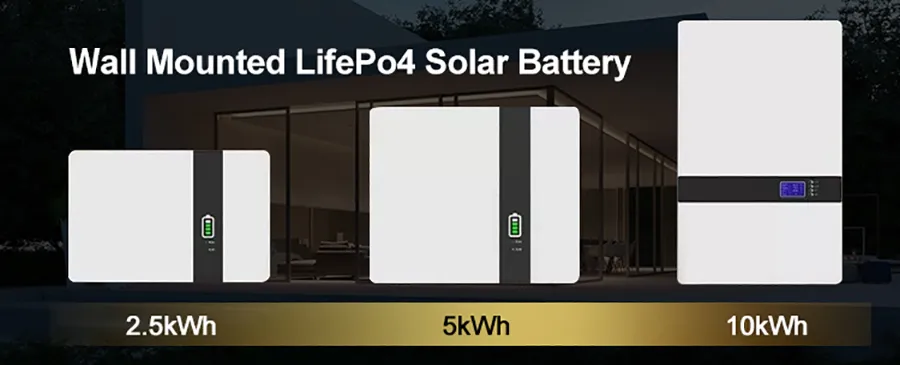

052.6kWh, 5kWh, 10kWh options available

065000 cycles @ 25ºC 0.7C conditions

07Plug and Play functionality

08Advanced BMS for greater control and monitoring

09Scalable battery packs for modular expansion

10Wall mounted and Ground type selectable

11Multiple Energy Capacity options

12BMS compatible with major hybrid inverters

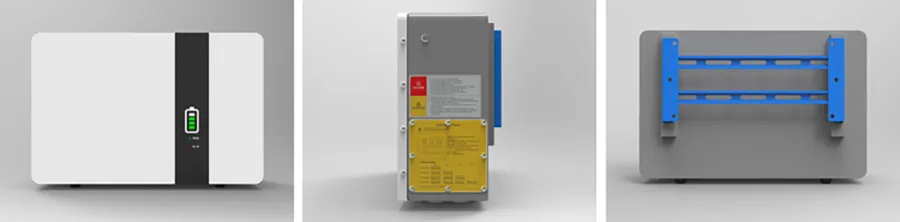

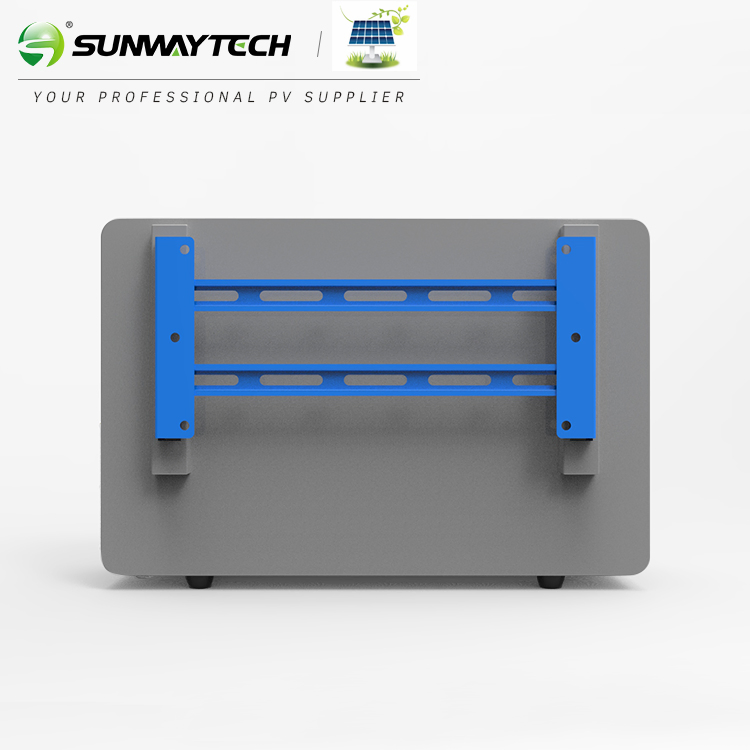

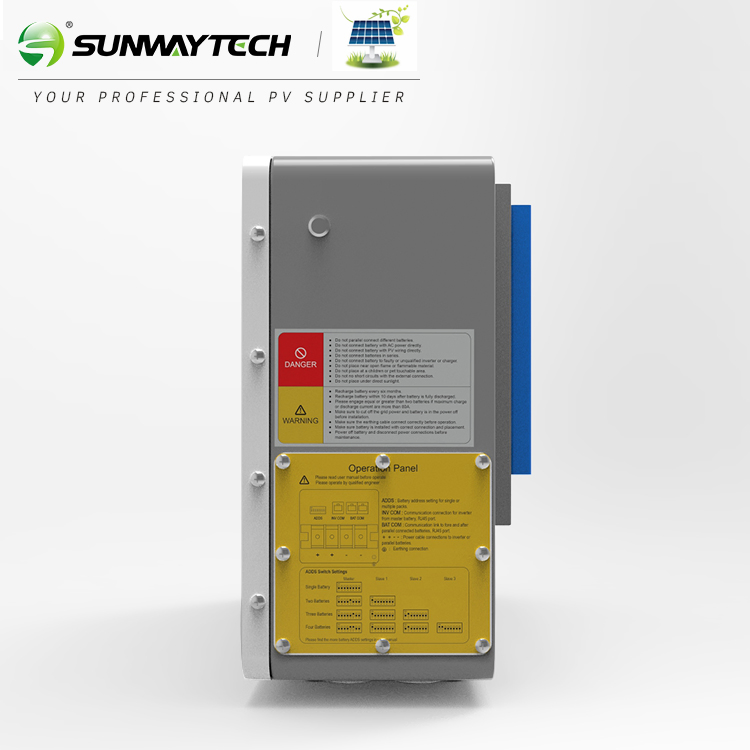

Front, Side and Back Views of Wall Mounted Lithium Battery

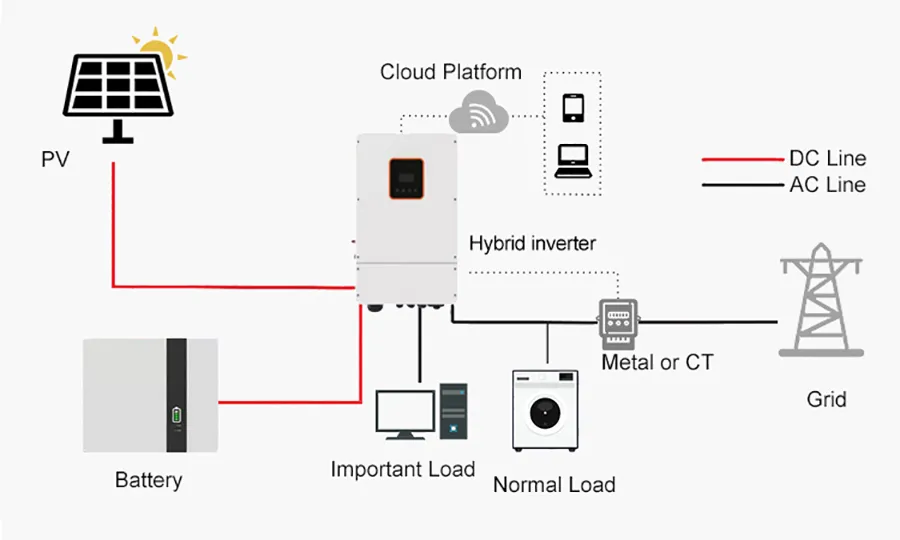

Working Principle

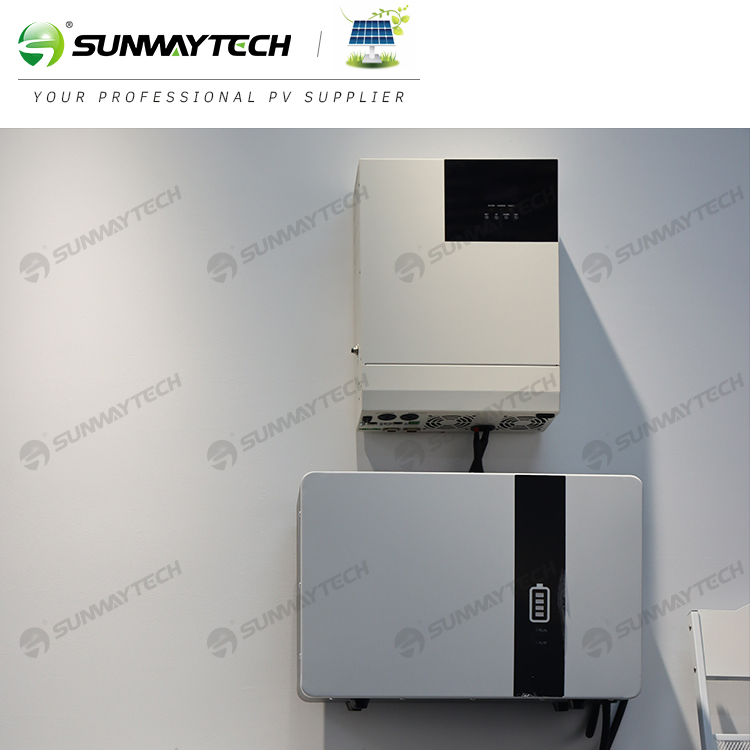

Residential Solar & Storage Solution

Hybrid Inverter + Lithium ion Battery (3.6KW/5KW Inverter + 5kWh Wall Battery)

Product Parameters

Mode Capacity	LFPWall 2500	LFPWall 5000	LFPWall 10K
Energy Capacity	2.56kWh	5.12kWh	10.24kWh
Ah Capacity	50Ah	100Ah	200Ah
Nominal Voltage	51.2V
Operation Voltage	43.2V - 58.4V
Usable Energy	2.3kWh	4.6kWh	9.21kWh
Max Charge/Discharge	35A	70A	100A
Cycle Life	≥ 6000
IP Grade	IP65
Net Weight	30kg	52kg	96kg
Dimensions (WHD)	537365196mm	542468197mm	694581219mm

Packaging & Applications

Certifications

Frequently Asked Questions

Is the battery BMS included?

Yes. An advanced BMS is included, making the battery extremely safe for home use.

How do you ship lithium batteries?

We handle logistics via specialized sea freight to ensure safe and compliant delivery.

Does the battery have overcharge and over-discharge protection?

Yes. The integrated intelligent BMS provides full protection against overcharging and over-discharging.

What is the standard lead time for orders?

Sample lead time is typically 3-7 days, while bulk order lead time ranges from 12-25 days.

What is your warranty policy?

We offer a standard 5-year warranty, with a 10-year optional warranty. If quality issues arise during this period, we provide replacements.

How is product quality guaranteed?

We conduct pre-production sample testing and a final rigorous inspection before every shipment to ensure performance.
