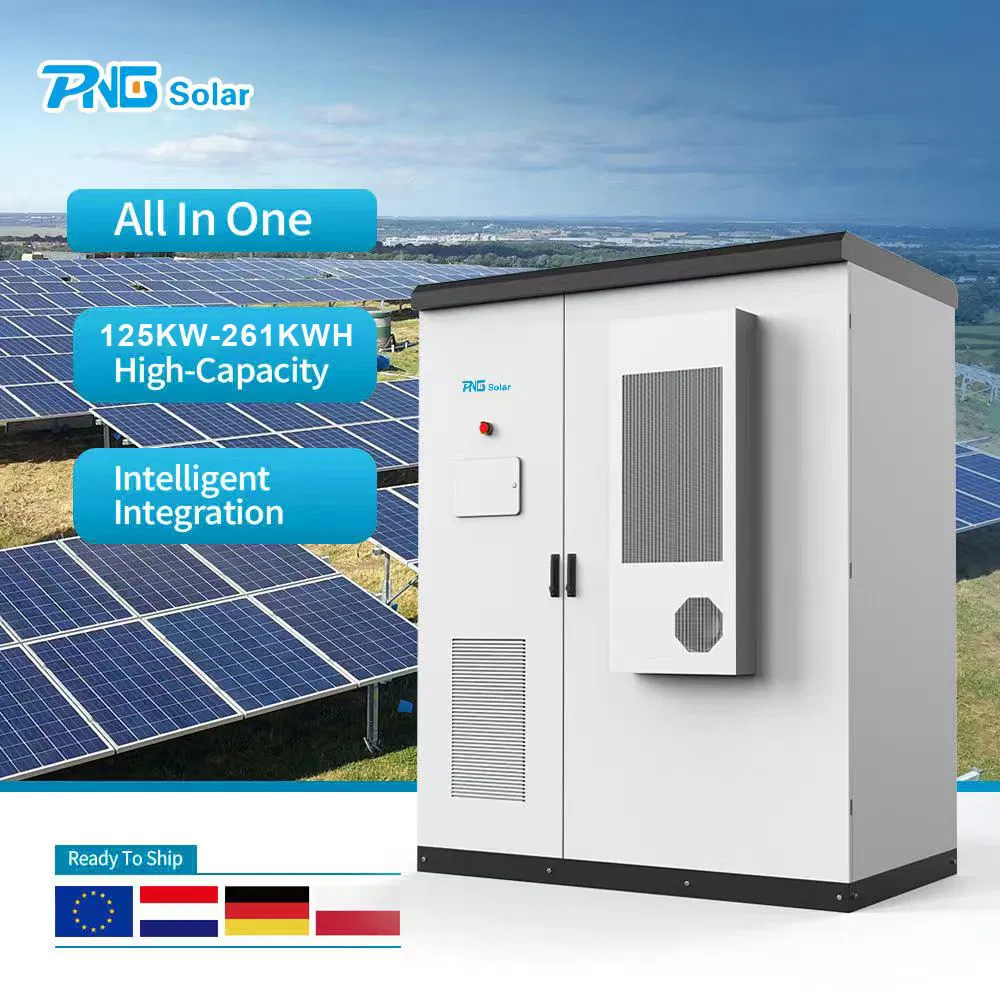

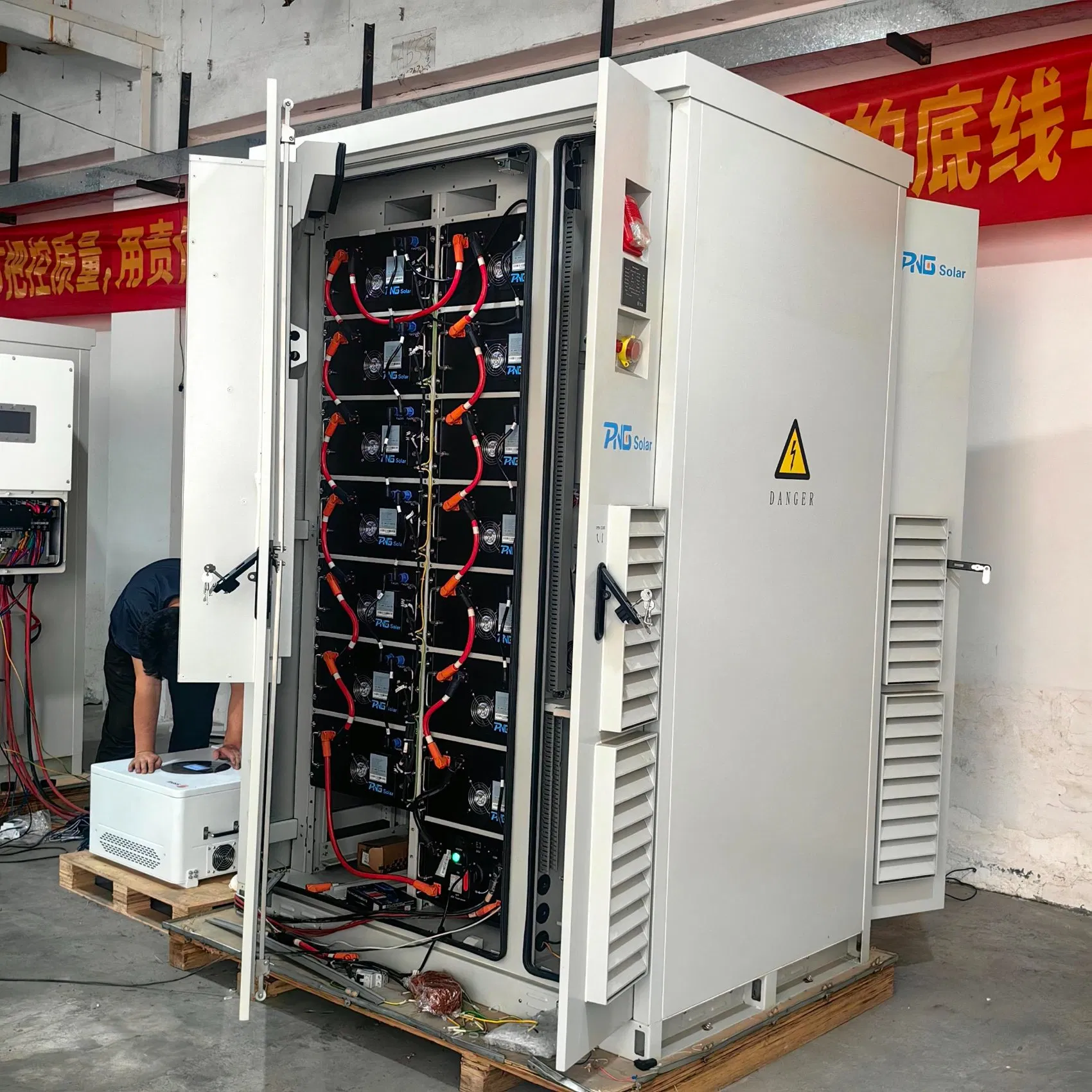

Commercial and Industrial Lithium Battery Pack 241kwh 261kwh All-in-One Ess Cabinet

Customization: Available
Application: Industrial Park Peak-Valley Arbitrage
Installation: Cabinet Floor-Mounted

Product Description

📊 Basic Product Information
Model NO.
PNG125KW-261KWH
Energy Capacity
100kWh-500kWh
Power Configuration
100kW-250kW
Cycle Life
8000 Cycles (80%DOD)
Cooling Method
Full Liquid Cooling
Battery Cell
New a+ Grade, 3.2V 314ah, Prismatic
Inverter/PCS
125kw
Nominal Energy
261.248kwh
Certifications
Un38.3/MSDS/CE
Origin
China
🏢 Profile

Established in 2016, we are a professional and leading manufacturer of quality solar modules. Located in a major production base of the photovoltaic industry, our business covers the R&D, production, and sales of PV modules, residential, commercial, and large-scale solar plants. We supply turn-key services and all necessary materials for global markets.

3 production lines with an annual capacity of 1.2GW facilitate lead production times. In 2022, the company achieved a sales volume of USD 1.5 billion, listing among the top producers and exporters in the region.

For residential and commercial solar energy systems, we provide on-grid, off-grid, and hybrid solutions. Quality is our soul, and our principles are: Integrity, Win-Win, and Innovation!

Industrial Lithium Battery Pack
⚙️ Product Description & Technical Specs

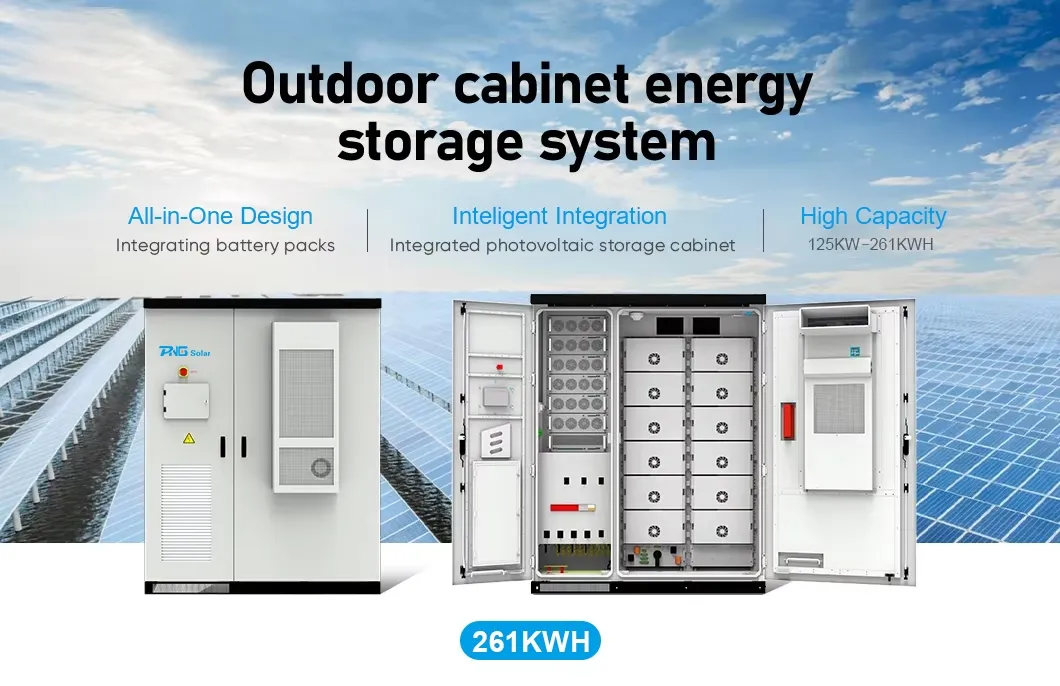

Product Layout

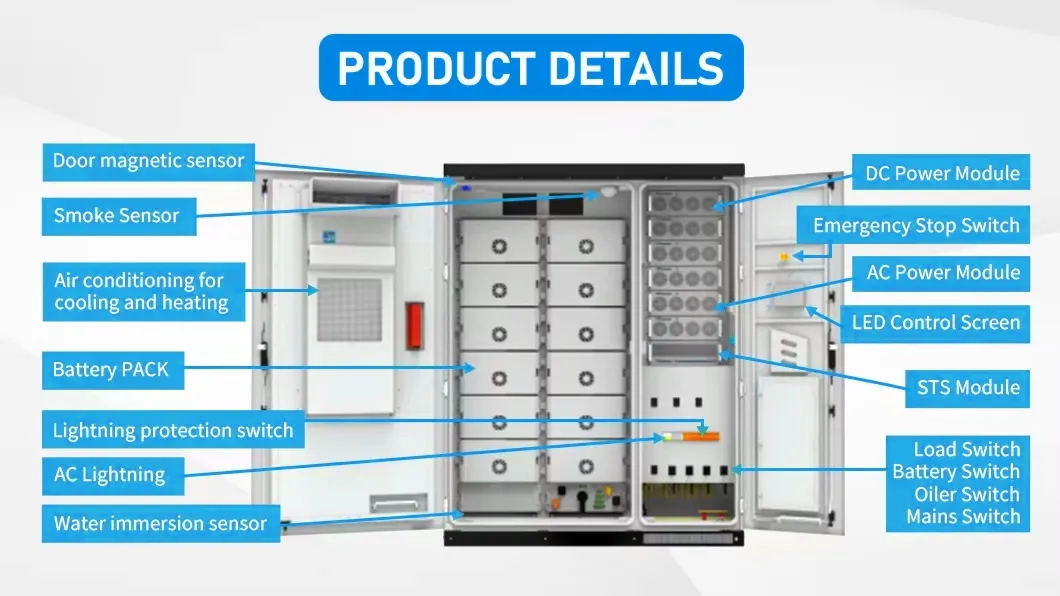

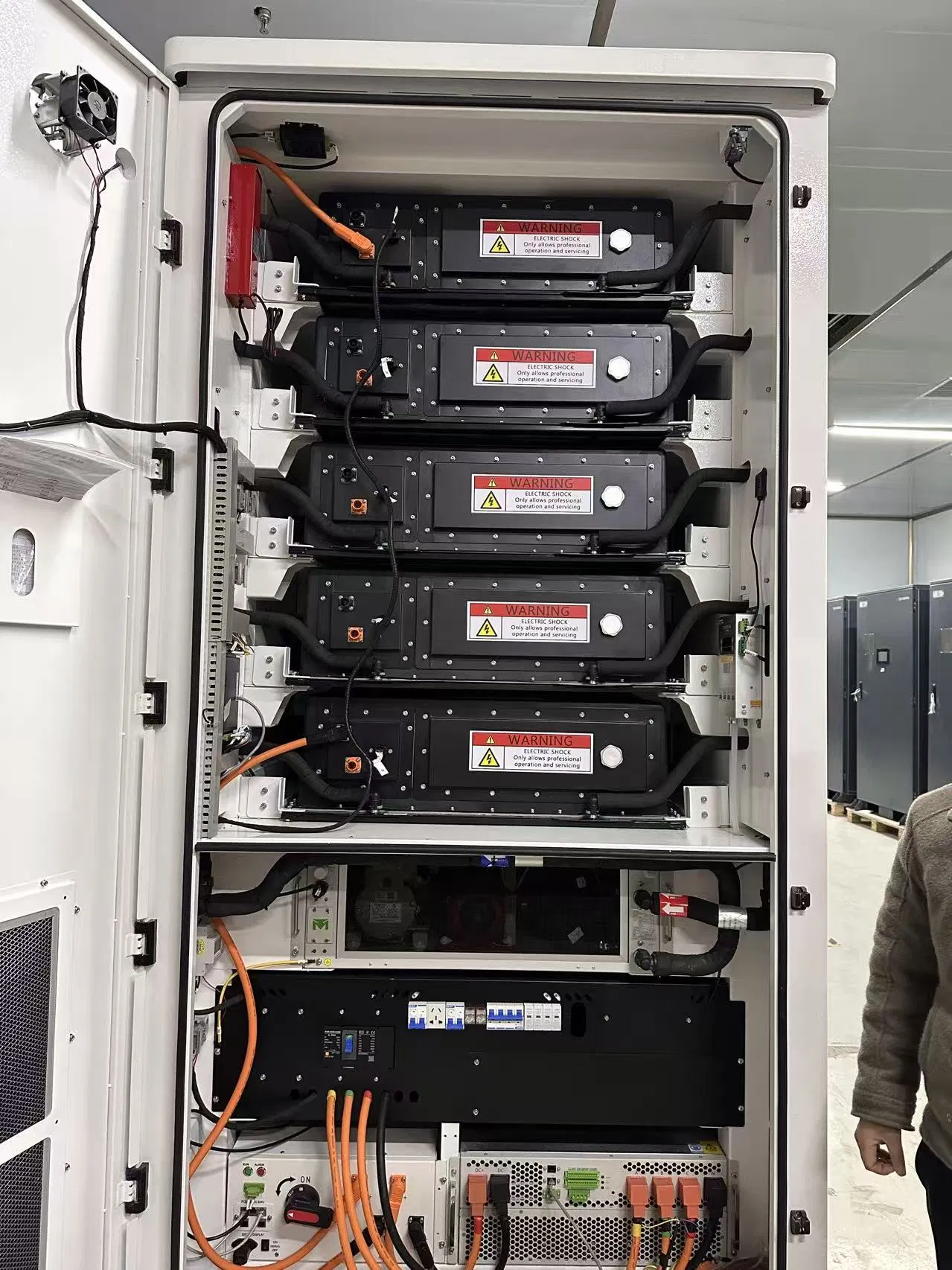

Internal Components

Specifications for high-voltage box

ParameterDetail
Dimension483*648*222.5mm
Weight25kgs
Rated Current250A
Rated Voltage1000V
Voltage Sampling Range0~1500V

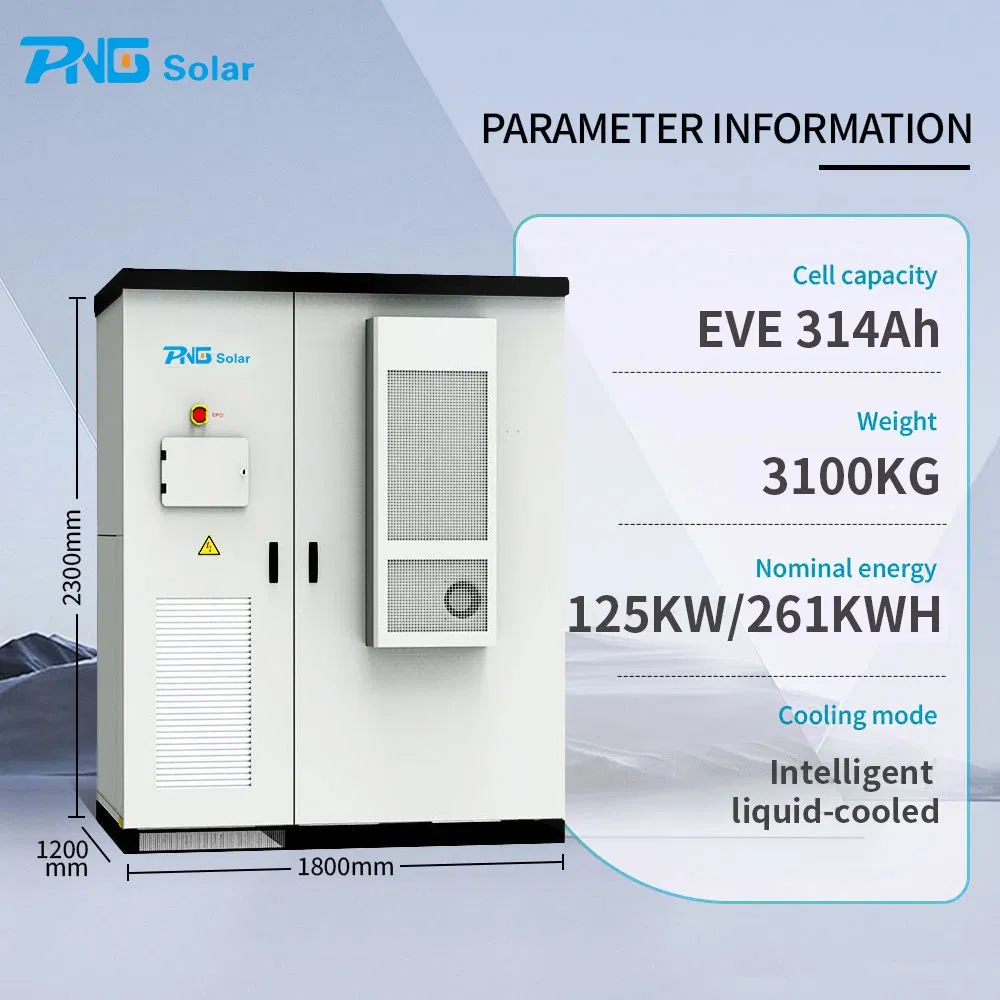

Specifications for the all-in-one LFP Cabinet

FeatureTechnical Data
ModelPNG 125KW-261KWH
Nominal Energy261.248KWH
Nominal Voltage832V
Battery ChemistryLithium Iron Phosphate (LiFePO4)
Cycle Life>8000 cycles (@25ºC, 0.5P/0.5P)
Fire Extinguishing SystemAerosol fire extinguishing
Inverter Rated Power125KW
Cooling MethodLiquid cooling
IP RatingIP 54
CommunicationLAN/CAN/RS485

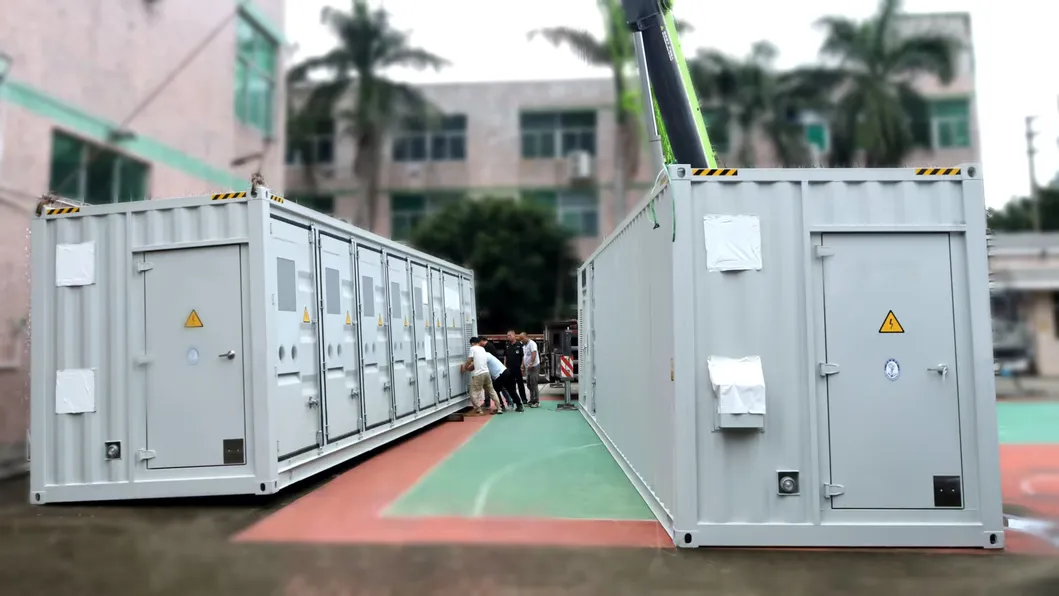

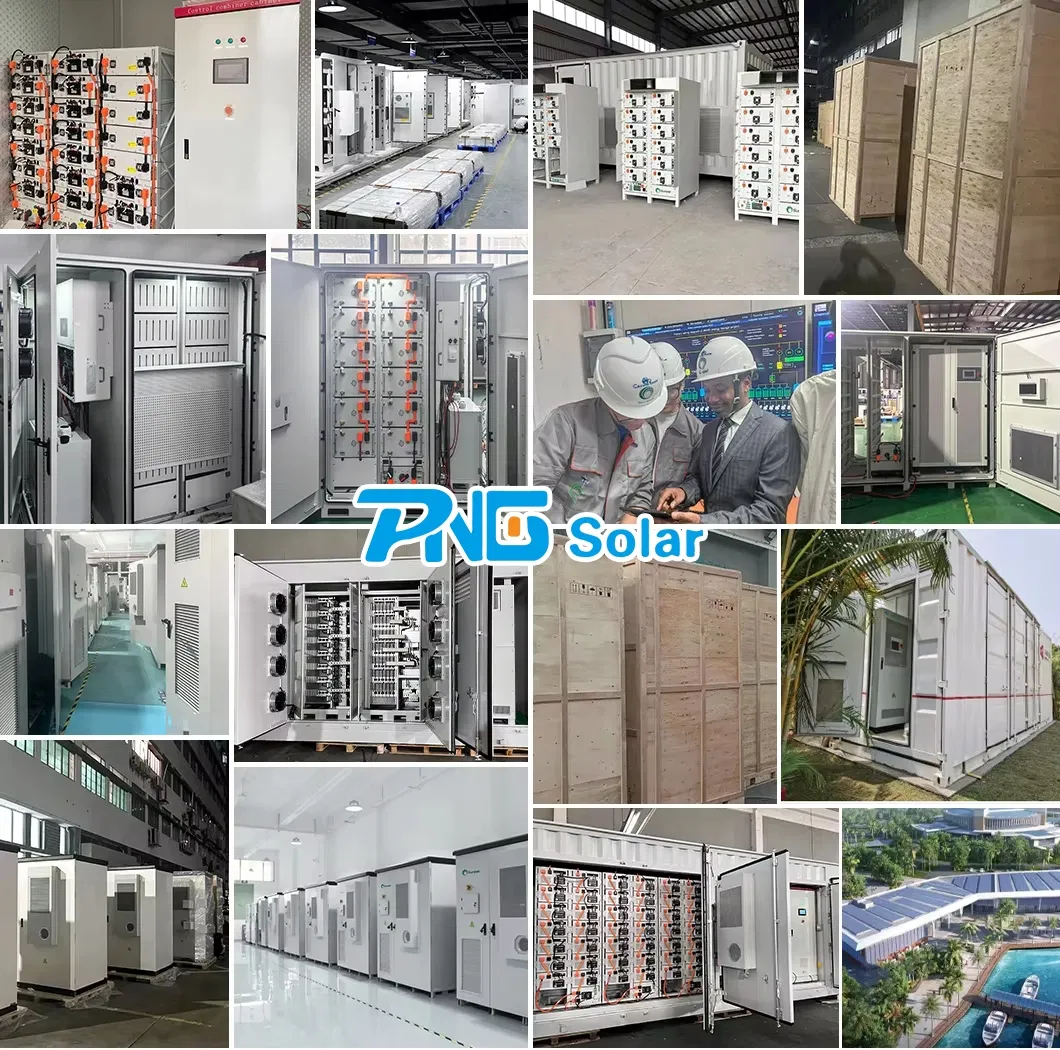

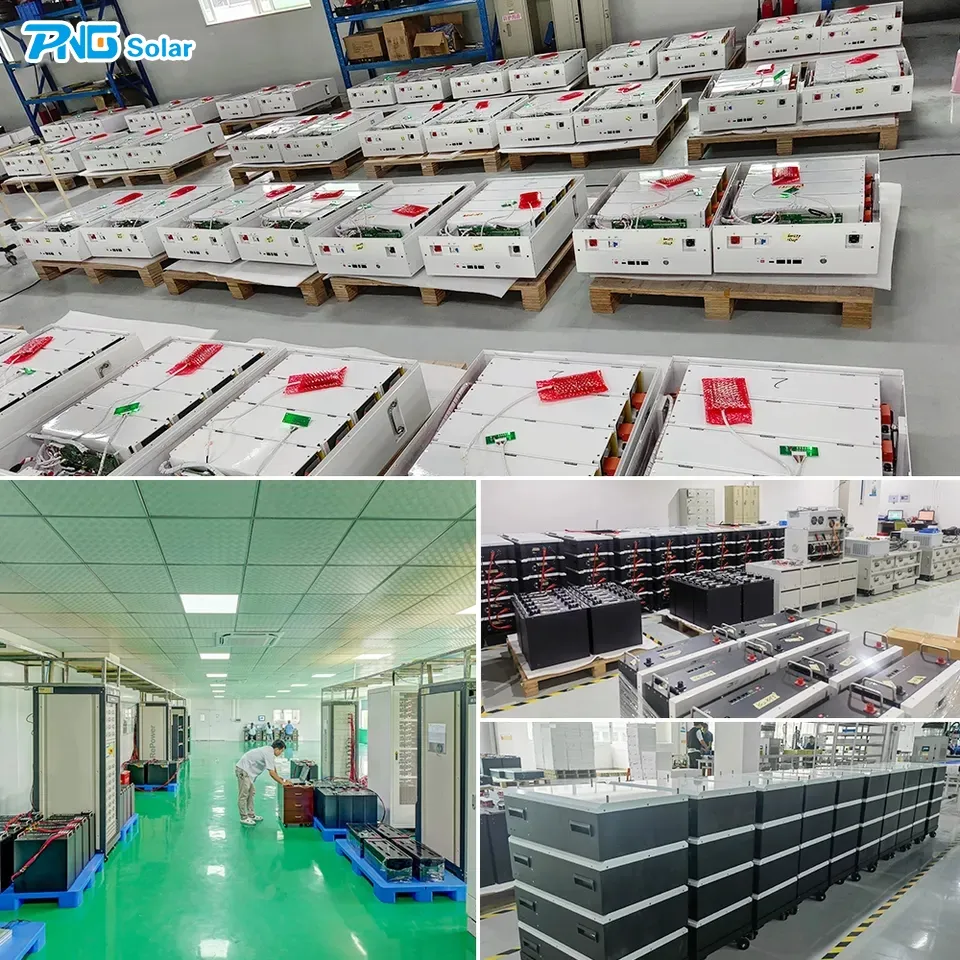

📦 Packaging & Successful Projects

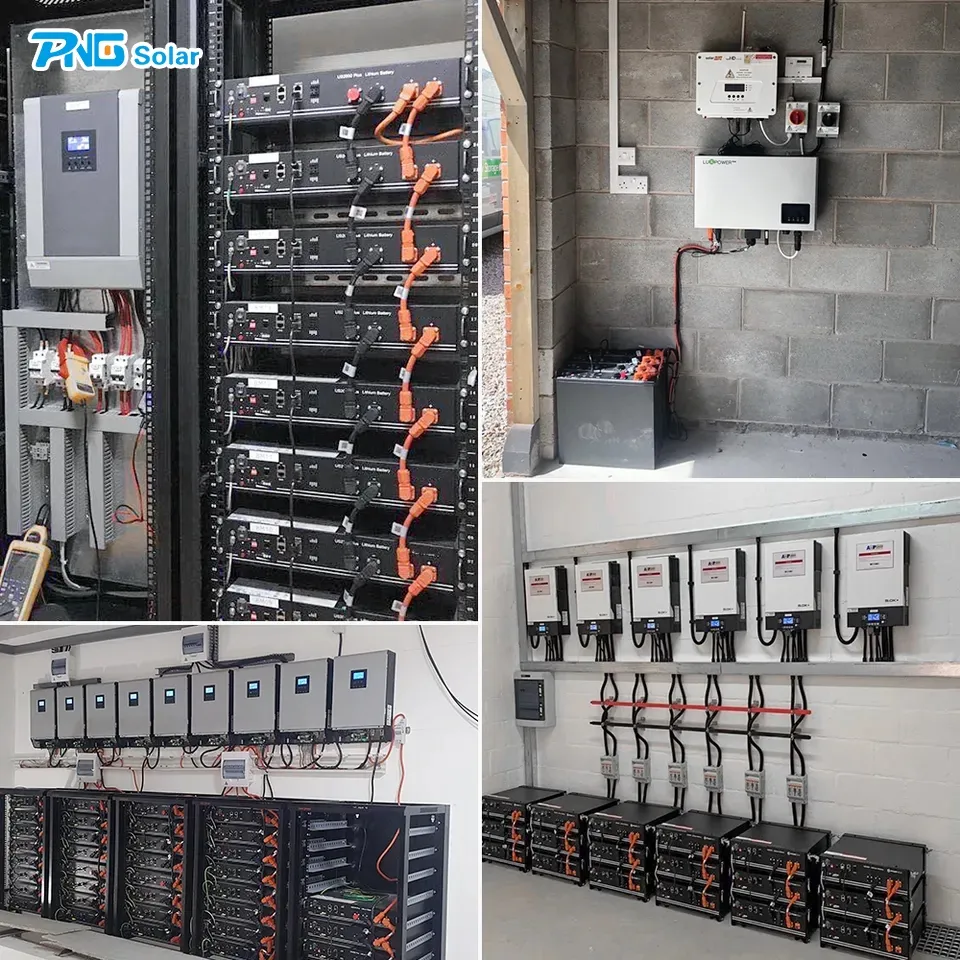

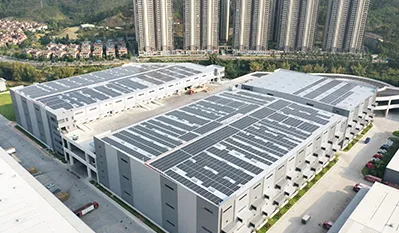

Project Site 1

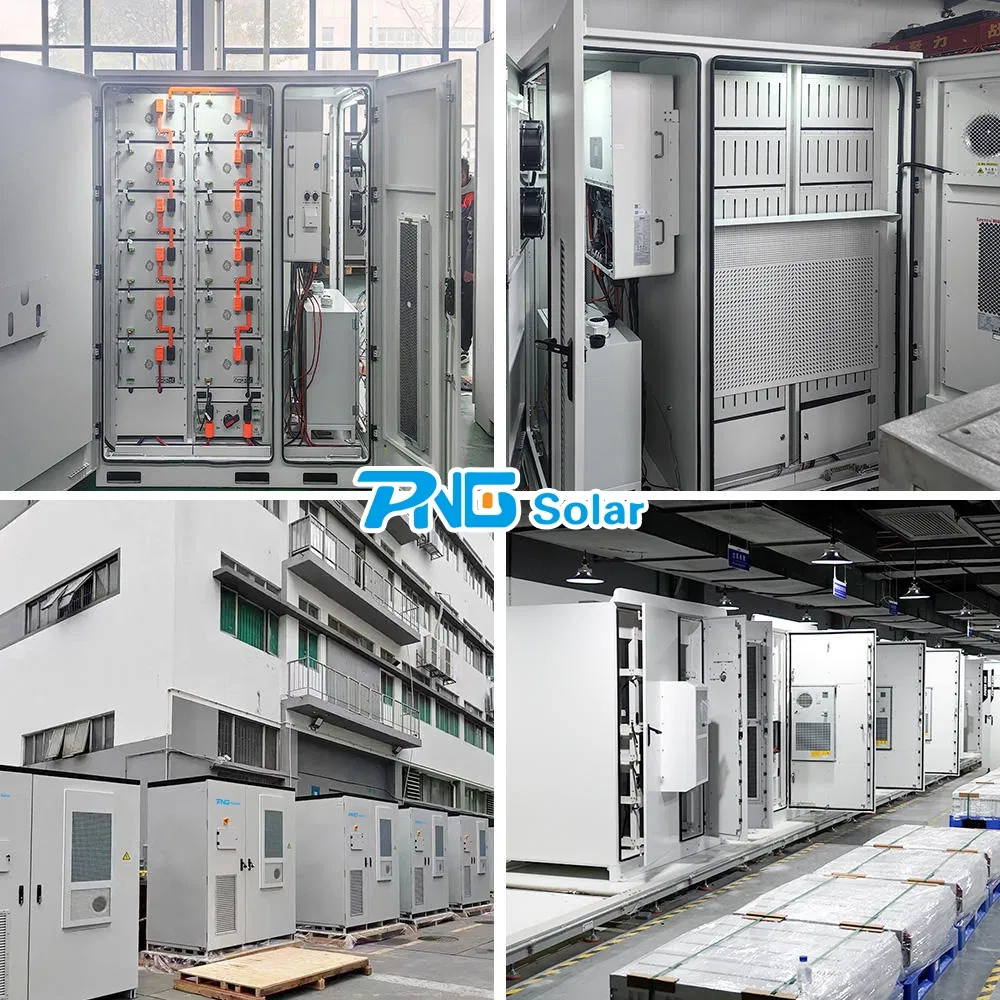

Project Site 2
📜 Certifications
Certification Documents
Frequently Asked Questions
What products can I purchase from your company?
We provide comprehensive solar solutions including Solar Panels, Solar Systems (On-grid, Off-grid, Hybrid), Gel and Lithium batteries, and Inverters.
What is the expected cycle life of the lithium battery cabinet?
The system offers a high performance cycle life of over 8000 cycles at 25ºC with 80% Depth of Discharge (DOD).
How is the temperature regulated in the ESS cabinet?
The unit utilizes a Full Liquid Cooling method, ensuring a temperature difference of ≤3℃, which significantly enhances battery safety and lifespan.
What safety features are integrated into the system?
The cabinet includes a built-in Aerosol fire extinguishing system and is rated IP54 for outdoor durability. It complies with IEC62619, UN38.3, and MSDS standards.
What is the typical lead time for an order?
For standard units, the lead time is approximately 45 days. Larger quantities can be negotiated based on specific project requirements.
What payment and delivery terms are accepted?
We accept various delivery terms including FOB, CFR, CIF, EXW, and DDP. Payments can be made via T/T, L/C, or PayPal in USD, EUR, or CNY.
