215kwh 6000 Cycle Times Liquid Cooling Systems Lithium Battery Pack

Customization:	Available
Nominal Voltage:	768V
Warranty:	5 Years

Send Inquiry

Product Description

⚡ Basic Info

Model NO.

DH215A-100K-L

Nominal Capacity

215kwh

Cycle Life

6000 Cycle Times

Cooling Method

Liquid

Power

100kw

Battery Cell

Eve

Battery Energy

280ah

Grid Connection

off Grid, Hybrid Grid

Specification

1380*1000*2330mm

Origin

China

Production Capacity

60 Sets/Month

📋 Product Description

Liquid Cooling Systems Lithium Battery Pack

⚙️ Flexible

Broad voltage compatibility.
Works with various batteries.

✨ Grace

Stylish, lightweight, smart.
Quiet, touch LCD.

🛡️ Reliable

Anti-counter flow and reverse protection.

🚀 Advanced

Smart home energy management.
Power dispatch and virtual station control.

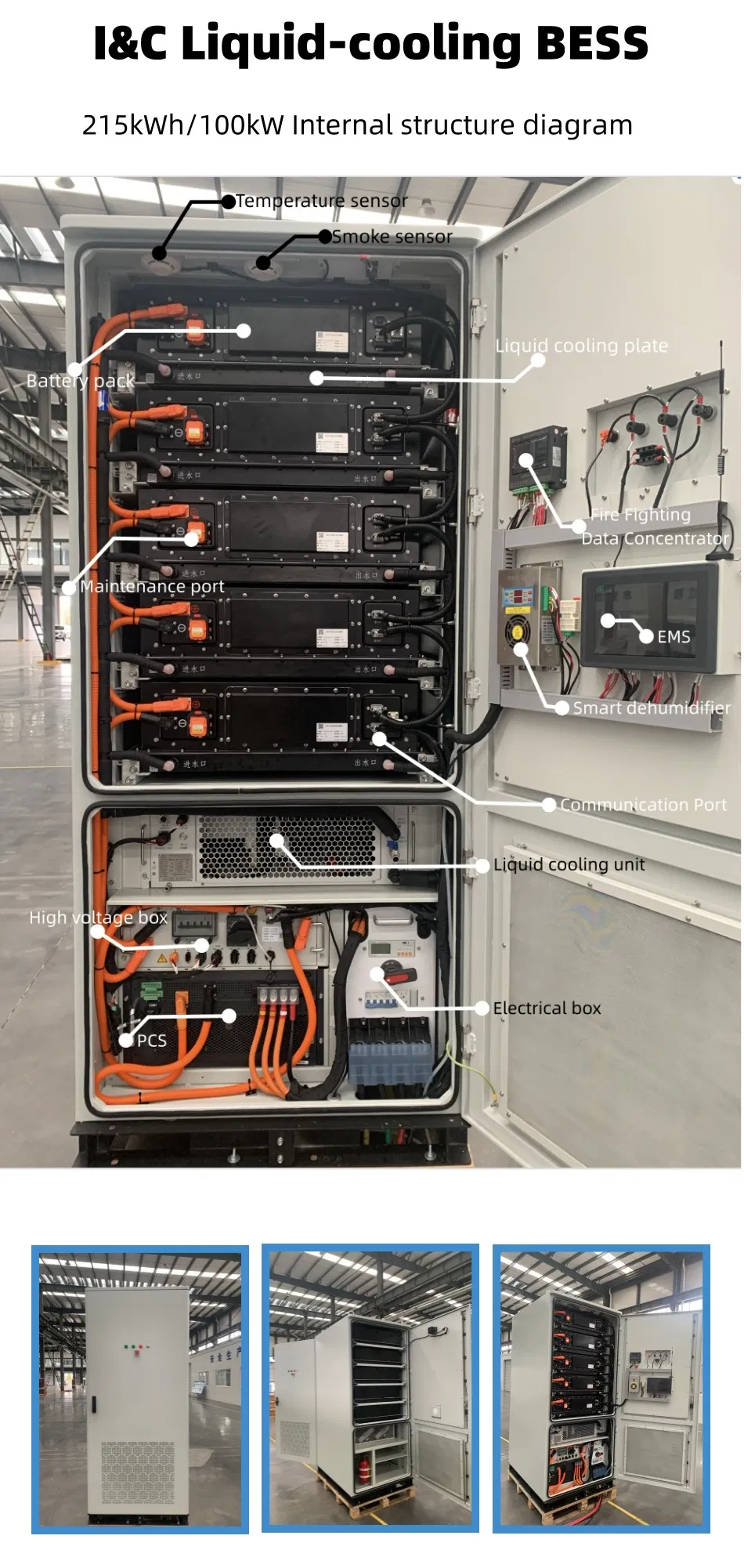

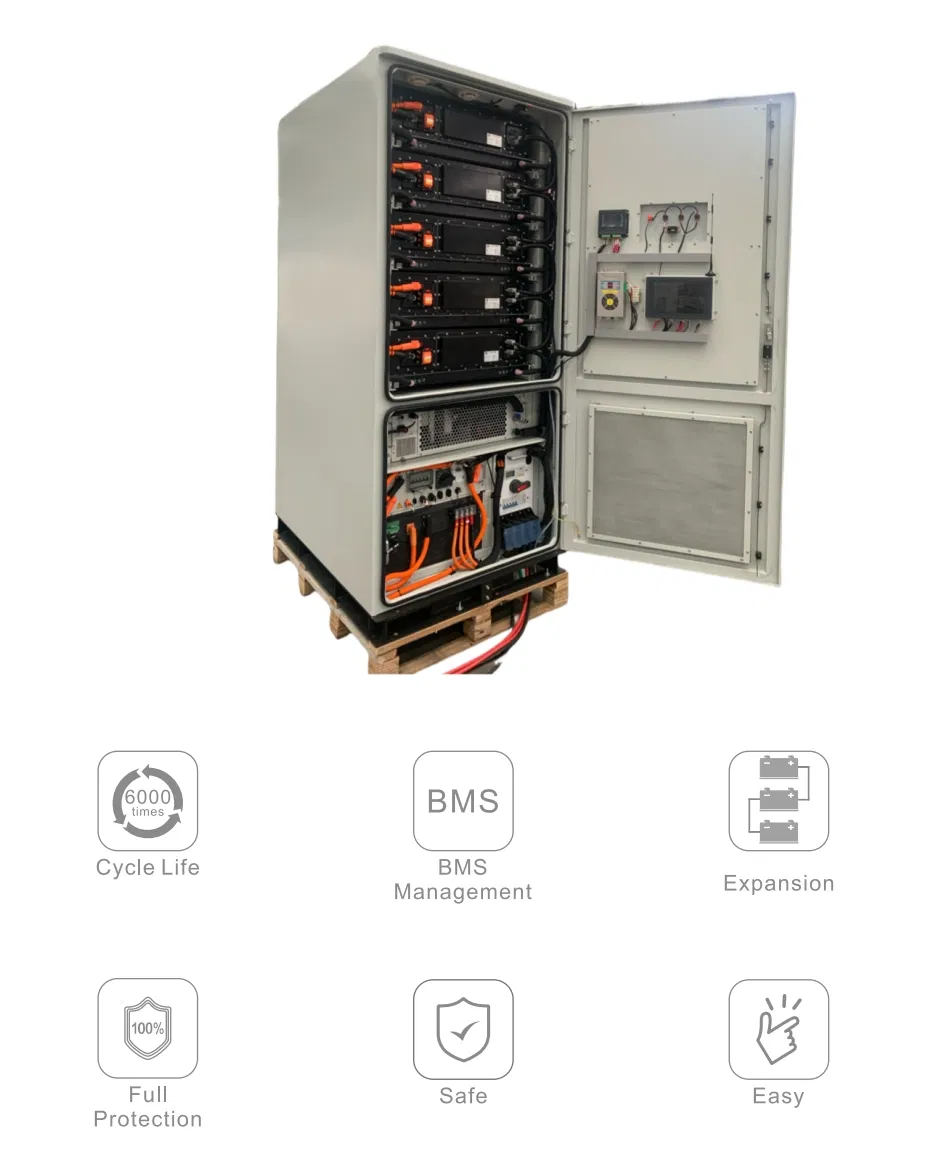

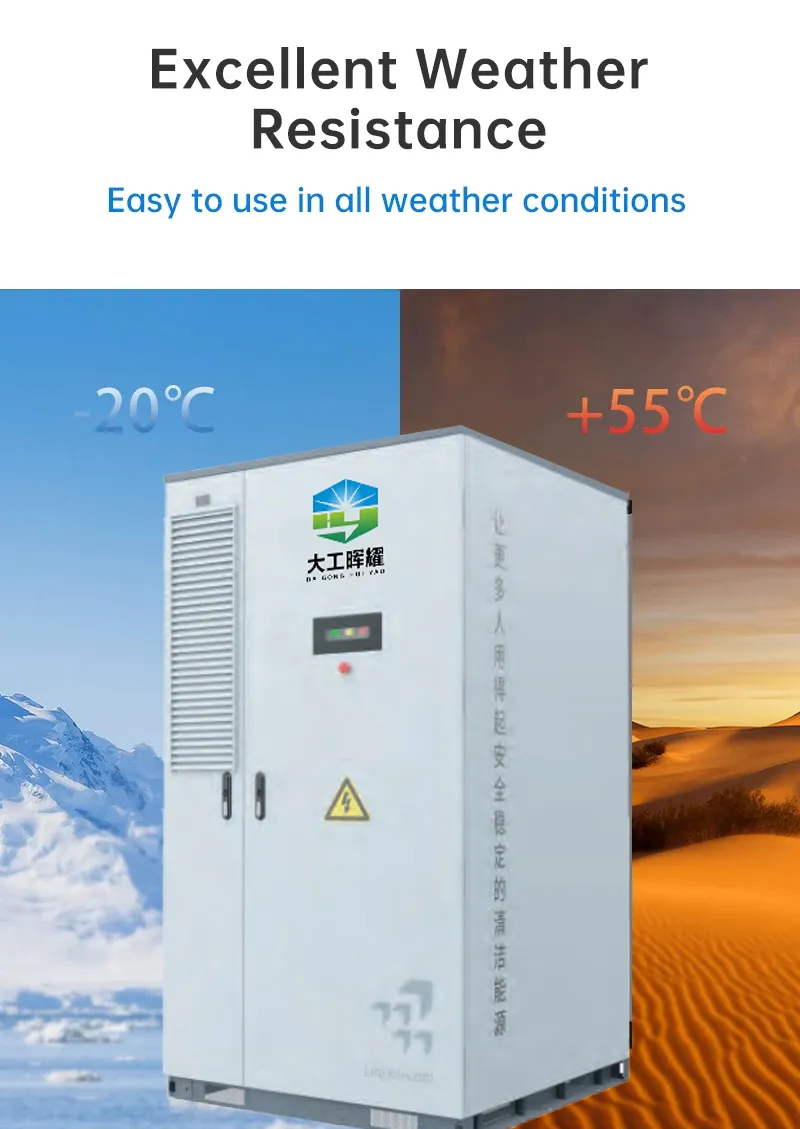

📸 Detailed Photos

📊 Product Parameters

Parameter Item	Specifications
Product Model	DH215L-100
Rated AC power	100kW
Maximum output power	110kW
Permissible grid voltage	400V(-15%-10%)
Permissible grid frequency	50/60Hz±2.5Hz
Maximum Input Current	158A
Wiring configuration	3P4W+PE
Cell type	LFP 3.2V/280Ah
Battery system configuration	1P240S
Rated energy	215.04kWh
Voltage range	648~864V
Inverter maximum efficiency	98%
System efficiency	>88%
Charge and discharge rate	≤0.5C

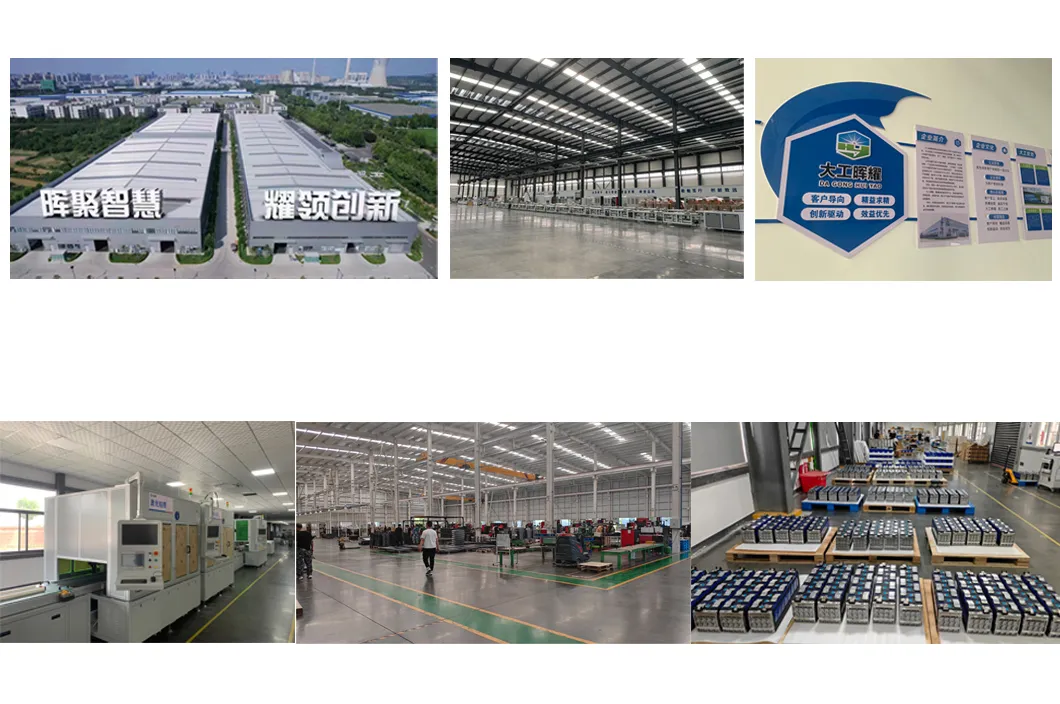

🏛️ Exhibition & Manufacturing

A Professional battery energy storage system (BESS) provider that provides reliable energy storage solutions globally by integrating expertise in electrochemistry, power electronics and system integration. Committed to green development and a sustainable future through innovation in new energy.

❓ Frequently Asked Questions

What is the expected lifespan of the 215kwh battery system?

The system features high-quality LFP cells and is designed for a cycle life of 6000 times, ensuring long-term reliability and performance for energy storage needs.

Why is liquid cooling used in this battery pack?

Liquid cooling provides superior thermal management compared to air cooling, maintaining consistent cell temperatures which extends battery life and improves safety under high load conditions.

Can this system be used in off-grid applications?

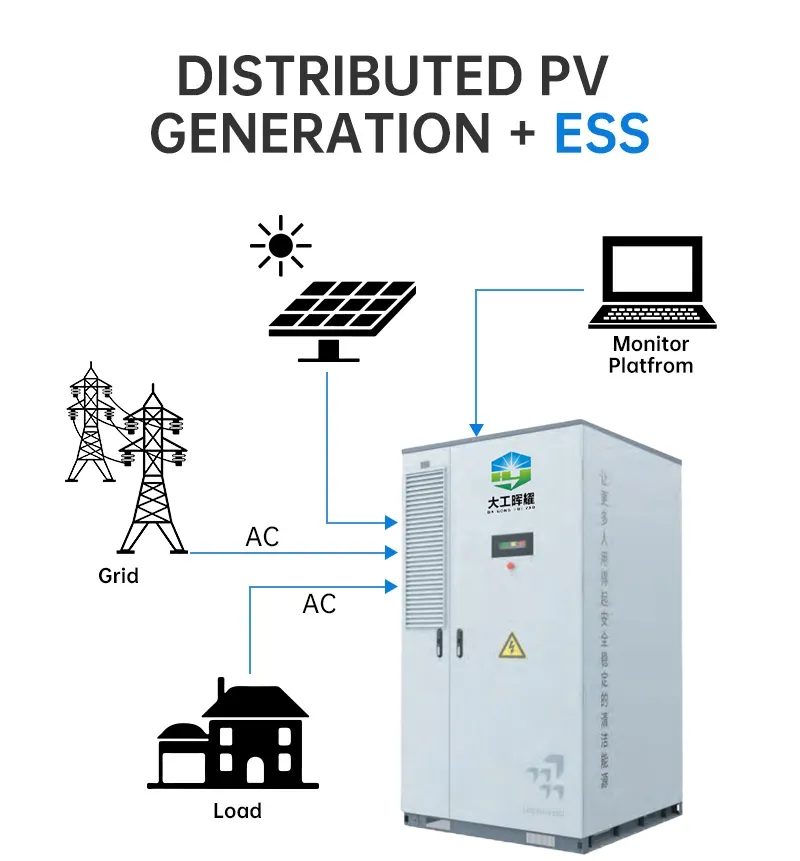

Yes, this system supports Off-grid, On-grid, and Hybrid-grid connections, making it highly versatile for various industrial and commercial energy scenarios.

What are the safety features of the DH215A-100K-L?

The system includes advanced protection such as anti-counter flow, reverse protection, and a sophisticated BMS (Battery Management System) to monitor cell health in real-time.

Is the energy storage system compatible with smart home management?

Absolutely. It is designed for advanced energy management, supporting smart home integration, power dispatch, and virtual station control for efficient energy use.

What is the maximum efficiency of the inverter?

The integrated inverter boasts a maximum efficiency of 98%, ensuring minimal energy loss during the DC to AC conversion process.
