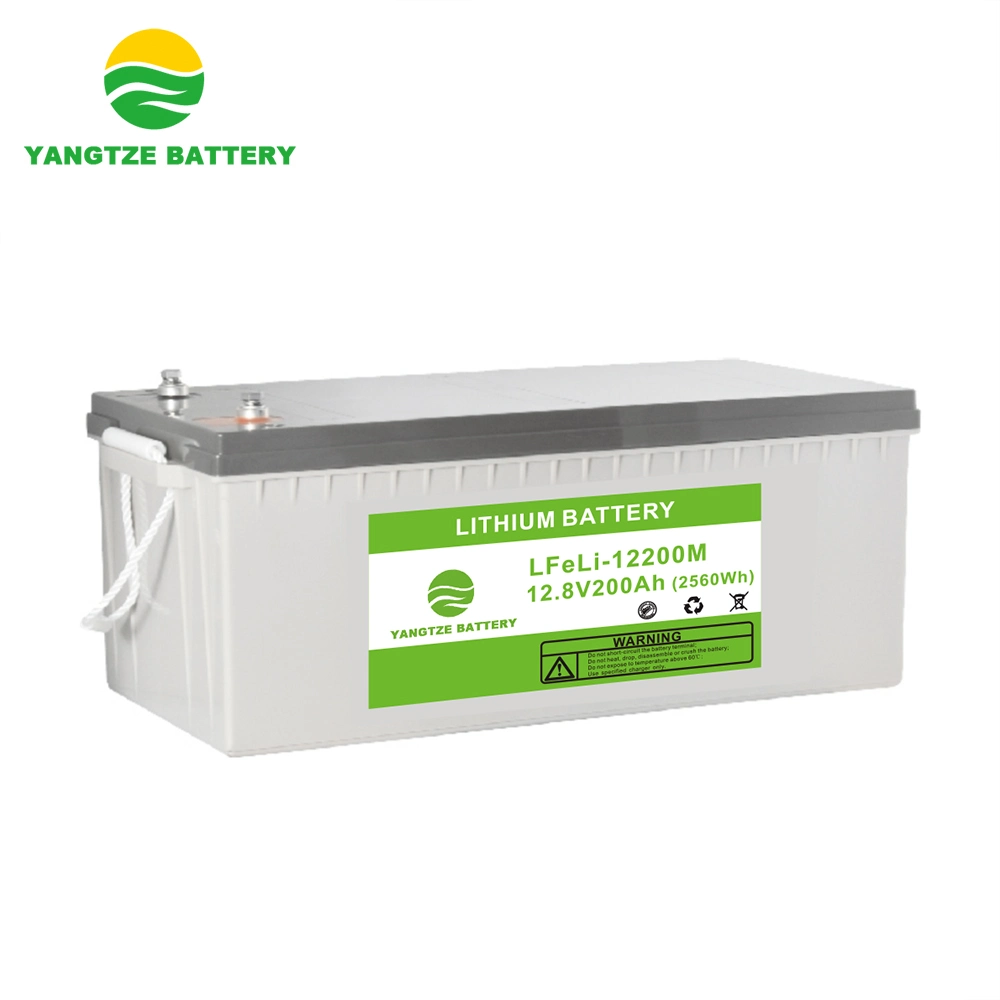

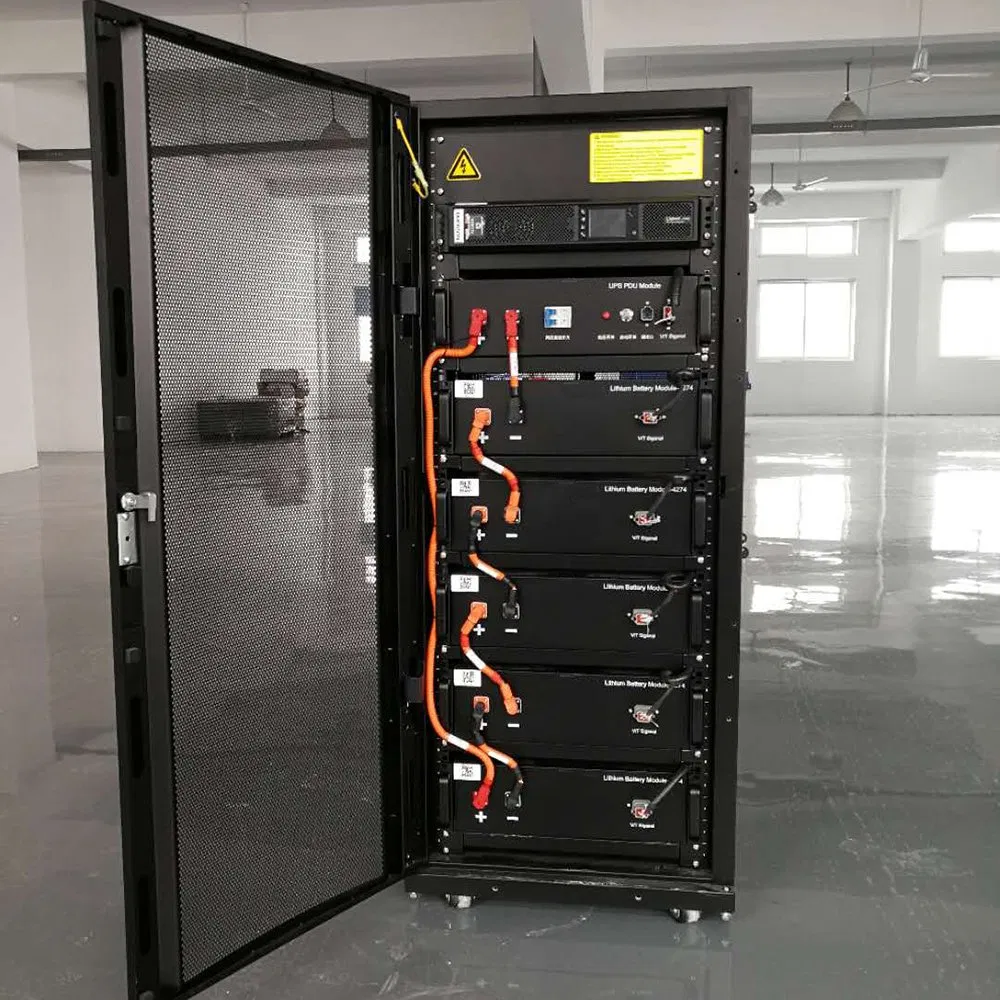

8000+ Cycles Life 5 Years Warranty Smart BMS 12V 200ah LiFePO4 Lithium Ion Battery for Solar System Inverter UPS Telecom EV Car
8000+ Cycles Life 5 Years Warranty Smart BMS 12V 200ah LiFePO4 Lithium Ion Battery for Solar System Inverter UPS Telecom EV Car
8000+ Cycles Life 5 Years Warranty Smart BMS 12V 200ah LiFePO4 Lithium Ion Battery for Solar System Inverter UPS Telecom EV Car
8000+ Cycles Life 5 Years Warranty Smart BMS 12V 200ah LiFePO4 Lithium Ion Battery for Solar System Inverter UPS Telecom EV Car
8000+ Cycles Life 5 Years Warranty Smart BMS 12V 200ah LiFePO4 Lithium Ion Battery for Solar System Inverter UPS Telecom EV Car
1 / 5
8000+ Cycles Life 5 Years Warranty Smart BMS 12V 200ah LiFePO4 Lithium Ion Battery for Solar System Inverter UPS Telecom EV Car
8000+ Cycles Life 5 Years Warranty Smart BMS 12V 200ah LiFePO4 Lithium Ion Battery for Solar System Inverter UPS Telecom EV Car
8000+ Cycles Life 5 Years Warranty Smart BMS 12V 200ah LiFePO4 Lithium Ion Battery for Solar System Inverter UPS Telecom EV Car
8000+ Cycles Life 5 Years Warranty Smart BMS 12V 200ah LiFePO4 Lithium Ion Battery for Solar System Inverter UPS Telecom EV Car
8000+ Cycles Life 5 Years Warranty Smart BMS 12V 200ah LiFePO4 Lithium Ion Battery for Solar System Inverter UPS Telecom EV Car

8000+ Cycles Life 5 Years Warranty Smart BMS 12V 200ah LiFePO4 Lithium Ion Battery for Solar System Inverter UPS Telecom EV Car

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
LFeLi-12200M
Size
Medium
Certificate
UL/CE/RoHS/ISO9001/ISO14001/IEC60896/IEC61427
Maintenance
Free
Warranty
5 Years
Terminal
Copper (M6)
OEM Order
Acceptable
Color
Grey / Black
Usage
UPS, Lighting, Electric Bicycle, Boat, Solar
Nominal Voltage
12V
Discharge Rate
High Discharge Rate
Electrolyte
Li-ion
IP Class
IP65
Production Capacity
2000000 Pieces/Year

Product Features & Overview

LiFePO4 Lithium Ion Battery Banner

Key Features

  • Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid batteries.
  • Lighter Weight: About 40% of the weight of a comparable lead acid battery.
  • Higher Power: Delivers twice the power of lead acid batteries, even at high discharge rates.
  • Wider Temperature Range: Operational from -20ºC to 60ºC.
  • Superior Safety: Lithium Iron Phosphate chemistry eliminates risk of explosion or combustion.

Applications

  • Wheelchairs and scooters
  • Solar/wind energy storage
  • Back-up power for small UPS
  • Golf trolleys & buggies
  • Electric bikes

Technical Data Sheet

Electrical Characteristics Nominal Voltage12.8V
Nominal Capacity200Ah
Energy2560Wh
Internal Resistance(AC)≤40mΩ
Cycle Life>2000 cycles @ 1C 100% DOD
Self Discharge<3% per month
Charge Efficiency100% @0.5C
Discharge Efficiency96~99% @1C
Standard Charge Charge Voltage14.6±0.2V
Charge Mode0.2C to 14.6V, then 14.6V (CC/CV)
Charge Current15A
Max. Charge Current30A
Cut-off Voltage15.6±0.2V
Standard Discharge Continuous Current60A
Max. Pulse Current80A (<3s)
Cut-off Voltage8V
Mechanical Plastic CaseABS
Dimensions522mm * 240mm * 224mm
Approx. Weight29.60kg

Product Gallery

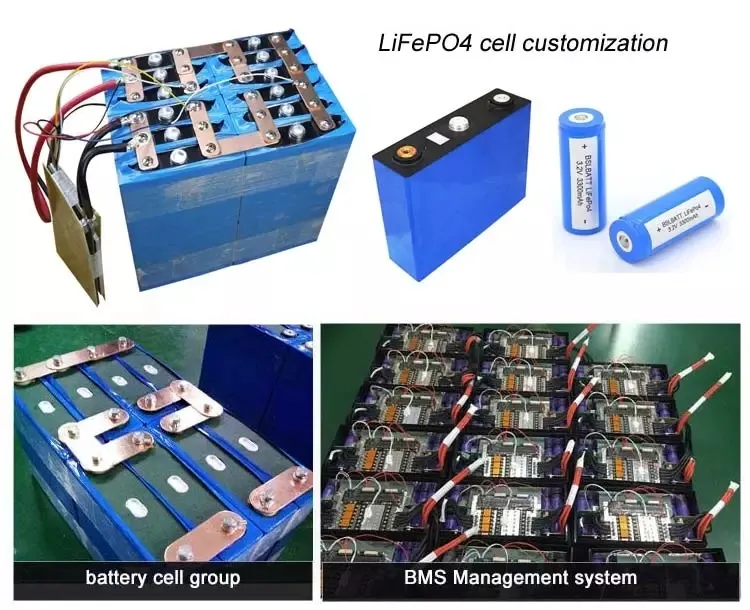

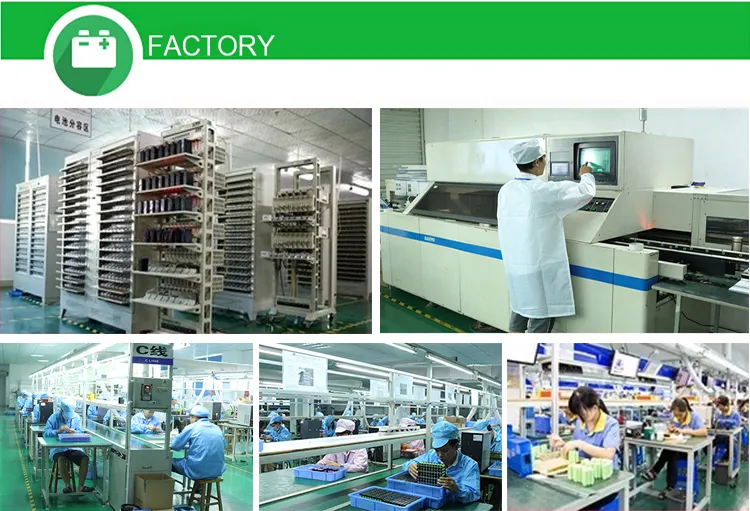

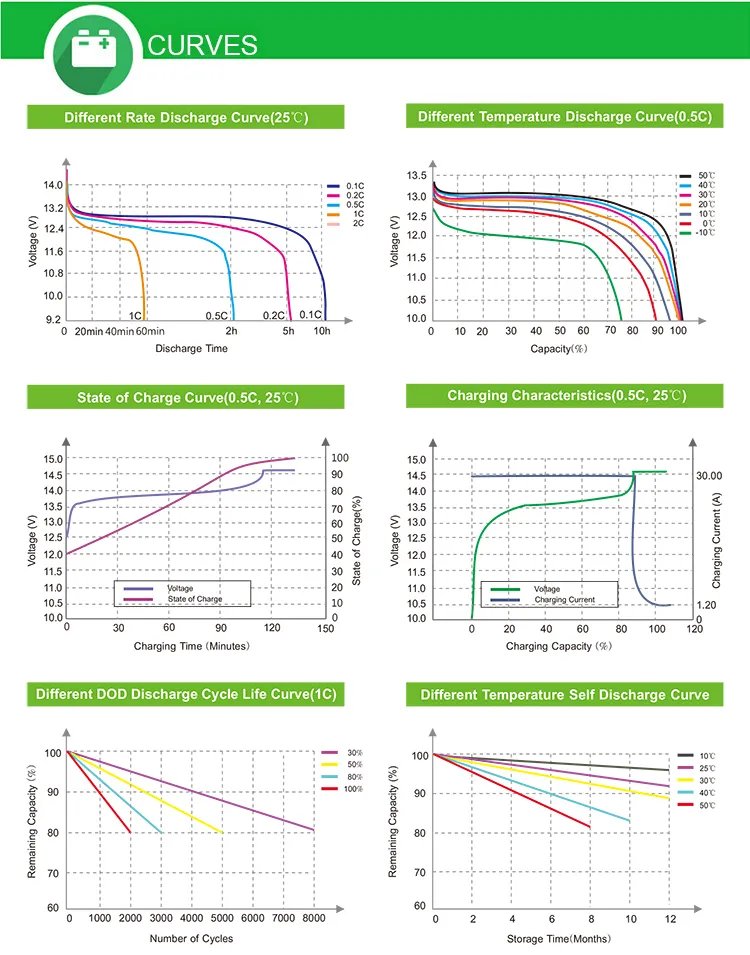

Battery Detail 1 Battery Detail 2 Battery Detail 3

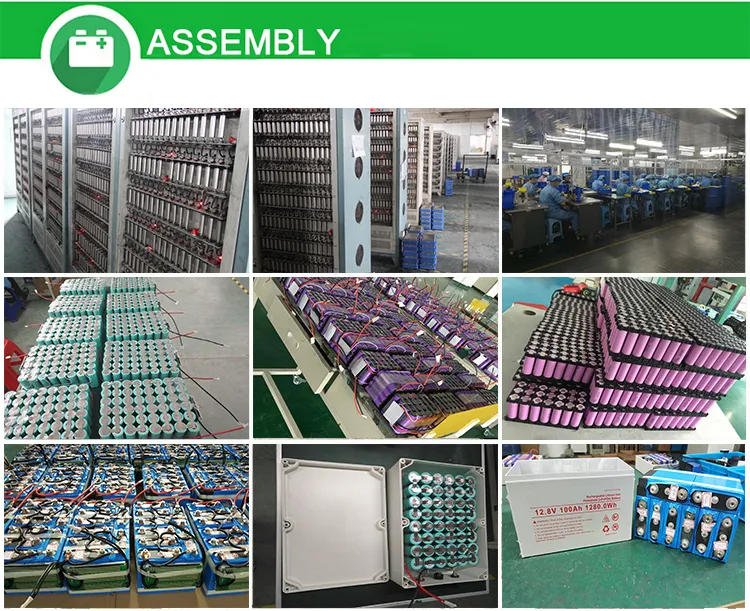

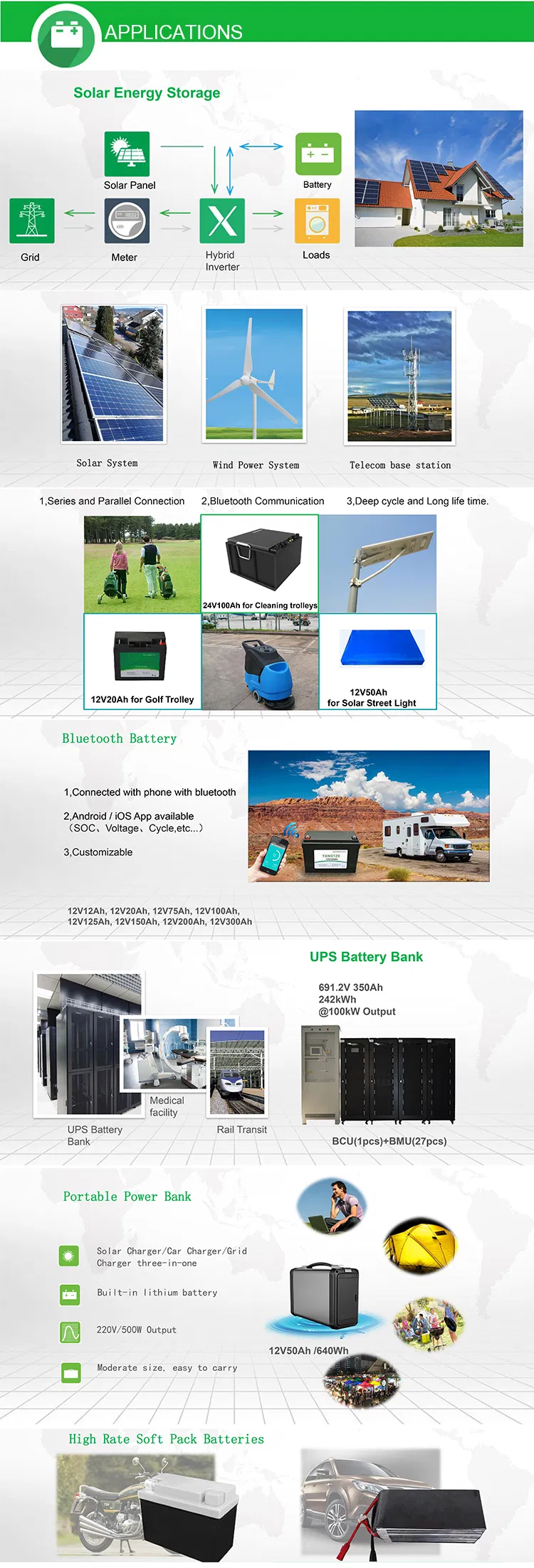

Battery Detail 4 Battery Detail 5 Battery Detail 6

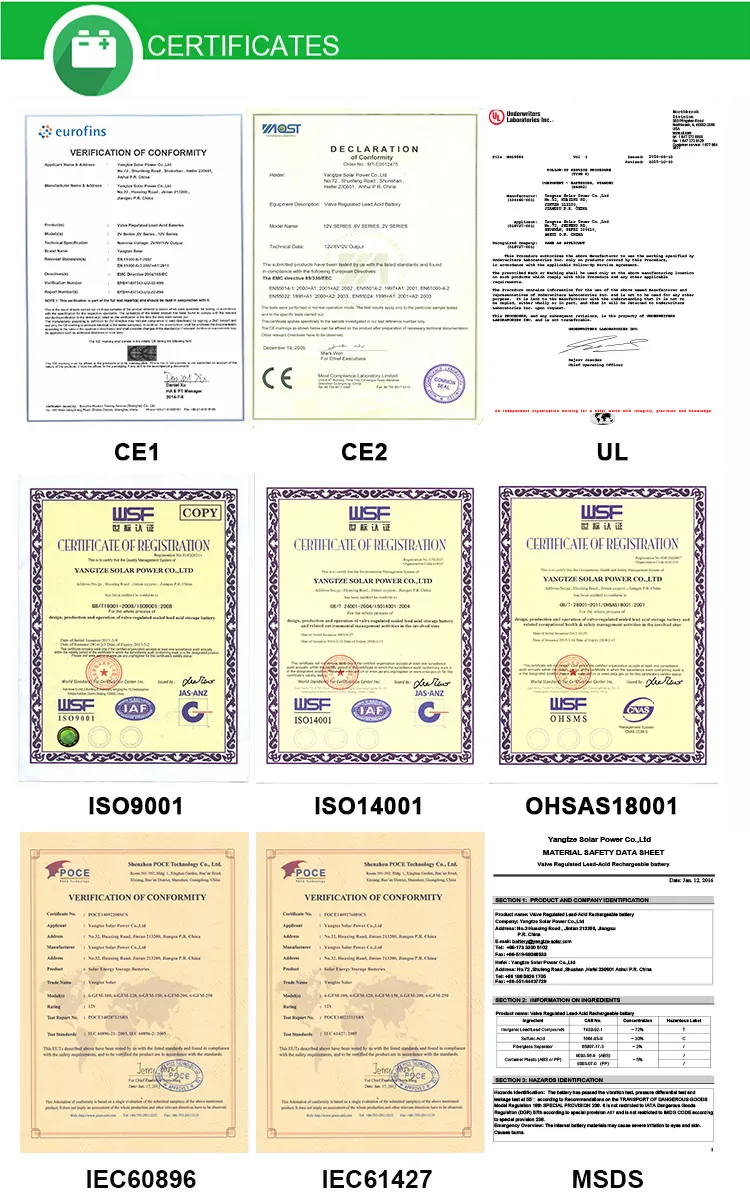

Comprehensive Specification Chart

Frequently Asked Questions

How long is the warranty for the 12V 200Ah Lithium battery?
The battery comes with a standard 5-year warranty, ensuring long-term reliability for your energy needs.
What is the expected cycle life of this LiFePO4 battery?
It offers a cycle life of over 2000 cycles at 100% Depth of Discharge (DOD) at a 1C rate, significantly outlasting traditional lead-acid batteries.
Is this battery safe for indoor use?
Yes, the Lithium Iron Phosphate (LiFePO4) chemistry is inherently safe, eliminating the risk of explosion or combustion even under high impact or short circuit situations.
Can this battery be used in marine or outdoor environments?
With an IP65 rating and a wide operating temperature range (-20ºC to 60ºC), it is well-suited for boats, solar storage, and outdoor electric vehicles.
Does the battery require regular maintenance?
No, this is a maintenance-free battery, designed to provide consistent power without the need for water topping or regular electrolyte checks.
