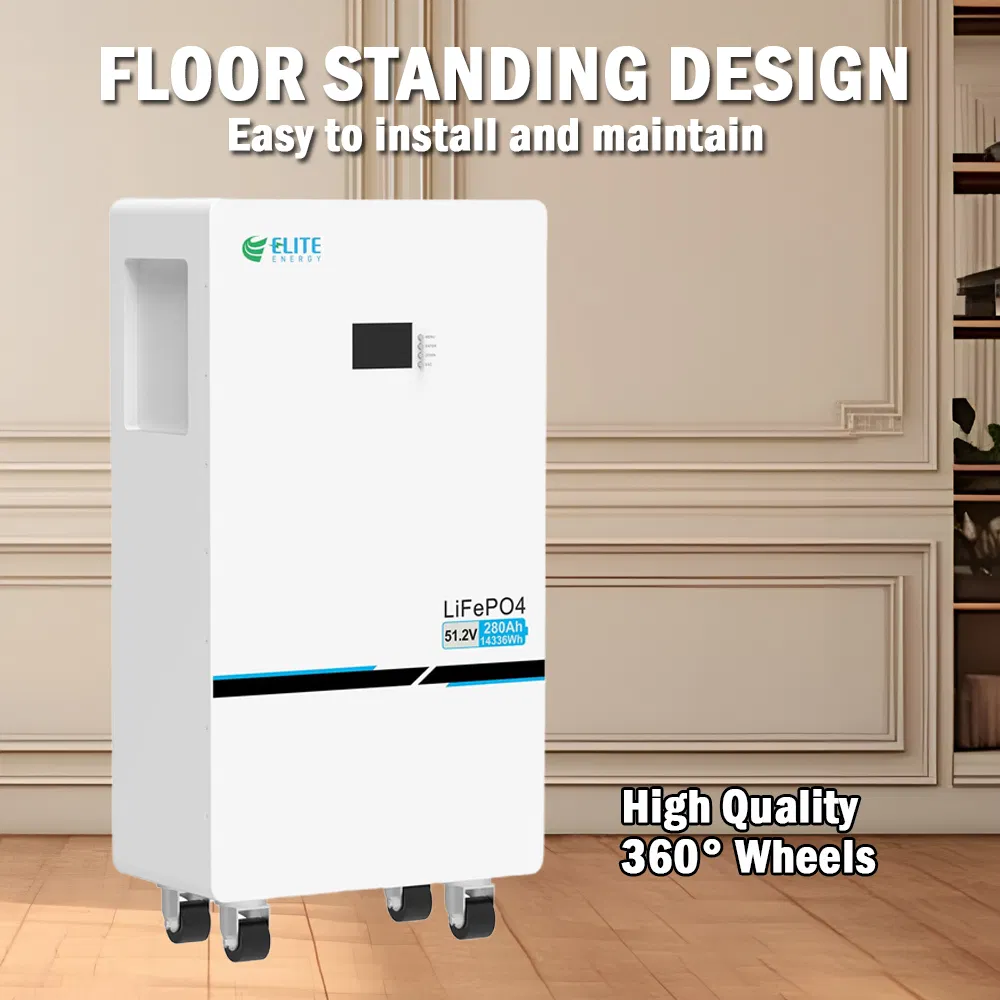

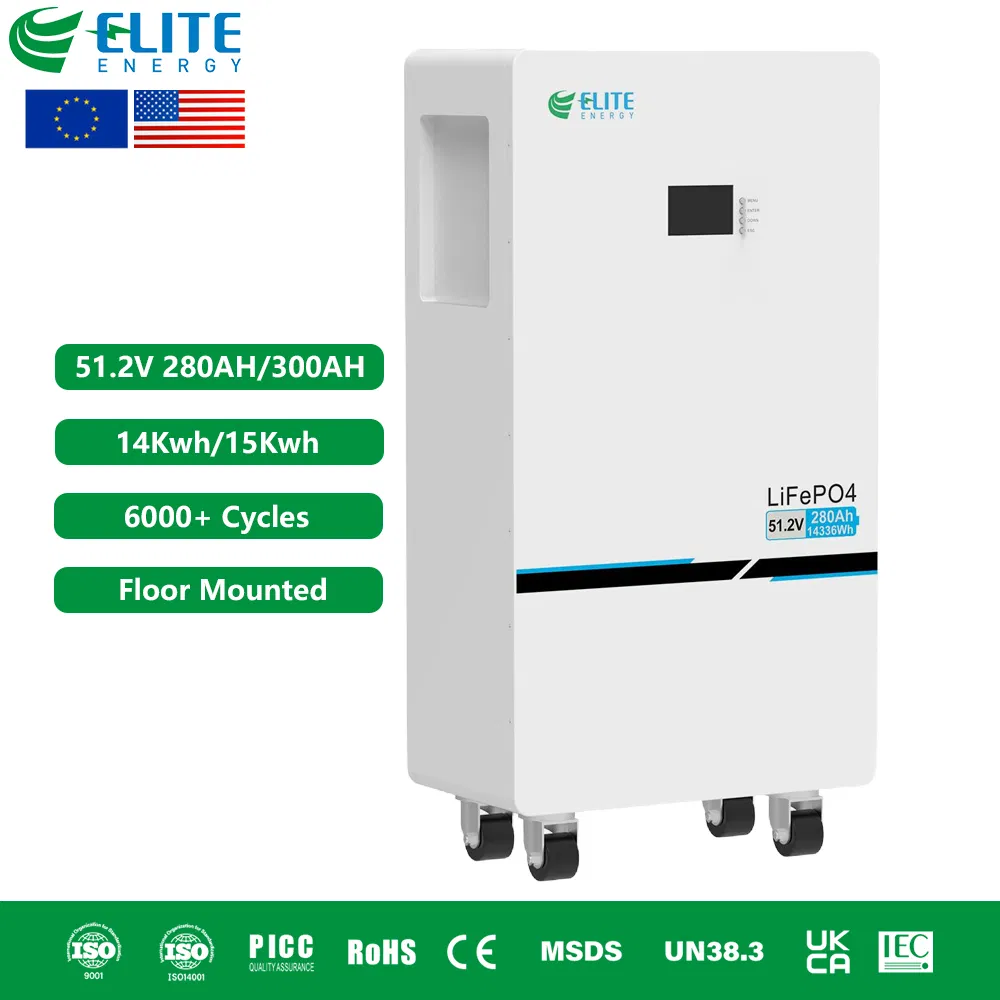

51.2V 280ah 300ah 314ah Floor Standing Lithium Ion Battery 48V 14kwh 15kwh 16kwh Home Solar Energy Storage System

1 / 5

51.2V 280ah 300ah 314ah Floor Standing Lithium Ion Battery 48V 14kwh 15kwh 16kwh Home Solar Energy Storage System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊 Basic Specifications

Model NO.

ELT512300F

Voltage

48V/51.2V

Capacity

280ah/300ah

Energy

14kwh/15kwh

Cycle Life

6000 Times

Warranty

3-5 Years

Certification

CE/RoHS/Un38.3/MSDS

Parallel Connection

Available (Max 15 pcs)

🔋 Product Description

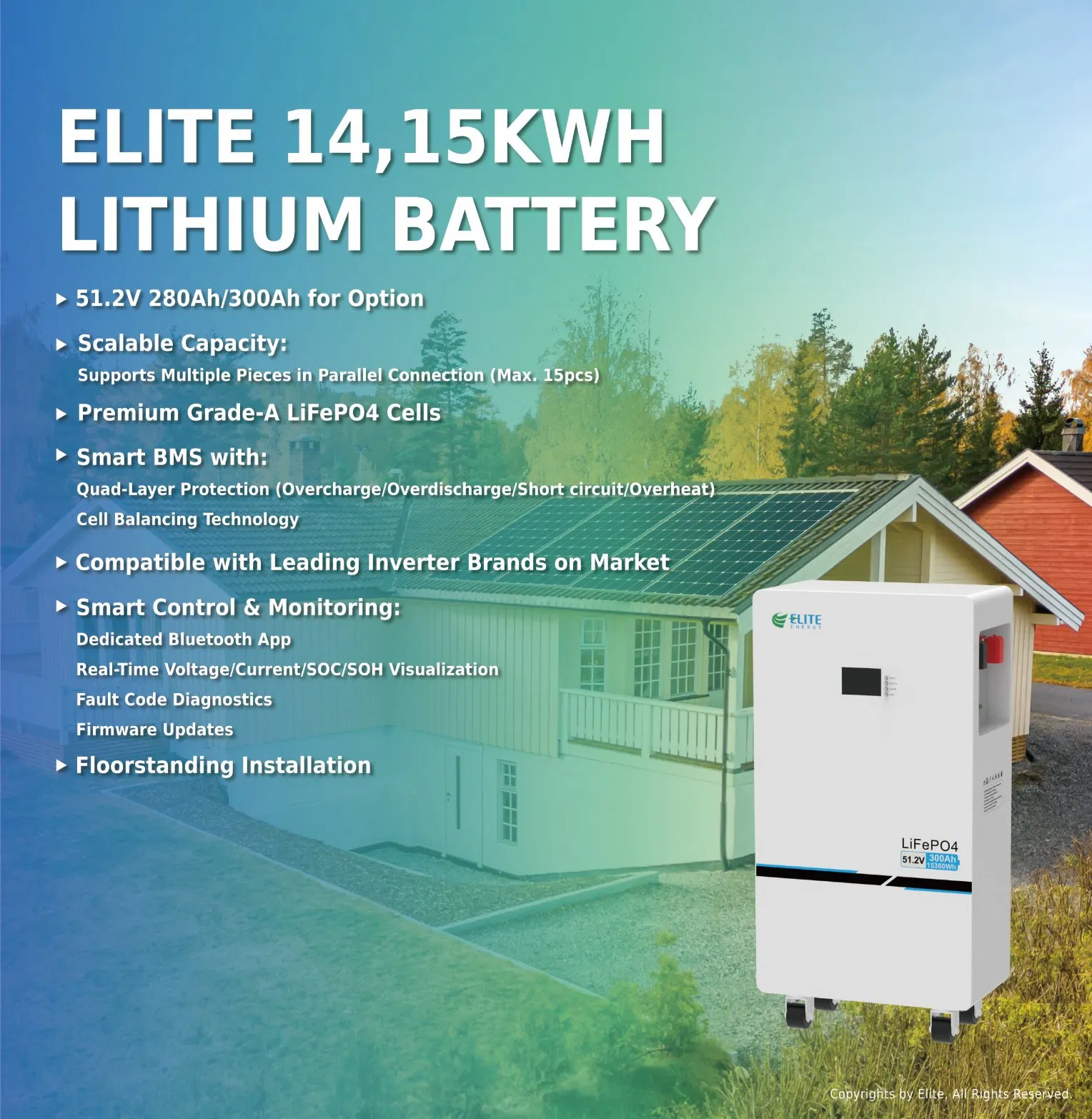

This system is an Original Lithium Ion LiFePO4 Battery Pack designed for Energy Storage Systems (ESS) and Motivation Power System Industries. It features 48V 100Ah Stackable Low Voltage options, PowerWall designs, and All-in-One Home Storage solutions.

Key Features:

14kwh & 15kwh capacity options to meet diverse residential requirements.
Built with high-quality LiFePO4 cells and an integrated smart BMS.
Exceptional cycle life exceeding 6000 cycles for long-term reliability.

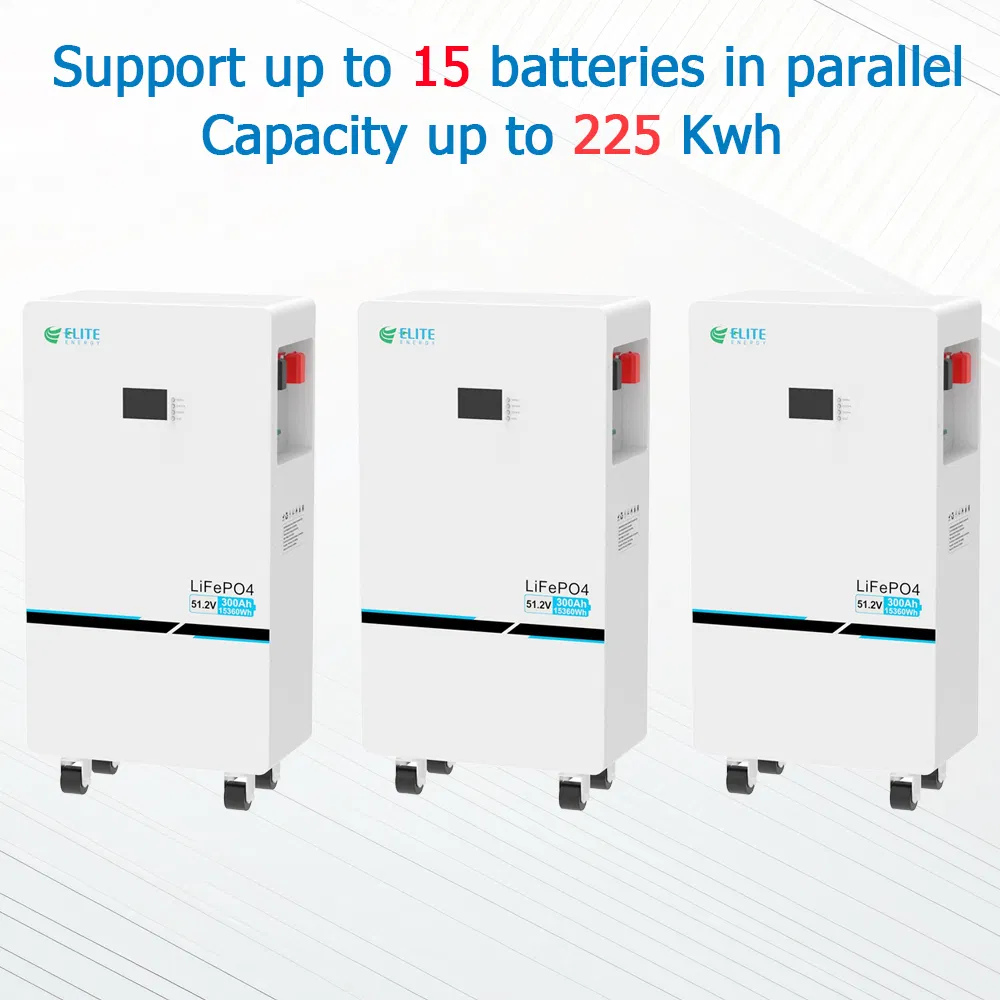

Expandable system supporting up to 15 units in parallel (up to 225kwh).
Wide compatibility with popular inverter brands like Deye, Goodwe, Growatt, Victron, and more.
Safety certified with CE, MSDS, and UN38.3 standards.

⚙️ Technical Parameters

Parameter	ELT512280F	ELT512300F
Nominal Voltage	51.2V	51.2V
Rated Capacity	280Ah	300Ah
Nominal Energy	14336Wh	15360Wh
Battery Type	LiFePO4
Max. Continuous Charge	200A
Max. Continuous Discharge	200A (Peak: 220A)
Cycle Life	≥6000 Cycles

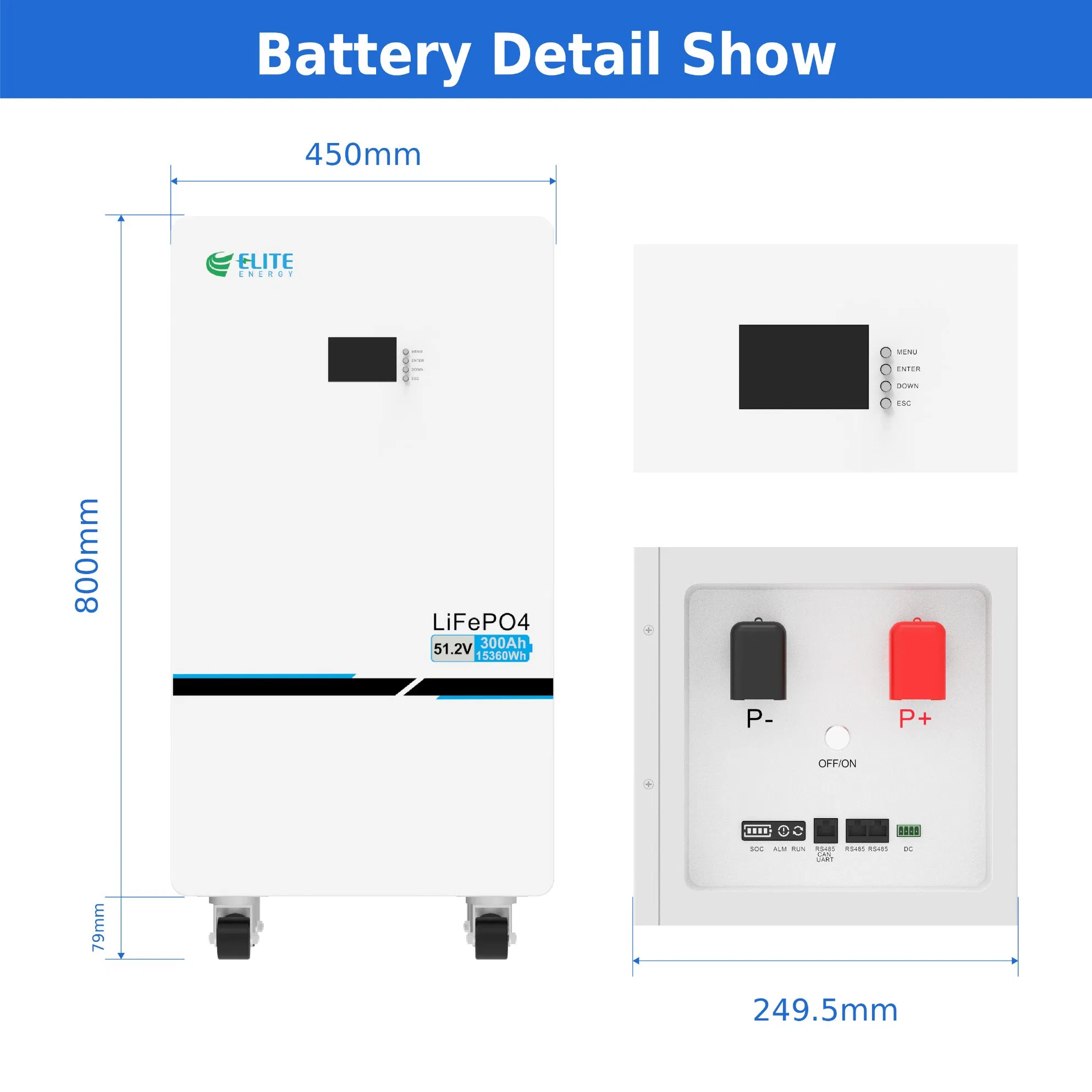

Dimension (LWH)	450250879mm
Weight	Approx. 110Kg
Communication	CAN / RS485

❓ Frequently Asked Questions

Q1: What is the expected lifespan of these LiFePO4 batteries?

Our LiFePO4 batteries provide over 4000-6000 cycles, which is 8 to 10 times longer than standard lead-acid batteries, typically lasting 10+ years depending on usage.

Q2: Does the BMS include low-temperature protection?

Yes. The integrated Battery Management System (BMS) features a low-temperature charge disconnect (0ºC ± 4ºC) and discharge protection (-20ºC ± 4ºC) to prevent damage.

Q3: Can I expand the system if I need more power later?

Absolutely. The system is highly expandable, supporting up to 15 units in parallel connection to achieve a maximum capacity of 225kWh.

Q4: Are these batteries compatible with my existing inverter?

These batteries offer wide compatibility with most major brands, including Victron, SMA, Deye, Goodwe, Sofar, Growatt, Luxpower, and many others via CAN/RS485.

Q5: How safe are LiFePO4 batteries compared to other lithium types?

LiFePO4 is the safest lithium chemistry. It is thermally stable and resistant to combustion or explosion even under extreme conditions like short circuits or high temperatures.

Q6: What are the charging options for this battery pack?

You can charge using a dedicated LiFePO4 charger (58.4V), photovoltaic solar panels via an MPPT controller, or an inverter with built-in AC-to-DC charging functions.
