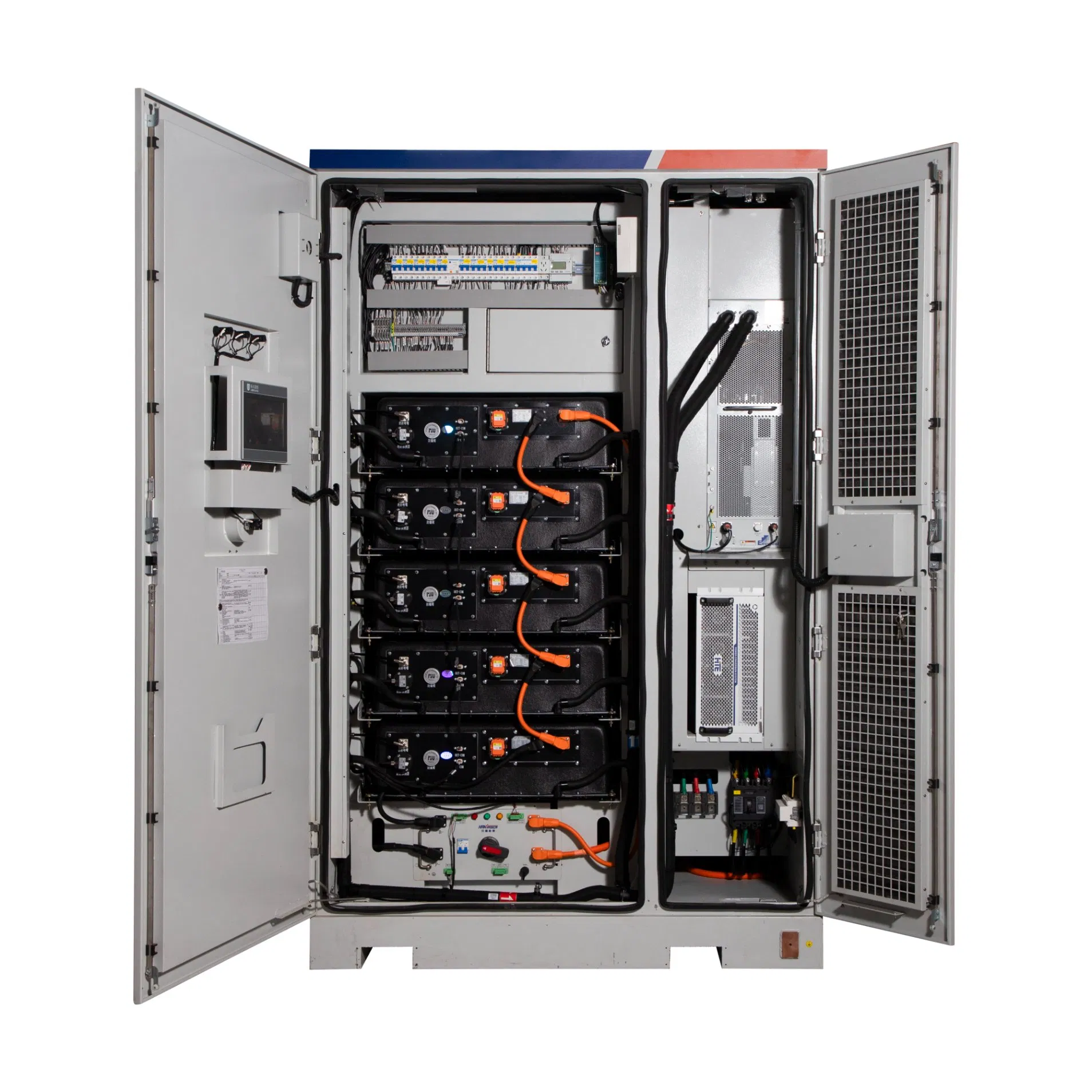

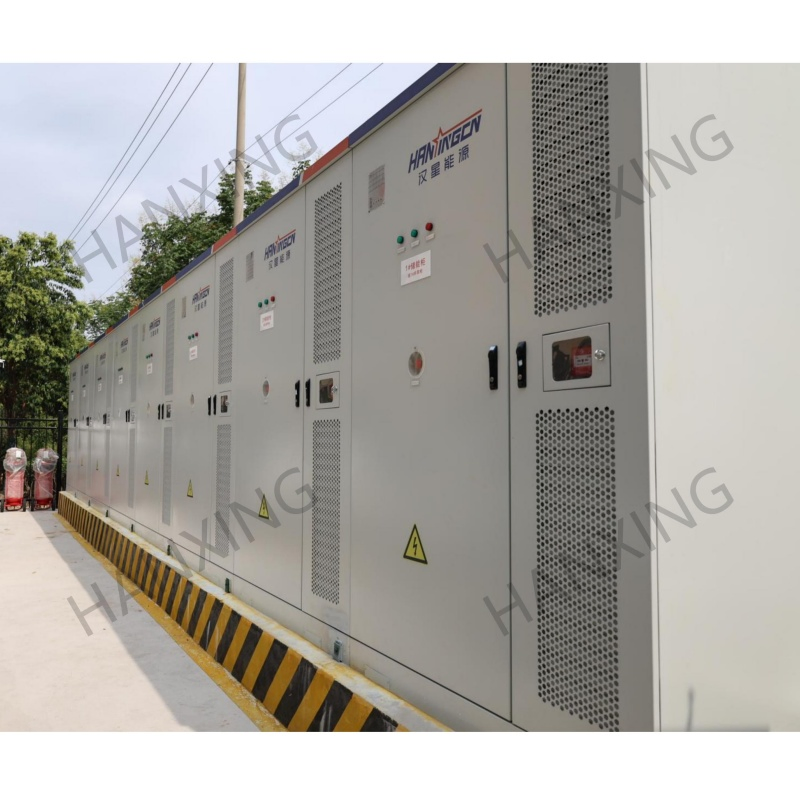

Our energy storage battery systems deliver cutting-edge power solutions designed for residential, commercial, and industrial applications. These high-performance battery systems serve as dependable emergency backup power sources, ensuring uninterrupted operation during grid outages while optimizing energy consumption for maximum cost savings.
Serve as an emergency backup power source to ensure continuous operation.

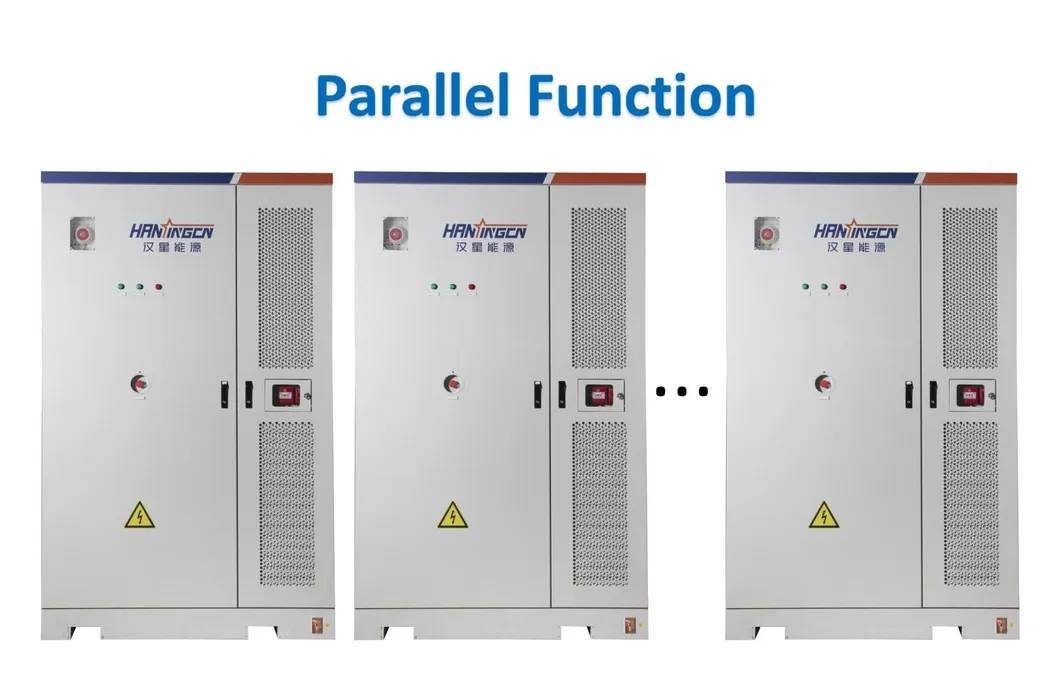

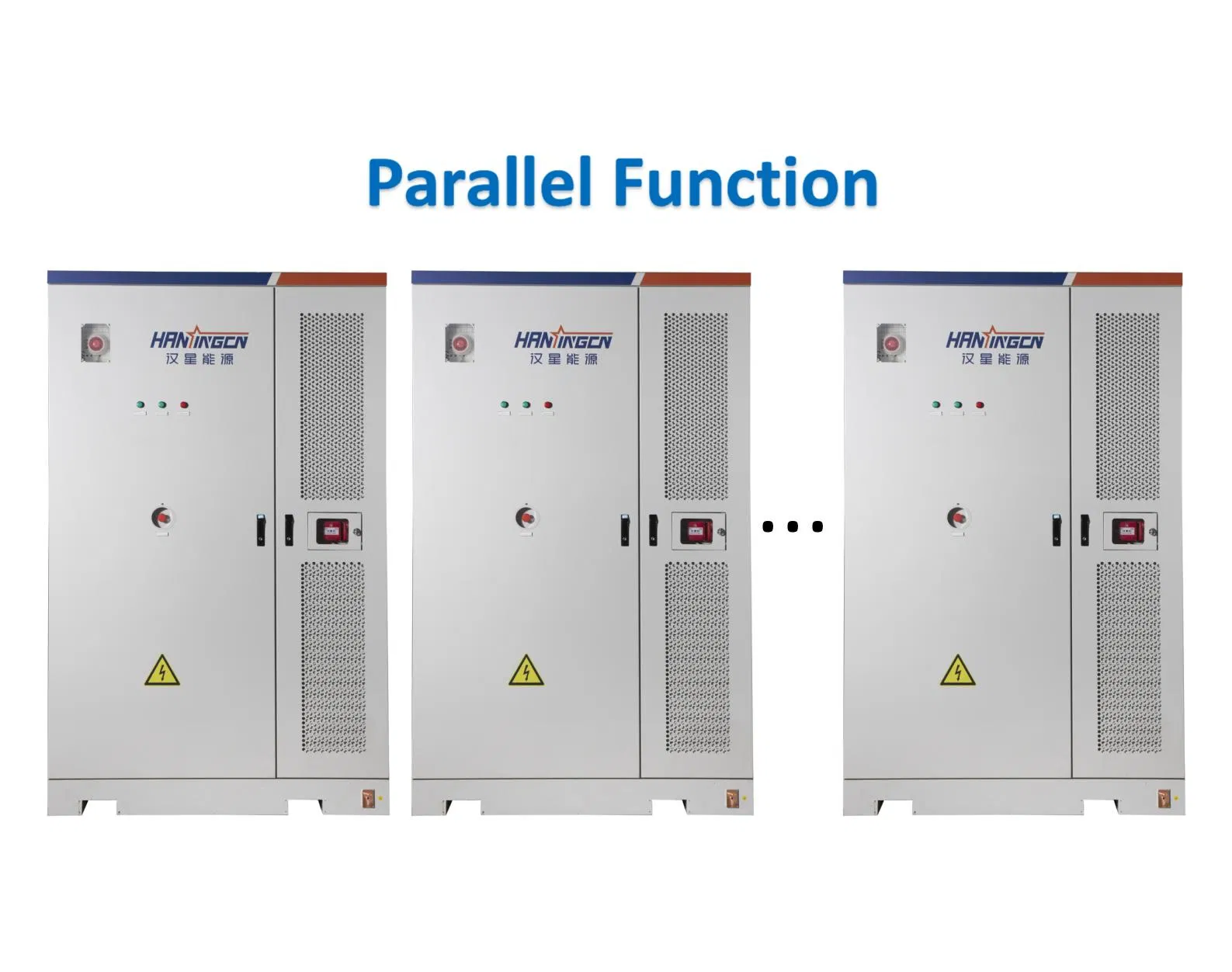

Modular design, expansion, and customization. Convenient installation.
Optimize energy usage and reduce costs.
Reduce operation and maintenance costs, promote green energy consumption.

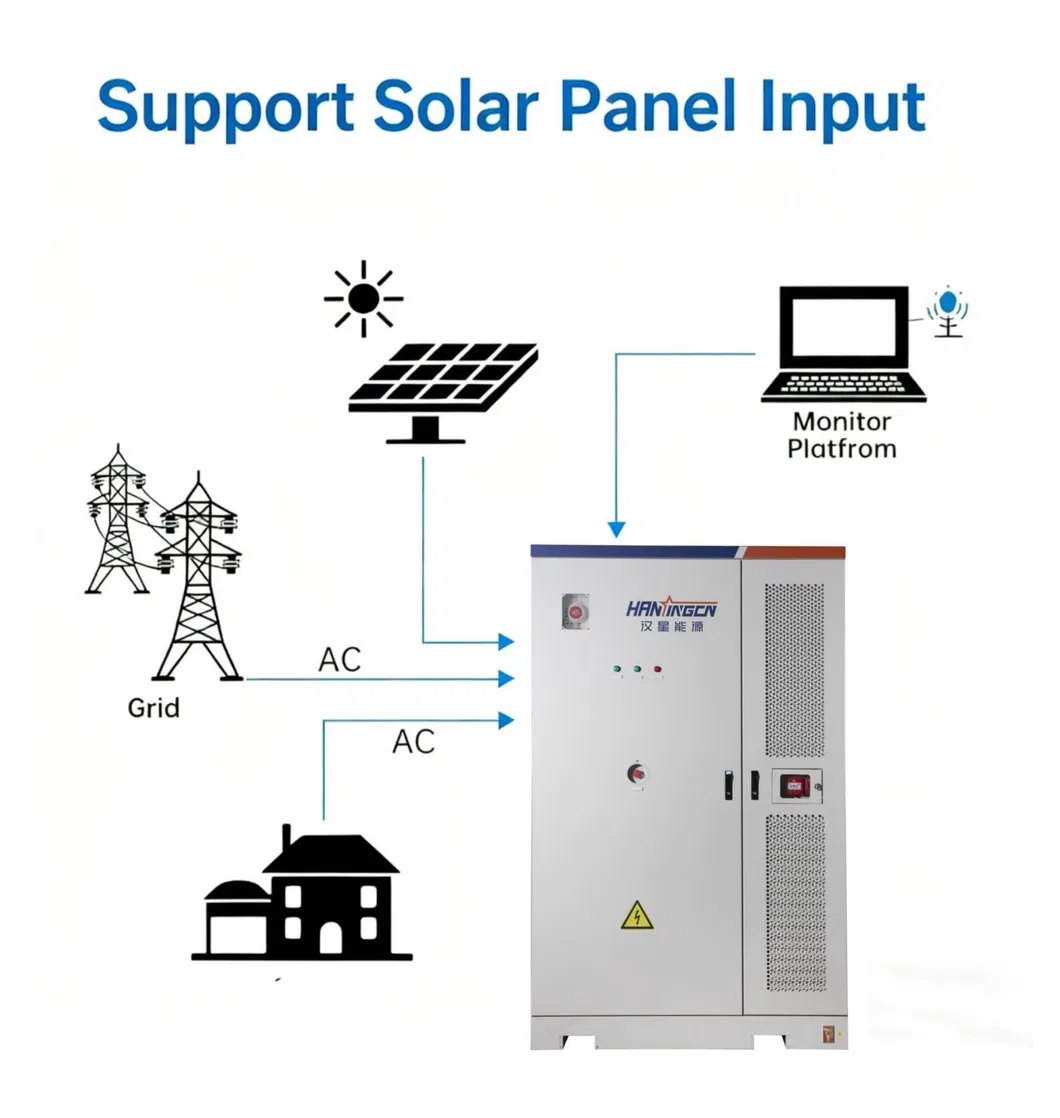

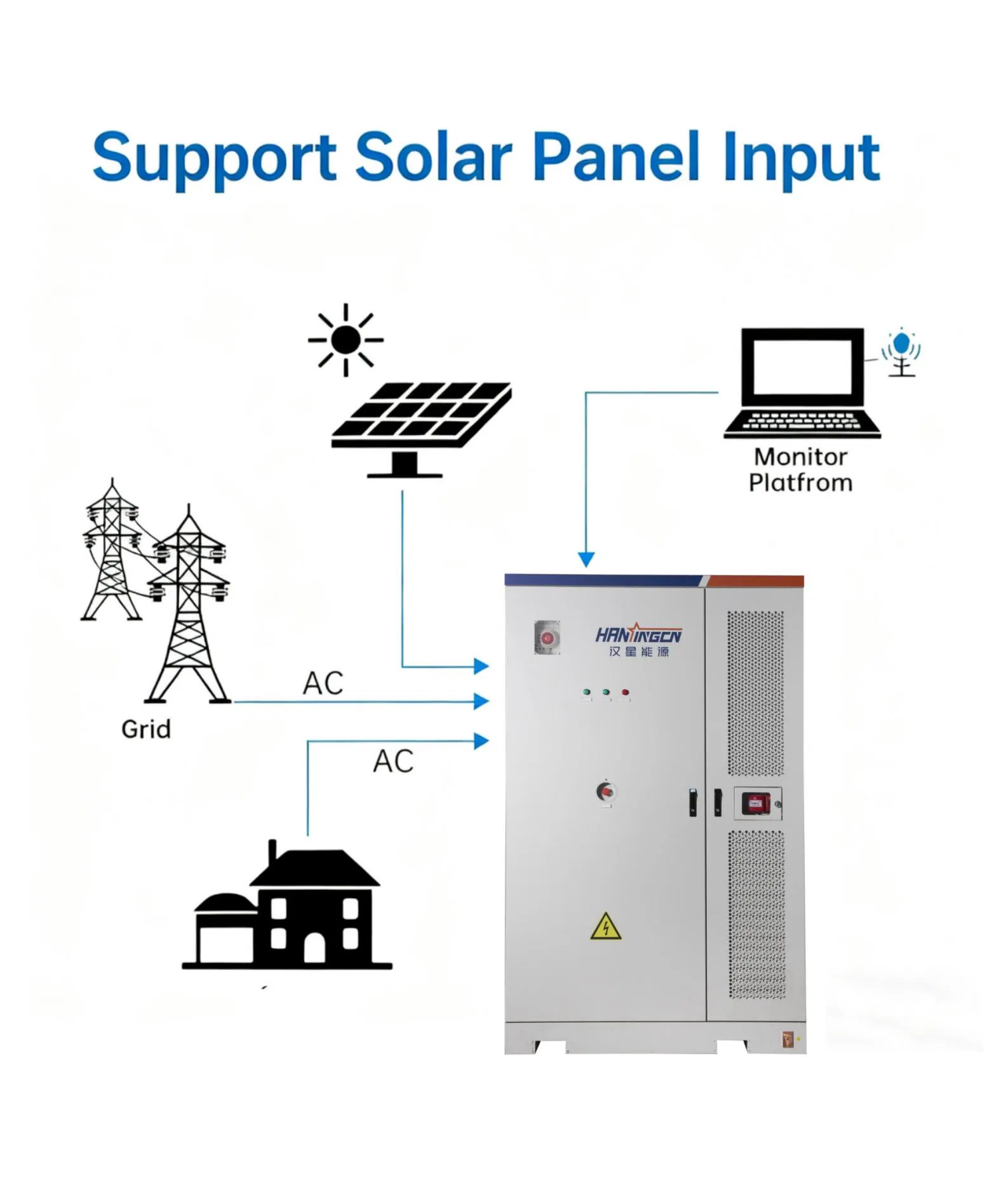

Grid-connected/off-grid switching, multiple protection.
| TECHNICAL SPECIFICATIONS | |
|---|---|

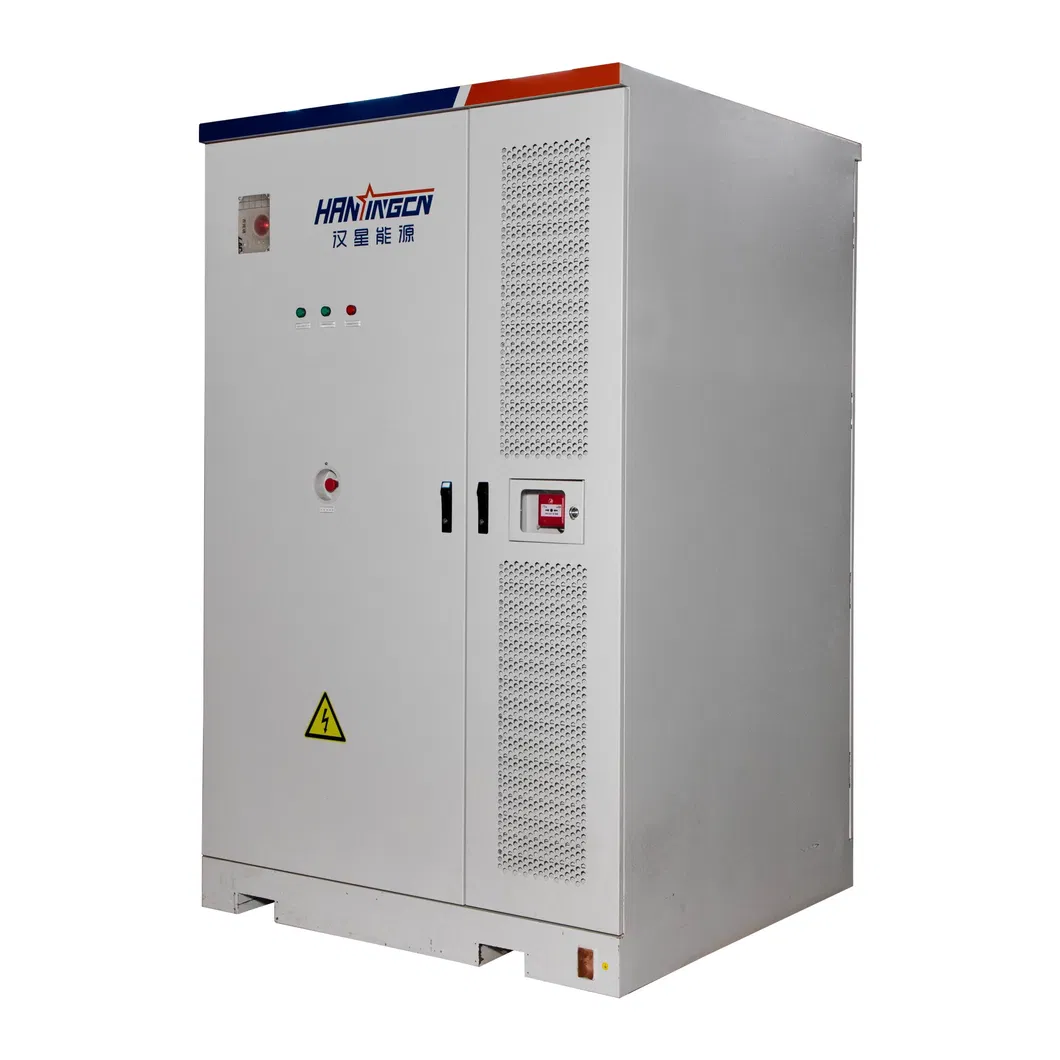

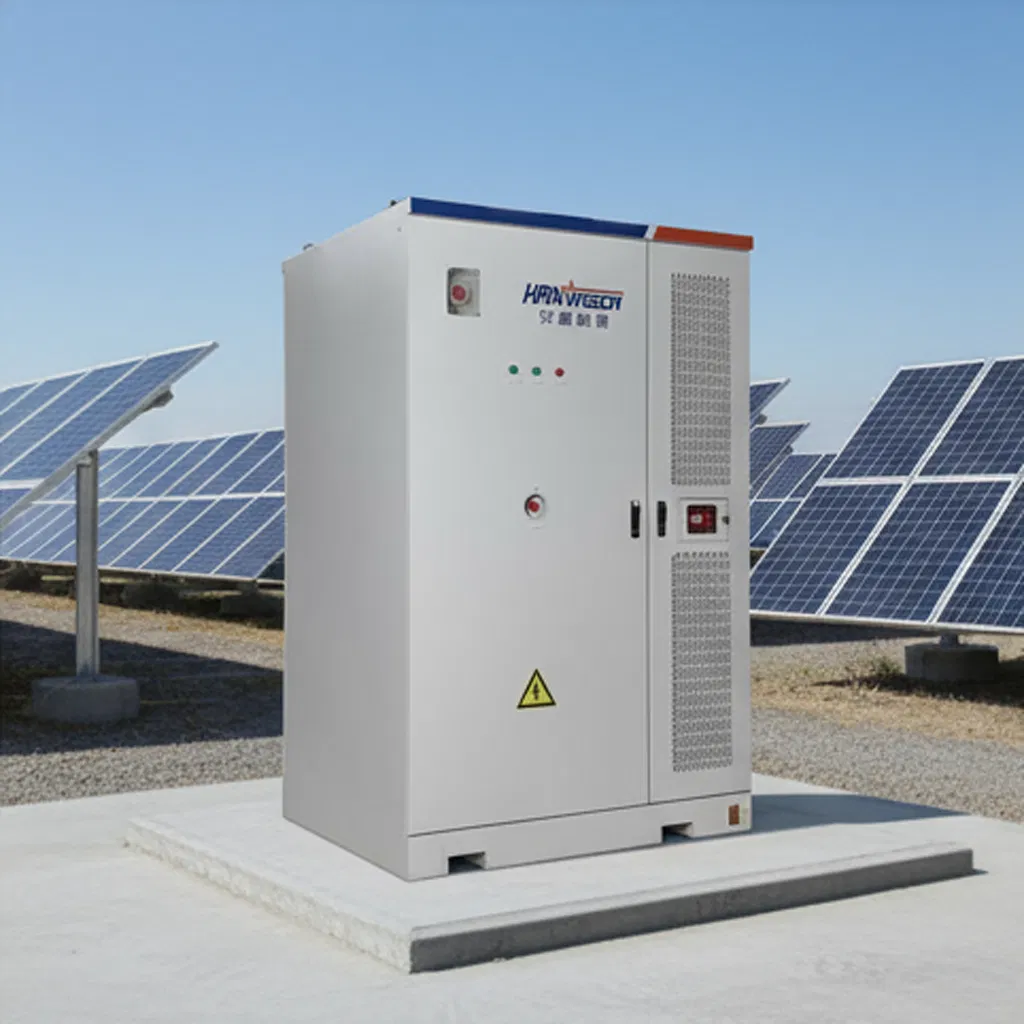

| Product Name | Commercial Energy Storage Battery |
| Nominal Voltage | 230V/400V |
| Nominal Capacity | 125KW/261KWH |
| Cycle Life | 8000 cycles+ |

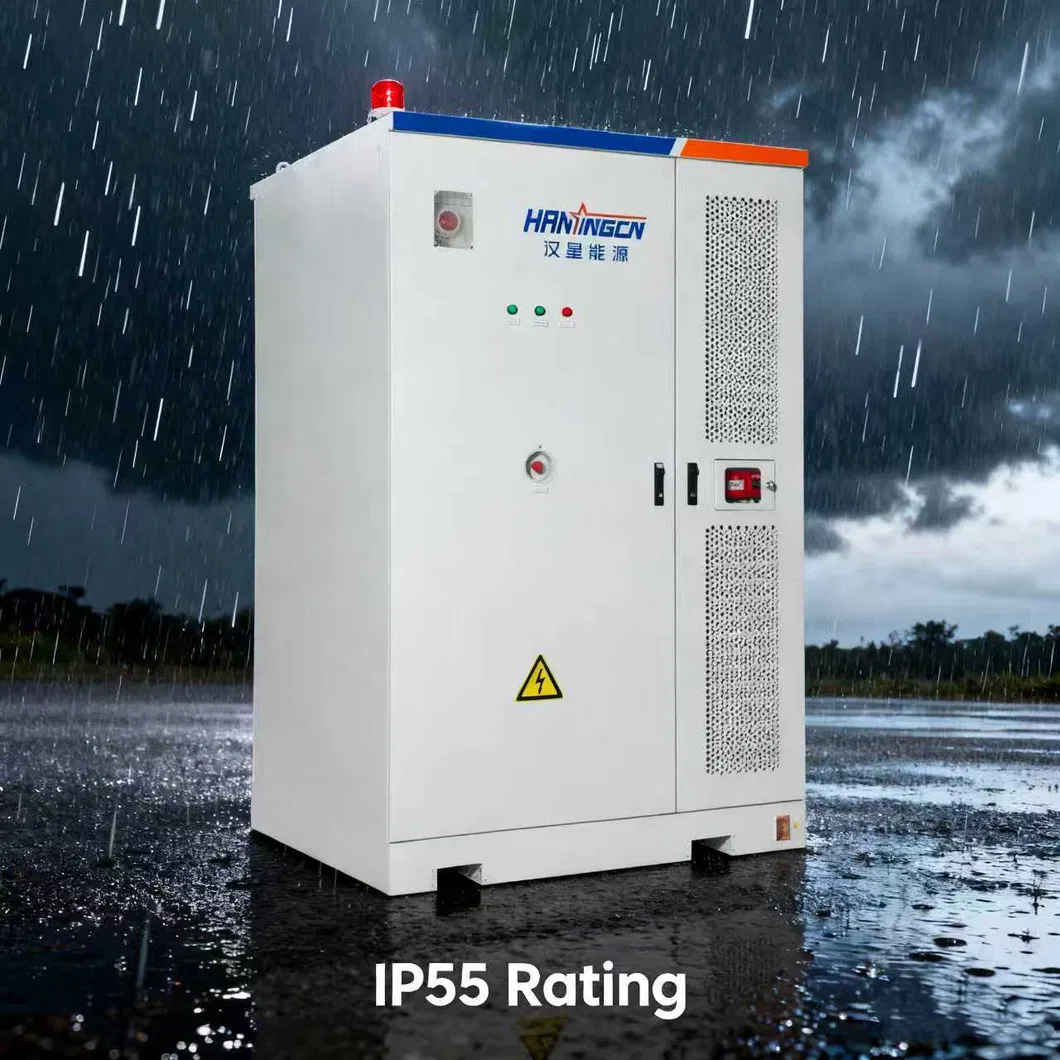

| Protection Class | IP55 |
| Cooling Method | Liquid Cooling |
| Rated Output Voltage | 400V, 3L/N/E |
| Operating Voltage Range | 650V~959V |
| Cell Type | 3.2V/314Ah LFP |
| System Efficiency | >90% |
| Communication Method | 4G/LAN |
| Operating Temperature | -25°C~55°C |

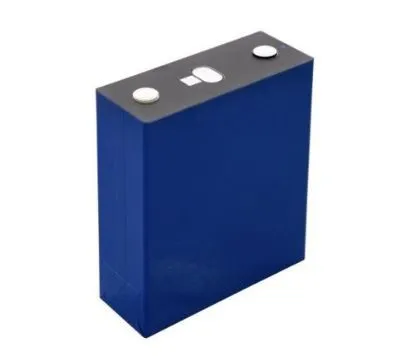

CELL: High-quality cells with long cycle life to reduce long-term usage costs.

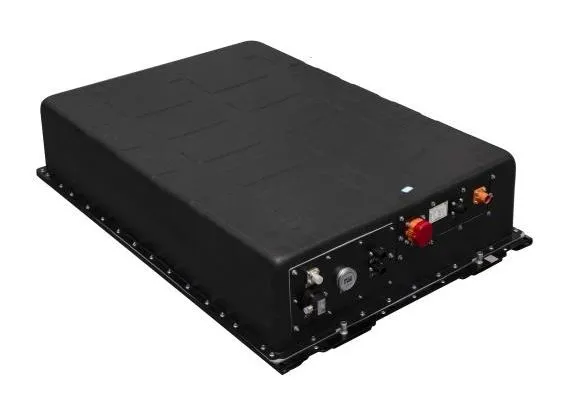

BATTERY PACK: Modular design for stable voltage and capacity with integrated protection.

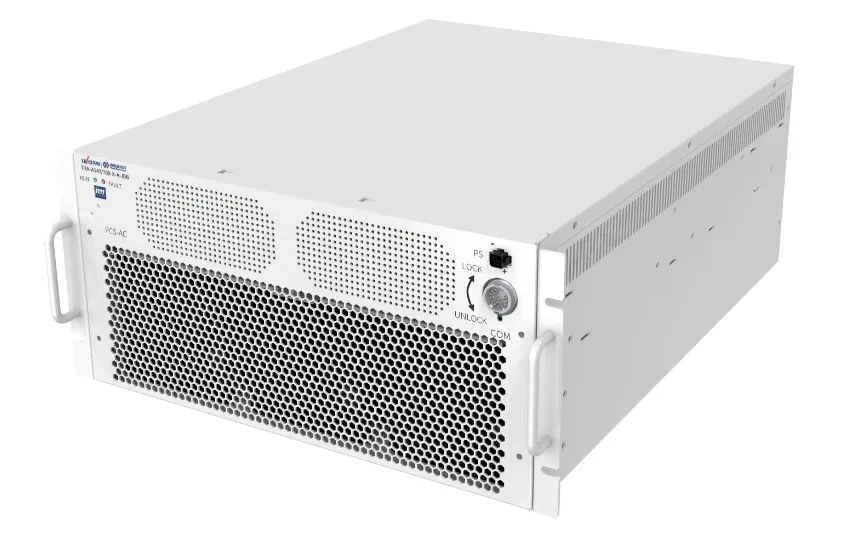

PCS: Bidirectional DC/AC conversion supporting grid interaction and switching.

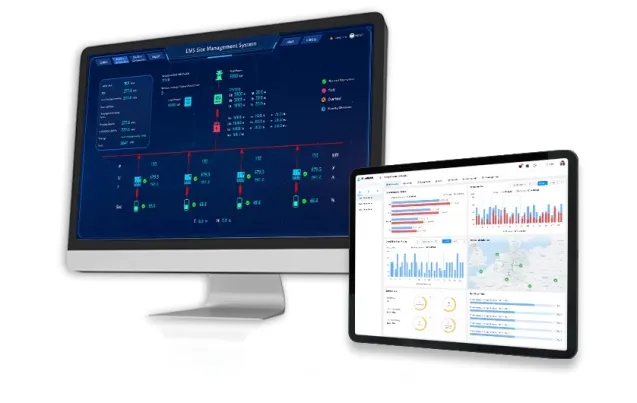

EMS: Intelligent energy management for optimal charging and discharging strategies.

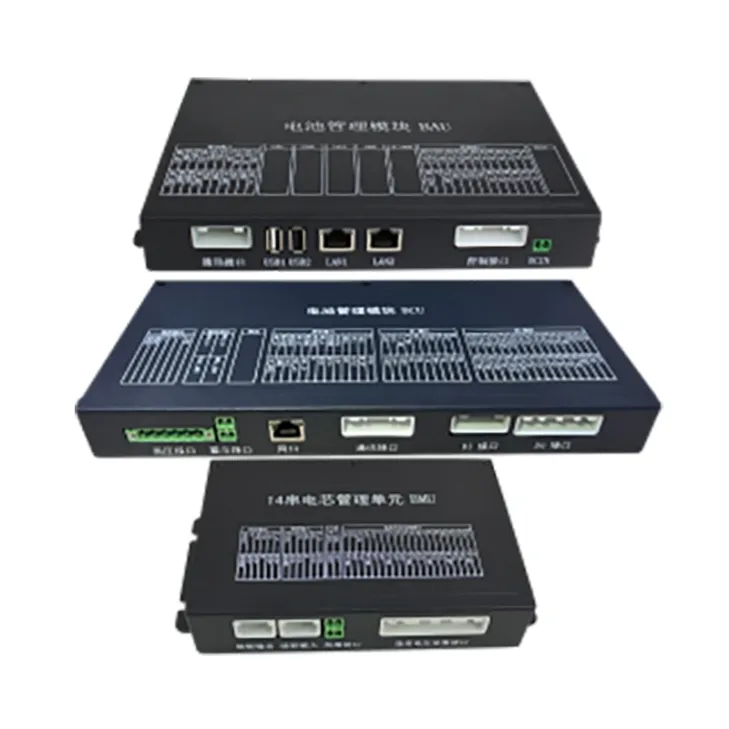

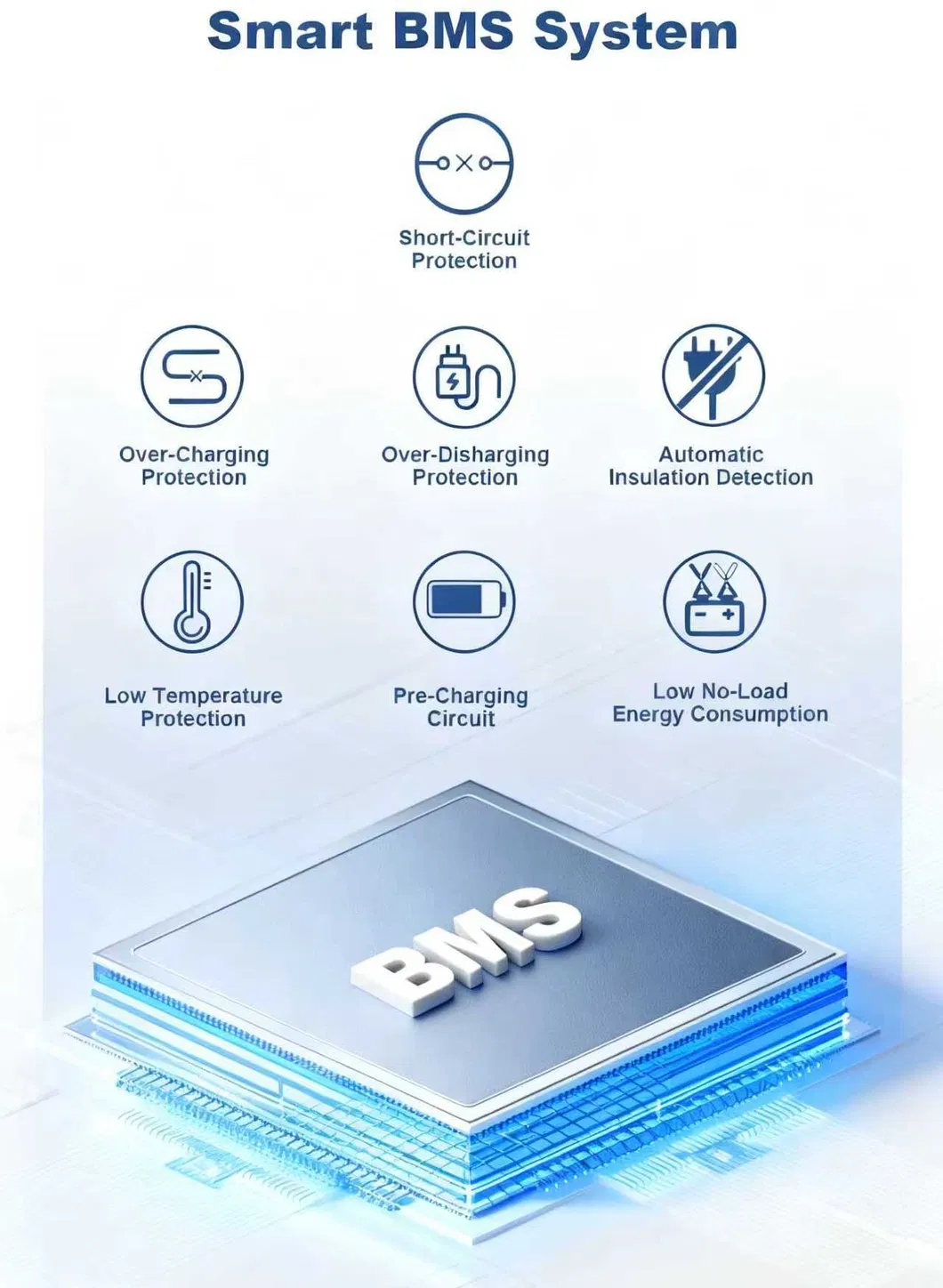

BMS: Real-time monitoring of voltage, temperature, SOC, and SOH for safety.
PEAK-VALLEY ARBITRAGE: Buying low-cost electricity during off-peak hours and discharging it during peak periods to reduce corporate energy costs and maximize profit margins.
LOAD MANAGEMENT: Minimizing short-term peak loads to lower demand charges and enhance revenue while balancing grid consumption patterns.
DEMAND RESPONSE: Voluntarily reducing consumption during shortages to support grid stability and earn economic incentives.
