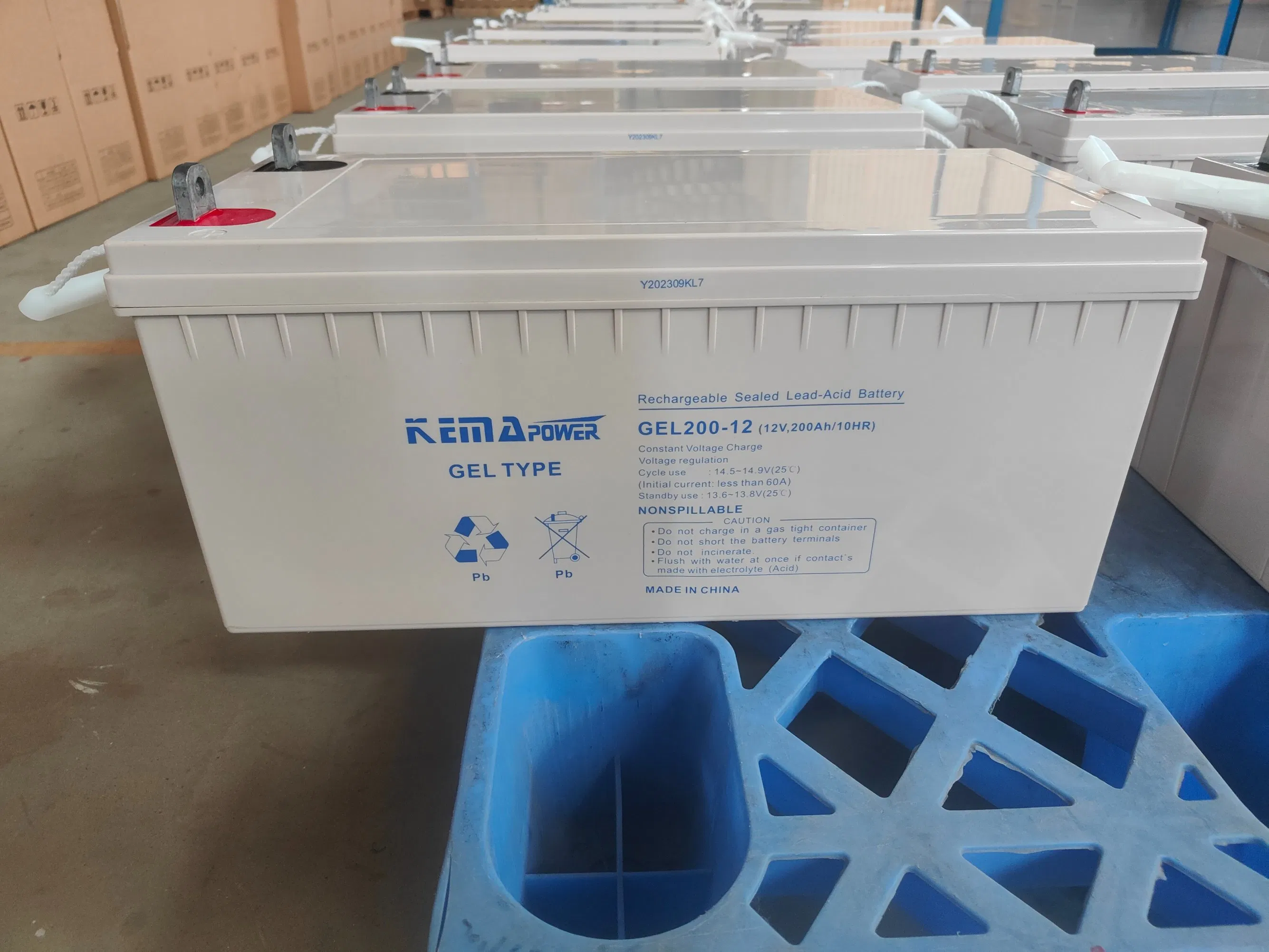

24ah to 200ah 250ah 100ah 150ah Deep Cycle Rechargeable Maintenance Free 12VDC Energy Storage AGM Solar Gel Battery
24ah to 200ah 250ah 100ah 150ah Deep Cycle Rechargeable Maintenance Free 12VDC Energy Storage AGM Solar Gel Battery
24ah to 200ah 250ah 100ah 150ah Deep Cycle Rechargeable Maintenance Free 12VDC Energy Storage AGM Solar Gel Battery
24ah to 200ah 250ah 100ah 150ah Deep Cycle Rechargeable Maintenance Free 12VDC Energy Storage AGM Solar Gel Battery
24ah to 200ah 250ah 100ah 150ah Deep Cycle Rechargeable Maintenance Free 12VDC Energy Storage AGM Solar Gel Battery
1 / 5
24ah to 200ah 250ah 100ah 150ah Deep Cycle Rechargeable Maintenance Free 12VDC Energy Storage AGM Solar Gel Battery
24ah to 200ah 250ah 100ah 150ah Deep Cycle Rechargeable Maintenance Free 12VDC Energy Storage AGM Solar Gel Battery
24ah to 200ah 250ah 100ah 150ah Deep Cycle Rechargeable Maintenance Free 12VDC Energy Storage AGM Solar Gel Battery
24ah to 200ah 250ah 100ah 150ah Deep Cycle Rechargeable Maintenance Free 12VDC Energy Storage AGM Solar Gel Battery
24ah to 200ah 250ah 100ah 150ah Deep Cycle Rechargeable Maintenance Free 12VDC Energy Storage AGM Solar Gel Battery

24ah to 200ah 250ah 100ah 150ah Deep Cycle Rechargeable Maintenance Free 12VDC Energy Storage AGM Solar Gel Battery

Customization: Available
Type: Lead-Acid Batteries
Usage: Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Boat
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
GEL
Nominal Voltage
12V
Discharge Rate
Low Discharge Rate
Shape
Square Battery
Electrolyte
Acid
Installation
Packaged
Rechargeable
Chargeable
Size
520*240*224cm
Application
Solar Power System
Product Name
Gel65-12 Flat Plate Gel VRLA 12VDC Battery
Service Life
10 years
Origin
China
Capacity Range
24AH-250AH
📦

Packaging & Delivery

Package Size
166.00cm * 125.00cm * 182.00cm
Gross Weight
9.000kg
★

Key Features

  • Primary material is gas silicon dioxide from import.
  • Fully sealed: with cover and pole double seal design to prevent leakage of electrolysis and ensure reliability of safety valve.
  • Free maintenance: high sealed reaction efficiency, no need for water compensation during use.
  • Safety: reliable gas pressure venting system equipped with anti-explosion device.
  • Long cycle life: anti-erosion pb-ca multi-alloy and ABS plastic material ensure 10-year service life.
  • Temperature adaptability: can be used safely between -25ºC to 50ºC.
  • Convenient and safe: allowed to be transported by sea and railway as nonhazardous material.
  • Economical: high performance and lowest maintenance cost.
📋

Technical Specifications

BATTERY MODEL Voltage Capacity Charge Voltage (VDC) Product Size (MM) Weight Terminal
(VDC) (Ah) Cycle Float L W H T/H KG
GEL24-12122414.4-1513.651661251751828.00M6
GEL38-12123814.4-1513.6519716517018212.00M6
GEL65-12126514.4-1513.6535016617817821.00M6
GEL100-12M1210014.4-1513.6540717423823831.00M8
GEL150-121215014.4-1513.6548517124124143.00M8
GEL200-121220014.4-1513.6552024022424463.00M8
GEL230-121223014.4-1513.6552026920320367.00M8

Note: 10 year Service life, ABS shell. All parameters are subject to change without notice.

🖼

Product Display

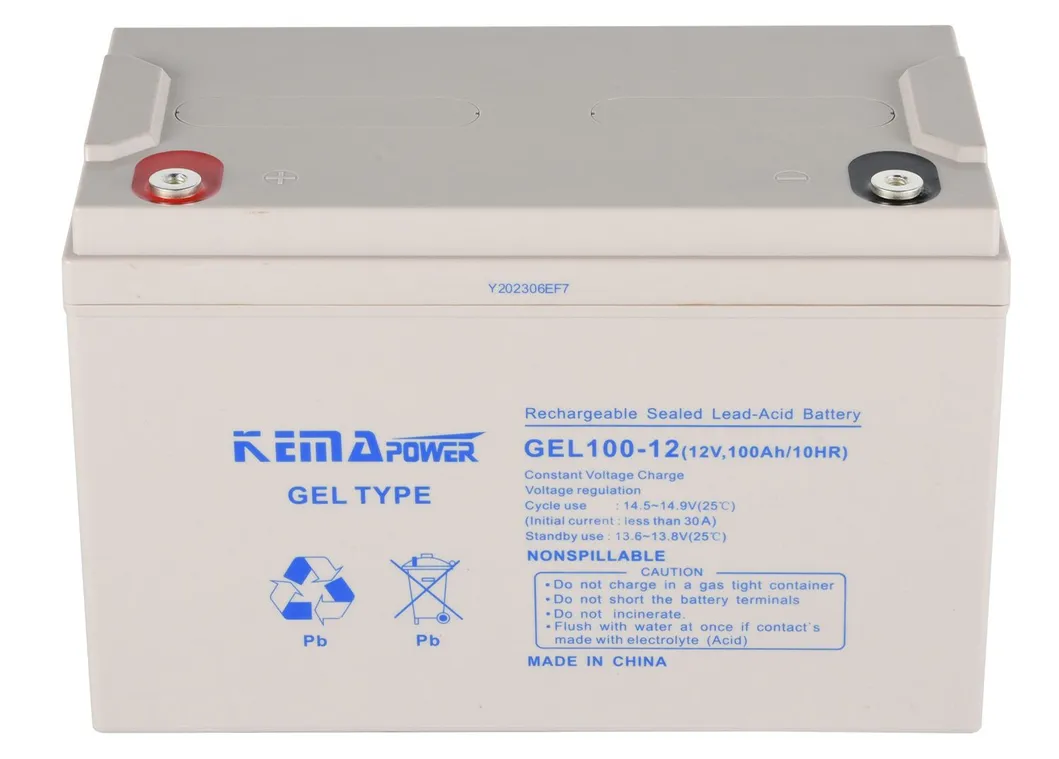

Battery Display 1

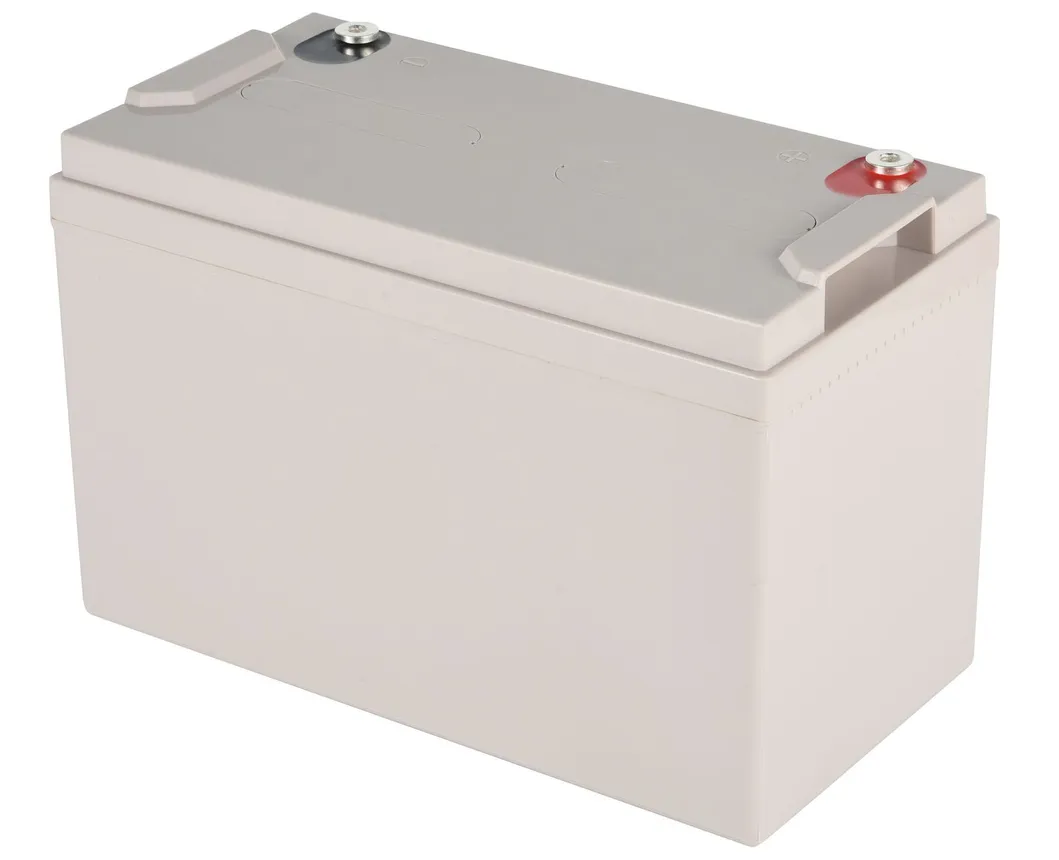

Battery Display 2

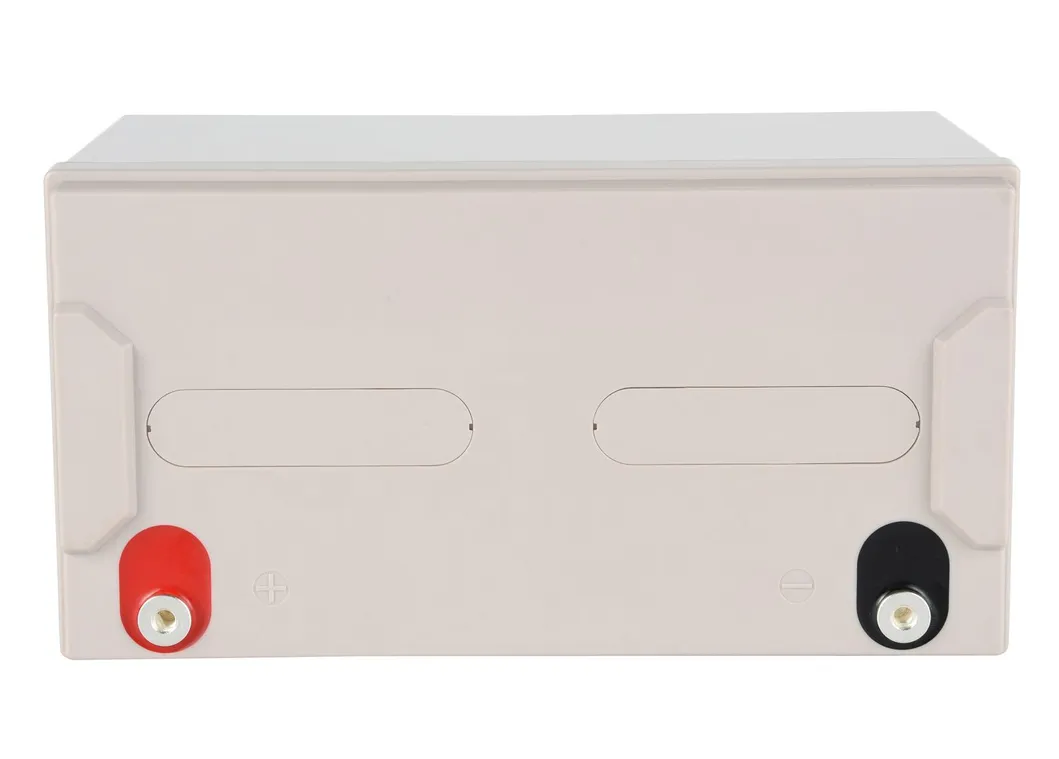

Battery Display 3
Detailed View 1 Detailed View 2 Detailed View 3 Detailed View 4
?

Frequently Asked Questions

What is the expected service life of this Gel VRLA battery?
The battery is designed with a long service life of up to 10 years, thanks to its anti-erosion pb-ca multi-alloy and high-quality ABS material.
Does this battery require regular water replenishment?
No, this is a maintenance-free battery. It features high sealed reaction efficiency, eliminating the need for water compensation during its entire service life.
What is the operating temperature range for safe usage?
The battery is highly adaptable to various environments and can be used safely within a temperature range of -25ºC to 50ºC.
Is the battery safe from acid leakage?
Yes, it is fully sealed with a cover and pole double seal design. It also includes a reliable gas pressure venting system and an anti-explosion device for maximum safety.
Can these batteries be transported by sea?
Absolutely. Since there is no free electrolysis and the battery is fully sealed, it is classified as nonhazardous material and can be safely transported by sea or railway.
What are the primary applications for this battery model?
These batteries are primarily designed for Solar Power Systems, but they are also suitable for various energy storage and deep cycle applications.
